Descrição
8-bit knobs and handles from the original Super Mario Bros game. Due to the 8-bit style, the edges are a bit sharp if you catch them right but it's not really noticeable when using the handle properly.
Coin Knob
The knob is a remix of my Super Mario Bros 8-Bit Mario Coin Plate as a cabinet knob. There are two sizes, a normal sized knob (30mm x 21mm) and an oversized knob (45mm x 32mm). The oversized version isn't absurdly large but looks slightly out of place on a typical cabinet door. I put a set of the normal ones on my entertainment cabinet (pictured) and they look like they are floating properly when I view them from my couch.
Print Details | |
|---|---|
| Layer Height | .16 mm |
| Infill | 5% Gyroid |
| Color Change | The coin is layered in a way to allow for layering the three different colors: the background shadow, the embossed shadow, and the top color |
| Filament | Top: Hatchbox Gold PLA Middle: Hatchbox Bronze PLA Base: Overture Black PLA |
| Print Plate | Smooth heated PEI plate |

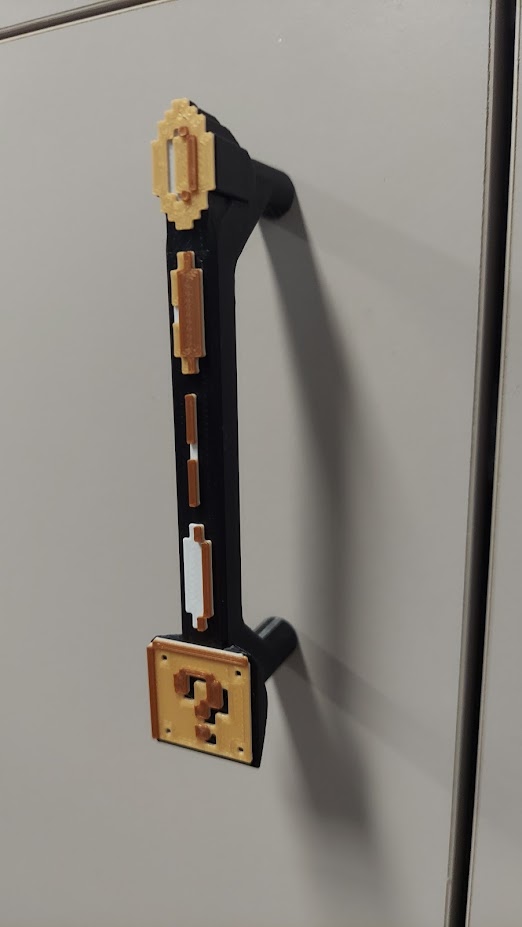

Coin Box Drawer Handle
The handles are a ? box with a coin flying up after being hit. Each of the four coin shapes above the box are the different sprites from the animation with the full coin at the top.
Print Details | |
|---|---|
| Layer Height | .16 mm |
| Infill | 5% Gyroid |
| Support | I used support for the middle of the handle on all areas above a 35 degree angle. I did have some of the test prints succeed without support and successfully bridge the gap but the handle likes to warp and pull one end off the bed when you do this. |
| Raft | Suggested but I did get a couple prints to succeed without them. |
| Color Change | The handle is layered in a way to allow for layering the four different colors: the background shadow, the white highlight, the lighter background, and the top shadow. At .16mm you should have three layers for each of the top colors. |
| Filament | Top Shadow: Hatchbox Bronze PLA Lighter Background: Hatchbox Gold PLA White Highlight: Overture White PLA Base: Overture Black PLA |
| Print Plate | Smooth heated PEI plate |
8-Bit Mario Cabinet Knobs and Handles
Publicado em 17 de mar de 2023
