This is an elegant Art Deco style drawer pull to compliment my Art Deco Cupboard Handle design.

There are three mounting holes - if replacing an existing handle or knob, simply use the central position with a single screw, but if a little extra security is necessary use the two outer holes.

You can accurately locate the holes using a CUPBOARD HANDLE DRILLING TEMPLATE model which was designed for use with this handle.

Two options are provided; the first has holes threaded for an M4 bolt (3/16" seem to work fine).   These threads are printed on their sides and require a little effort but work effectively, however I prefer to run an M4 tap through just to clear them a little.

The second option, which is my preferred is set up for threaded inserts such as THESE.

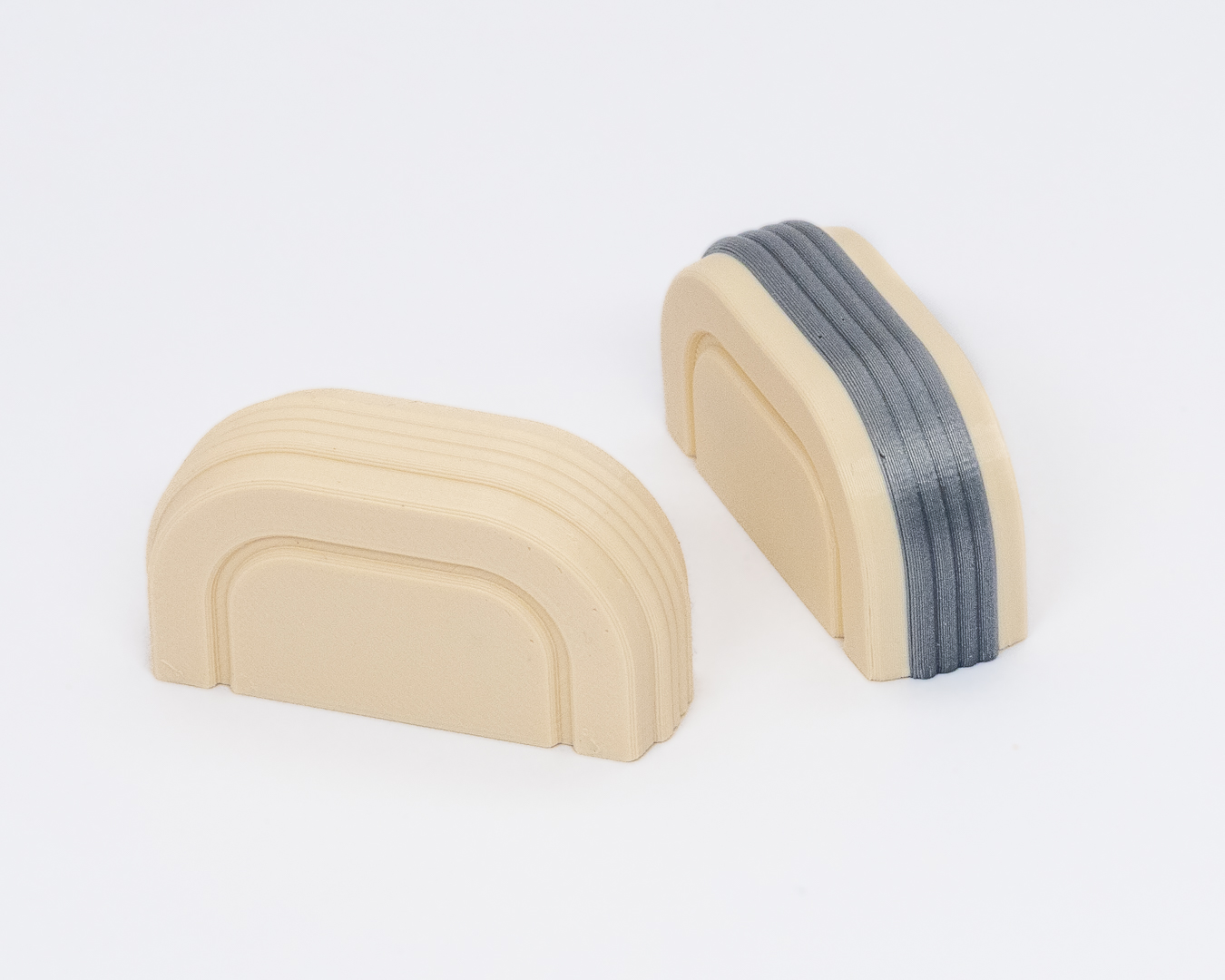

I have printed these in a variety of combinations of PLA, 0.2mm layer height with a .4mm nozzle.   No supports are necessary and at 0.2mm colour changes as shown are at 3.6mm (layer 18) and 12.6mm (layer 63).
