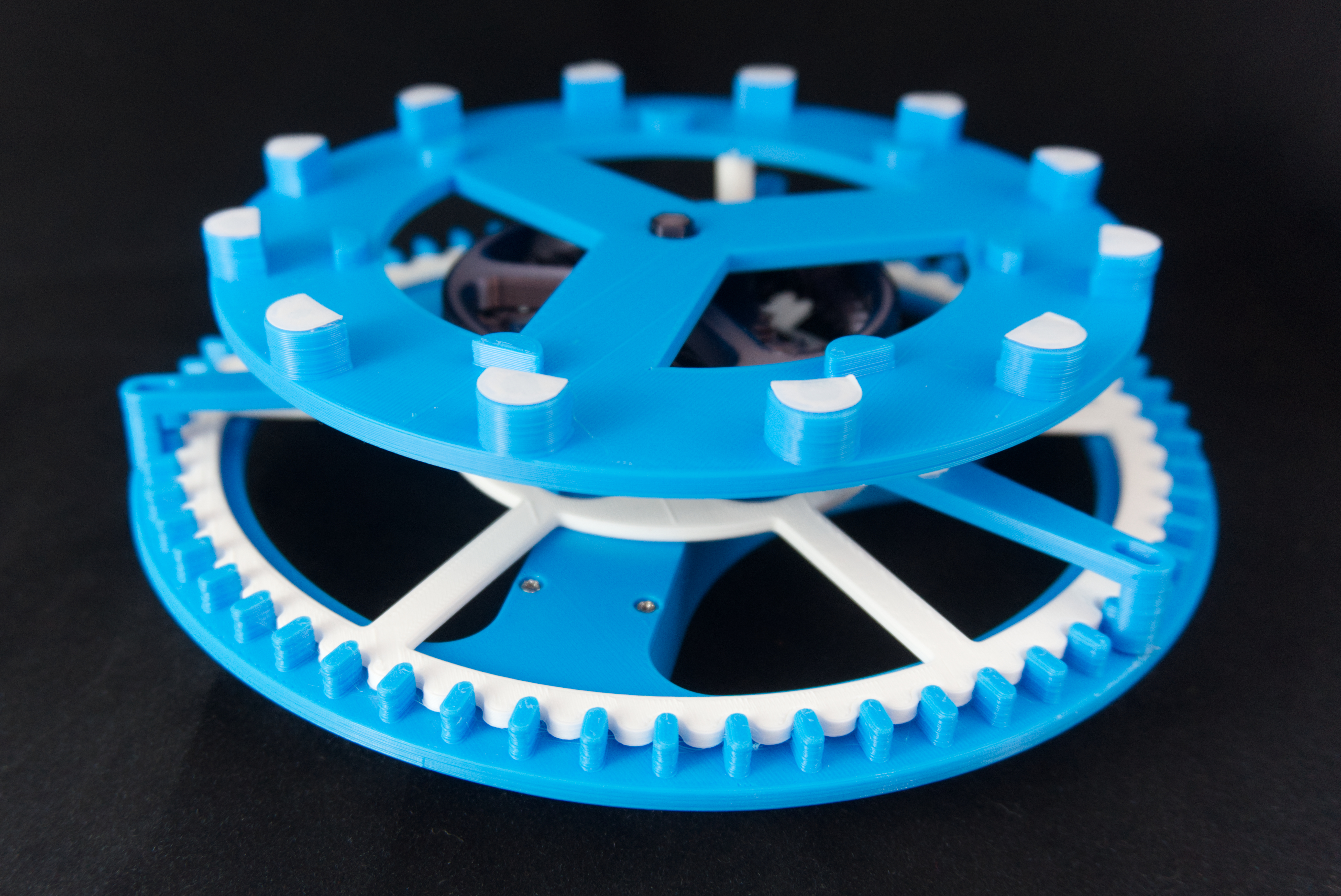

An original design for a clock using cycloidal gears. There are two cycloidal gears, one for minutes (bottom) and the other for hours (top). A planetary gear is sandwiched in between to reverse the rotation of the output shaft so everything spins clockwise.
Here is a demo video.
More information about assembly and build here.
Print instructions

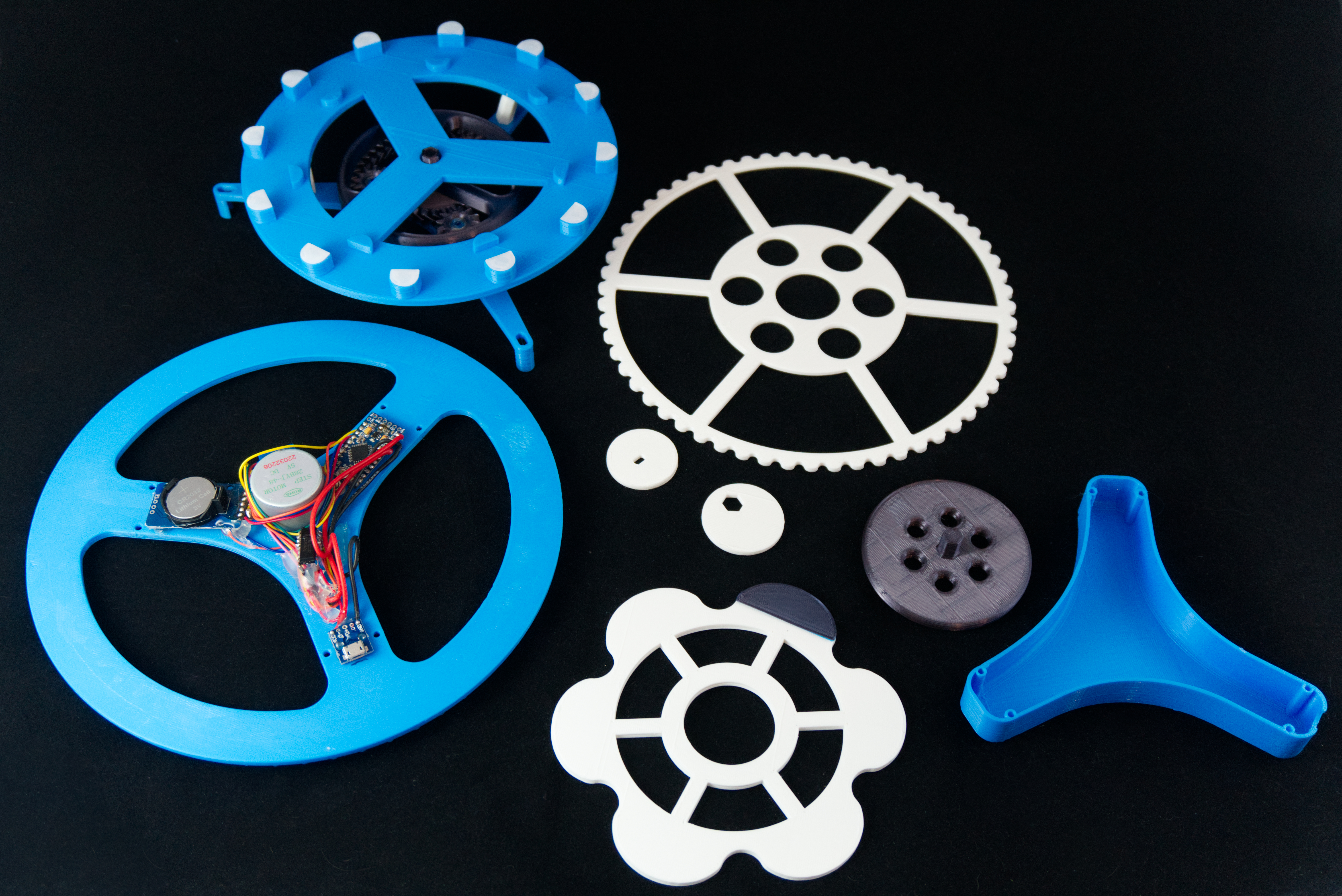

- Minutes Cycloid Gear x1
- Minutes Cycloid Pin Frame x1
- Minutes Eccentric Piece x1
- Minutes Output Shaft Bottom Half x1
- Minutes Output Shaft Top Half x1 (glue together)
- Hours Cycloid Gear x1
- Hours Cycloid Pin Frame x1
- Hours Eccentric Piece x1
- Planetary Gear x1
- Planetary Gear Output Shaft x1
- Planetary Gear Holder x1
- Electronics Box
- Standoff x3
- *Hour Hand x1
- *Hours Marker x12
- You can skip these parts using color change with prusaslicer
