Modelo 3D Spice Rack with Drawers (Stackable) por Quartinus no Printables

Descrição

Summary

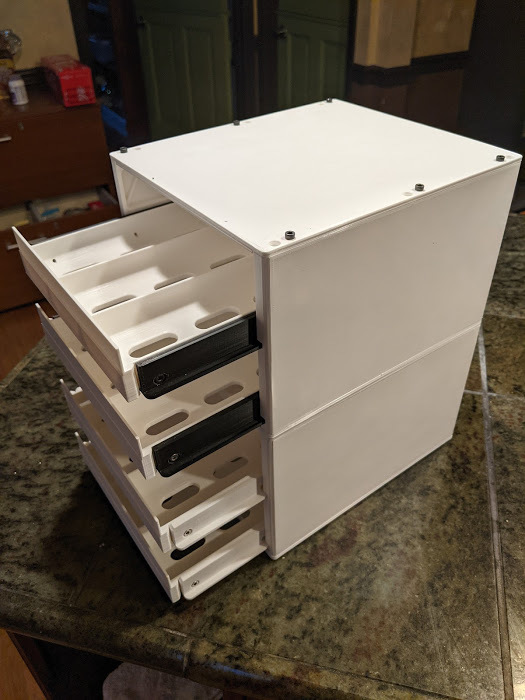

This is a 2-drawer spice rack that is stackable with adjacent units to form a full tower. I have printed two sets, so I have 4 drawers total. Each pair of drawers holds 12 spice jars.

The entire thing is assembled with M3 6-8 mm length screws (the entire thing can be assembled with a single length of screw). No tapping should be required, but depending on your filament you may want to pre-tap to reduce the chance of cracking.

All pieces are labeled with the required print quantity to make one spice rack. 2x_(etc) means that the file must be printed twice to yield a full spice rack.

V2 Spice Rack

The V2 design contains several improvements over the V1. Notably:

  • The side rail profiles are fixed to tolerance the holes properly,
  • The datum pins for the side rails can now be printed and clearanced without support or cleanup
  • Side rails are labeled "Left" and "Right"

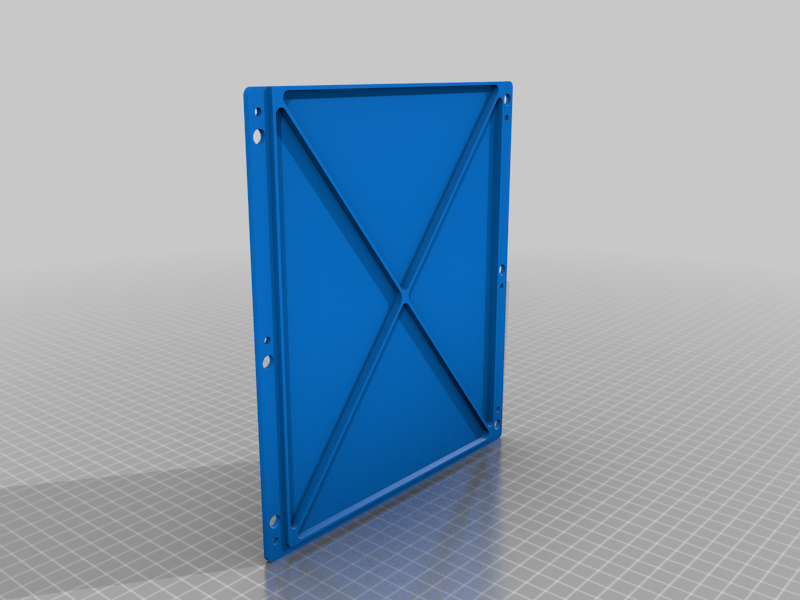

  • Top/Bottom plate has been thinned to reduce plastic usage

A full 2-drawer set now takes about 0.65 kg to print

ZIP contents are as follows:

| Folder | Description | | --- | --- | | cura_3mf | .3mf files from my Cura including layout and print settings for Ender 3 Pro with Hatchbox PLA | | creo_asm_v2 | Creo Elements assembly .prt files and .asm file | | stl | STL files | | STEP_AP214 | Spice rack part files in STEP format (AP214 formatted) output for CAD interchangeability | | solidworks_export | Export in solidworks part format - I don't have solidworks so no guarantees | | nx_export | Export in Siemens NX .prt format |

V1 Spice Rack

The V1 design was my first attempt at this, I am including the files in case they are useful. Please don't print from this ZIP file.

Print Settings

Printer Brand:

Creality

Printer:

Ender 3 Pro

Rafts:

No

Supports:

Yes

Resolution:

0.2 mm

Infill:

10-20%

Filament: Hatchbox PLA White


Notes:

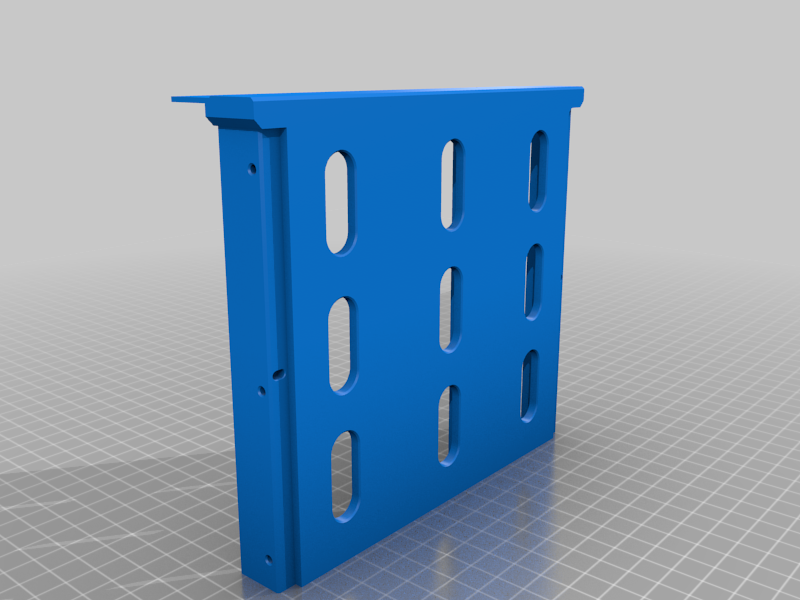

Infill Support Notes 2x-back\_holder\_spice\_rack\_v2 10% Yes Enable minimum support size 10mm^2 2x-front\_holder\_spice\_rack\_v2 10% Yes Enable minimum support size 10mm^2 2x-lt\_side\_rail\_spice\_rack\_v2 20% No - 2x-rt\_side\_rail\_spice\_rack\_v2 20% No - 2x-top\_bottom\_spice\_rack\_v2 20% No - lt\_slide\_rack\_spice\_rack\_v2 20% No - rt\_slide\_rack\_spice\_rack\_v2 20% No -
File

Category: Organization

Printables

Spice Rack with Drawers (Stackable)

Quartinus Quartinus (abre em nova aba)

Publicado em 30 de out de 2022

39
Curtidas
96
Downloads
1
Impressões
Categoria Office
Tags
kitchen thingiverse kitchentool spicerack spices spiceorganizer spiceorganiser
Licença Creative Commons — Attribution — Share Alike
