Design

This is a remix of the awesome Zel's Refrigerator Note Toggle. I am just adding two finger prints to reinforce the idea that the magnet should be toggled.

The default design is made to fit 10x2 mm disk magnets. But I am providing my parametric CAD file in 360 fusion format so you can easily modify the design to fit different size.

If you want to use the parametric design, just enter the magnet diameter and thickness. The body is designed to fit closely around the magnets so if you change the magnets side it will adjust the body side accordingly.

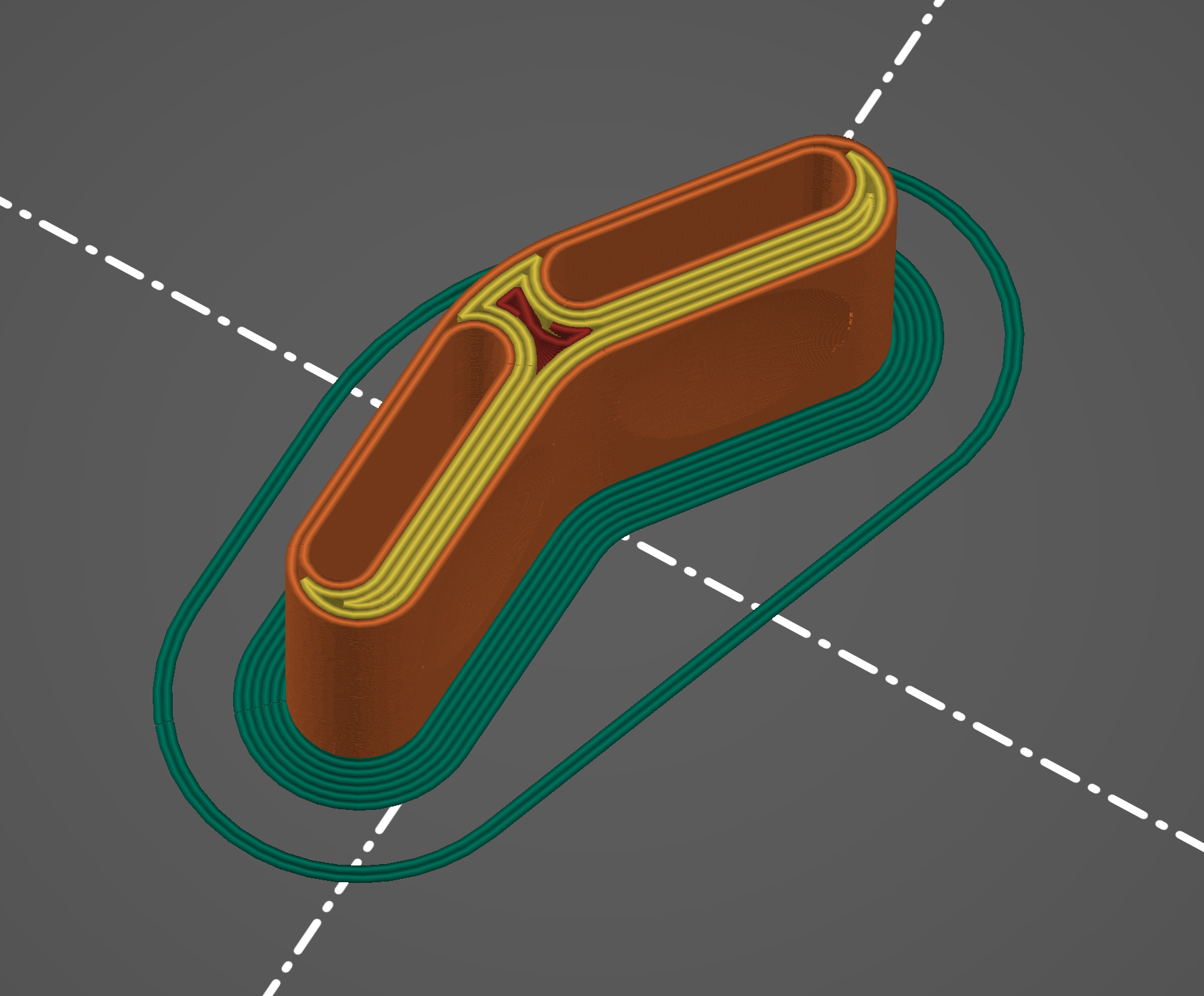

Recommended printing settings

I recommend to printing with .1 mm height and with top and bottom fill pattern concentric for a nicer finish and print with a brim to avoid the body to detach when inserting the magnets. Don't forget to insert a pause just to start printing the top cover.

Magnets

I uses 10x2 N52 disk magnets from [https://brudazon.com](https://brudazon.com) and they sale on many EU Amazon stores.
