Descrição

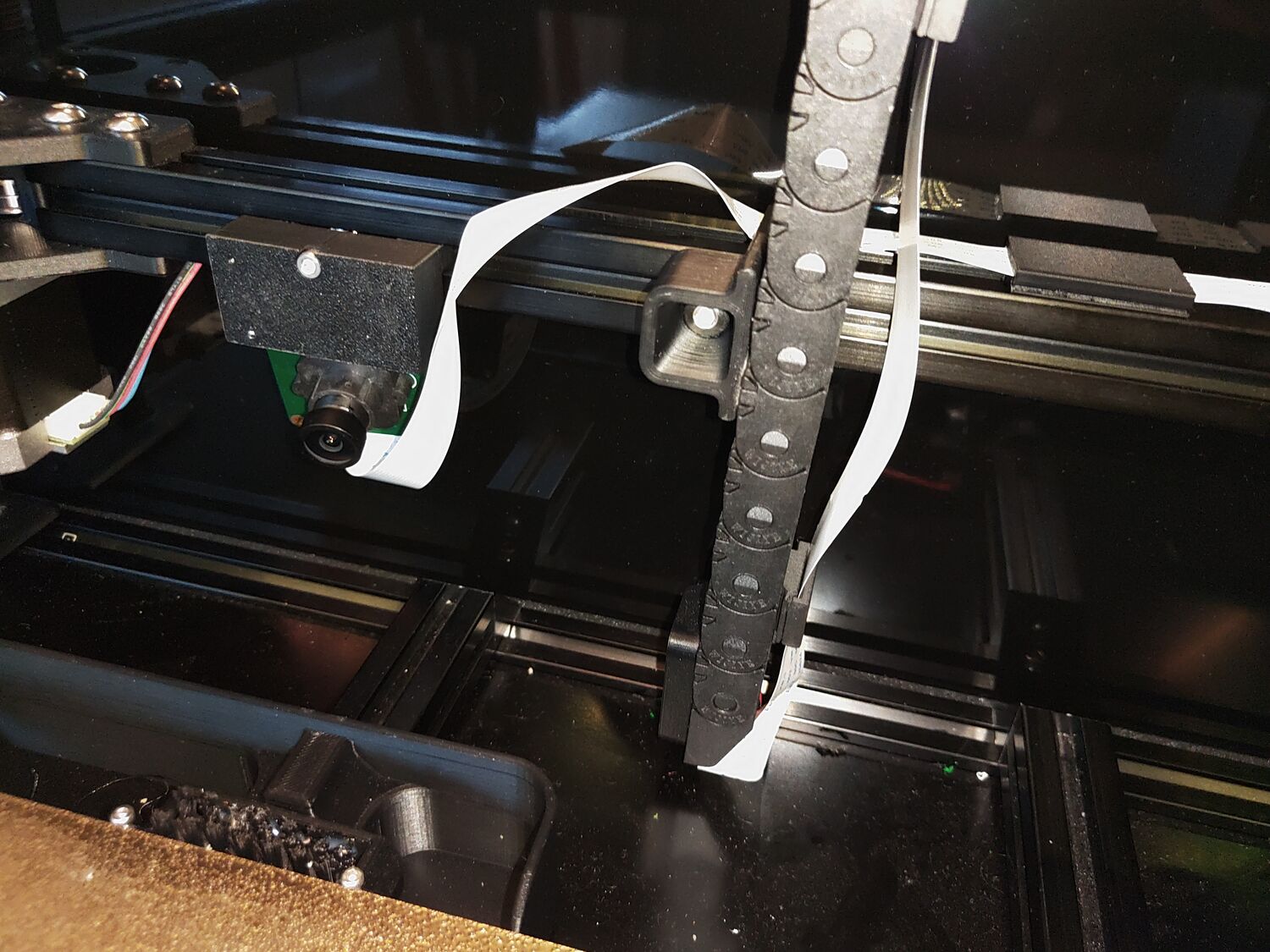

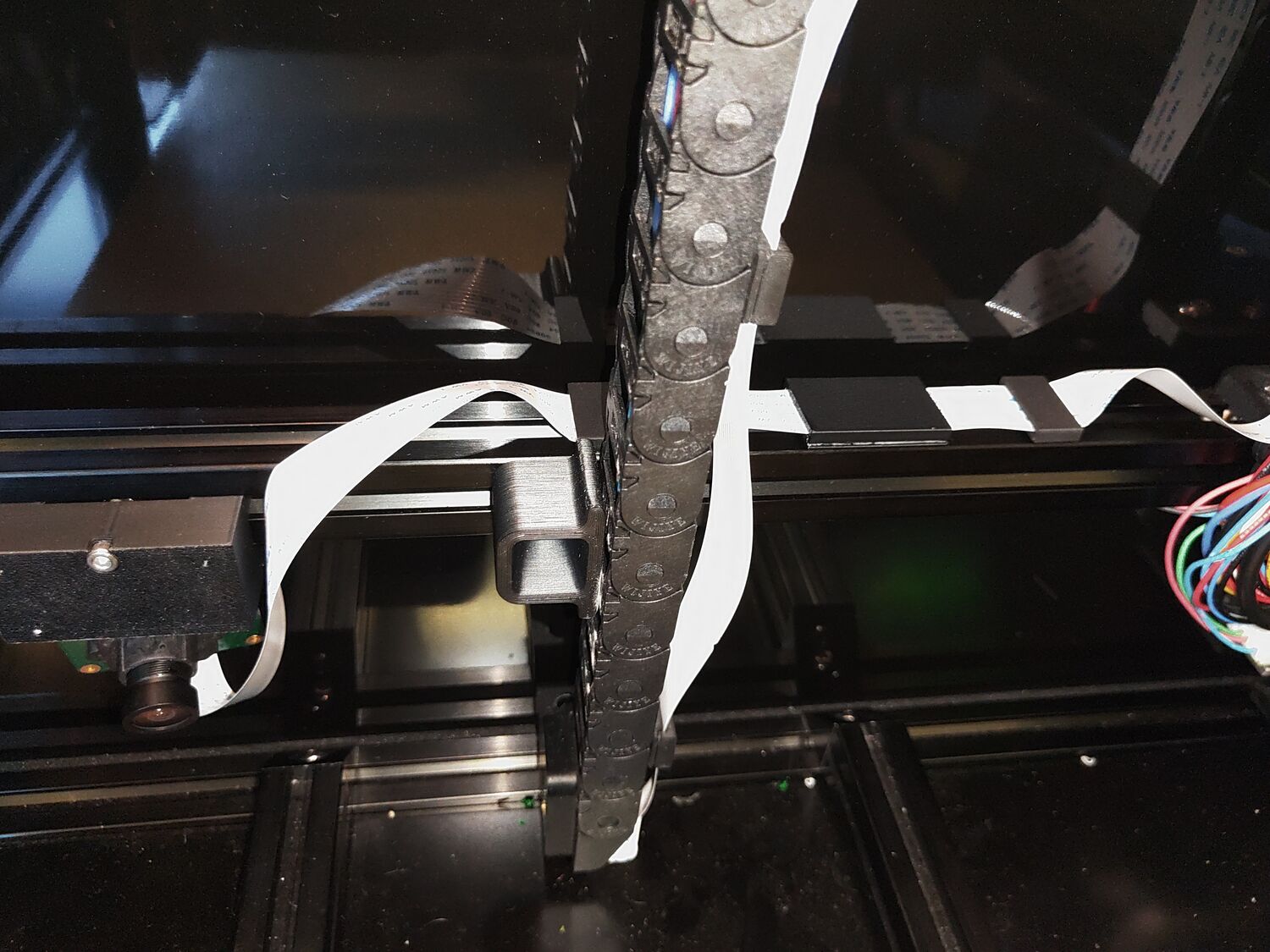

A camera mount for the back back extrusion of the Voron 2.4 gantry. The camera moves with the z-Axis, so that the nozzle is almost always in the line of sight. There is a left and right version. The clips are for attaching the ribbon cable to the drag chain and the extrusion. The freecad files are attached.
Needed for assembly:
- Wide angle raspberry pi Camera with 39mm square PCB size e.g.: [https://www.amazon.de/gp/product/B07G9VLPZH/](https://www.amazon.de/gp/product/B07G9VLPZH/)
- Flat Ribbon Cable approx. 1m
- 2x M2 Bolts (max 10mm length)
- M3 Hammernut
- M3x16 SHCS Bolt
Printables
Voron 2.4 Raspberry Pi Camera Mount
Publicado em 5 de jul de 2023
22
Curtidas
130
Downloads
Categoria
Voron Parts & Upgrades
Tags
camera
cameramount
voron24
Licença
Creative Commons — Attribution — Share Alike
Arquivos (7)
drag_chain_ribbon_cable_clip.stl
3.8 KB
ribbon_cable_clip_01.FCStd
22.4 KB
ribbon_cable_clip_01.stl
5.6 KB
drag_chain_ribbon_cable_clip.FCStd
38.7 KB
camera_mount_right.stl
286.8 KB
camera_mount_left.stl
286.8 KB
camera_mount_v04.FCStd
331.1 KB
