Modelo 3D Table leg / hand - adjustable por dr.dentz no Printables

Descrição

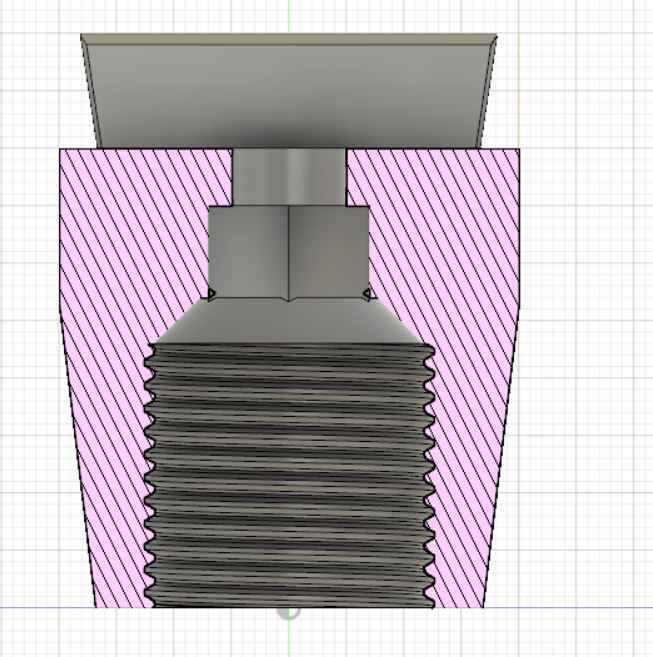

This is an adjustable table leg with the shape of a hand. I took Teak's model ([https://www.thingiverse.com/thing:1680395](https://www.thingiverse.com/thing:1680395)) and added a cylinder to the hand which can be screwed into the base which is attached to the table. The hand itself is not load-bearing. The cylinder goes all the way through.
The whole thing is adjustable in height.

Print instructions

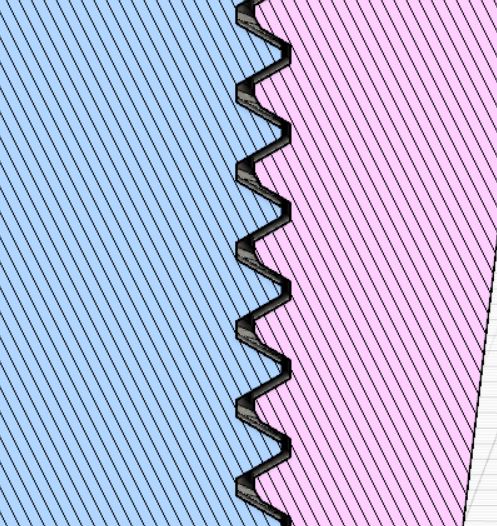

The threads should have enough space (0.5mm between the threads). However I also needed a bit of silicon oil to screw it nicely, so maybe you want to scale the base a bit bigger.

Print the hand with supports. The base prints without supports, because there are no overhangs >45°.

For the assembly you will need a standard M8 nut.

Printables

Table leg / hand - adjustable

Publicado em 13 de abr de 2020

28
Curtidas
106
Downloads
Categoria Other House Equipment
Tags
table leg
Licença Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (2)
balkonfuss_screw.stl 937.5 KB
balkonfuss_base.stl 1.3 MB
