Modelo 3D Educational clock por Jakob no Printables

Descrição

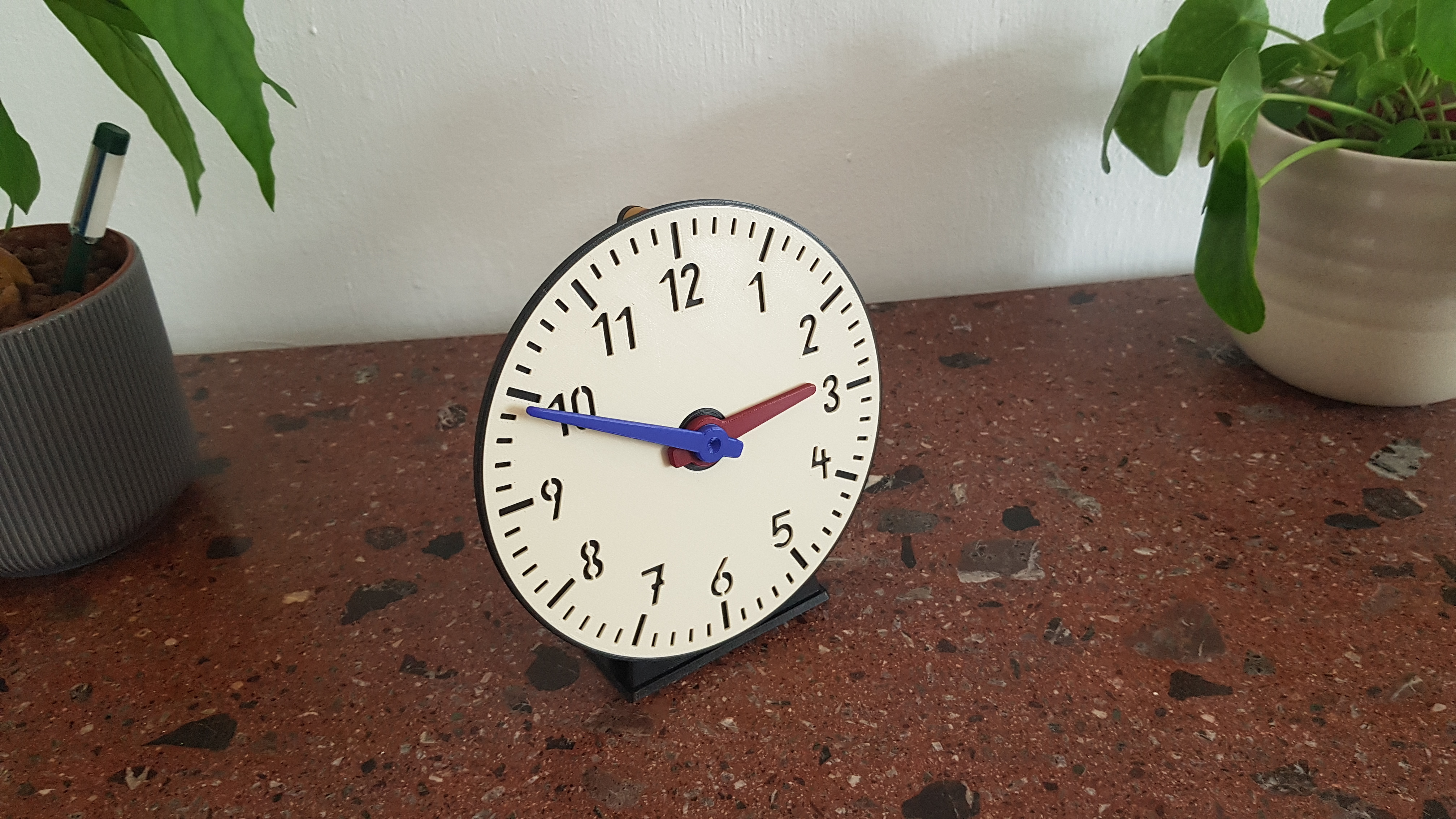

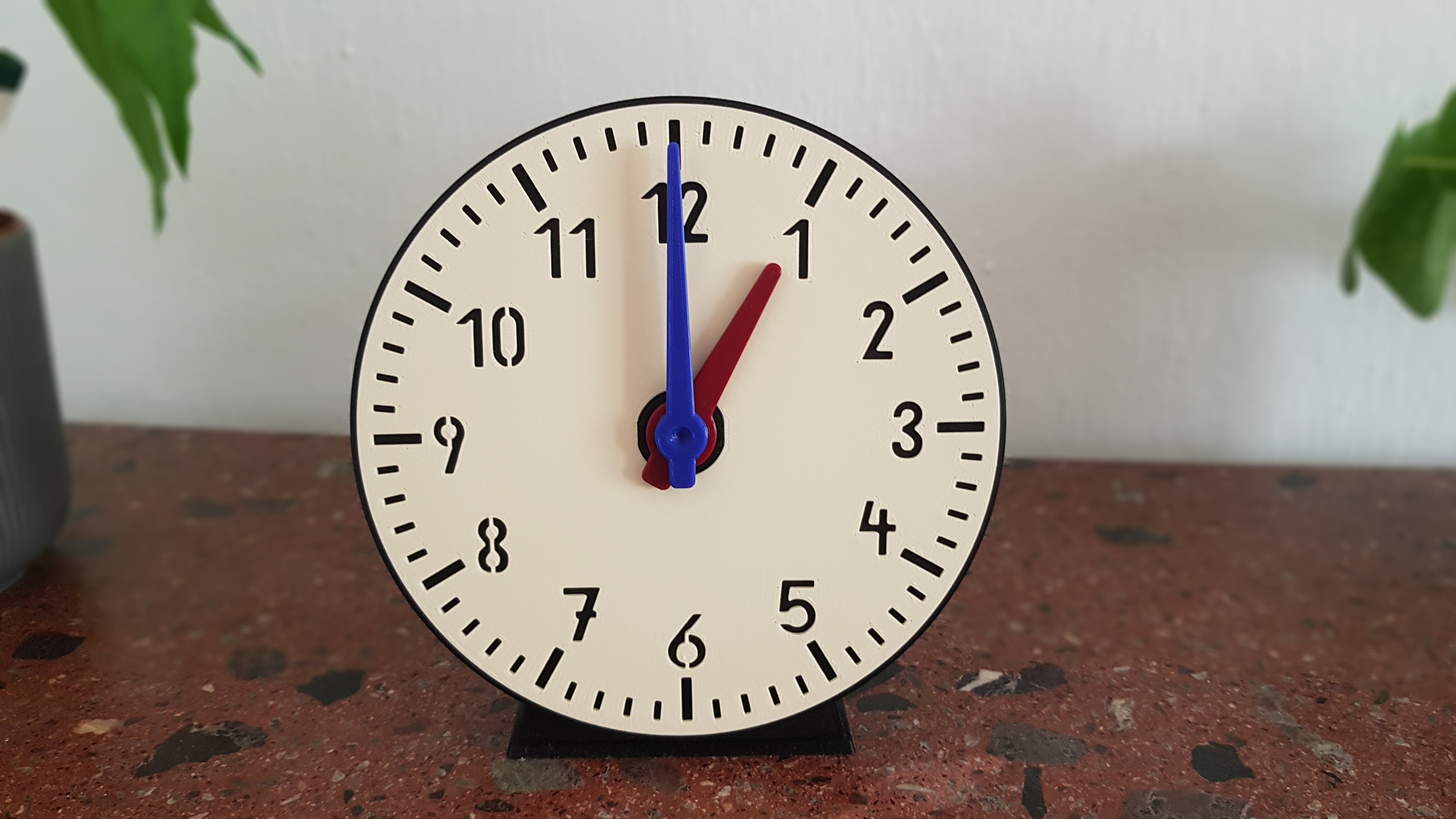

This is an educational clock to teach the analogue clock.
Also interesting for lovers of clockworks or gearboxes ;)

Completely printed without supports, no need for glue or screws either!
Also fits onto the Prusa mini (:

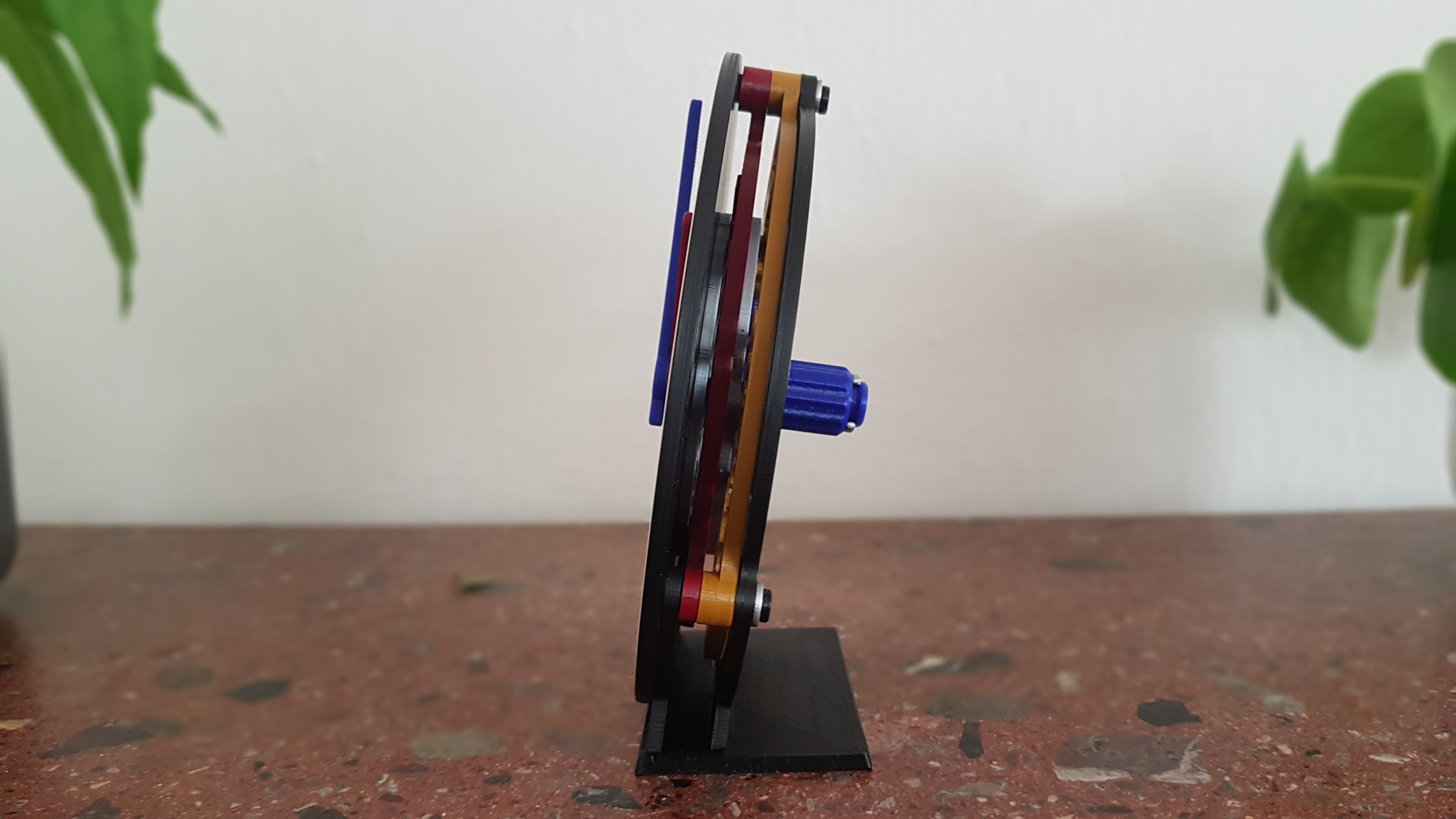

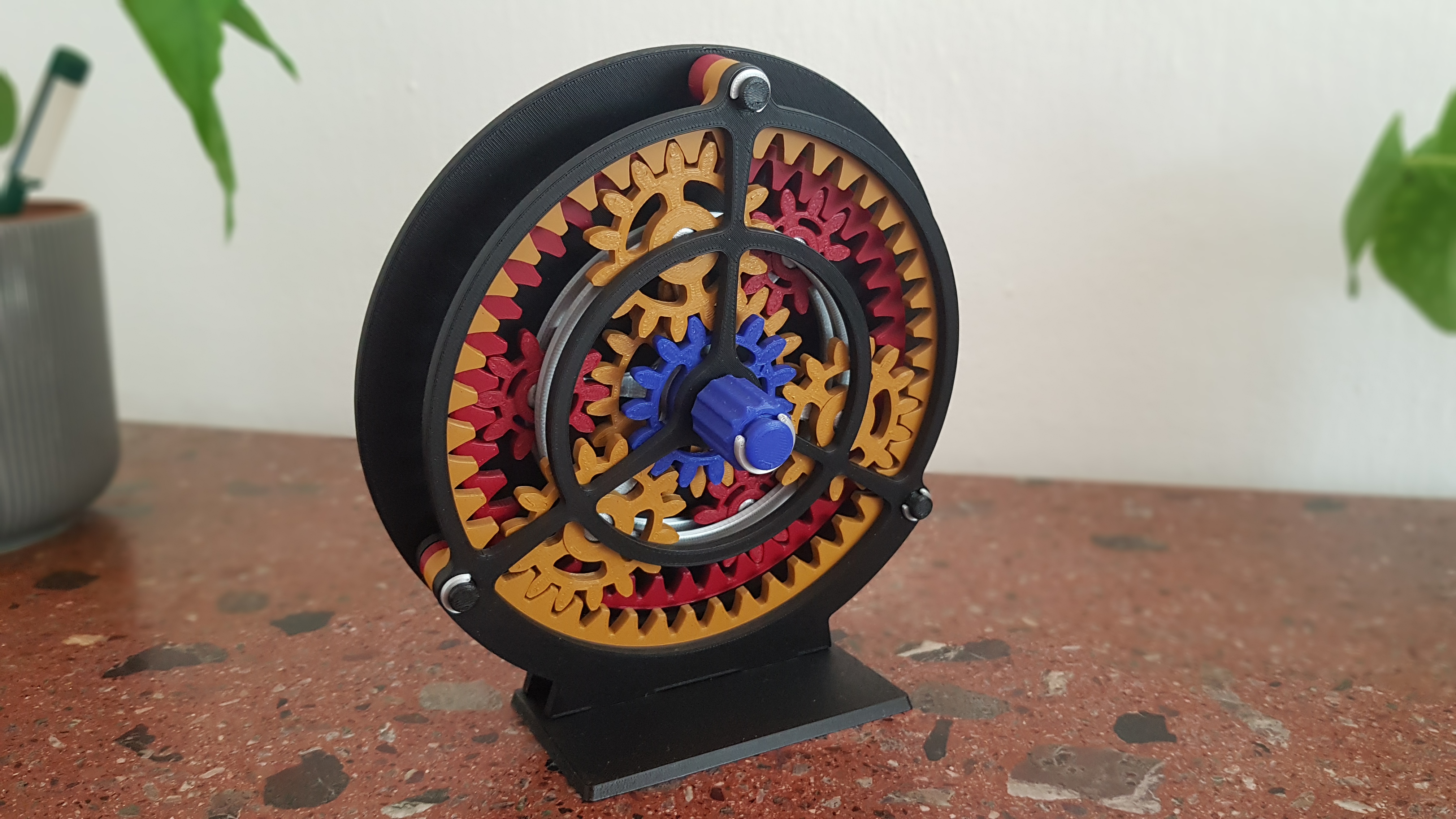

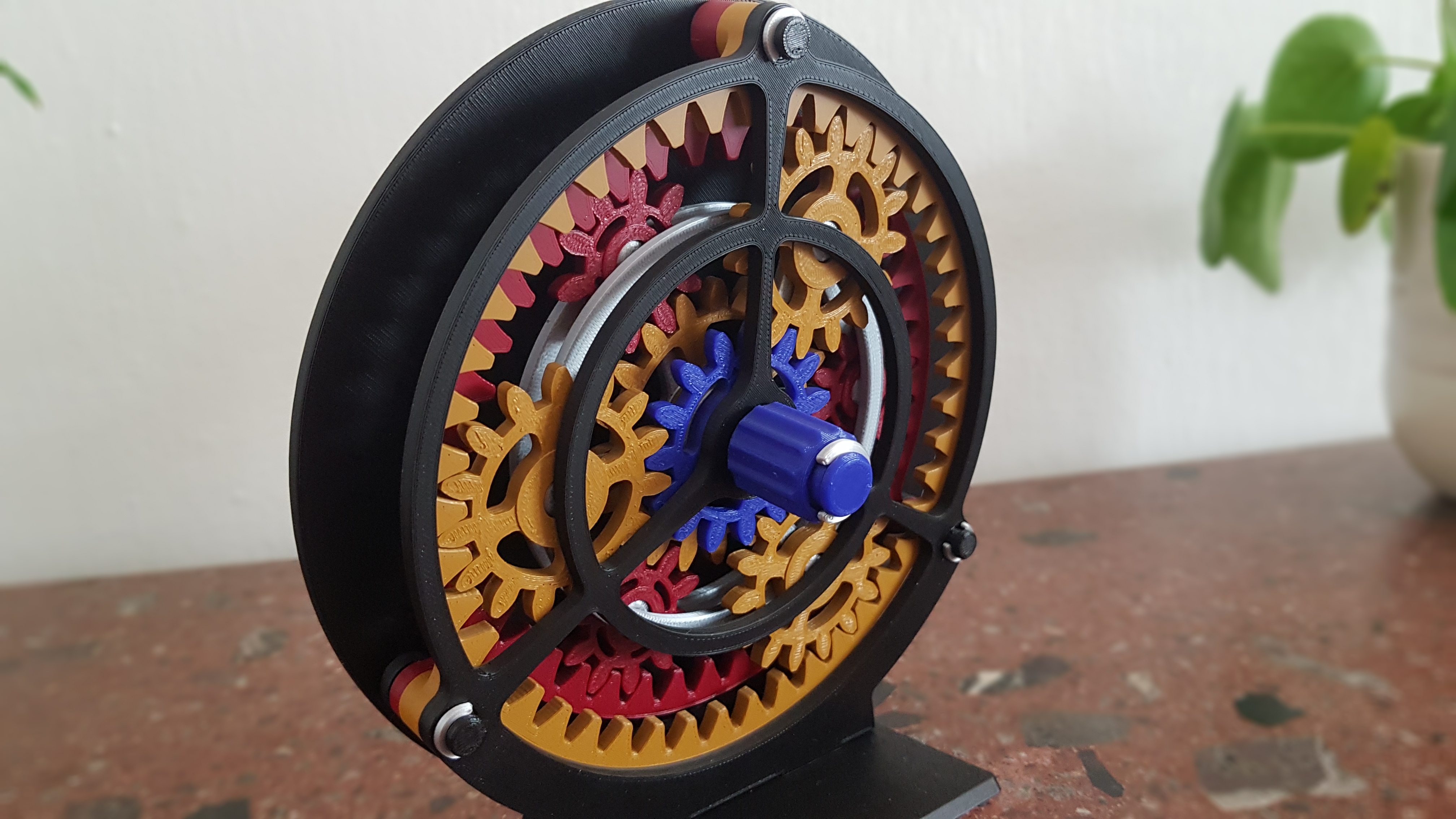

The hour- and minute hands are connected with a two-staged planetary geared clockwork on the back of the clock. Therefore they move in the correct ratio of 1:12. For a full turn of the minute hand, the hour hand will move one hour.

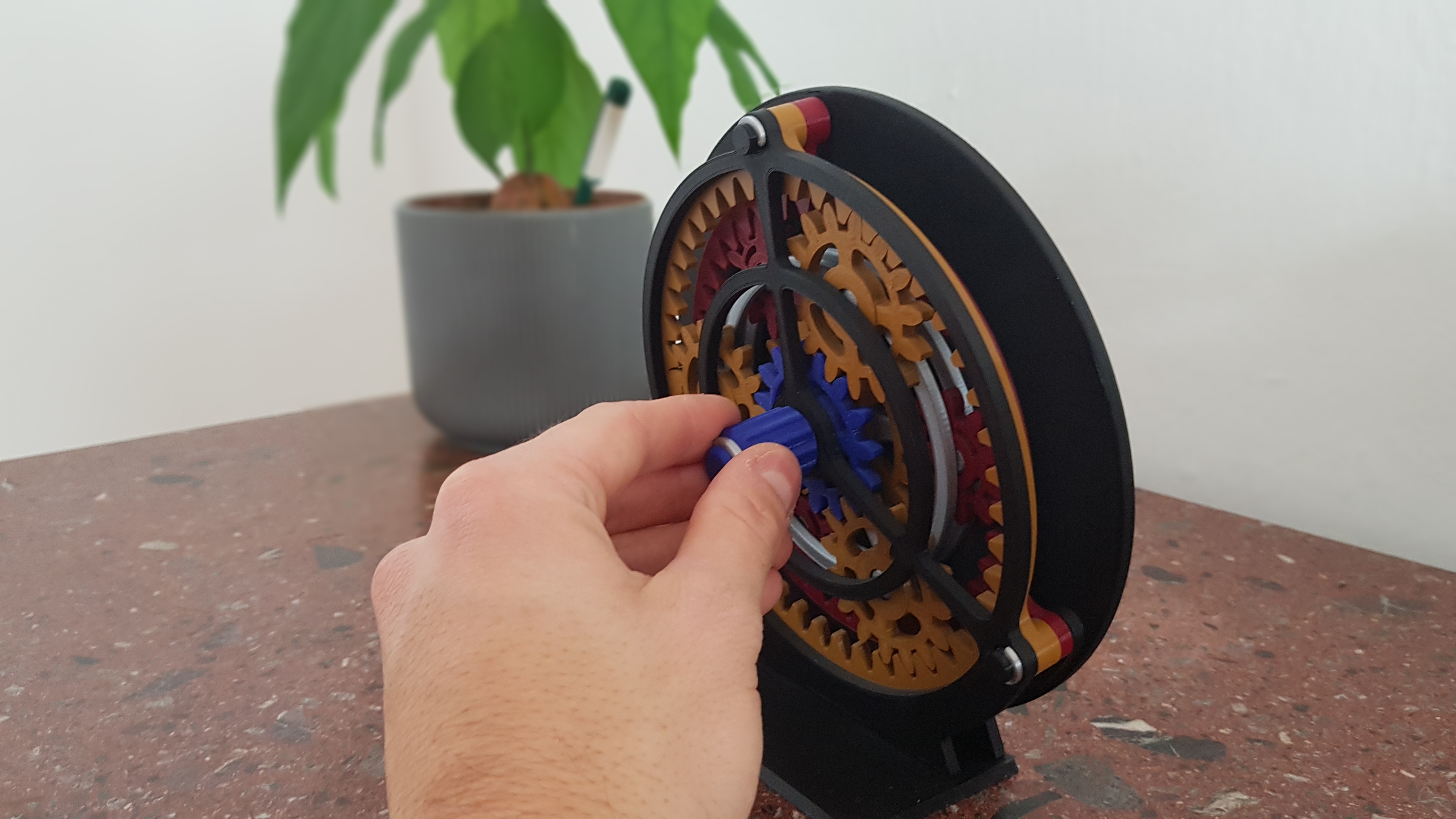

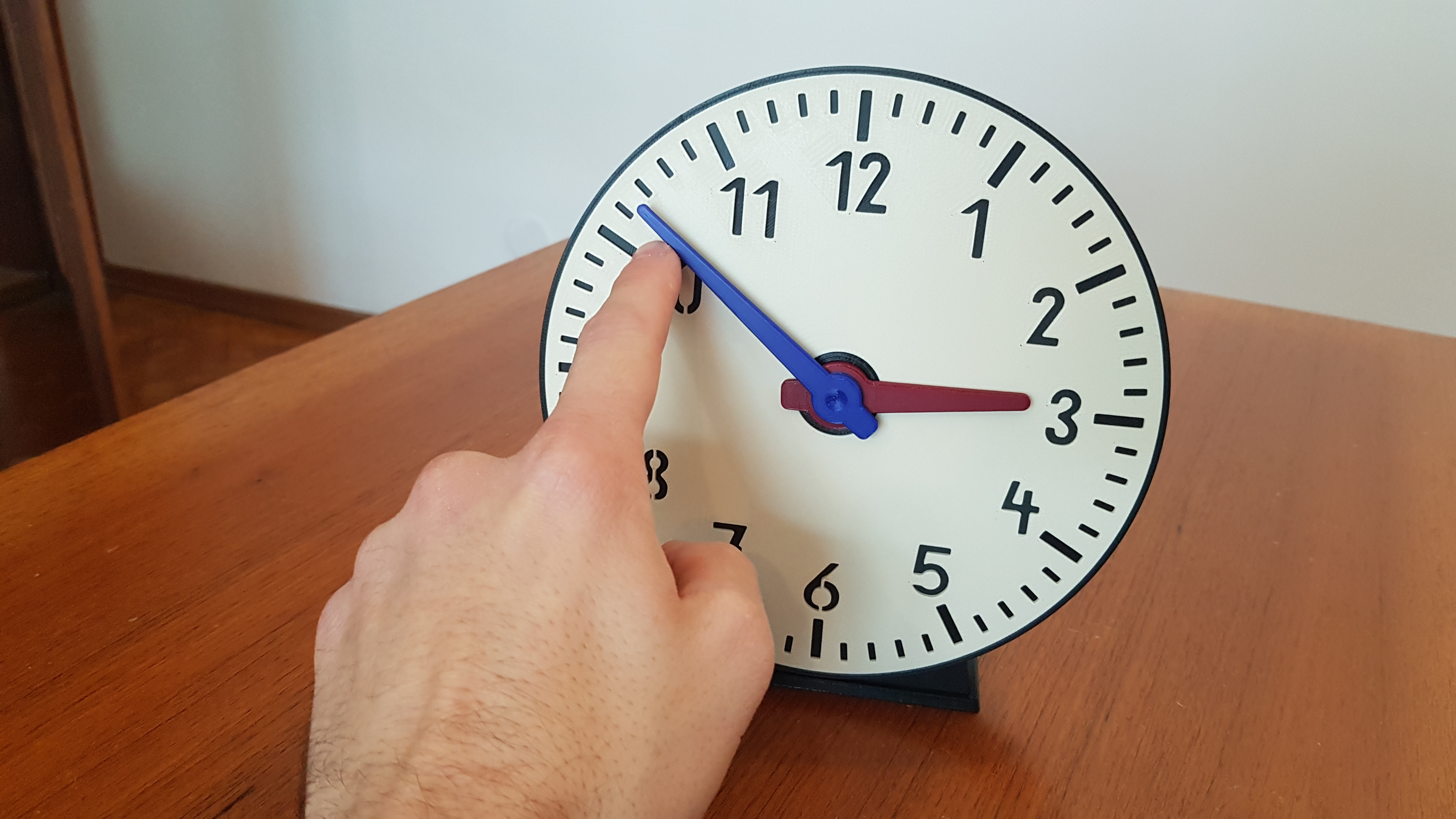

This can be done by directly moving the minute hand with a finger, or for a better view onto the clock face, by turning the grip on the backside of the clock.

Print specifications of the example in the pictures:

PLA, 0.2mm layer height
2 perimeters, 20% infill
about 20 hours total print time (normal print mode, with same colour separation as in the pictures, could be faster or slower with more or less filament colours)

Assembly:

  • Print all parts
    Amount of needed parts is in the notes of the files.

  • Step 1:
    slide the connection pins through the holes of the clock_body and attach the clock_face.
    make sure the “12” points towards the upward pin. Then slide the hour and minute hand through the middle hole and make sure both hands point towards “12”.
  • Step 2:
    Place the partly assembled clock with the clock face onto the desk. Make sure that both hands still point towards “12”. Then attach the A_planet_carrier onto the hour_hand.
    There is a little triangle engraved into the A_planet_carrier. All triangles of all parts must be installed pointing upwards toward “12”
  • Step 3:
    Install the A_gear_ring and the A_sun_gear, both with the triangle pointing upwards. After that install A_planet_gears.
  • Step 4:
    Install the B_gear_gring and B_planet_carrier with the triangle pointing upwards.
  • Step 5
    Place the B_sun_gear with the triangle pointing upwards. Then place the B_planet_gears.
  • Step 6
    Slide the stand_back over the connection_pins and fix it with the small clips.
  • Step 7
    Install the grip and fix it with the big clip. Then attatch the stand_bottom
  • Finished- have fun!
