Descrição
Hackaday.io Project Page
The future is here, it's just not evenly distributed" - William Gibson

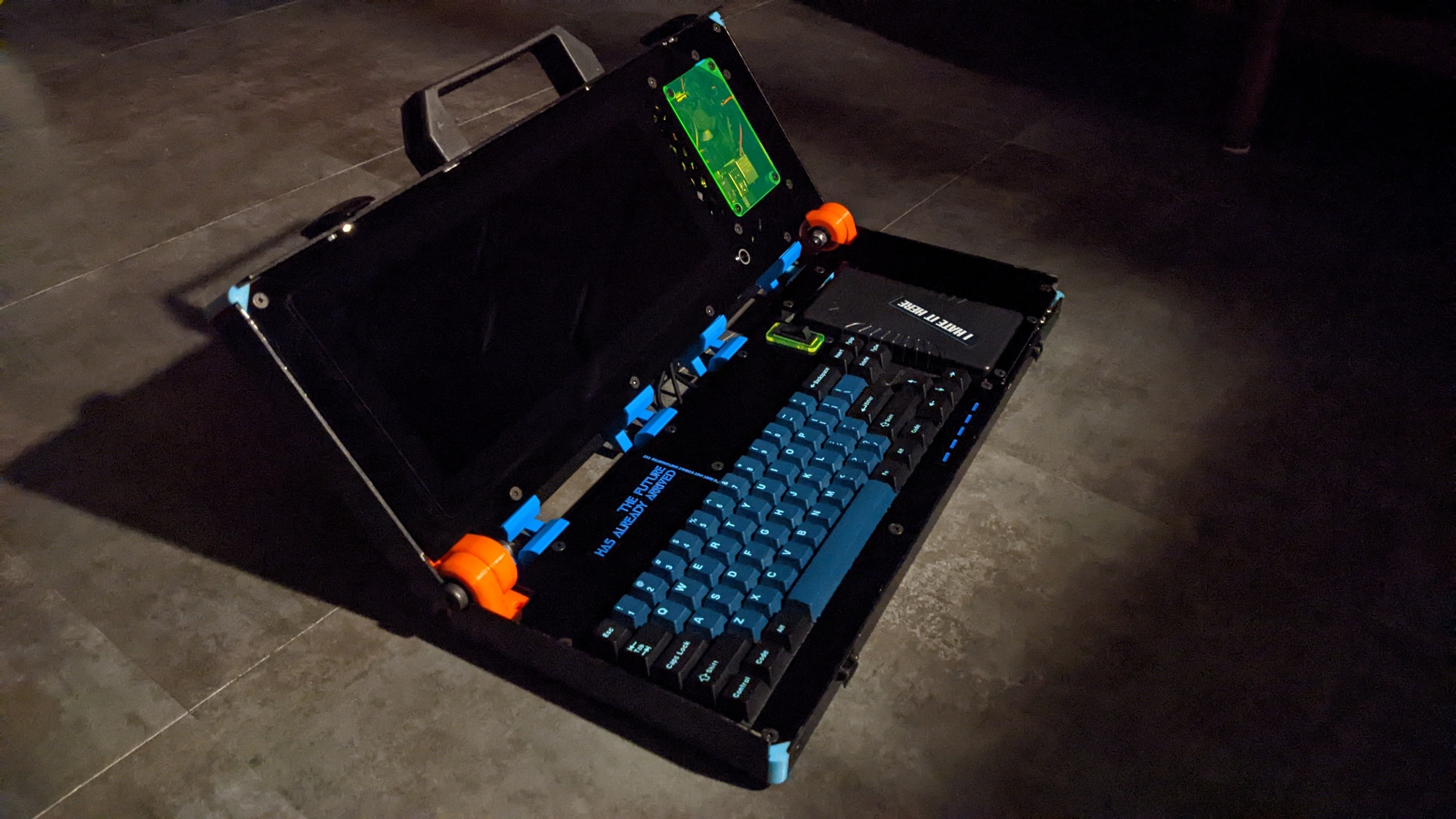

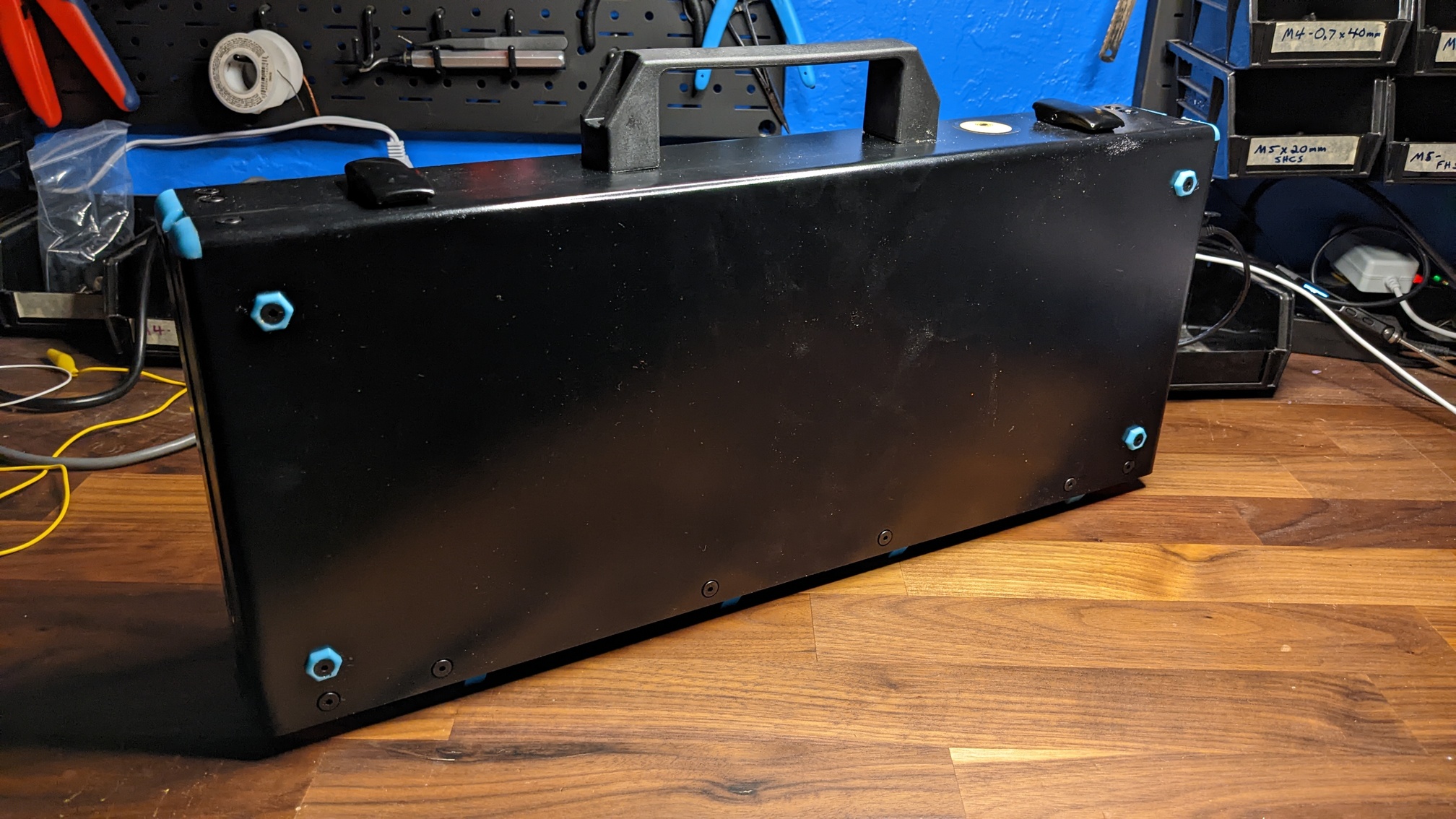

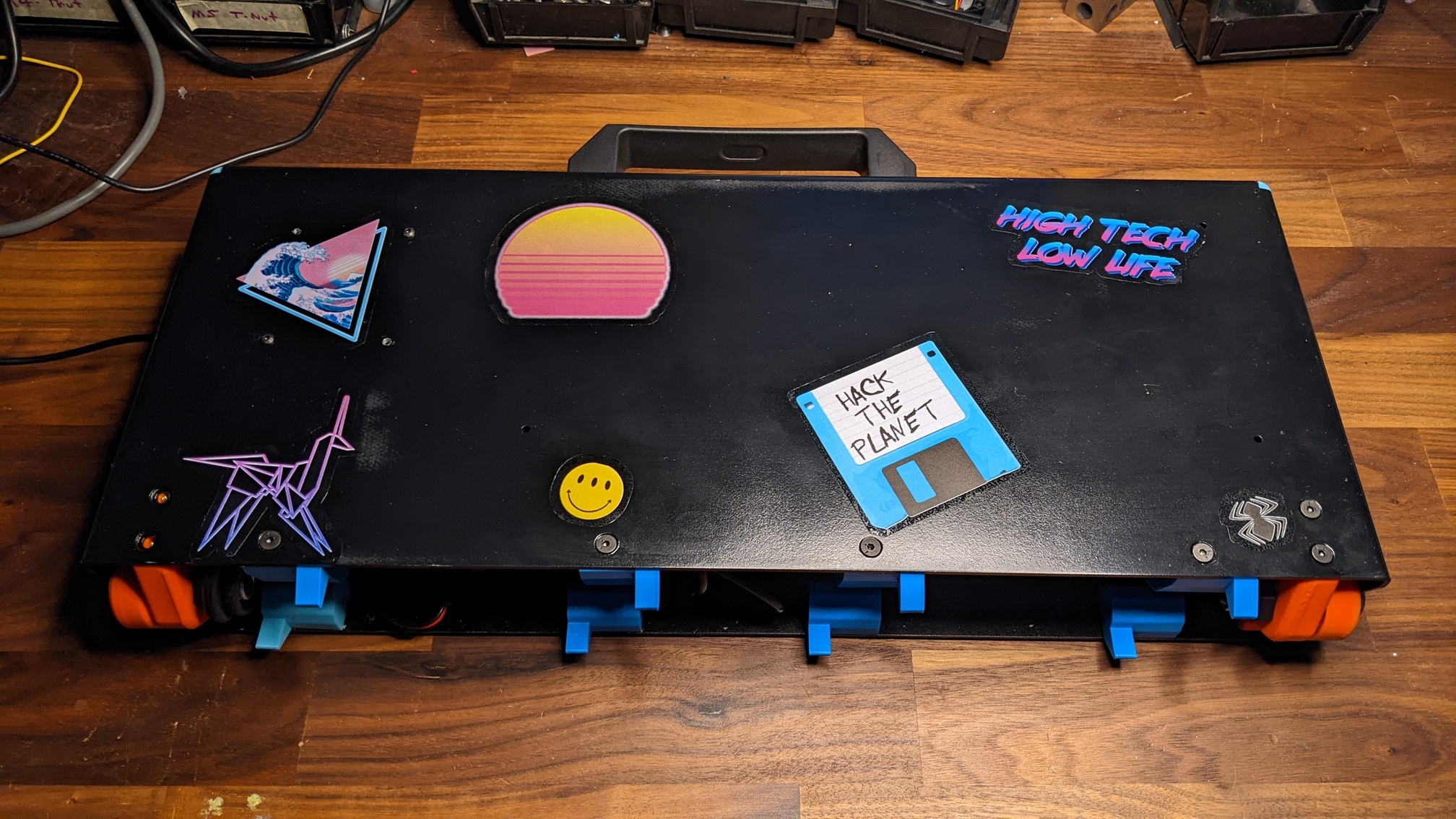

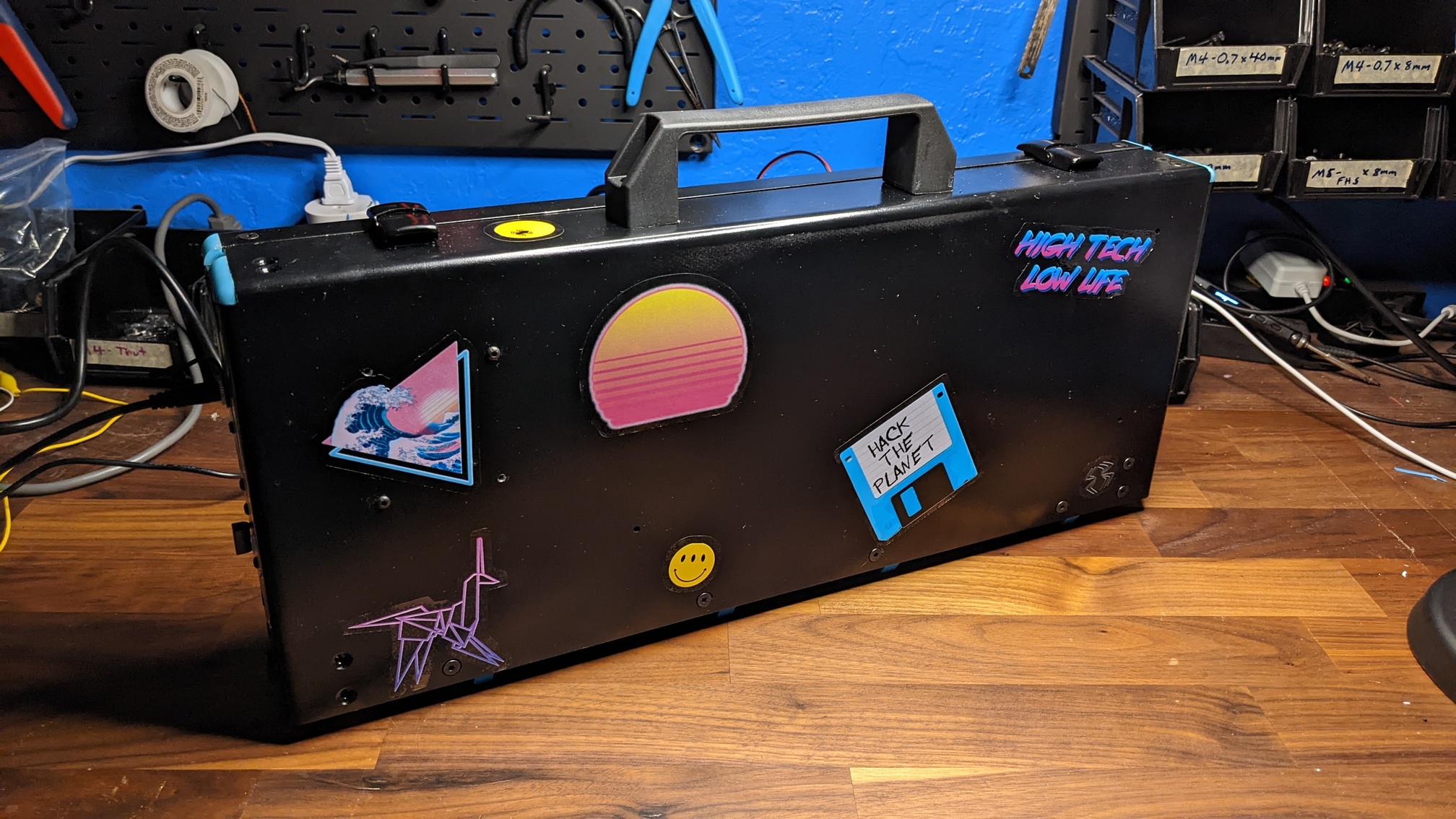

This is a custom built cyberdeck designed around a raspberry pi 4, waveshare 12.3" screen, 12v Battery, and a mechanical keyboard.
Print:
- 4 x Bottom Edge Fill
- 4 x Top Edge Fill
- 4 x Hex Foot
- 2 x Corner Piece Top
- 2 x Corner Piece Bottom
- 1 x Hinge Base left
- 1 x Hinge Top Left
- 1 x Hinge Base Right
- 1 x Hinge Top Right
Cut:
Ponoko
- 1 x Faceplate [3mm Thick Acrylic]
- 1 x Bottom Plate [3mm Thick Acrylic]
- 1 x Battery Plate [3mm Thick Acrylic]
- 1 x Computer Cover [3mm Thick Acrylic] Translucent Recommended
Sendcutsend
- 1 x Case Bottom [2.5mm Aluminum]
- 1 x Case Top [2.5mm Aluminum]
Purchase:
- Amazon Parts List
- 2 x 10mm x 30mm Shoulder Bolts
- 2 x 6900-2RS Bearings
- 1 x 10mm x 0.1mm Ring Shims
- 1 x M4 FHS x 12mm
- 5 x M4 x 16 Standoffs
- 5 x M4 x 22 Standoffs
- 90deg Countersink Bit
81
Curtidas
122
Downloads
Categoria
Computers
Tags
hardware
raspberrypi
scifi
cyberpunk
onshape
metalwork
cyberdeck
vaporwave
conceptualhardware
retrofuture
Licença
Creative Commons — Attribution
Arquivos (15)
case_top_flatpattern_rev3.dxf
133.3 KB
battery_plate_rev3.dxf
101.9 KB
faceplate_rev3.dxf
181.9 KB
case_bottom_flatpattern_rev3.dxf
137.9 KB
bottom_plate_rev3.dxf
103.7 KB
computer_cover_rev3.dxf
91.9 KB
corner_piece_top_rev3.stl
1.6 MB
bottom_edge_fill_derived_rev3.stl
415.1 KB
corner_piece_bottom_rev3.stl
1.3 MB
top_edge_fill_derived_rev3.stl
506.3 KB
hex_foot_rev3.stl
4.3 MB
hinge_base_right_rev3.stl
10.6 MB
hinge_base_left_rev3.stl
10.8 MB
hinge_top_right_rev3.stl
14.4 MB
hinge_top_left_rev3.stl
14.7 MB
