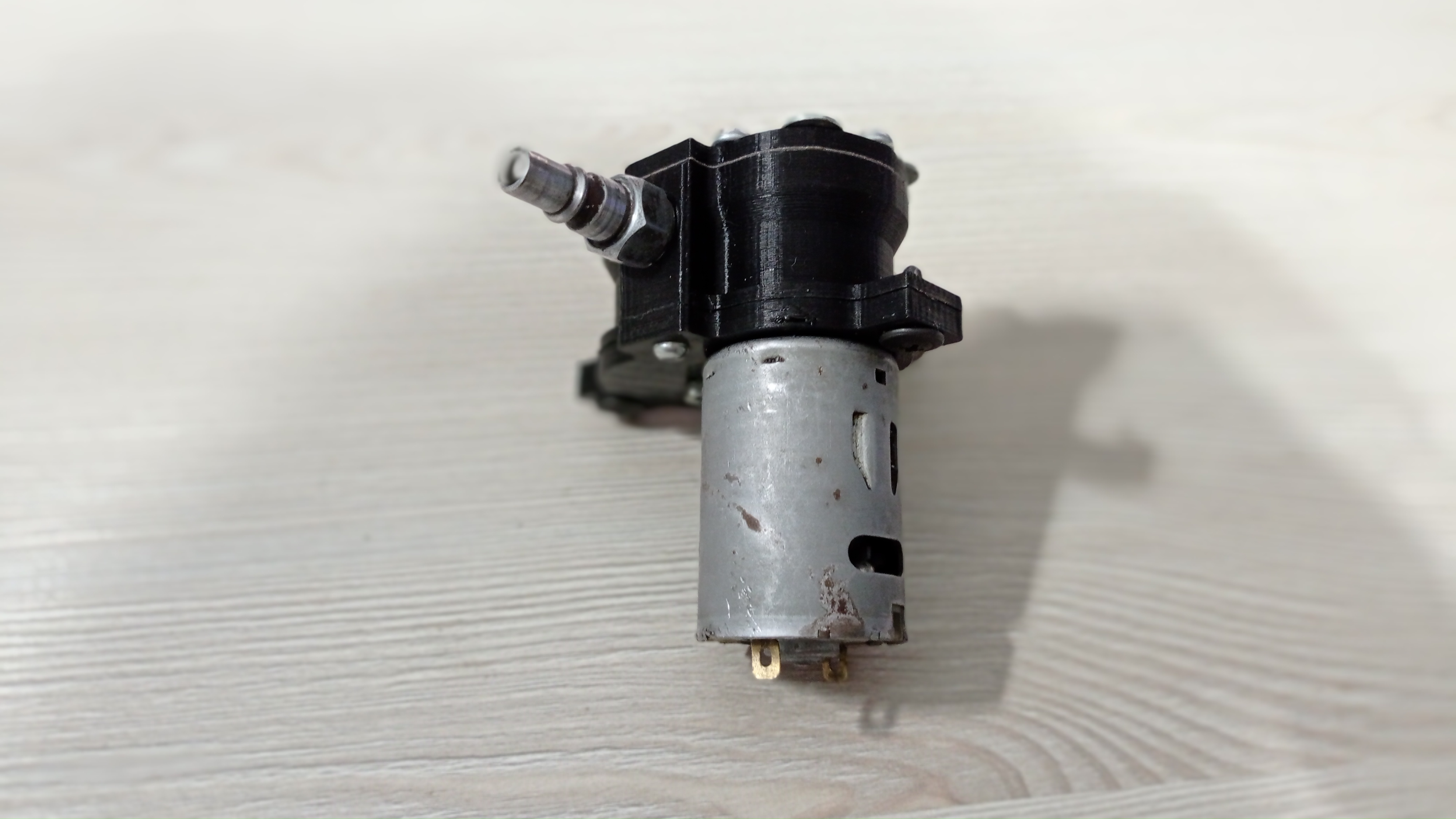

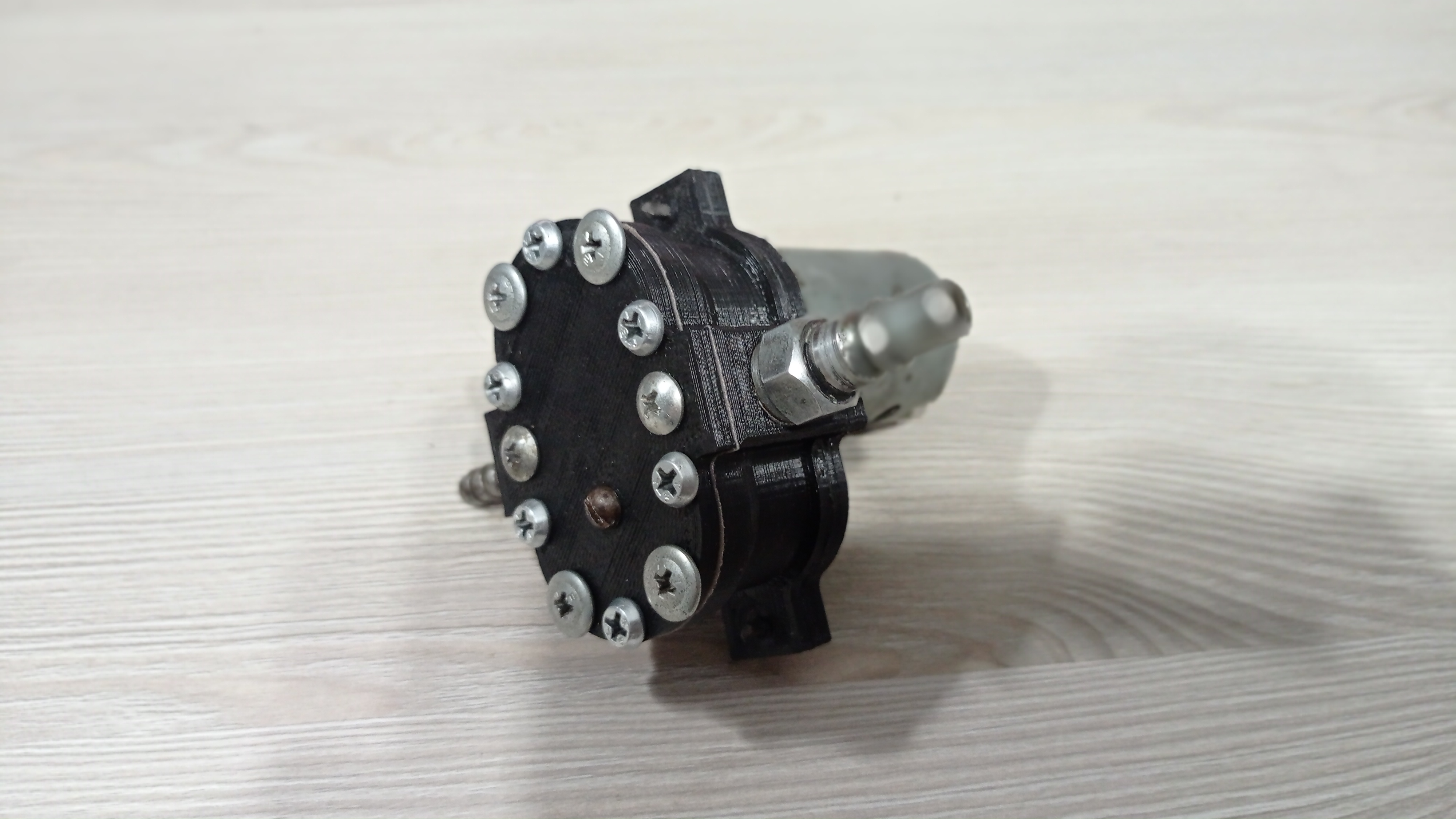

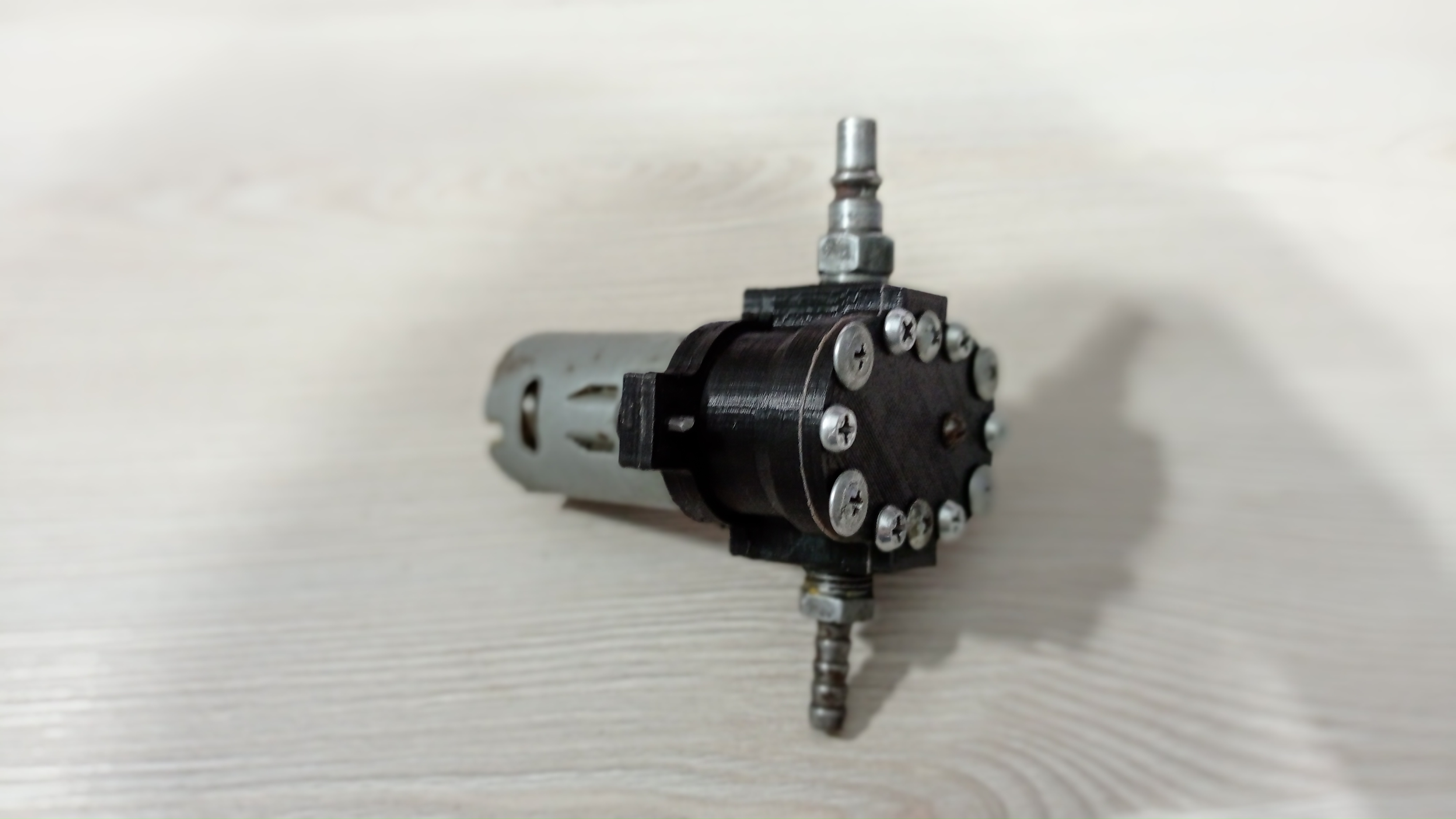

This Is a Fully 3D Printed Hydraulic Gear Pump

----------------------------------------------------------------------------------------------------------------

Materials:

1 - 20mm x 3mm O-Ring

1 - 775 DC Motor (Or Something Similar)

2 - 605zz Bearings

2 - ¼ BSP Fittings

1 - M5x40 Bolt

1 - M5 Nut

16 - M4x7 Bolts

2 - M3x5 Bolts (To Mount The 775 DC Motor)

----------------------------------------------------------------------------------------------------------------

This Type Of Pump has the Advantage Over Others, of Priming Itself

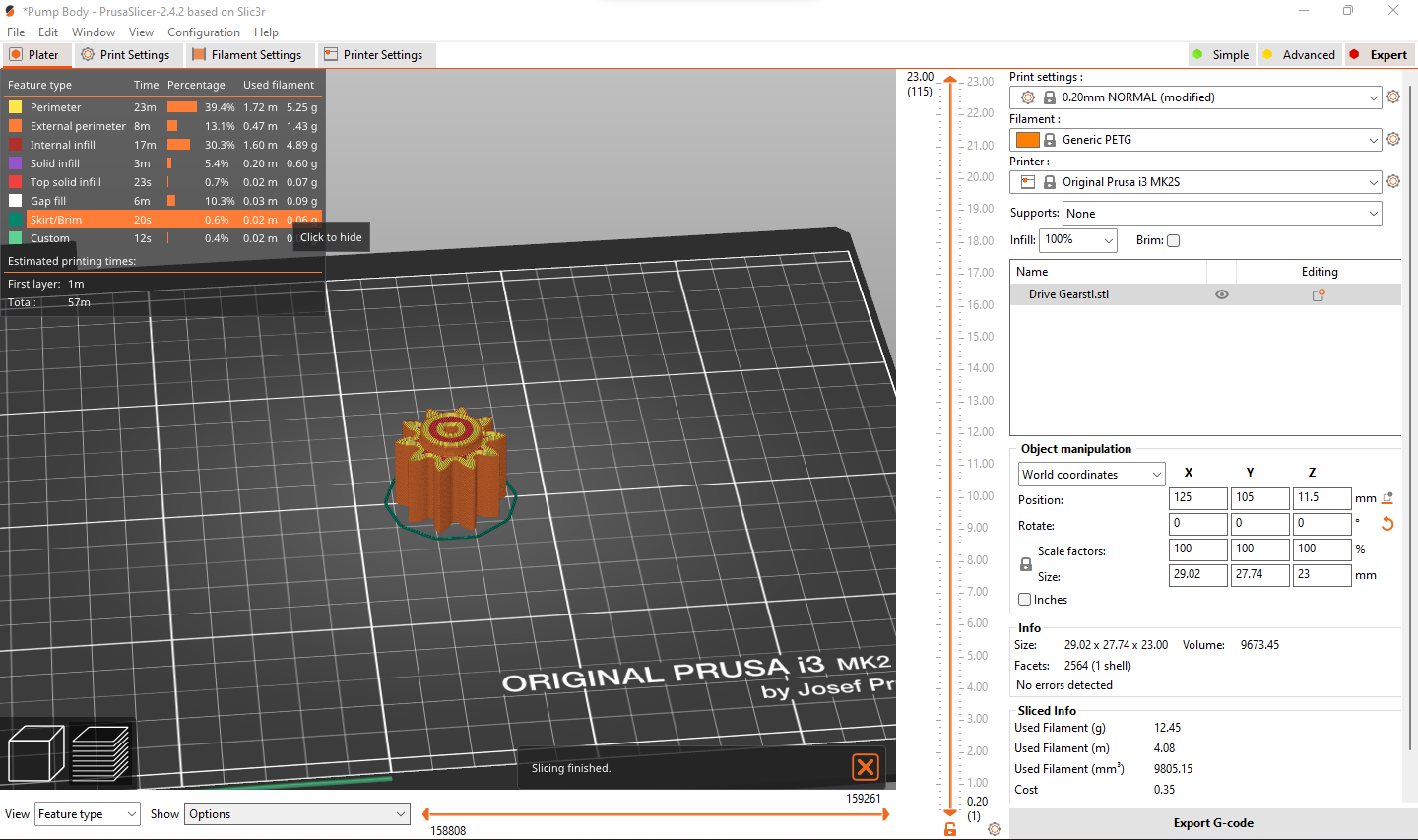

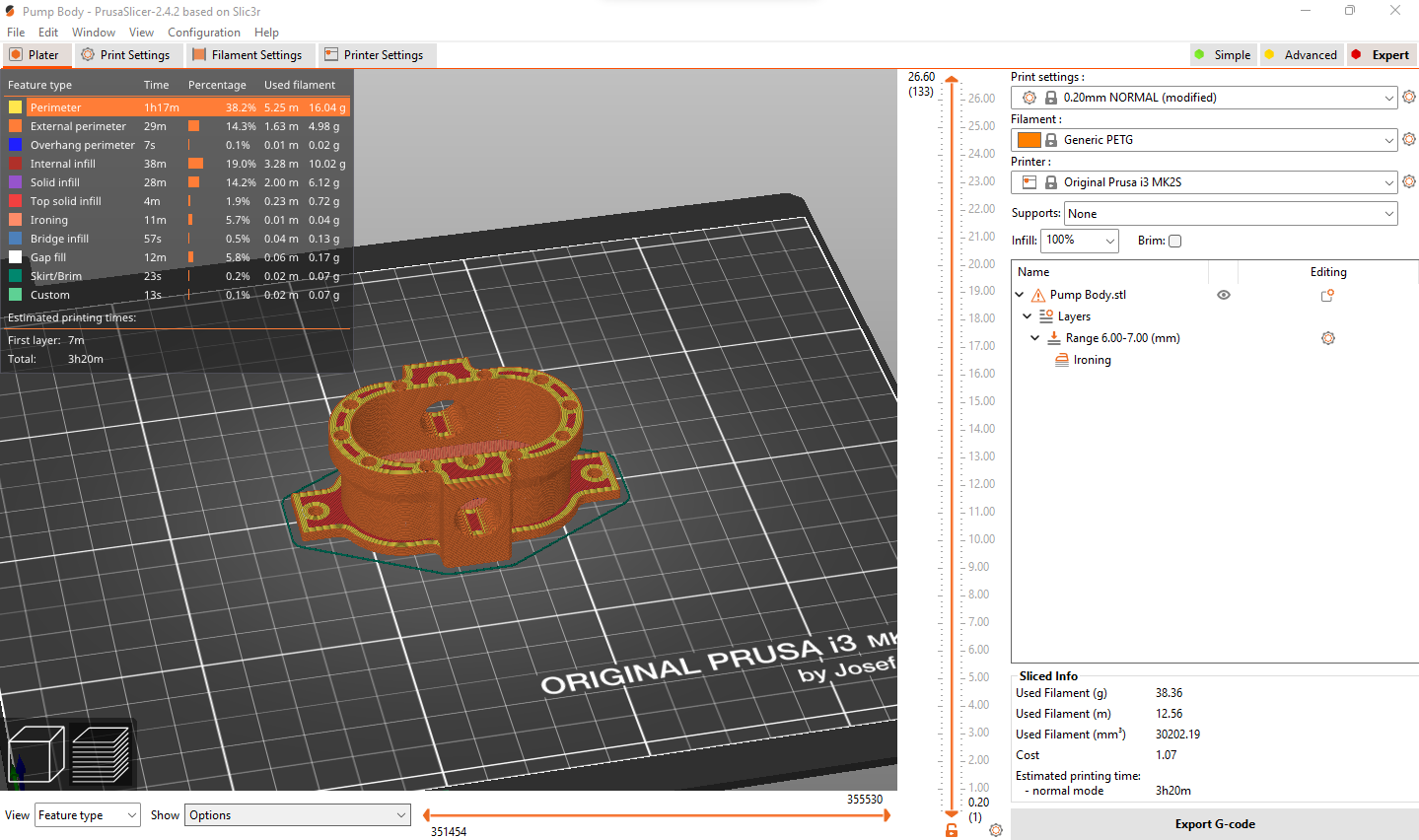

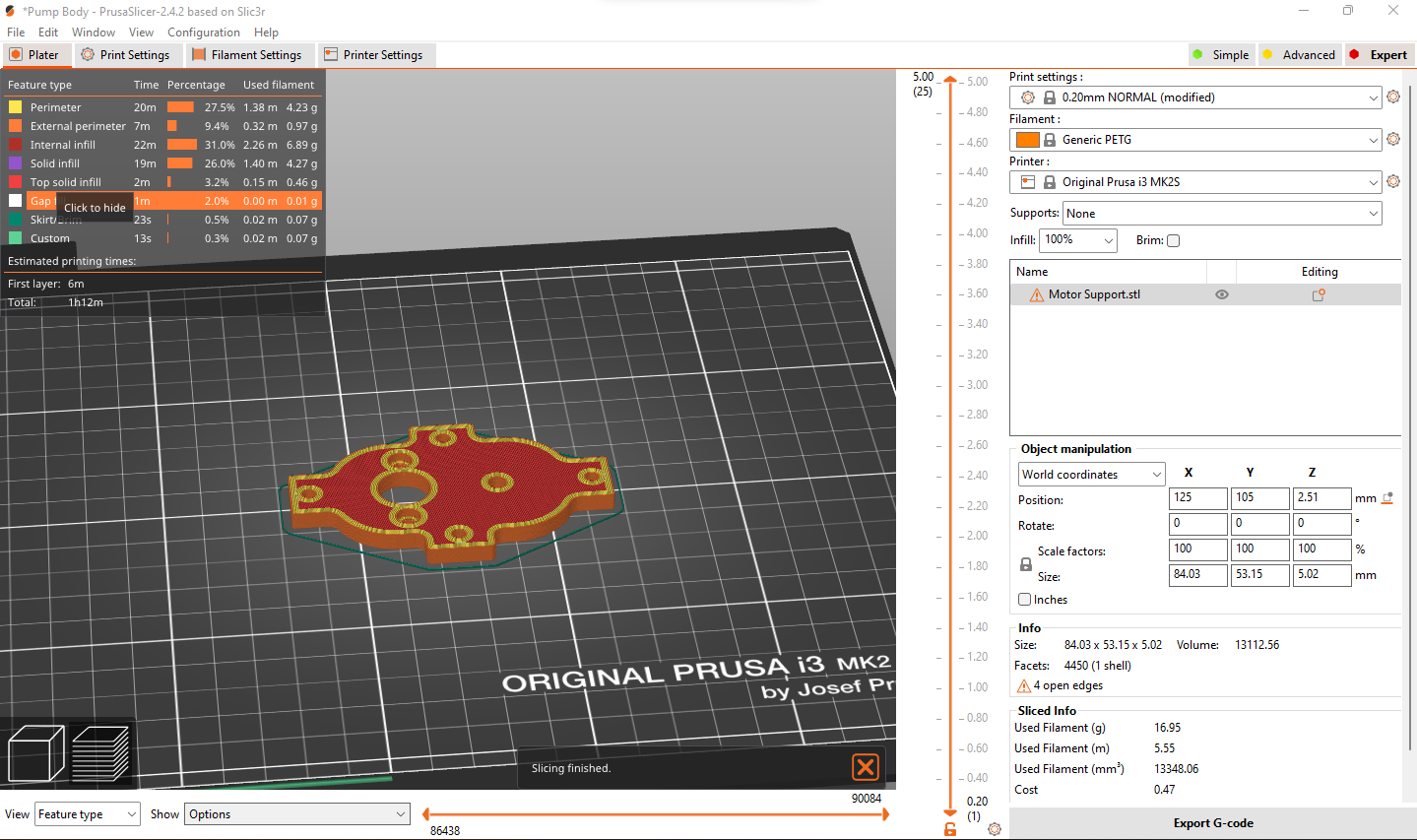

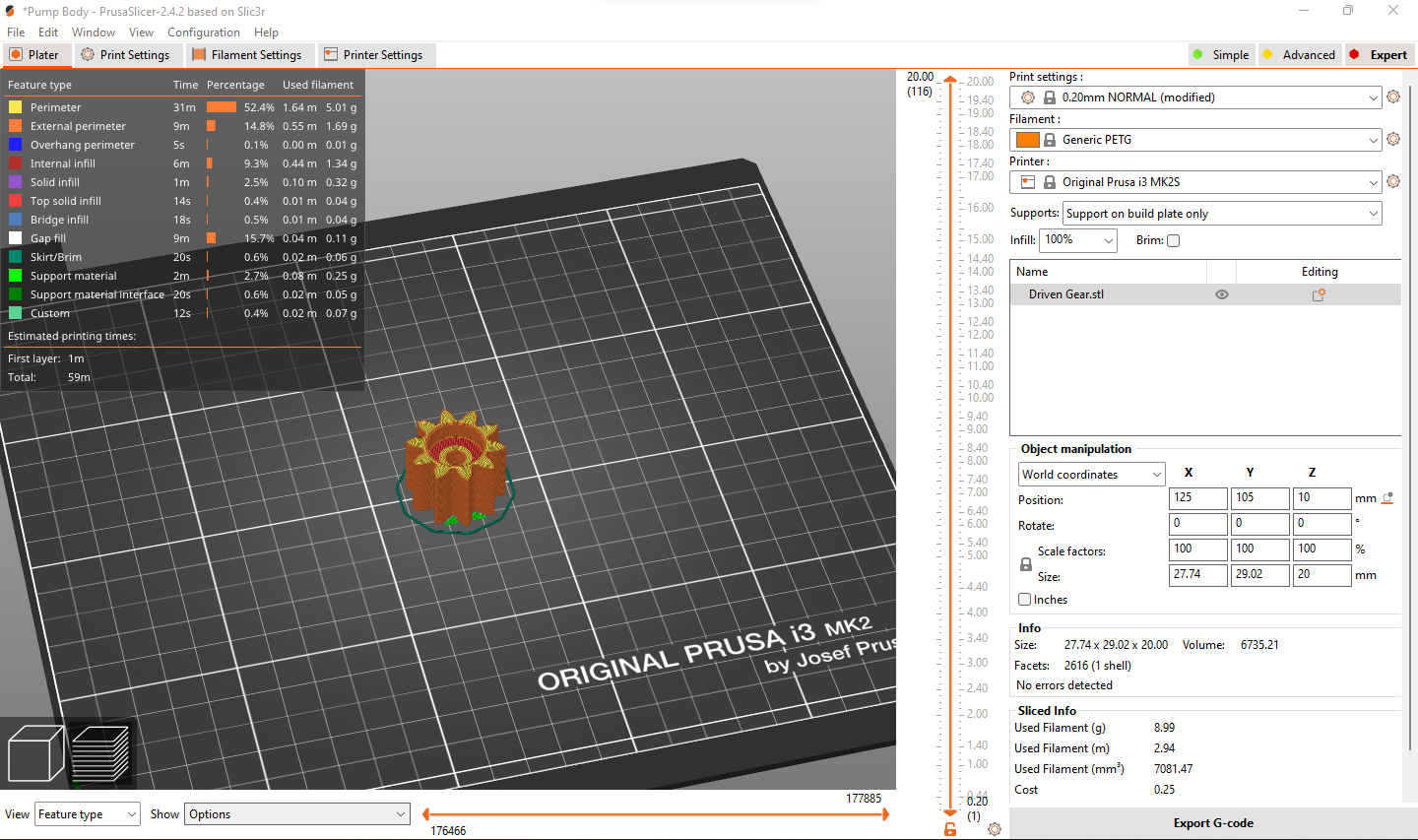

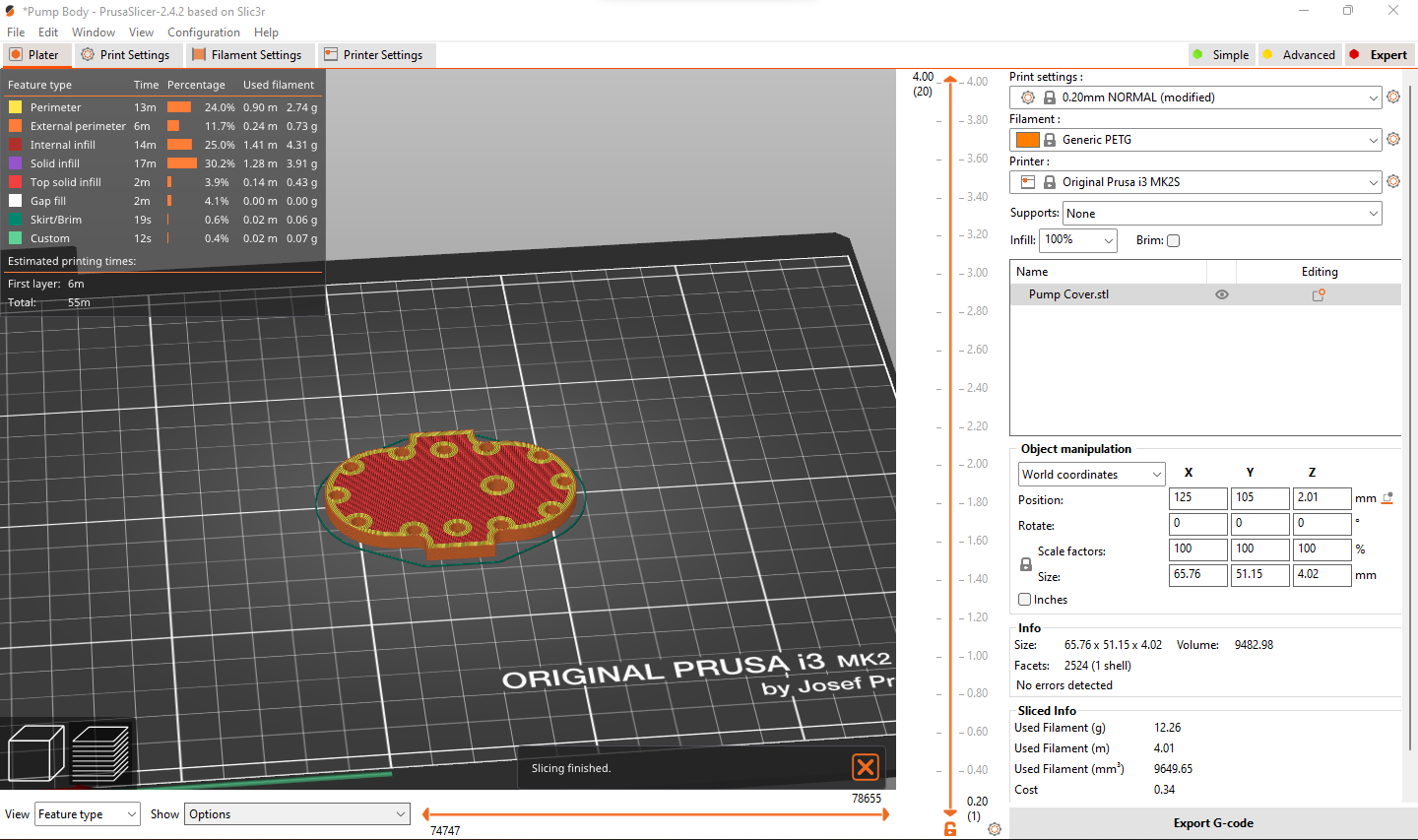

I Printed This One On My Prusa Mk2 Handmade Clone with 100% Infill (5 Perimeters in Almost Every Part) With PET-G Filament (RIP Bed Mirror)

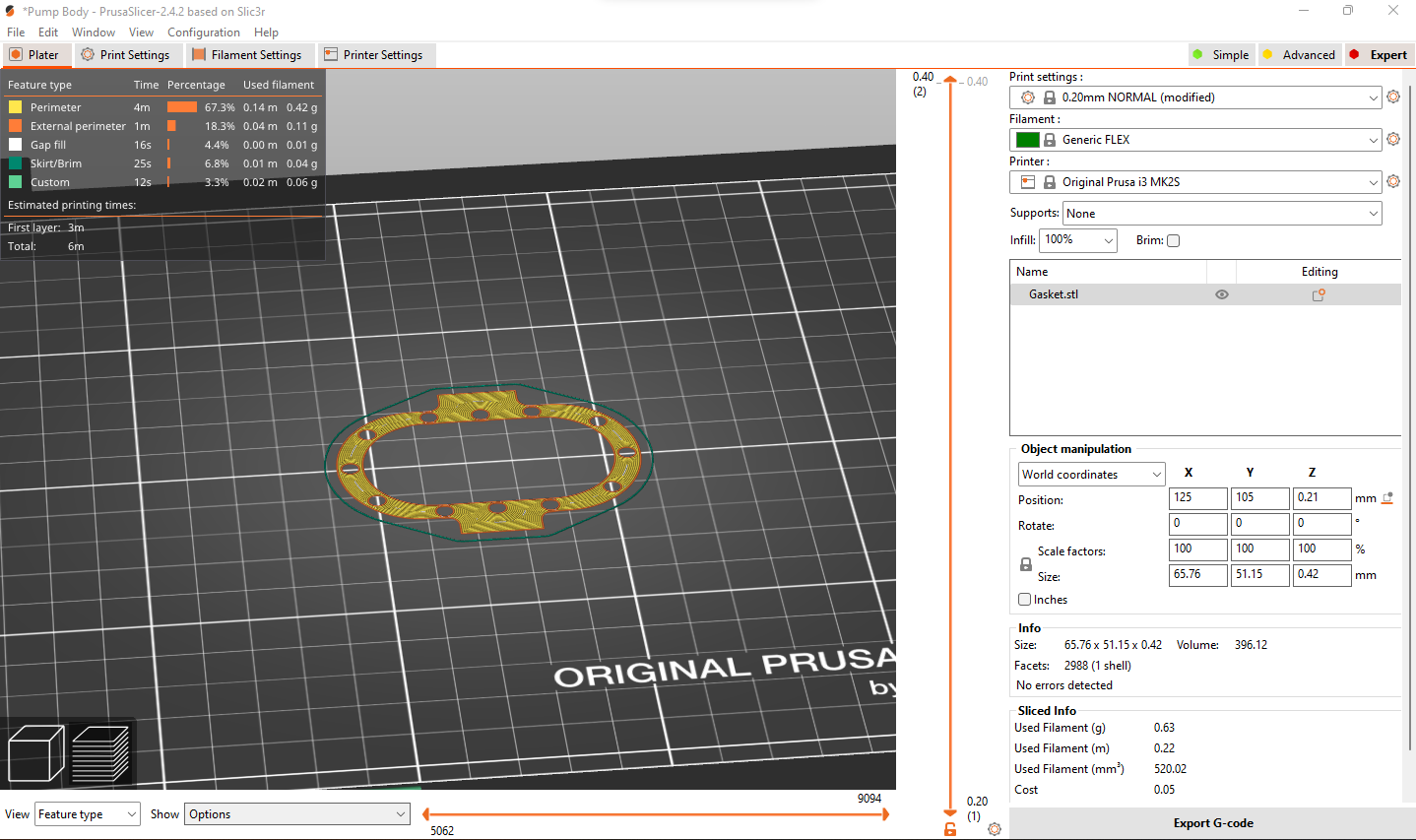

I Also Used FLEX For The Gasket

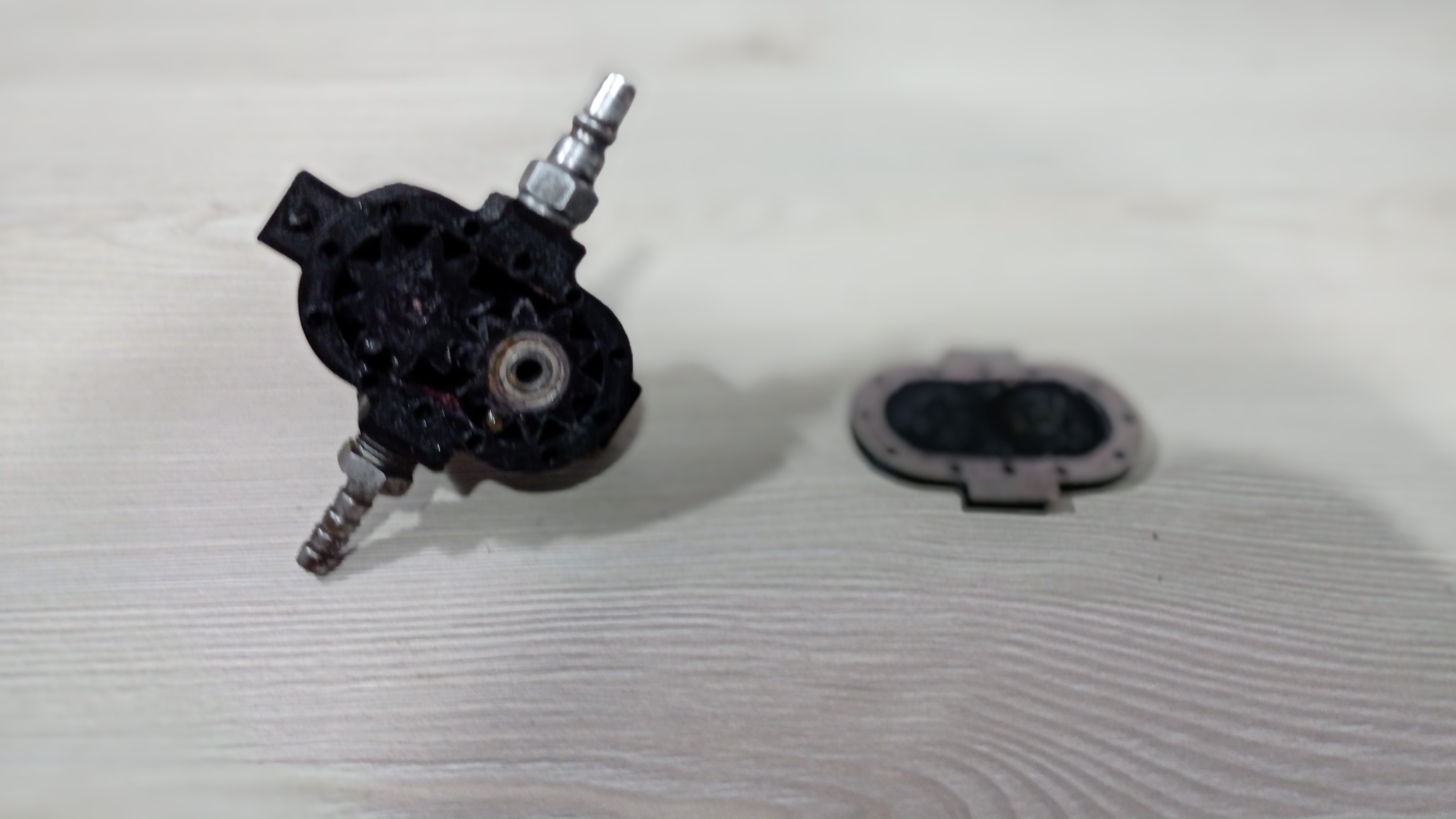

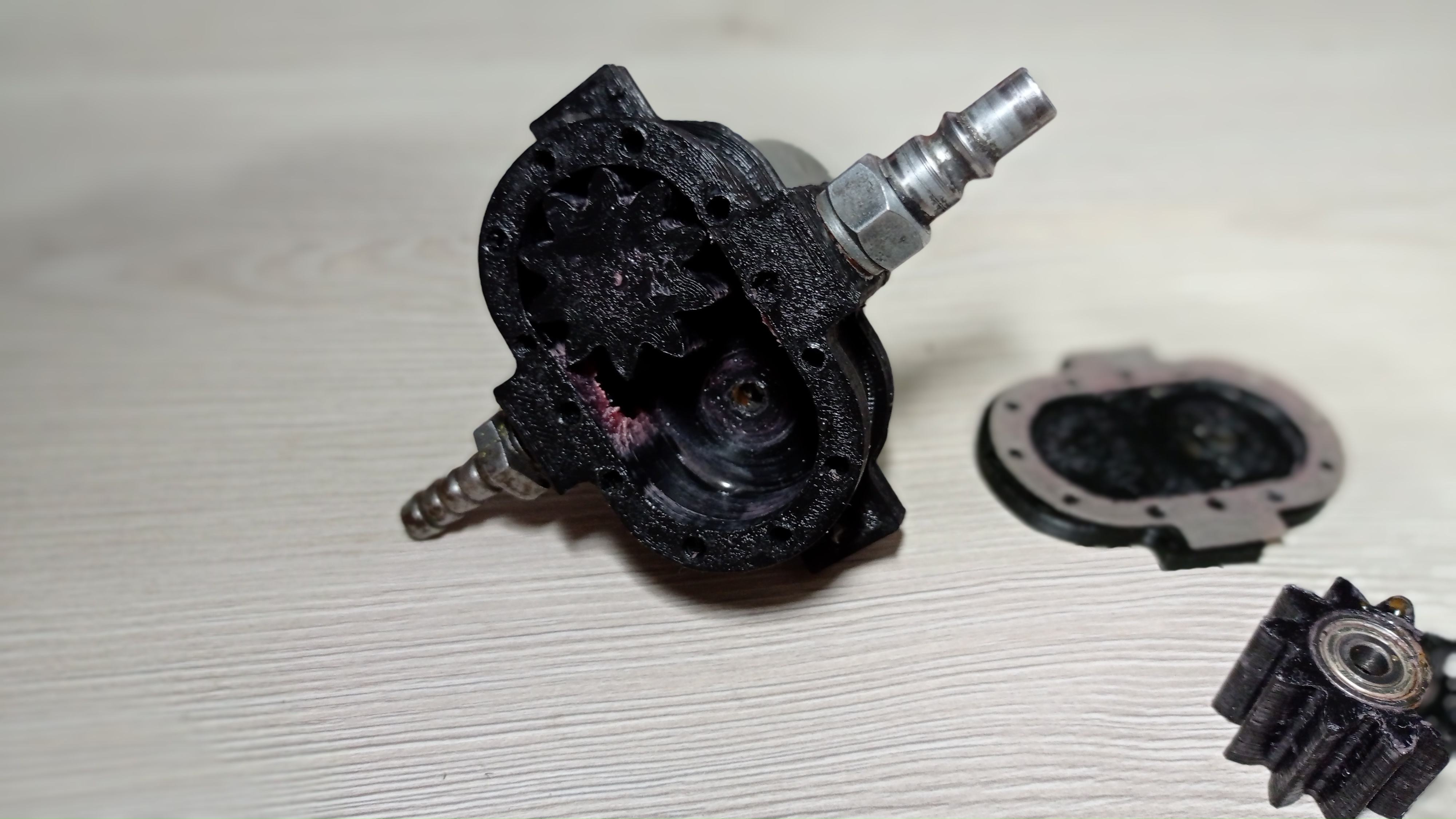

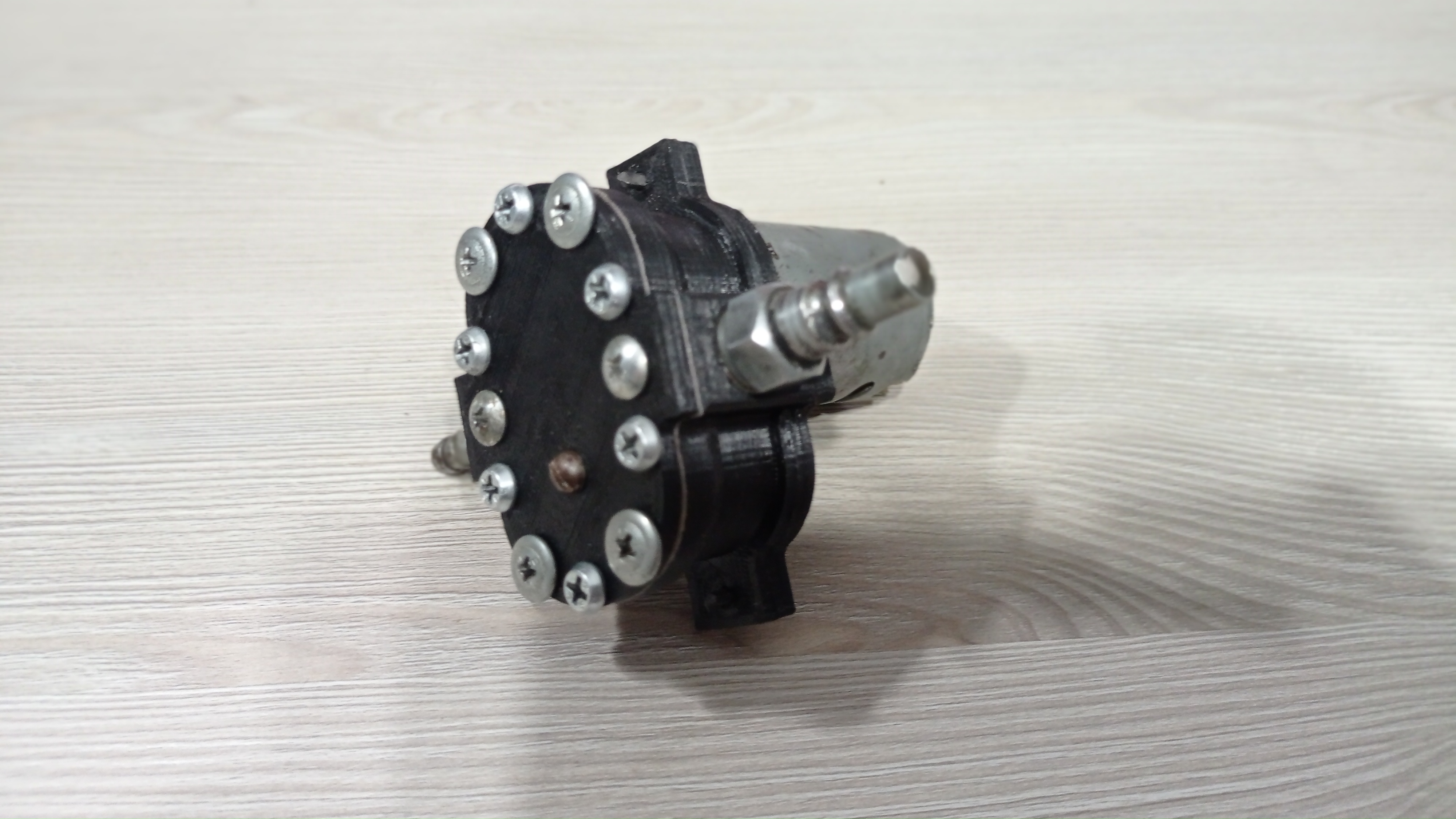

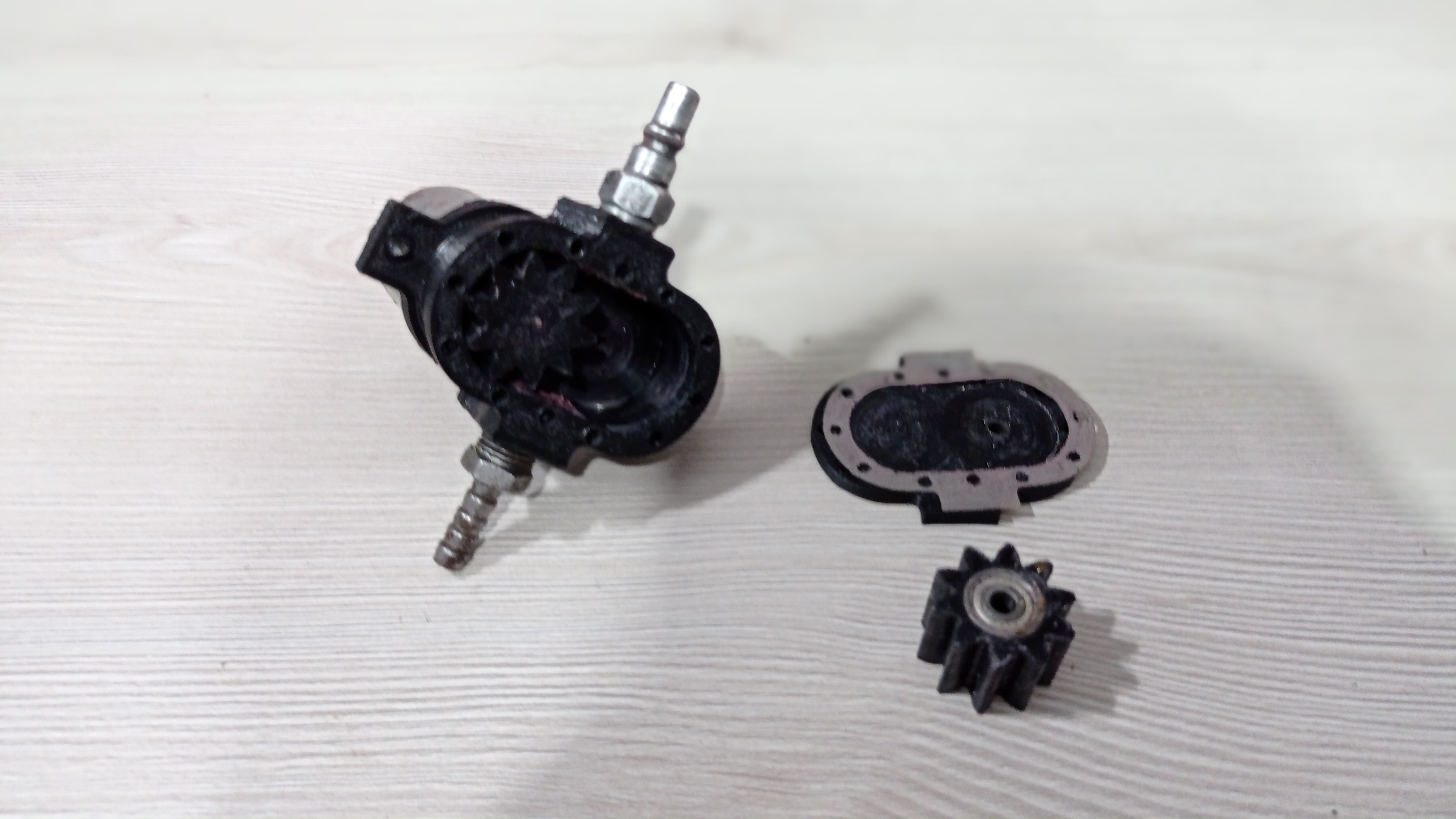

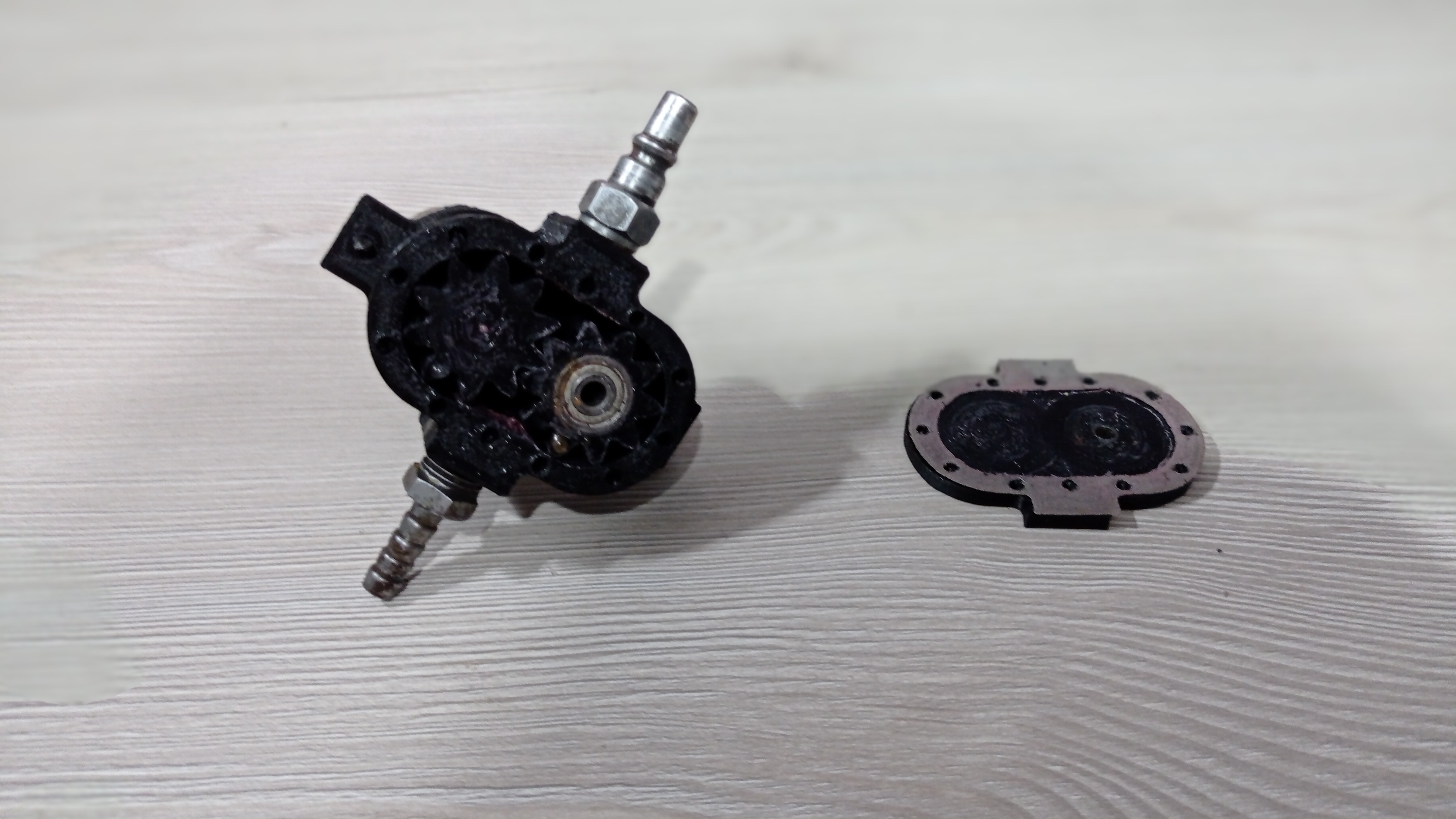

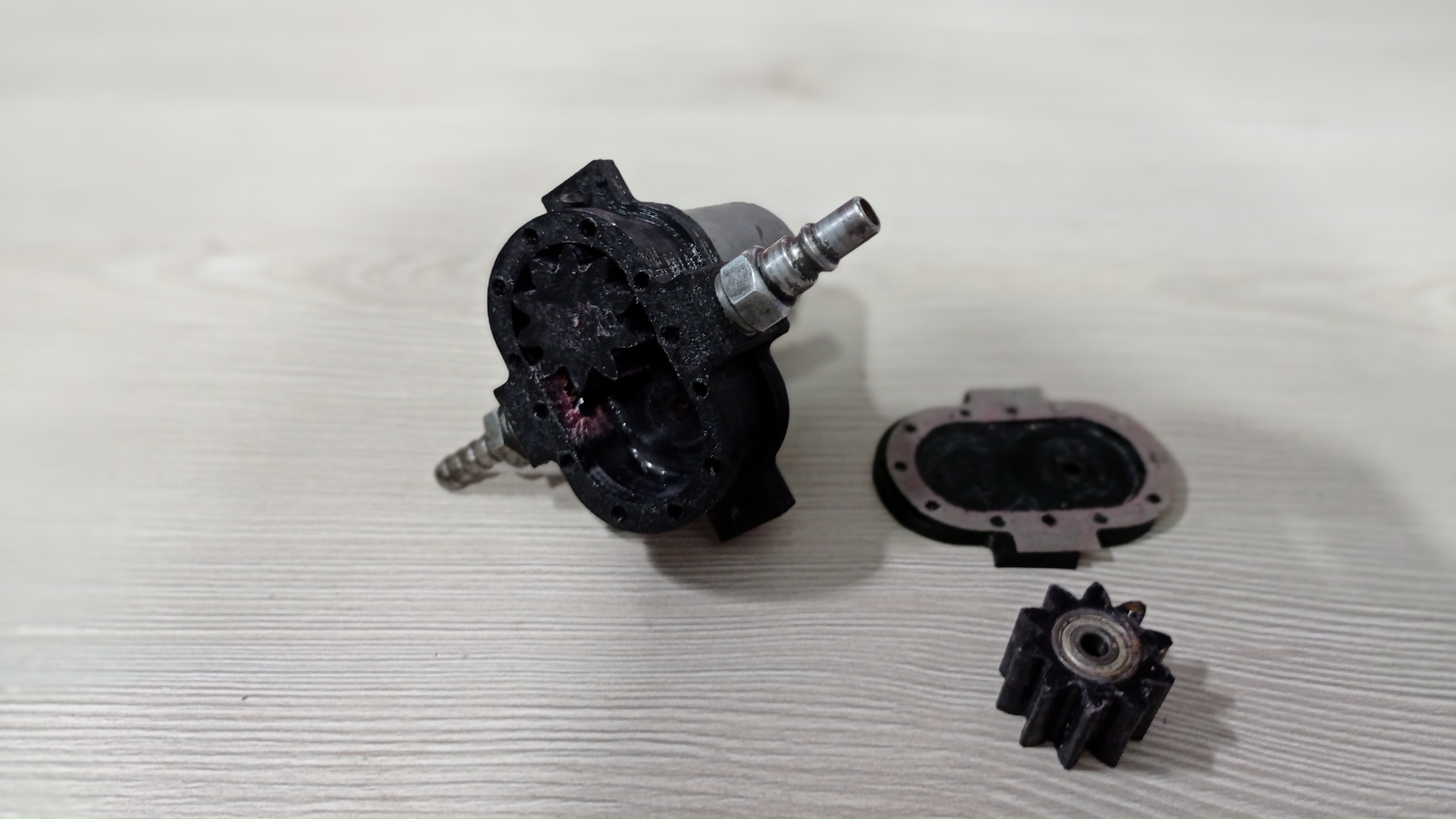

I Greased Everything Up, Assembled It And It Works! Quite Well Actually

I Designed The Model Myself In Blender, It Took me 2 Days (4 Hours of Actually)

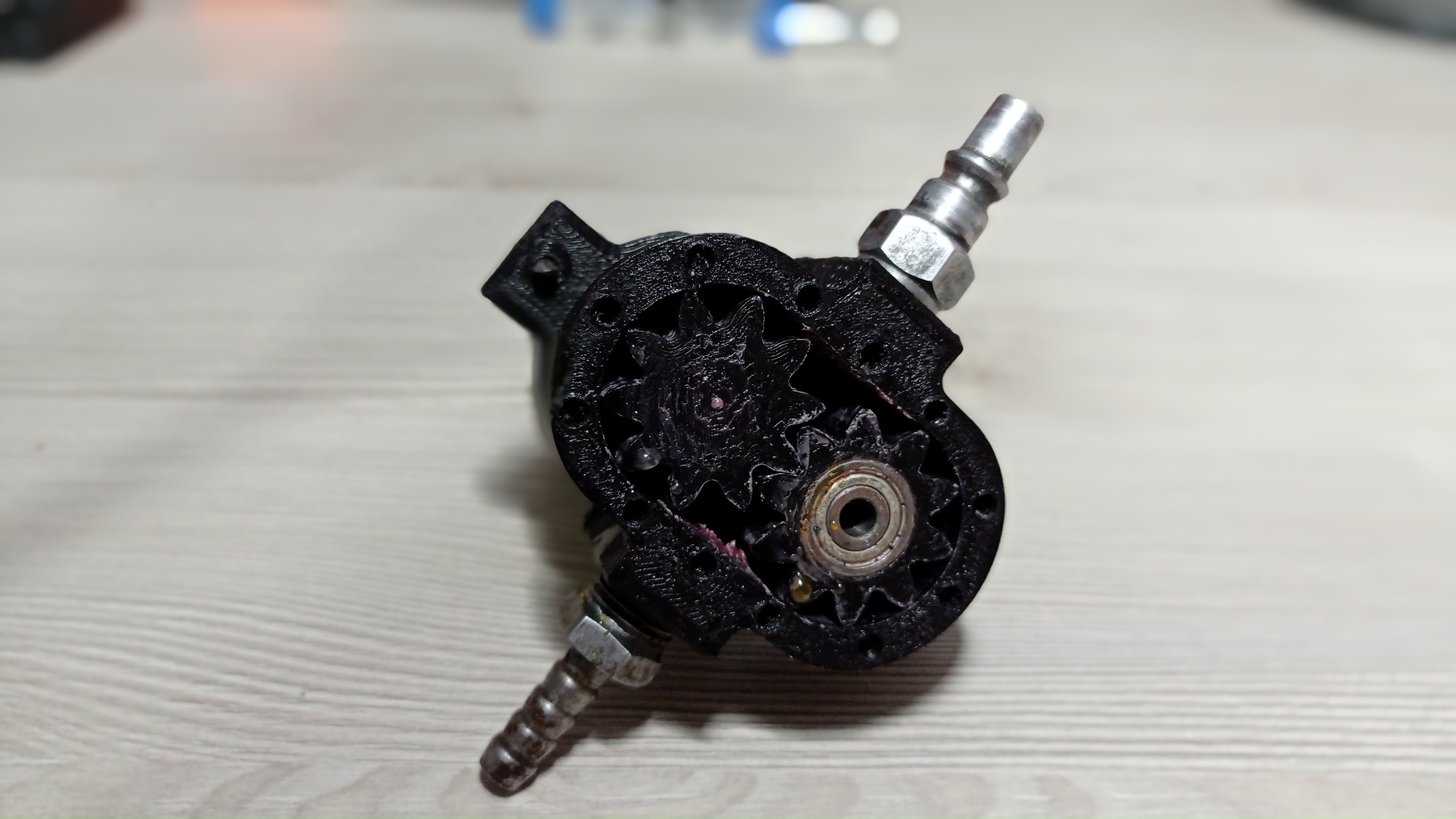

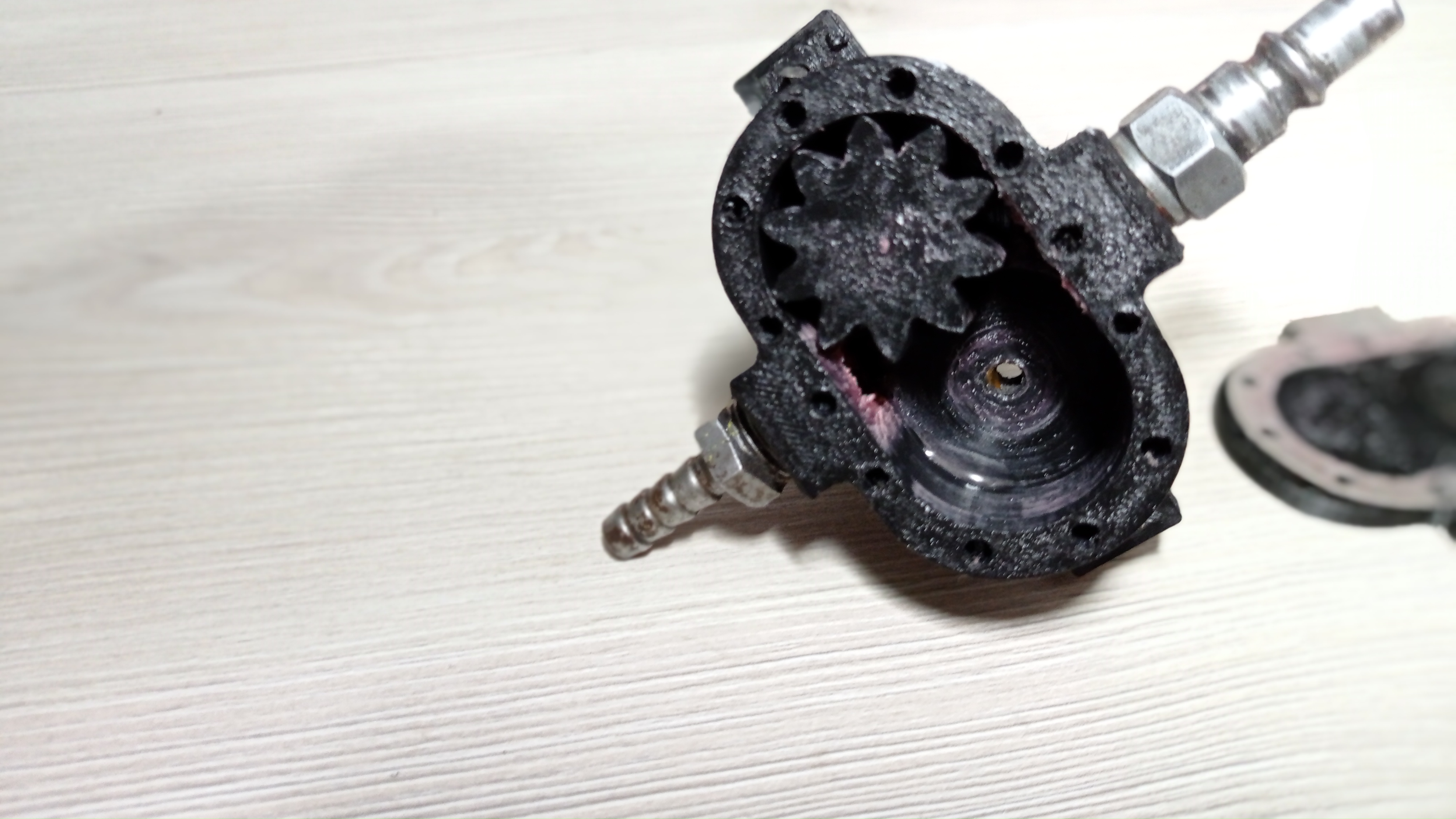

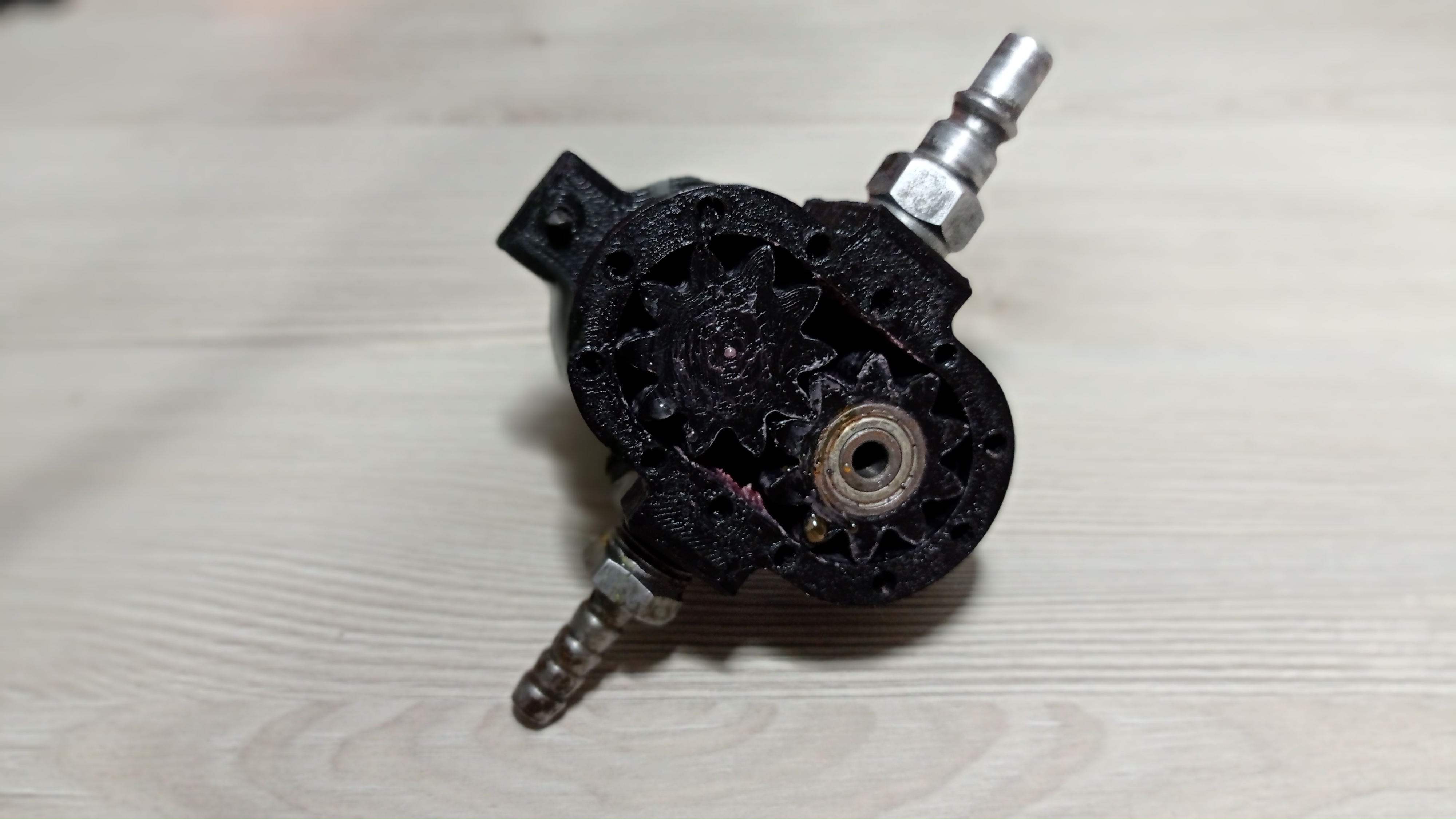

The Working Principle Of This Pump Is Quite Interesting, It Makes Use of The Gear Mesh Profile To Displace Volume

Working Principle: [https://en.wikipedia.org/wiki/Gear_pump](https://en.wikipedia.org/wiki/Gear_pump)
