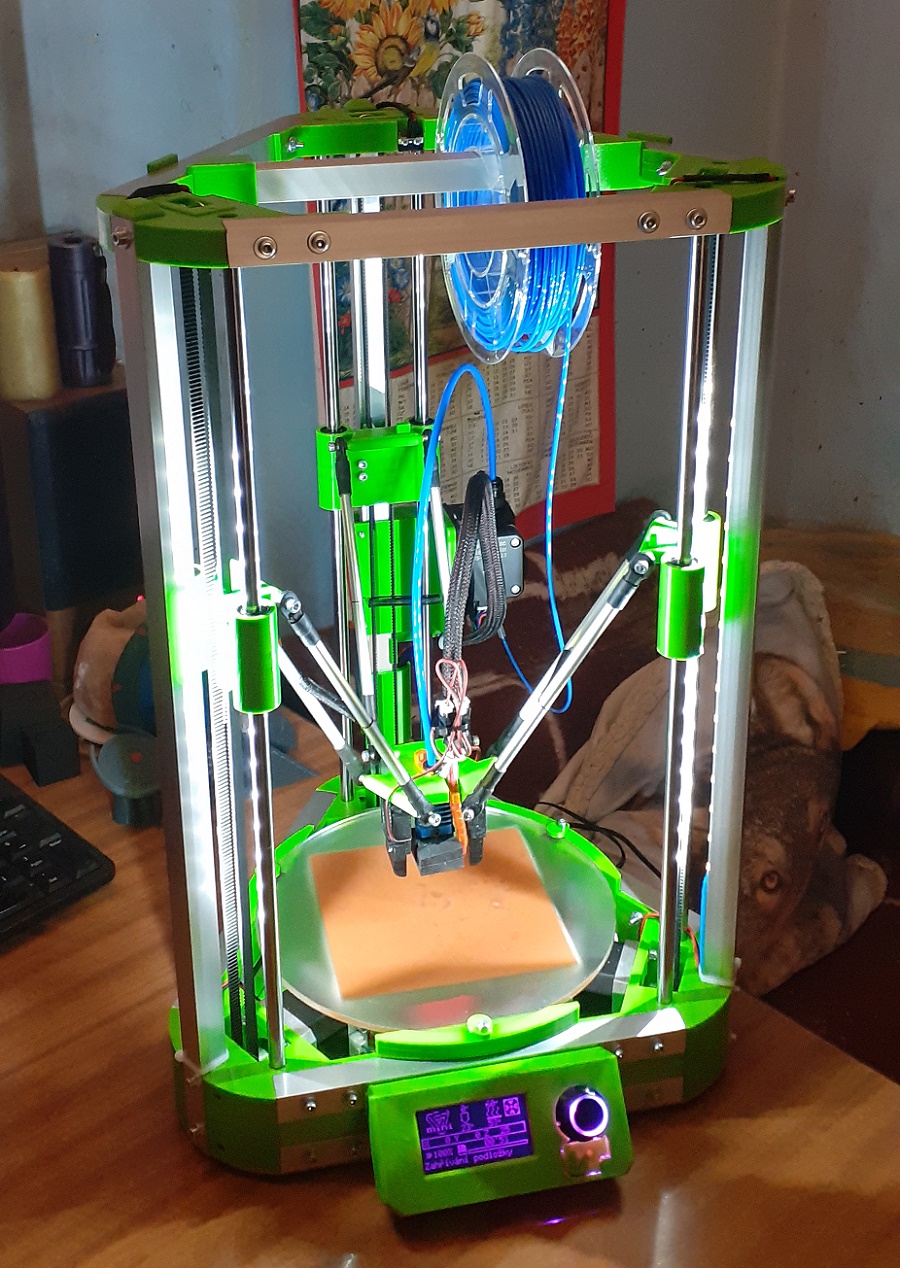

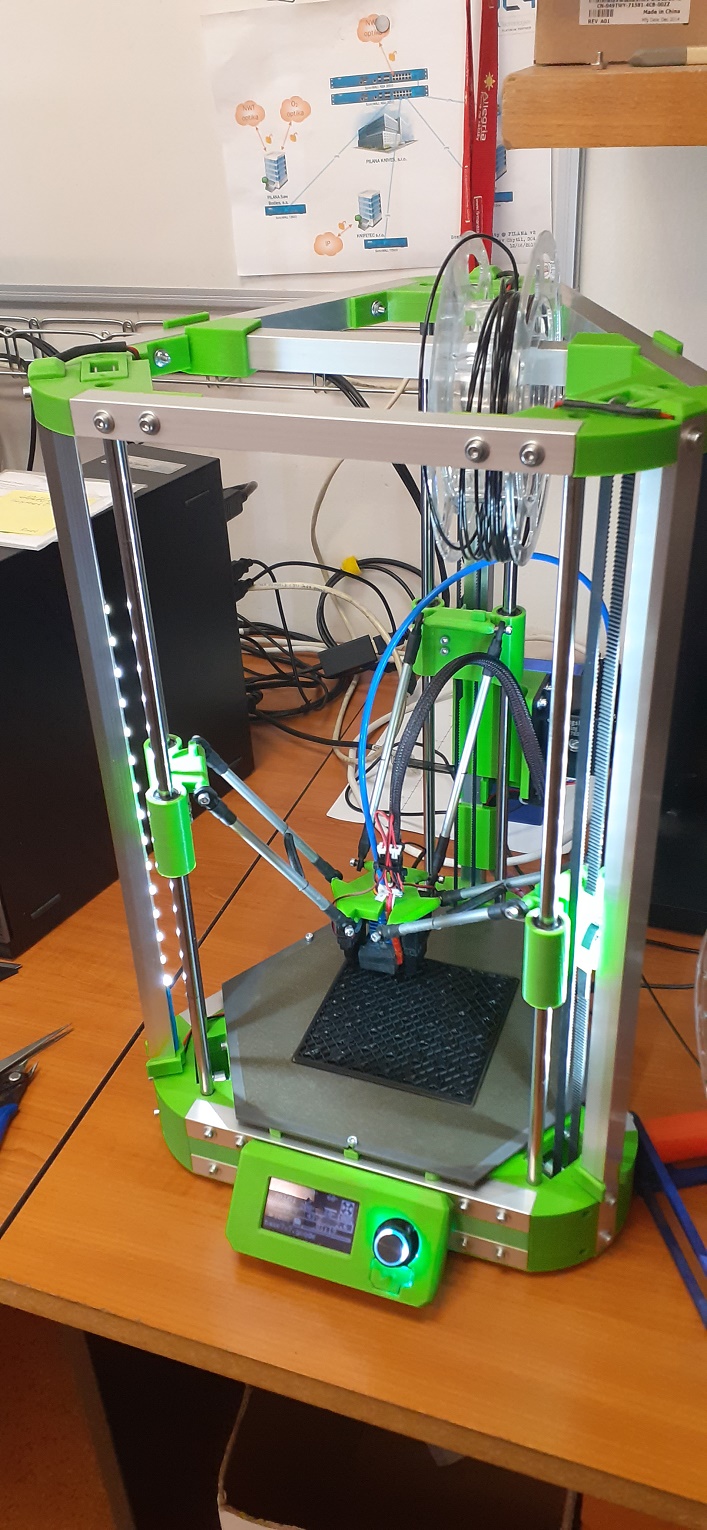

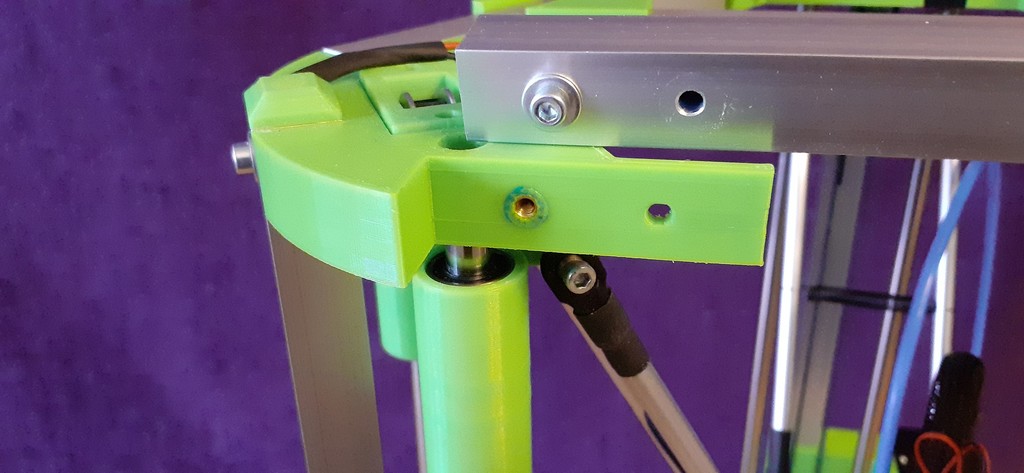

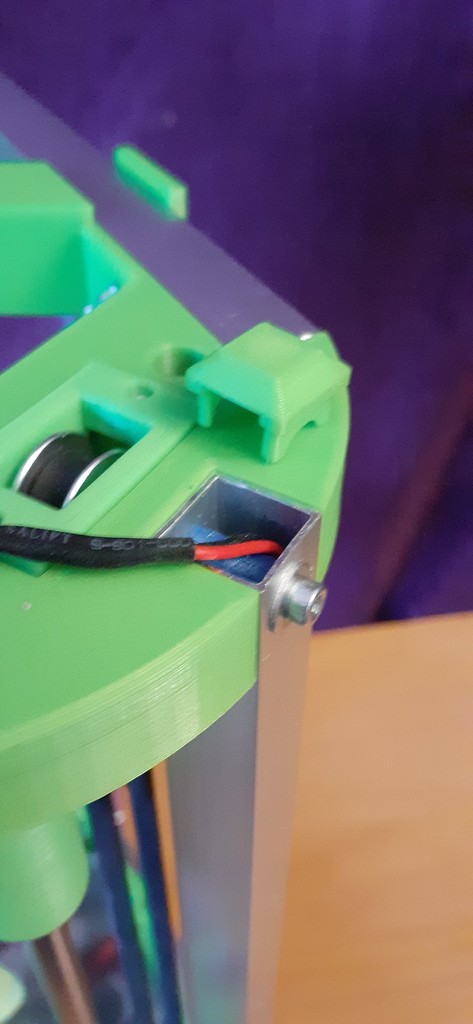

Hello, this is my shiny new 3d Delta printer. It's a evolution of my older Delta Cassandra, as there is better frame, stronger motors and so on...

Dimensions: 300x320x460mm

Print volume: diameter 160mm, height 170mm

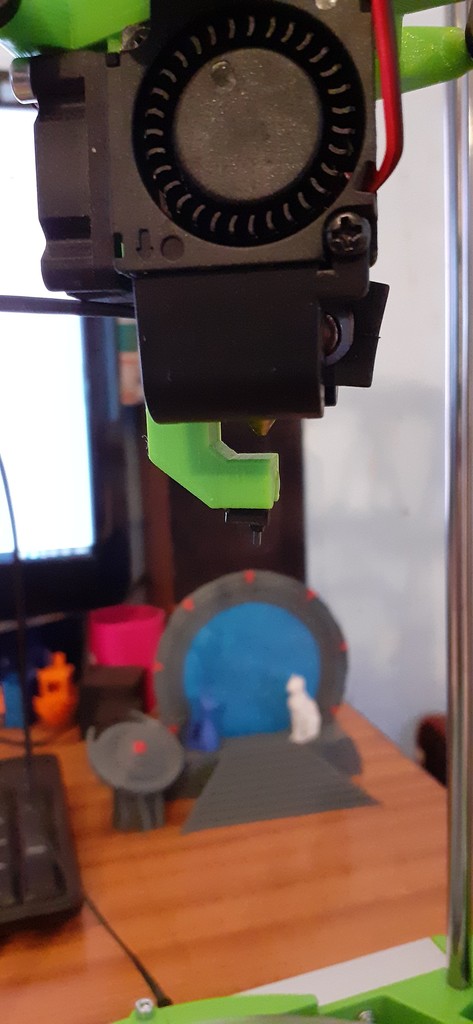

Hotend: CR10 w PTFE

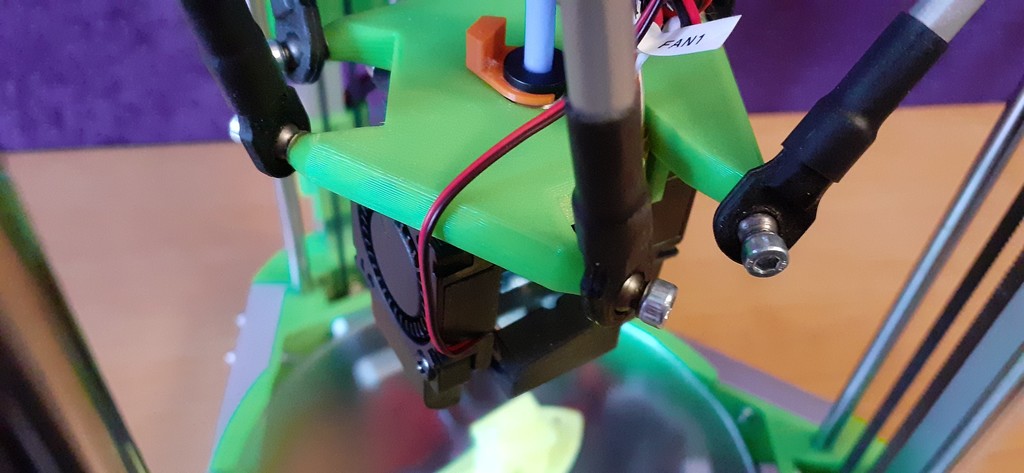

Extruder: Titan Aero clone

Motors: 17HS4401, 17HS4023

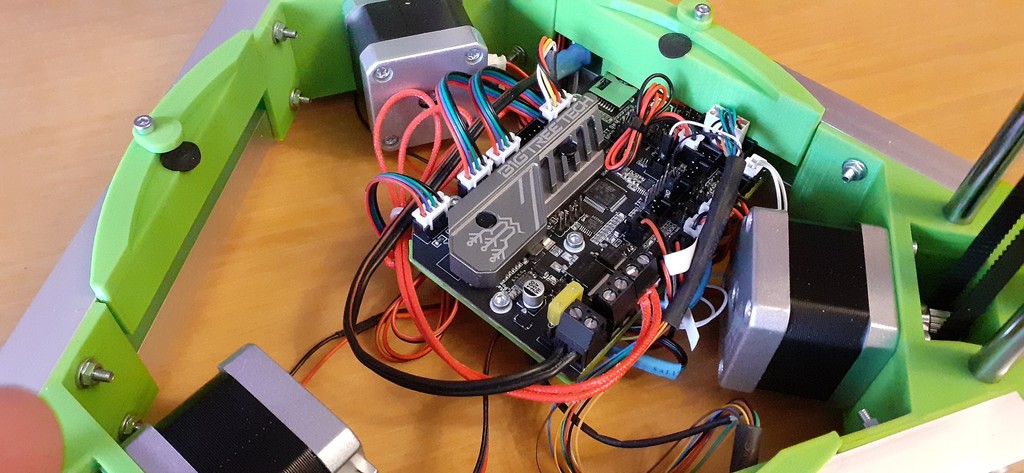

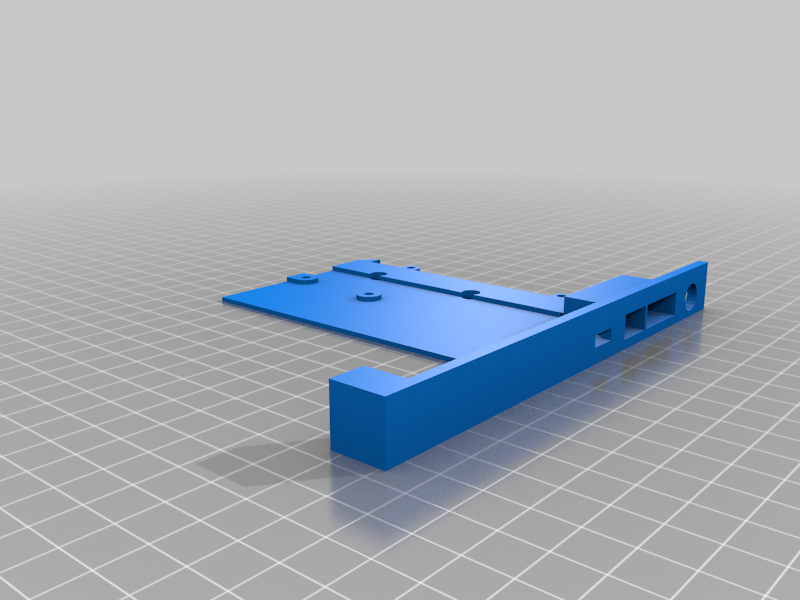

Mainboard: BTT SKR mini E3 v3.0

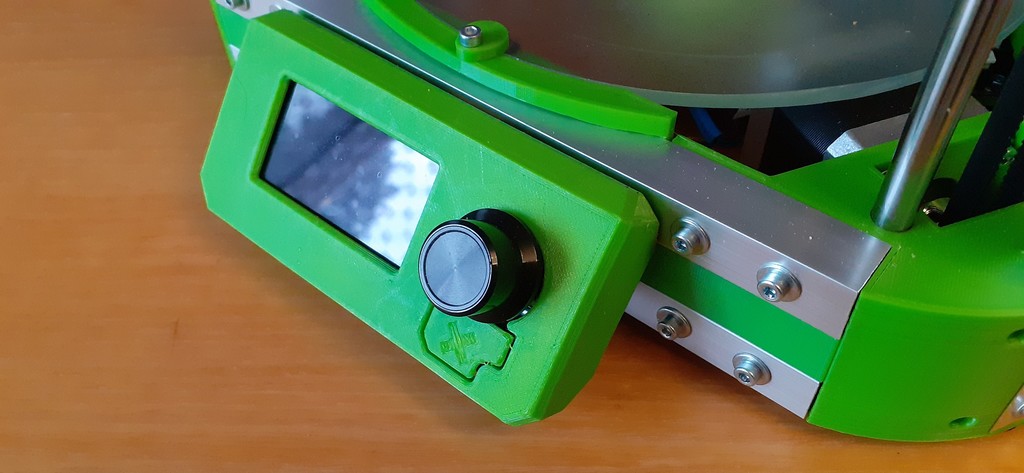

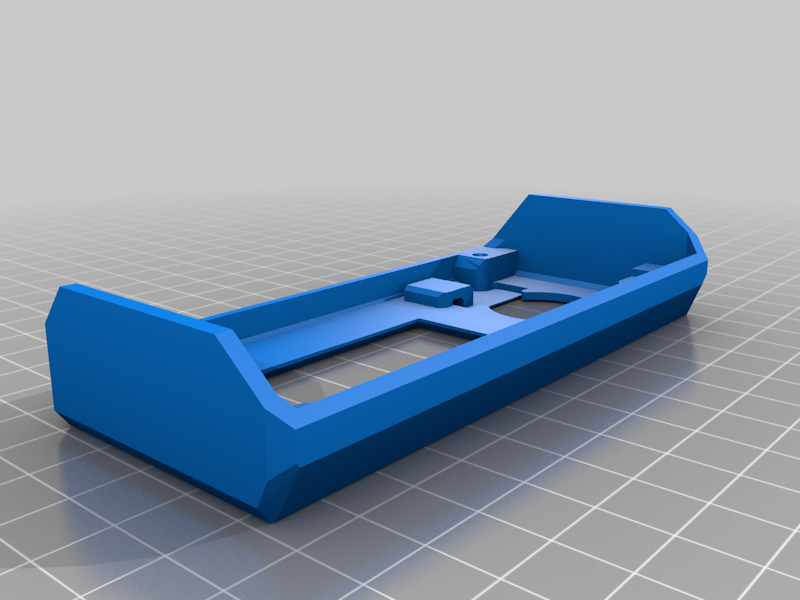

Display: BTT Mini 12864

Firmware: Marlin 2.1.1

Power supply: 12V, 15A

Fans: 3010 and 2x radial 3010

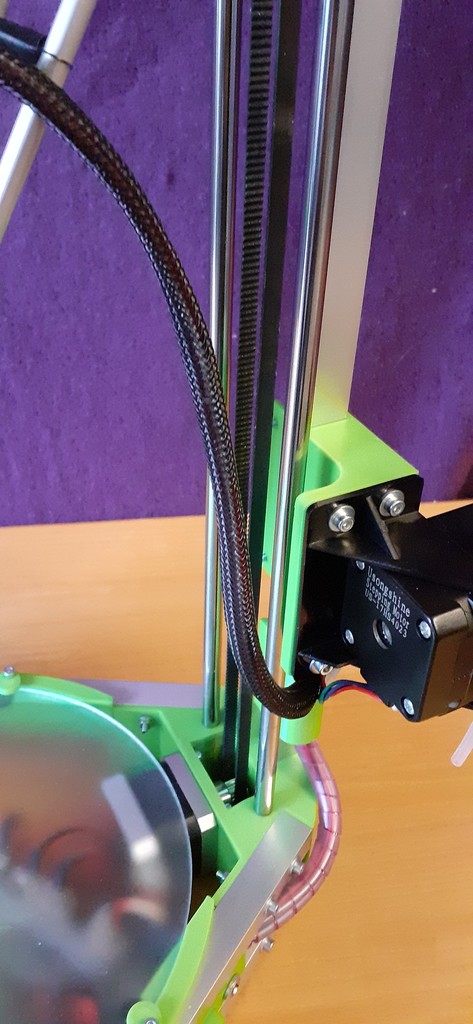

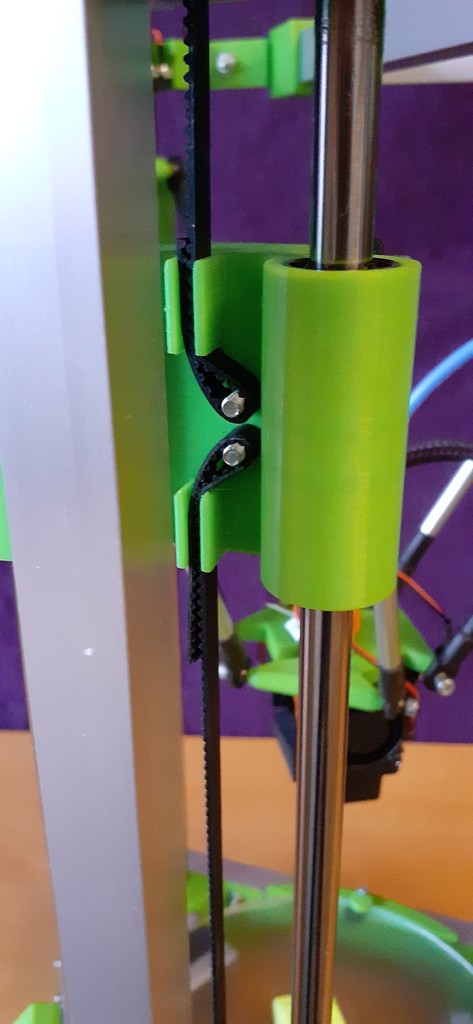

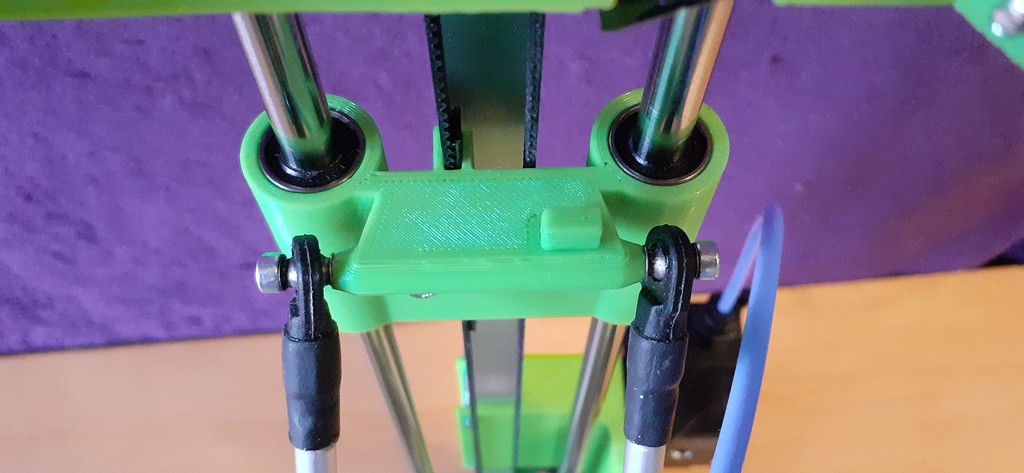

Linear movement: precise rod 8mm, LM8LUU bushing

Diagonal rod: 167mm

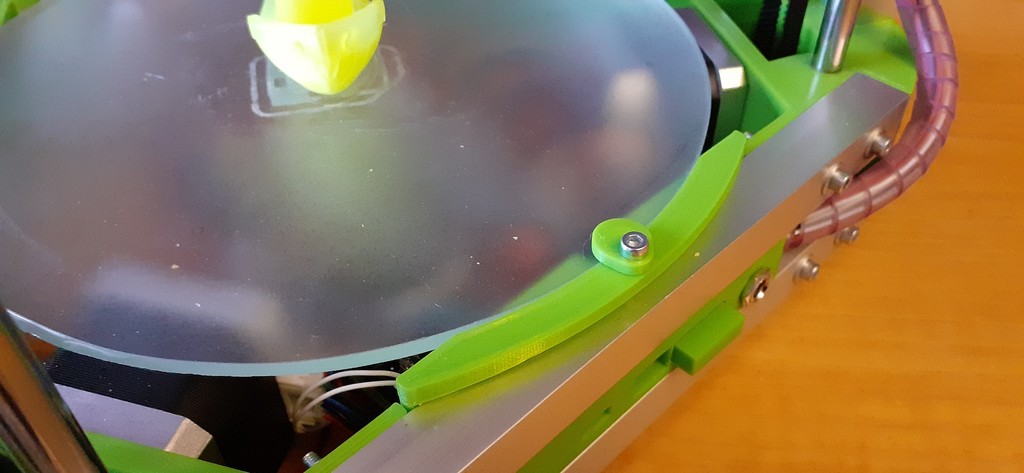

Heated bed: not present, matte glass only

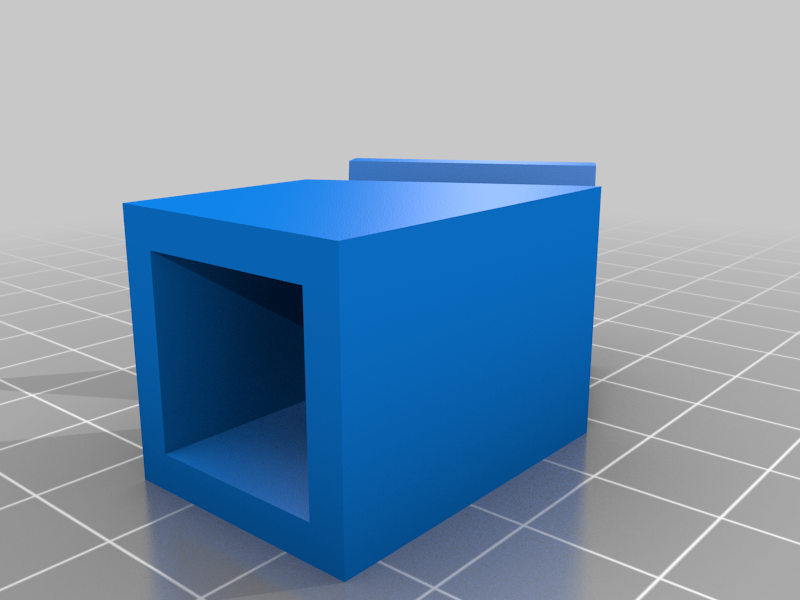

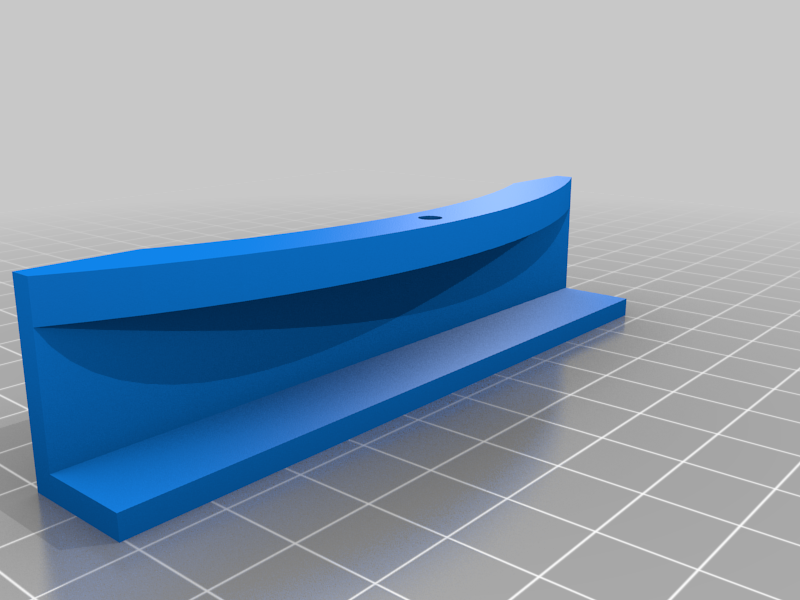

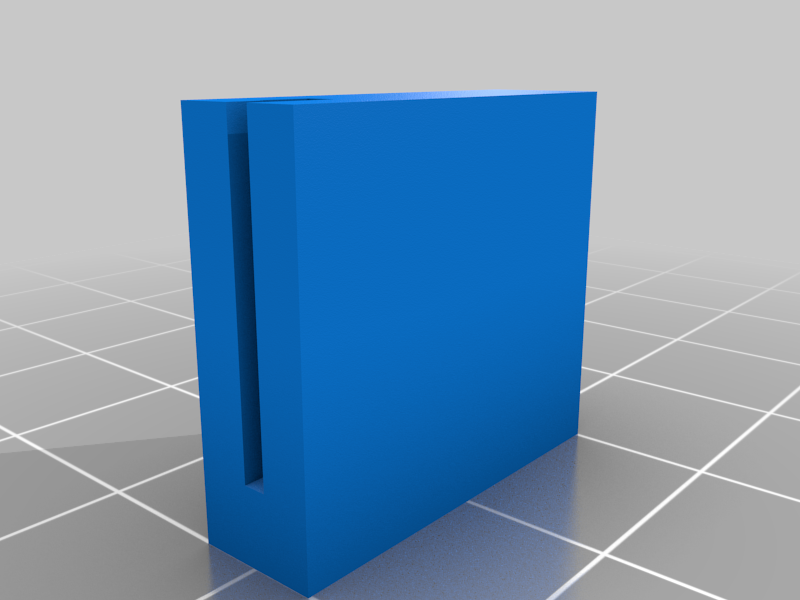

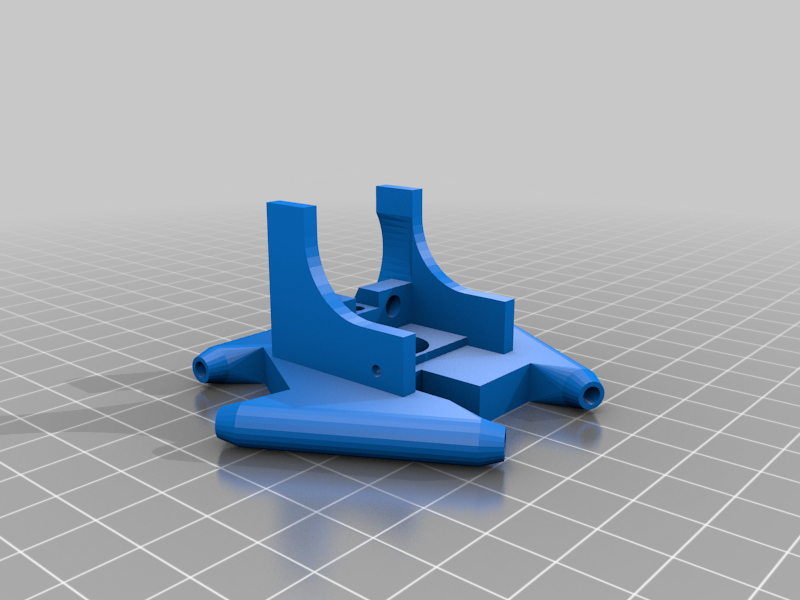

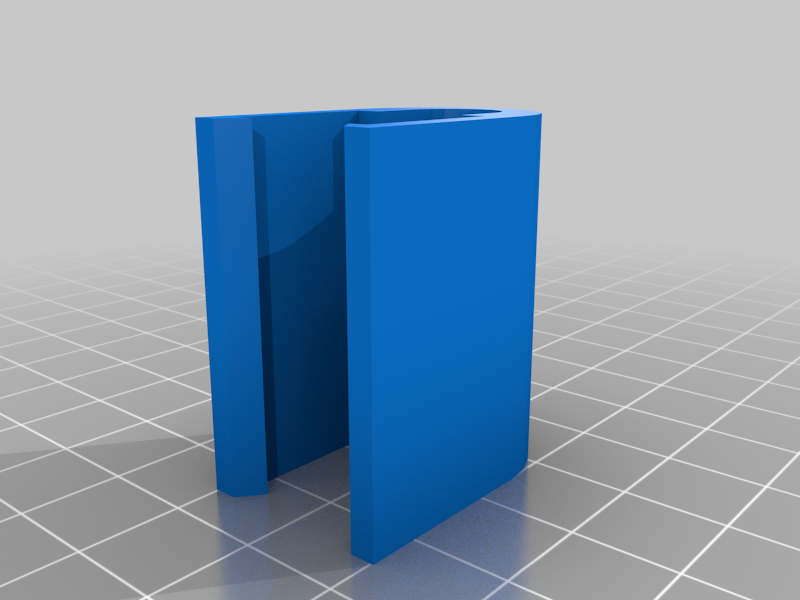

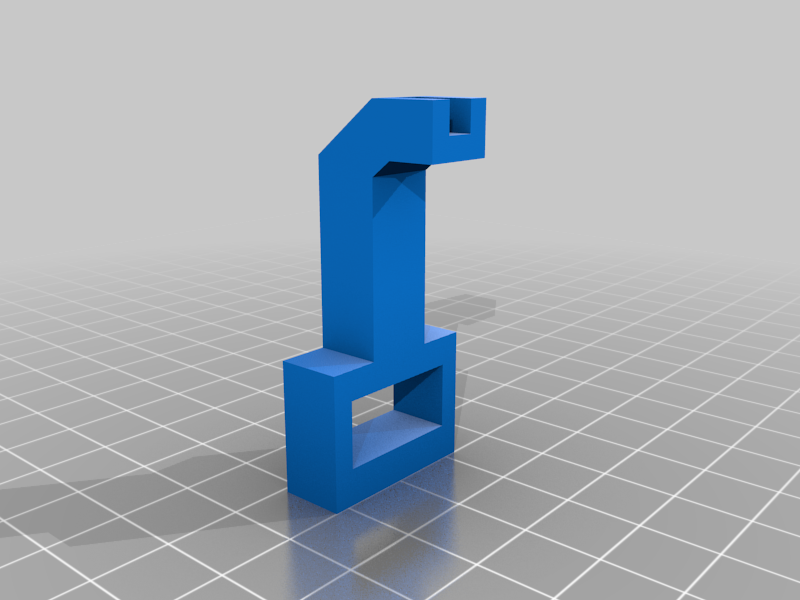

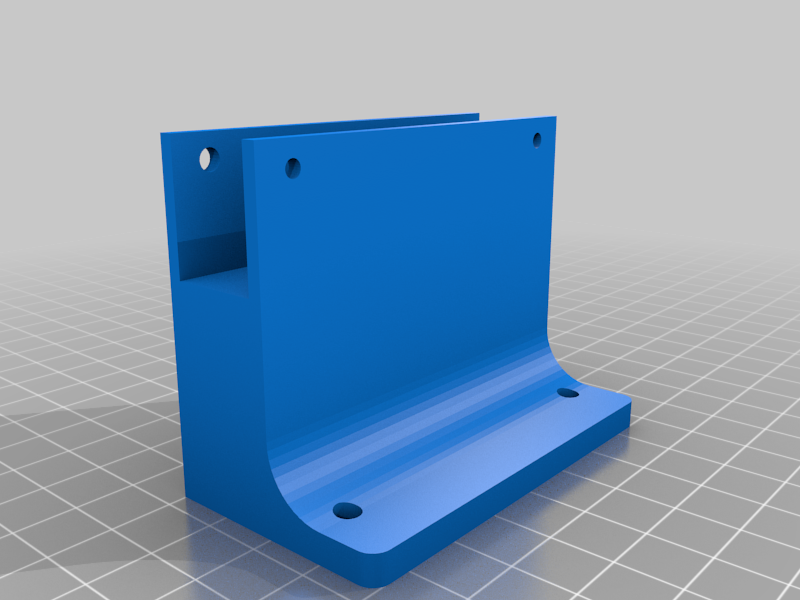

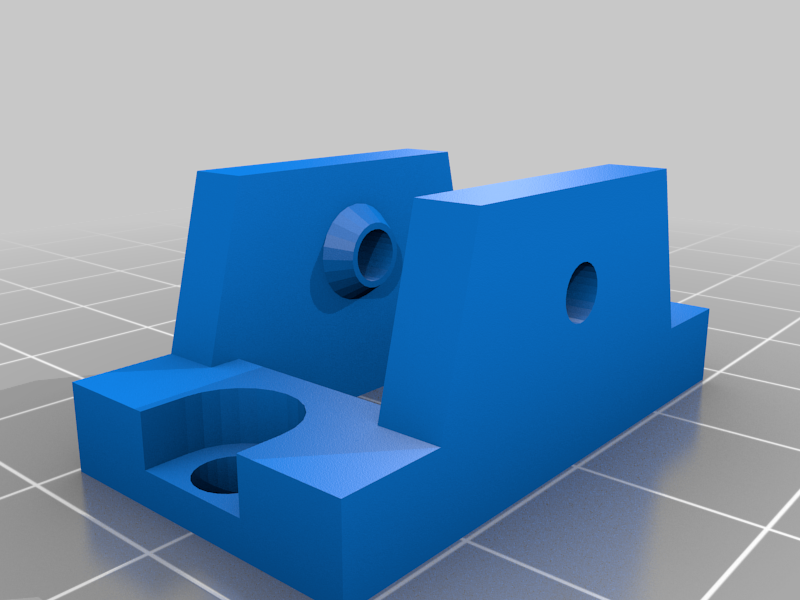

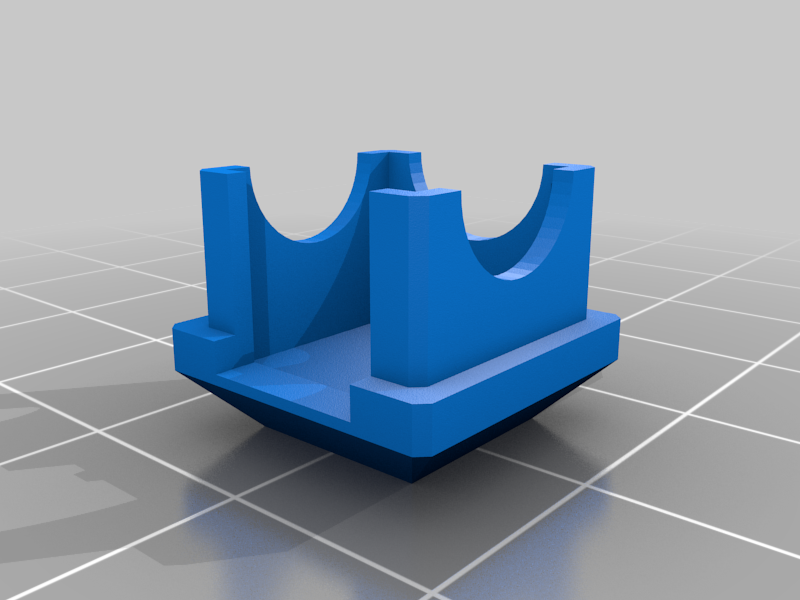

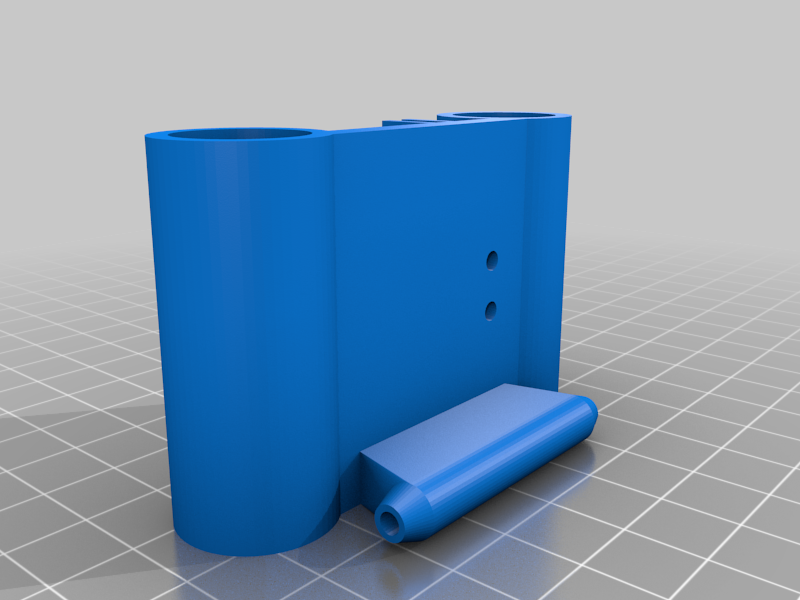

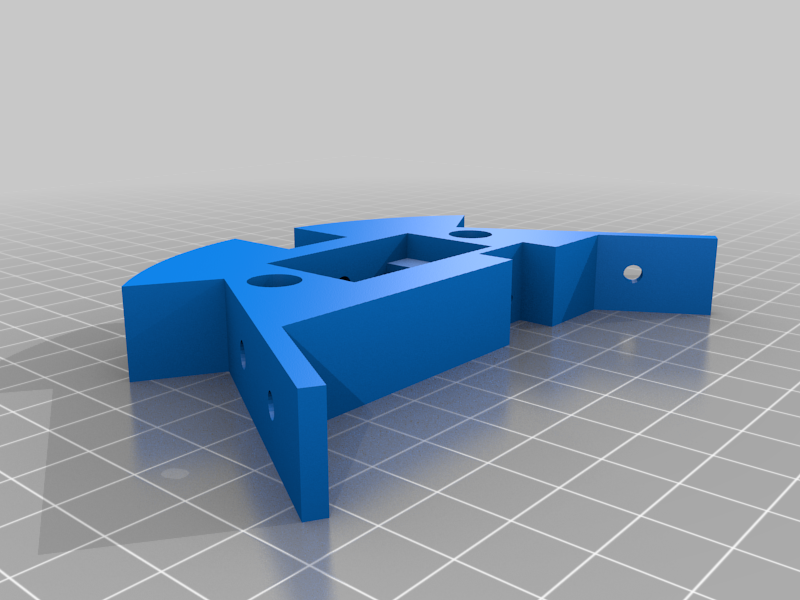

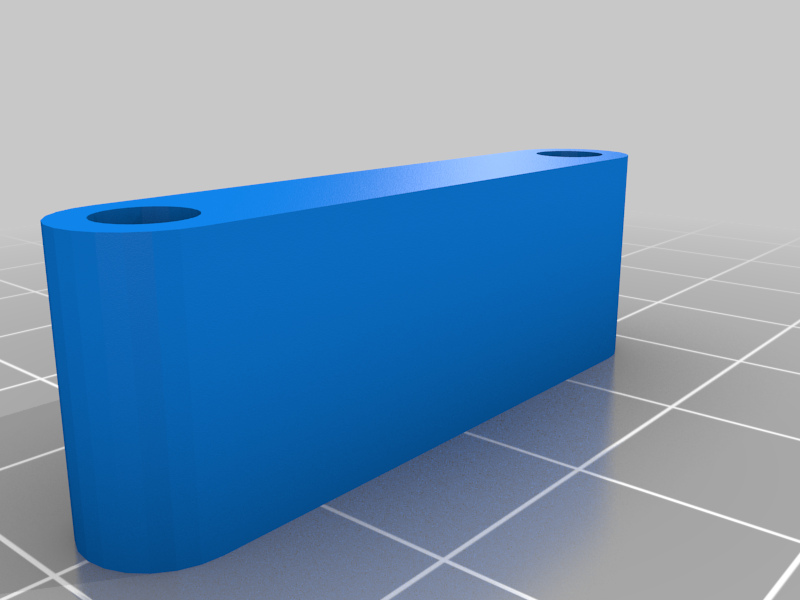

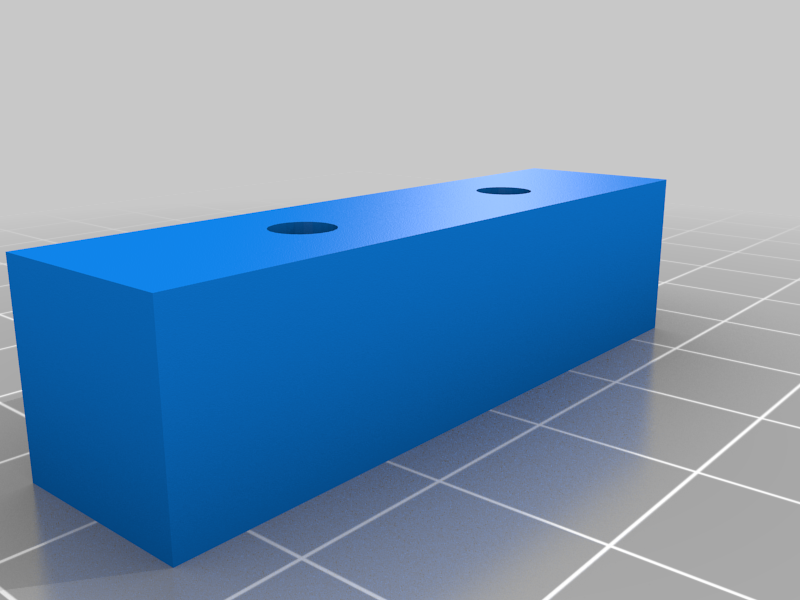

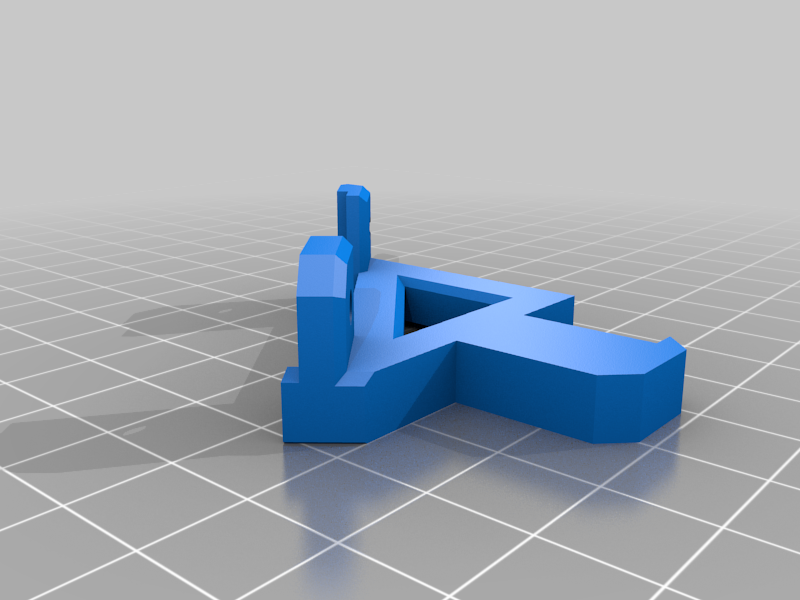

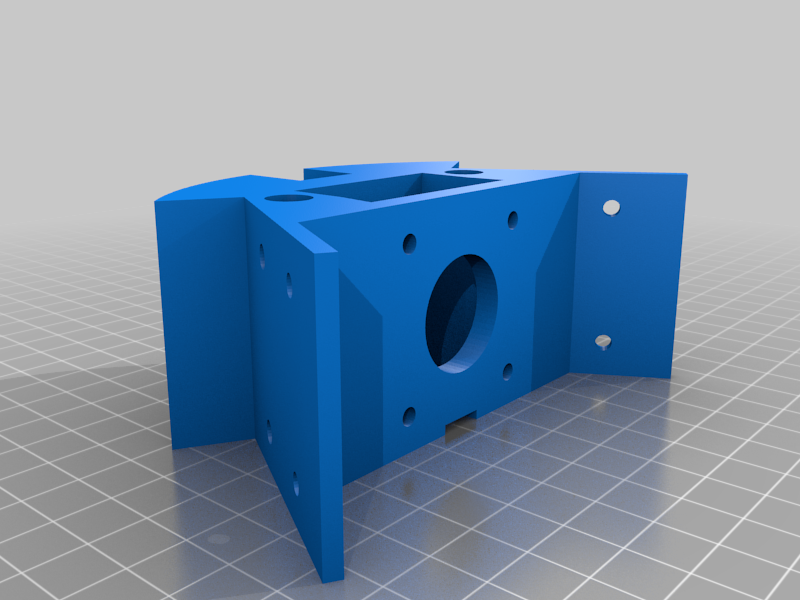

All parts are printed of PETG.

Material:

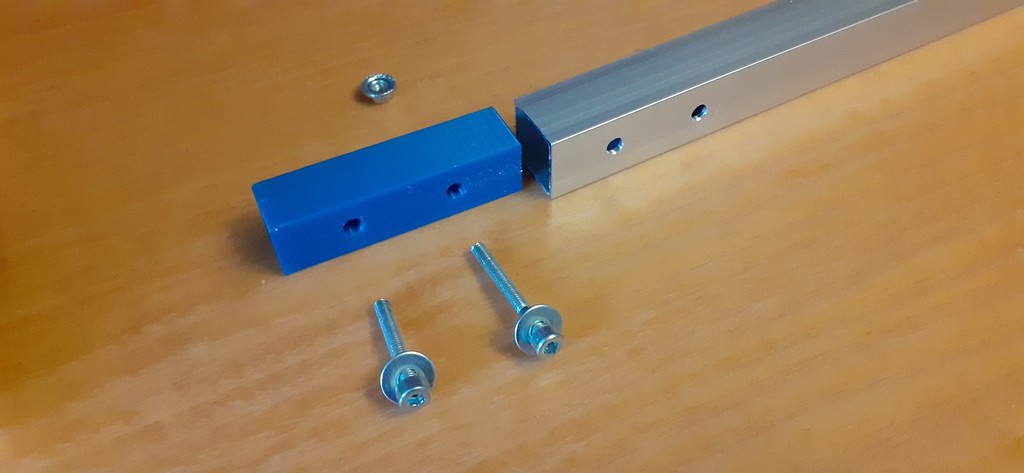

Aluminum profile 15x15mm, thick 1mm:

450mm - 3x

200mm - 9x

180mm - 1x

Hardened steel rod 8mm:

430mm - 6x

Hardened steel rod 3mm:

18mm - 3x

Aluminum tube 6mm thick 1mm:

130mm - 6x

Linear bushing LM8LUU (45mm long): 6x

Ball joints M4: 12x

Motor 17HS4401: 3x

Motor 17HS4023: 1x

Titan or BMG extruder: 1x

Capricorn PTFE tube OD4 ID1,9: 500mm

CR10 hotend: 1x

Tension spring 36.5x25x5mm: 3x

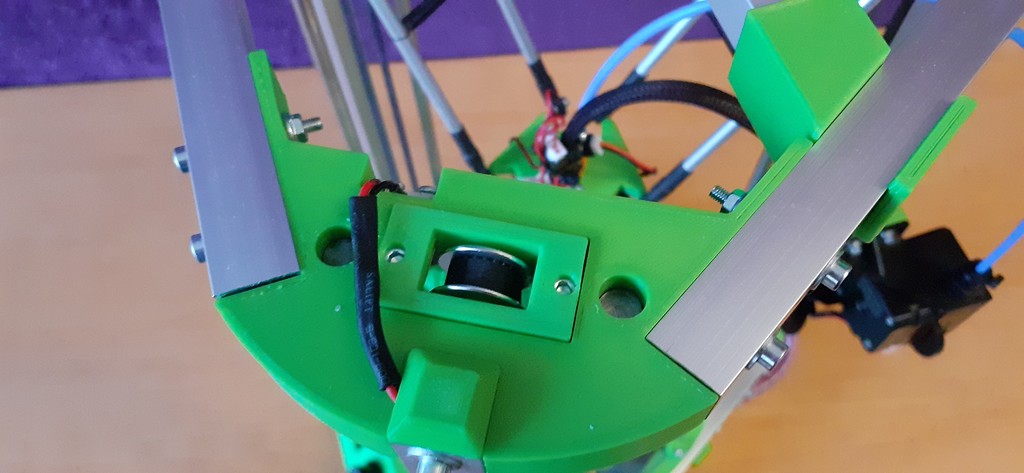

GT2 20T idler timing pulley: 3x

GT2 20T timing pulley: 3x

GT2 belt w fiberglass: 3m

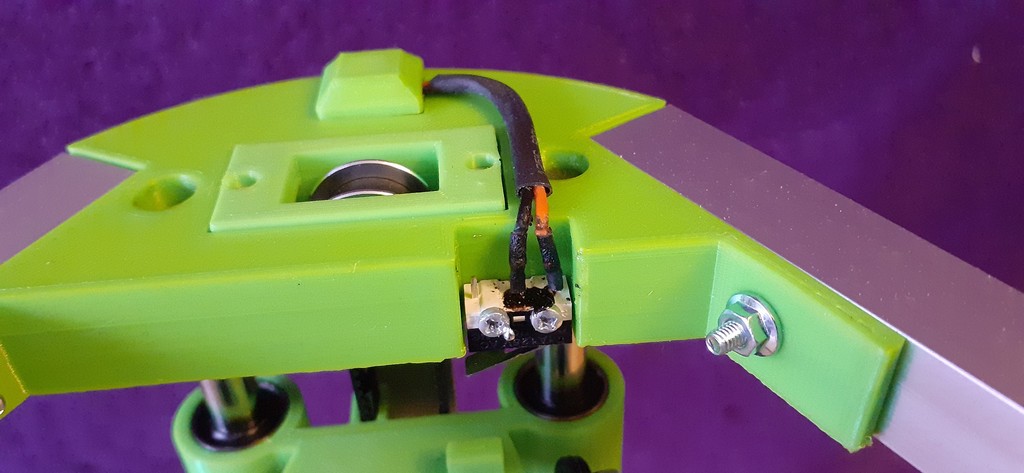

Microswitch 6.5x13mm w handle: 3x

Microswitch for probe: 1x

MicroUSB socket and jack for probe: 1x

5.5/2.1 power socket: 1x

SKR Mini E3 v3.0: 1x

Mini 12864 display: 1x

3010 fan 12V: 1x

3010 radial turbo fan 12V: 1x

Bolts:

M2x10 - 6x

M3x6 - 10x

M3x10 - 24x

M3x12 - 7x

M3x16 - 15x

M3x20 - 27x

M3x22 - 2x

M3x25 - 18x

M3x50 - 1x

Nuts:

M3 w skirt 19x

Washers:

M3 wider: 61x

Brass inserts:

M3x5 - 39x

Polyethylene spiral 8mm: 500mm

Some wires and shrink tubing.

(This list may be and may be not complete)

Marlin key parameters:

diagonal rod length: 167mm

printable radius: 80mm

delta max radius: 82mm

delta radius: 85mm

delta height: 175mm

(some of these parameters will be changed after autocalibration)

steps/mm: 160,160,160,415

max feedrate: 100,100,100,100

max accel: 3000,3000,3000,8000

def accel: 1500

def retract accel: 1500

def travel accel: 2000

jerk: 10,10,10,10

microsteps are 32 except extruder motor (16)

nozzle to probe offset: 0,0,-17.0 (for my probe!!!)

Update 2022-10-04:

Added silicone heating pad 120x120mm, 12V/120W, added LED strips for illumination

Update 2022-10-21:

Heatbed changed for hexagonal metal plate with silicone heating pad and PEI foil

Update 2022-06-23:

Added latest source *.skp files.

Update 2023-10-05:

Heatbed changed to aluminum hexagonal, 160mm round silicone heater 24V/100W, added magnetic pad and double sided spring PEI/PET plate. Upgraded all needed (fans, hotend…) to 24V.

Print Settings

Printer:

Kossel-like delta printer

Rafts:

Doesn't Matter

Supports:

Yes

Resolution:

0.2mm

Infill:

30

Filament:

Worcam technology PETG

Green
