Descrição
I design the model in FreeCAD. It was tried pumping water but oil should work too. The pump needs to be primed.
Material used
- Gaskets are printed in TPU

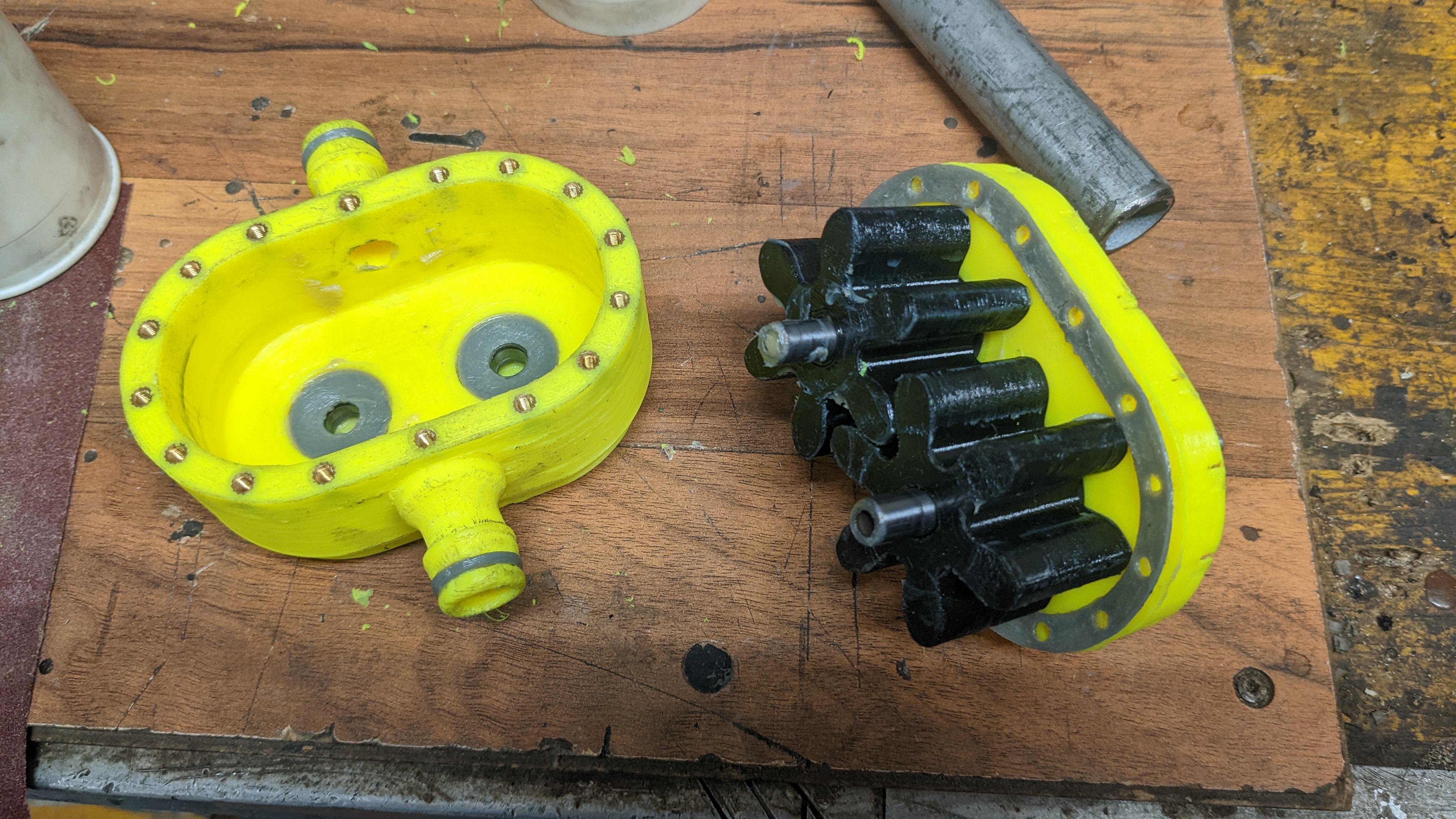

- Gears are printed in PETG
- Casing and Lid printed in PLA
You need

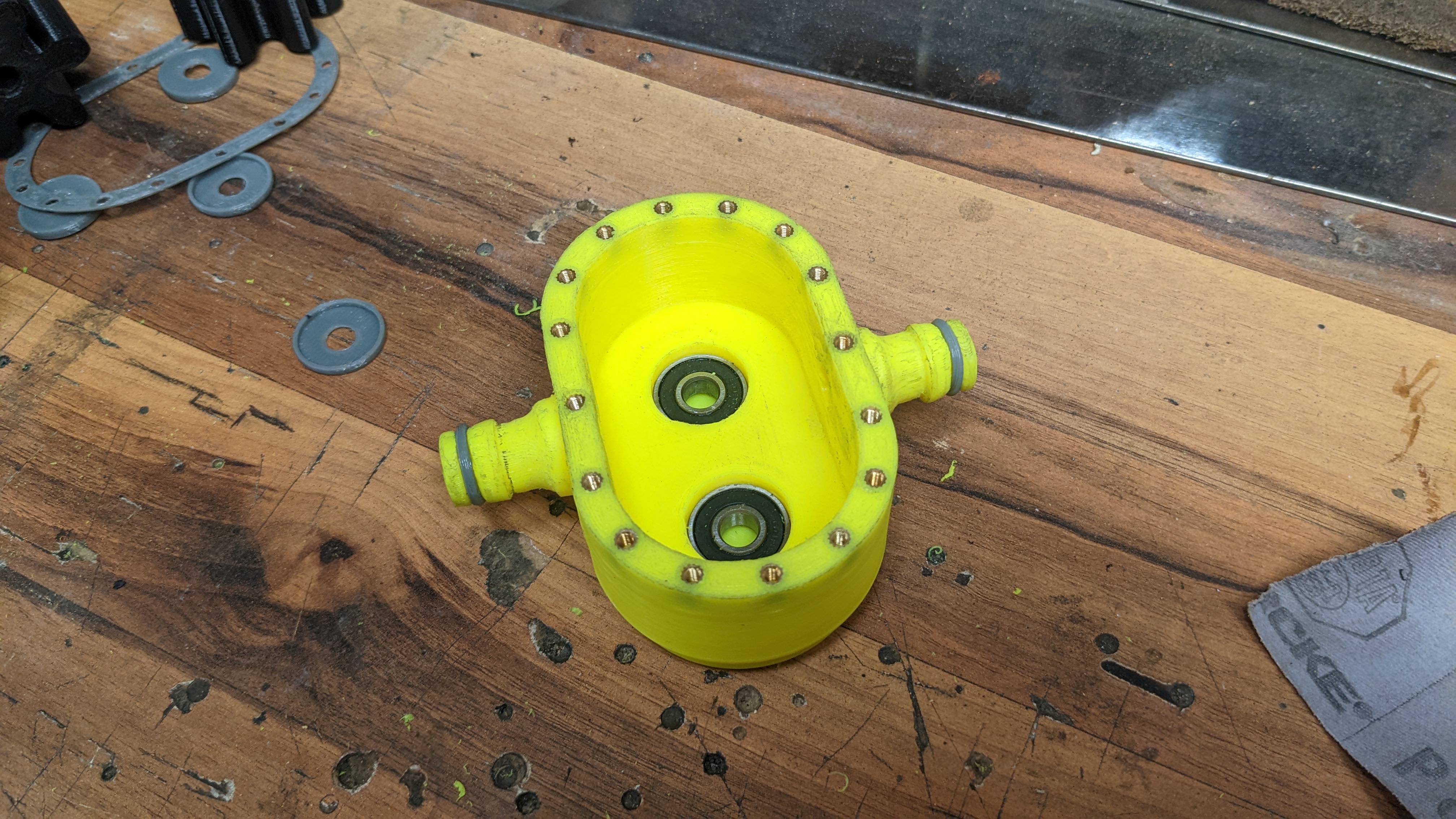

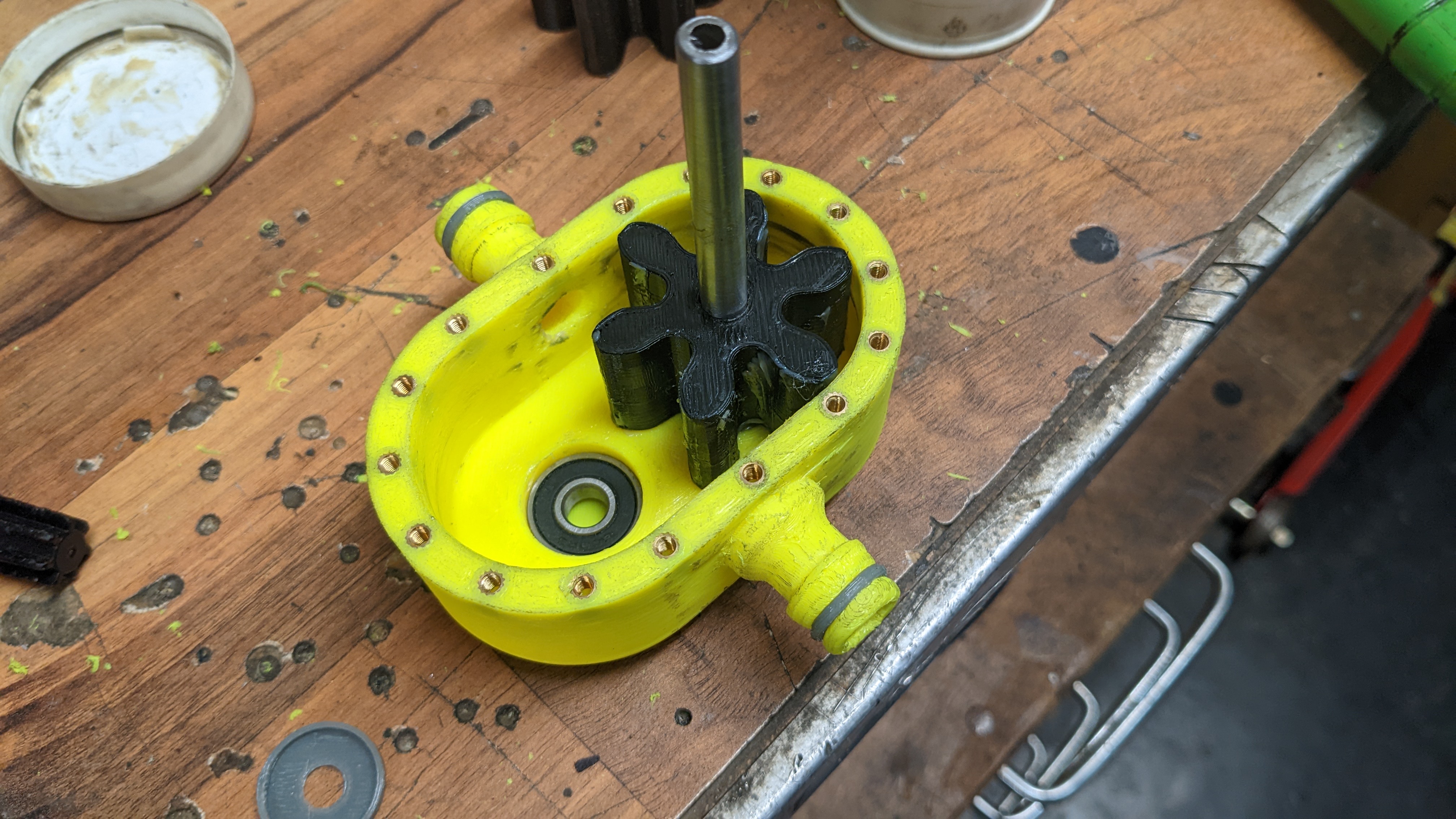

- 4x 608 Ball bearings (d=8mm D=22mm width=7mm)
- 16 Threaded insert M3
- 16 M3x12mm

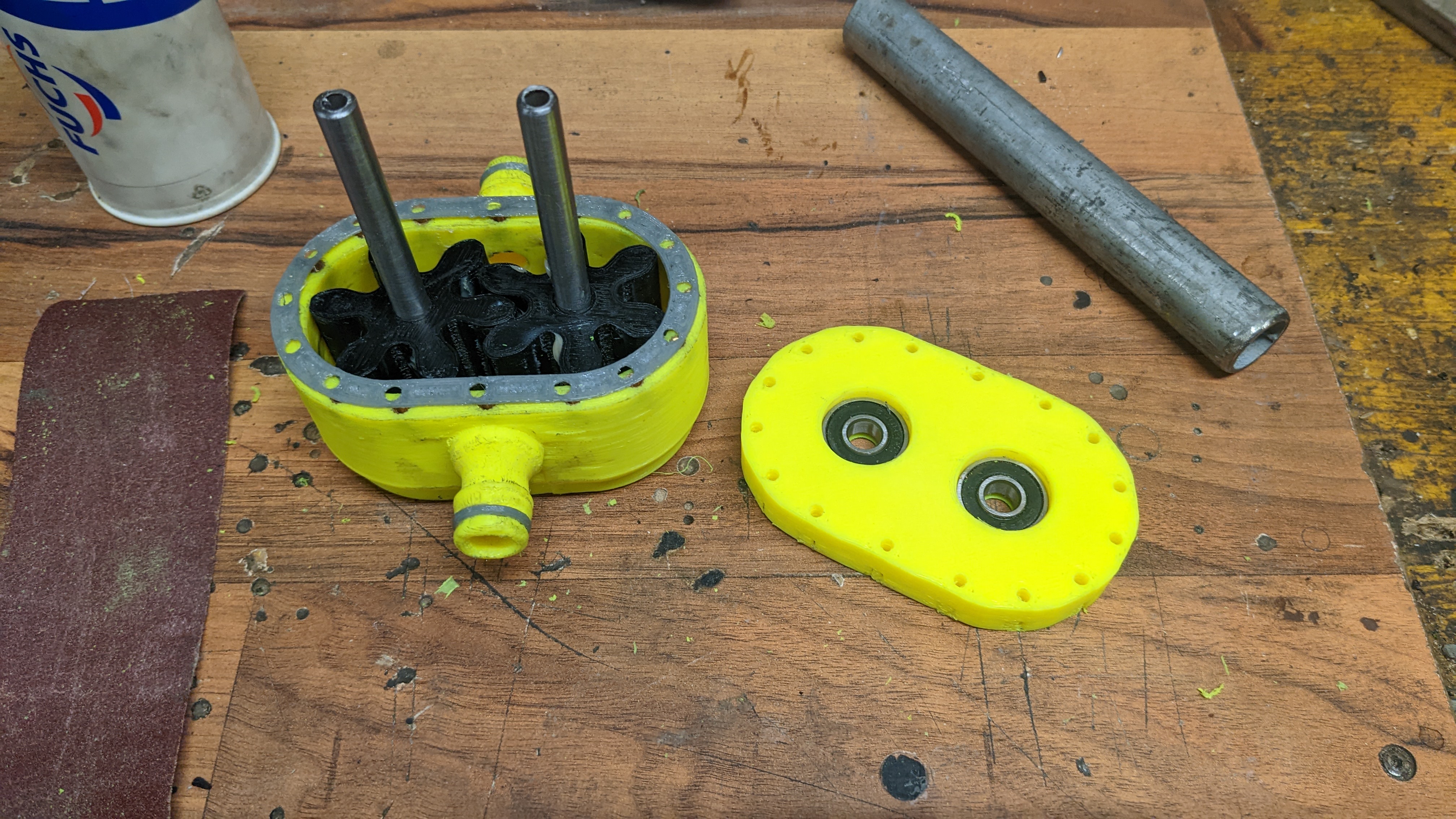

- 2x 8mm Shaft min. length 60mm
- some sort of lubricant (Silicon Spray, grease)
Short Video
1,109
Curtidas
2,147
Downloads
6
Impressões
Categoria
Mechanical Parts
Tags
gear
drill
pump
gearpump
drillpump
Licença
Creative Commons — Attribution — Noncommercial — Share Alike
