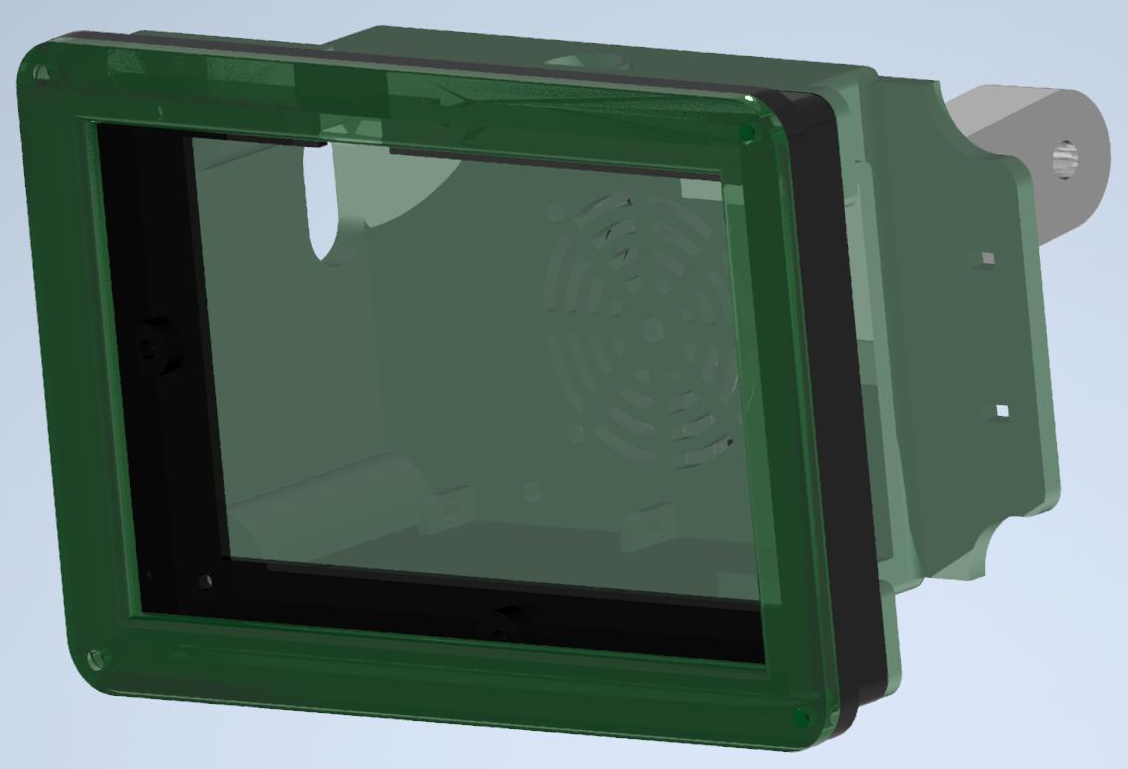

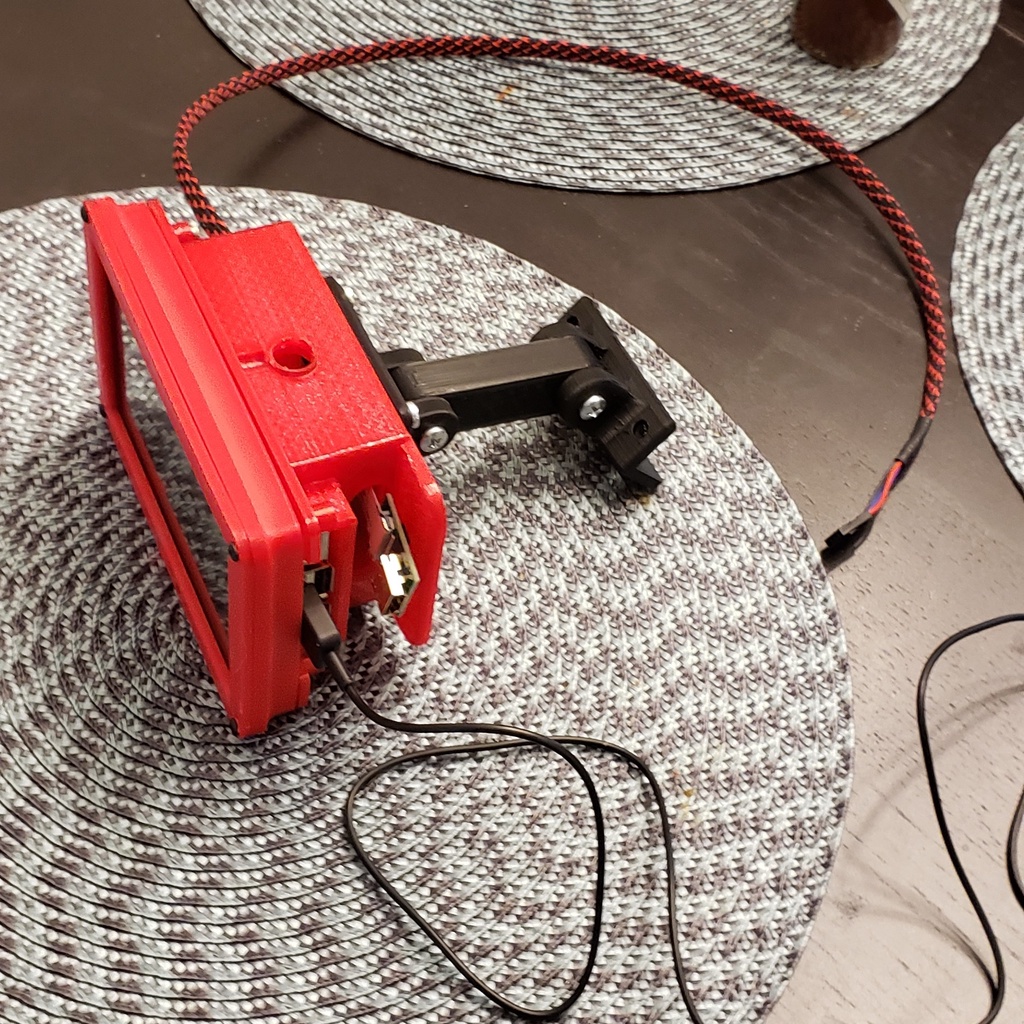

Touchscreen assembly for DFRobot 5" 800x480 TFT DSI touchscreen + Raspberry Pi and interior space for Pi HAT.

Requires:

4 M2.5x20mm screws for the back of the case

4 11mm standoffs between Pi and HAT (can be printed) + 4 M2.5x20 screws

4 M4x12mm screws to attach mini VESA mount to back of case

2 M5x30mm screws for bracket

Supports absolutely required for LCD mount.

Also see the VESA arm mount from: [https://www.thingiverse.com/thing:2799628](https://www.thingiverse.com/thing:2799628)

To attach to the top of the printer frame with 2x M3 screws and t-nuts.

As an alternative, use Mount_Frame_2020_hole.stl for mounting with M5 screws and t-nuts.

Print Settings

Printer:

Delta XL Custom

Rafts:

Supports:

Yes

Resolution:

Infill:

25%

Filament:

Inland PETG

Red
