This is a variation of my other Remixed Pi Zero W case but this one uses the shorter camera cable.

This one has a few covers as I was testing some add on camera lenses with a time lapse setup.

*Uses (8-12) 2-56x 1/8" Button Head screws for assembly.*

If you have any questions or problems with the files or fitment of the parts just let me know and I will try to fix them.

Remember to tip your ~~waiters~~ designers if you like the service.... thanks for looking.

The Run Down.

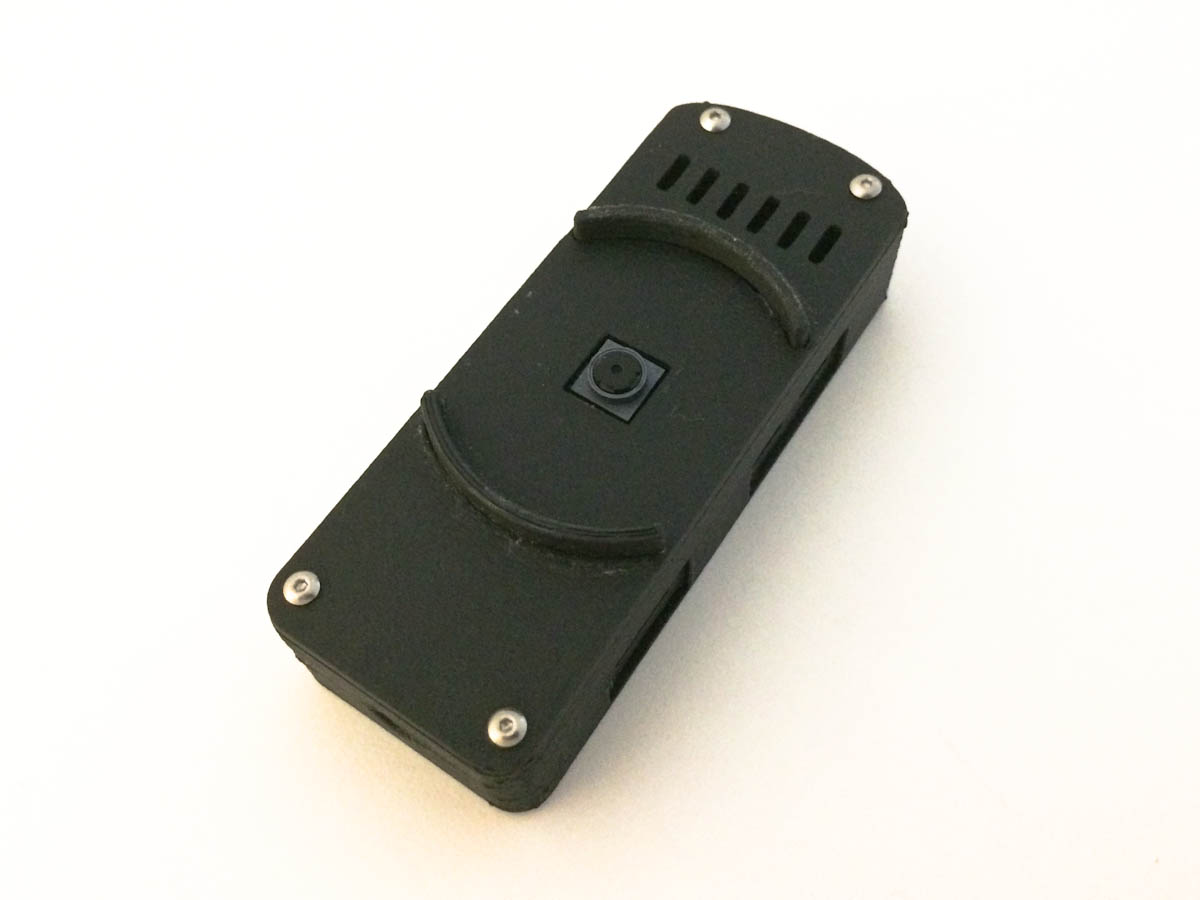

I made this case to test a few add on camera lenses. The funny rings hold the lens in place.

This case was made for the Shorter Pi Zero Camera Cable.

These lenses are all Phone lens that I am testing with the Pi camera. This one is a 0.45x Wide Angle Lens + 12.5x Macro Lens.

Screwing off the main lens give you a Macro lens.

Anotehr set of Phone lens... These stick on with a magnetic washer base. I still have to test these.

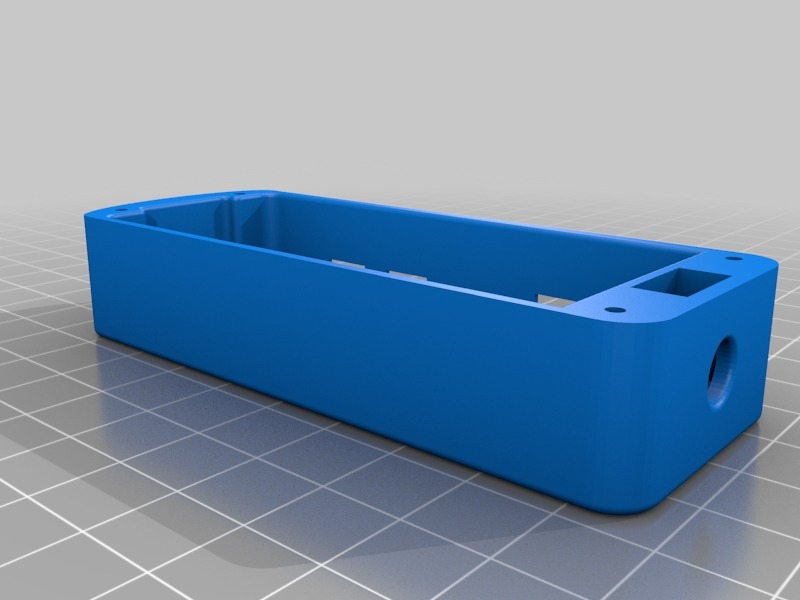

The base has room for a 1/4-20 nut for use wiht a tripod.
