Modelo 3D RC4 prototype (what I would consider) por Arda Özcan no Printables

Descrição

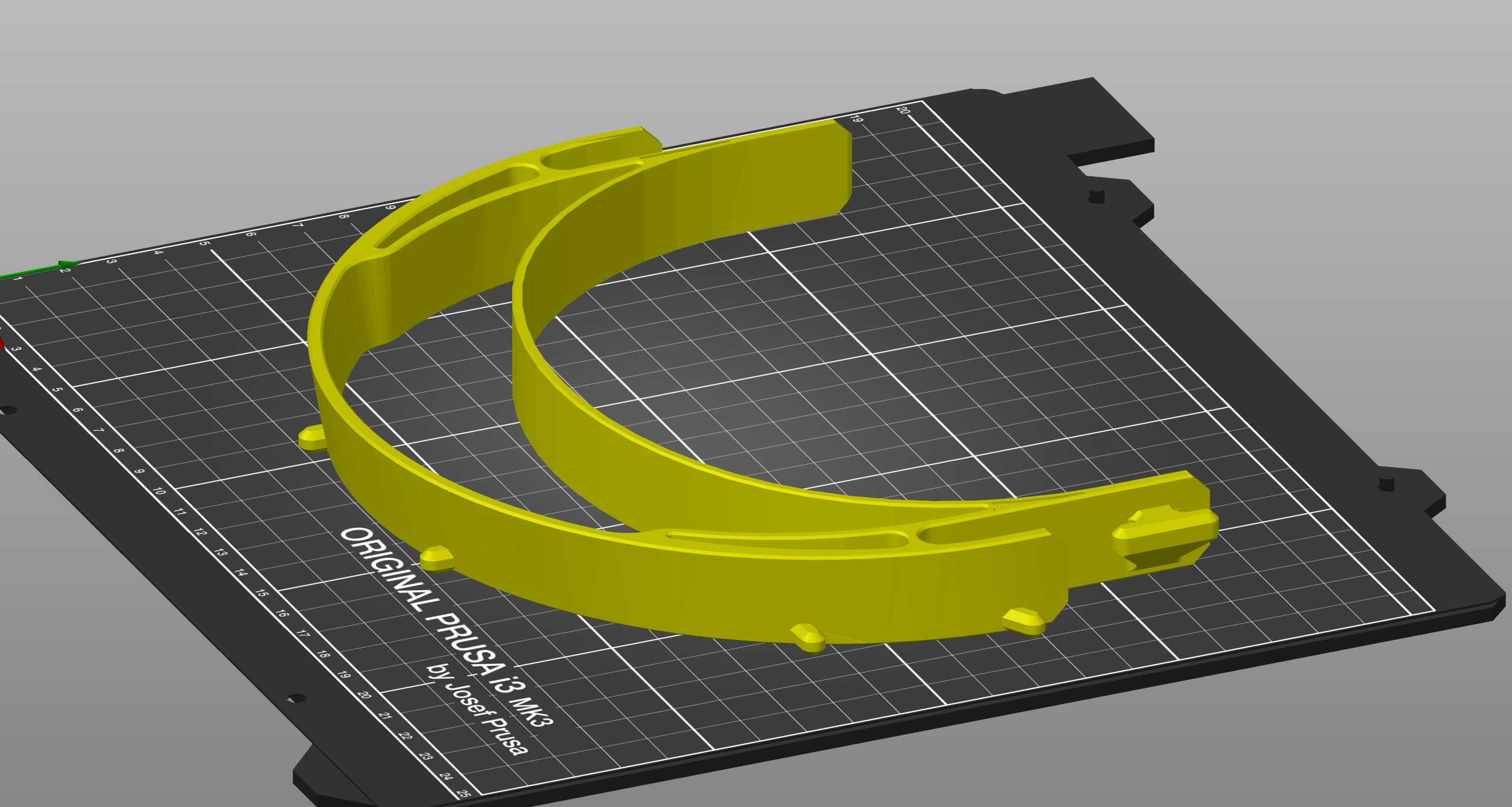

This model is what I would want to see on RC4. It is a revised version of face shield RC3 from Prusa based on the feedback I received from several doctors. Additional features are as follows:
-Slightly inclined front plate to cover splashes from under better(10°).
-Wider shield for better protection from sides.
-Shorter shield downwards for better movement.
-No need for bottom reinforce.

Sorry for removed Prusa writings but I had to for the new extensions.

Edit: It is now ready to be produced. Proper dxf and dwg files for the front plate are added. It is not compatible with the original shield. I used laser cut 0.5mm PC sheets for front plate but PET sheets would be fine as well. I am also planning to add 4 stacked model and one with closed top.

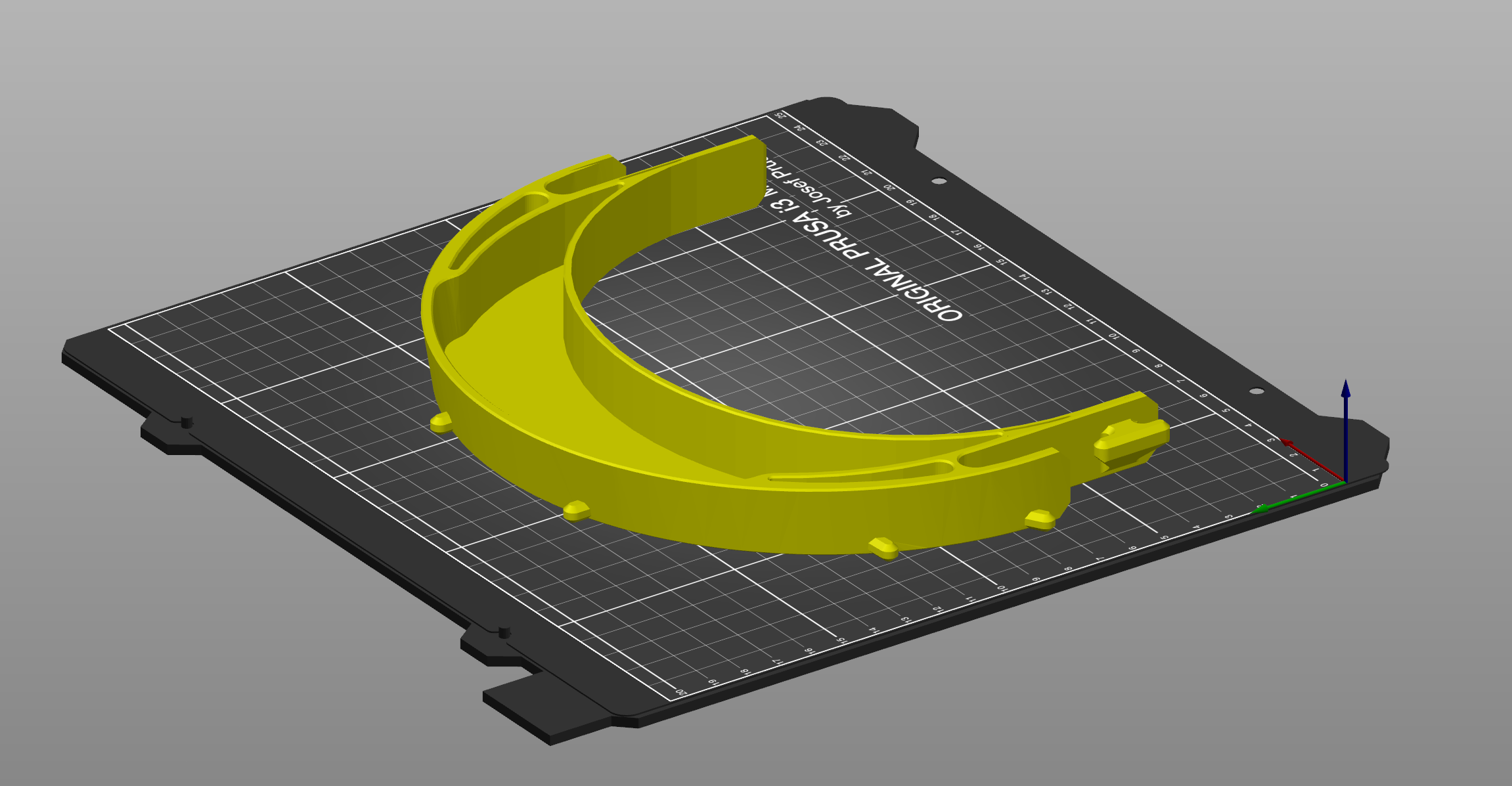

Edit: Closed top model added. Beware that closing it even in the simplest way like this cause a 25% increase in print time.

Printables

RC4 prototype (what I would consider)

Publicado em 28 de mar de 2020

0
Curtidas
110
Downloads
Categoria Masks
Tags
healthcare
Licença Creative Commons — Attribution — Noncommercial
Arquivos (5)
rc4_prop_shield_final.dwg 16.1 KB
rc4_prop_shield_final.dxf 96.8 KB
rc4_prop.stl 379.8 KB
rc4_prop_closed_top.stl 490.4 KB
rc4_prop.step 1.4 MB
