Modelo 3D Simple configurable and stackable hose mounts por mimo.sk no Printables

Descrição

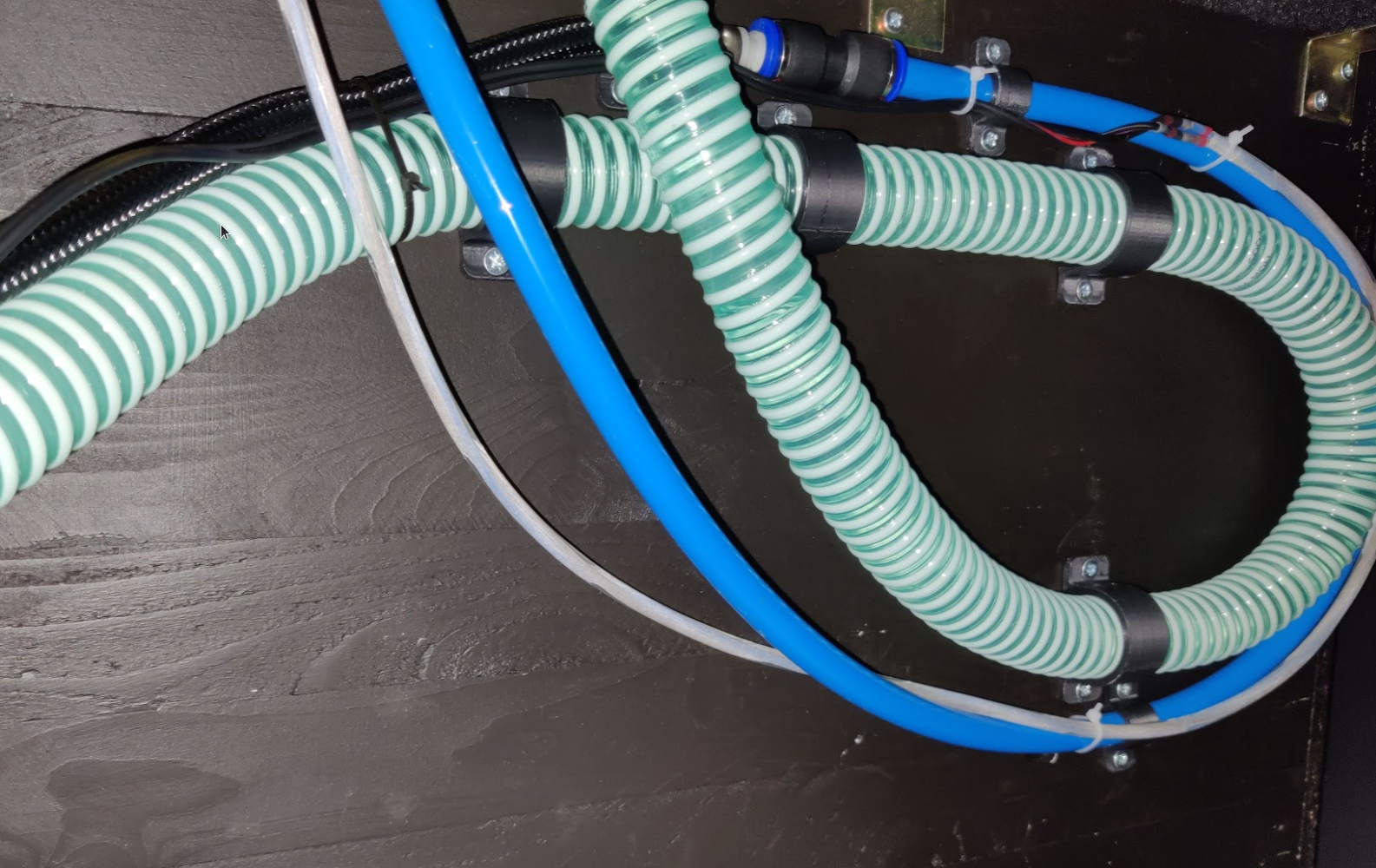

These are simple models to attach hoses to the wall.

Not only for hoses of course :)

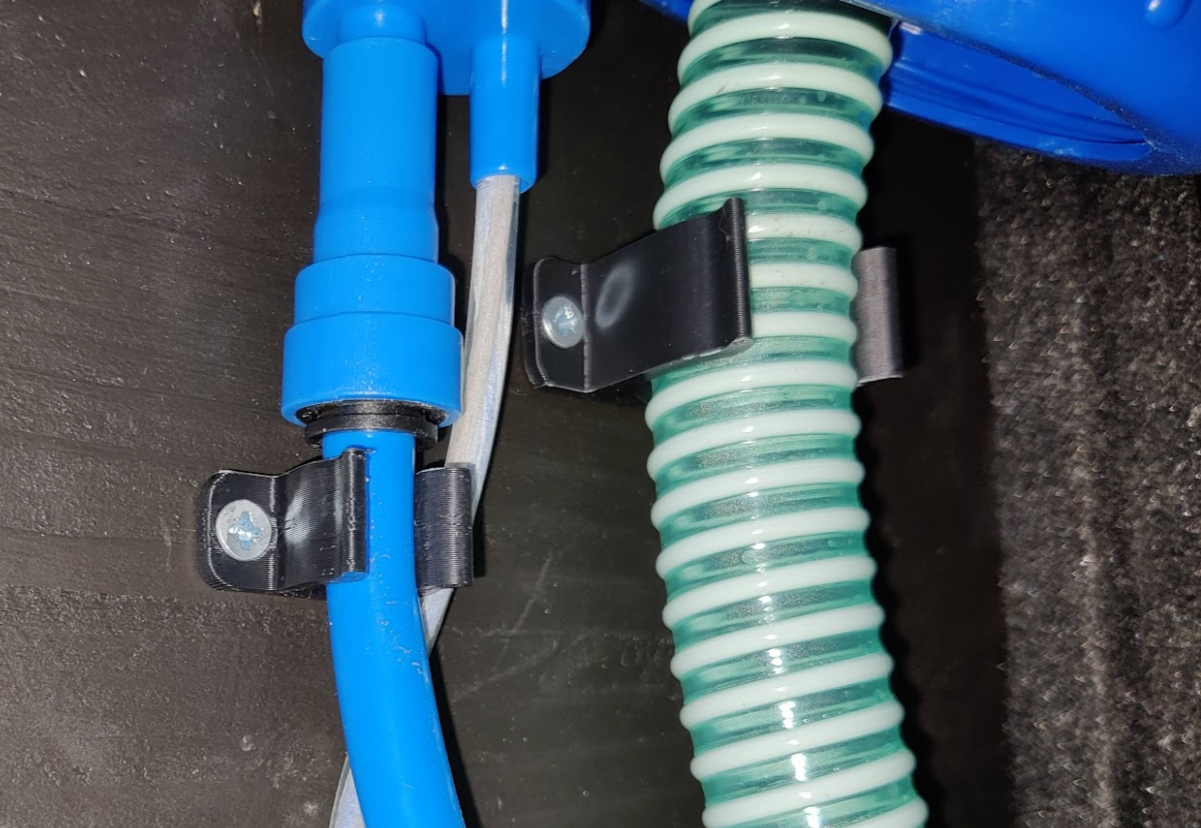

There are two versions:

  1. Permanent clamp on mount.
  2. Push in mount.

You can easily stack them on the build plate to make mount for multiple parallel hoses, or stack them on top for more mounting holes and stronger clamp.

 I'm providing two basic sizes for 30mm and 16 mm hose but standards are different around the world so here is onshape link where you can easily configure/update/improve them for perfect fit.

[https://cad.onshape.com/documents/b34b8cc677d11367acd1498e/w/ac712db5e8e0be18d108c8db/e/c06cd1f9b71317ad2a54837f?renderMode=0&uiState=631210c4ab287e79385857bb](https://cad.onshape.com/documents/b34b8cc677d11367acd1498e/w/ac712db5e8e0be18d108c8db/e/c06cd1f9b71317ad2a54837f?renderMode=0&uiState=631210c4ab287e79385857bb)

Use variables at the top of feature history for basic configuration.



Enjoy ;)

Printables

Simple configurable and stackable hose mounts

Publicado em 2 de set de 2022

22
Curtidas
93
Downloads
2
Impressões
Categoria Organizers
Tags
organizer wallmount stackable configurable hoseclamp hoseclip hoseholder hosemanagement
Licença Creative Commons — Attribution — Noncommercial
Arquivos (4)
clamp-on-30.stl 192.9 KB
push-in-30.stl 261.3 KB
clamp-on-16.stl 192.9 KB
push-in-16.stl 254.3 KB
