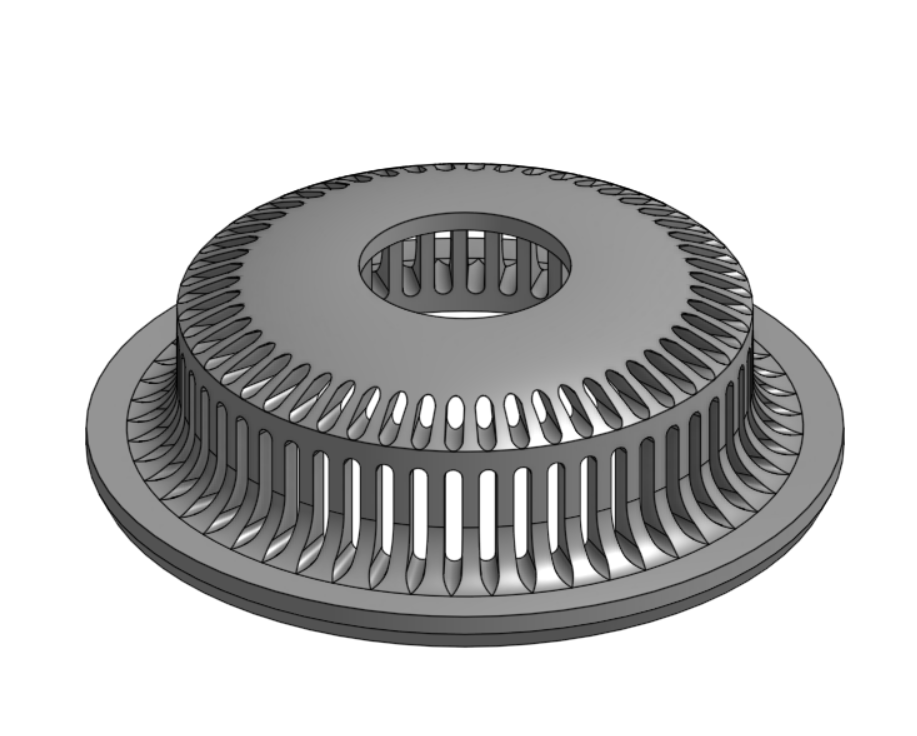

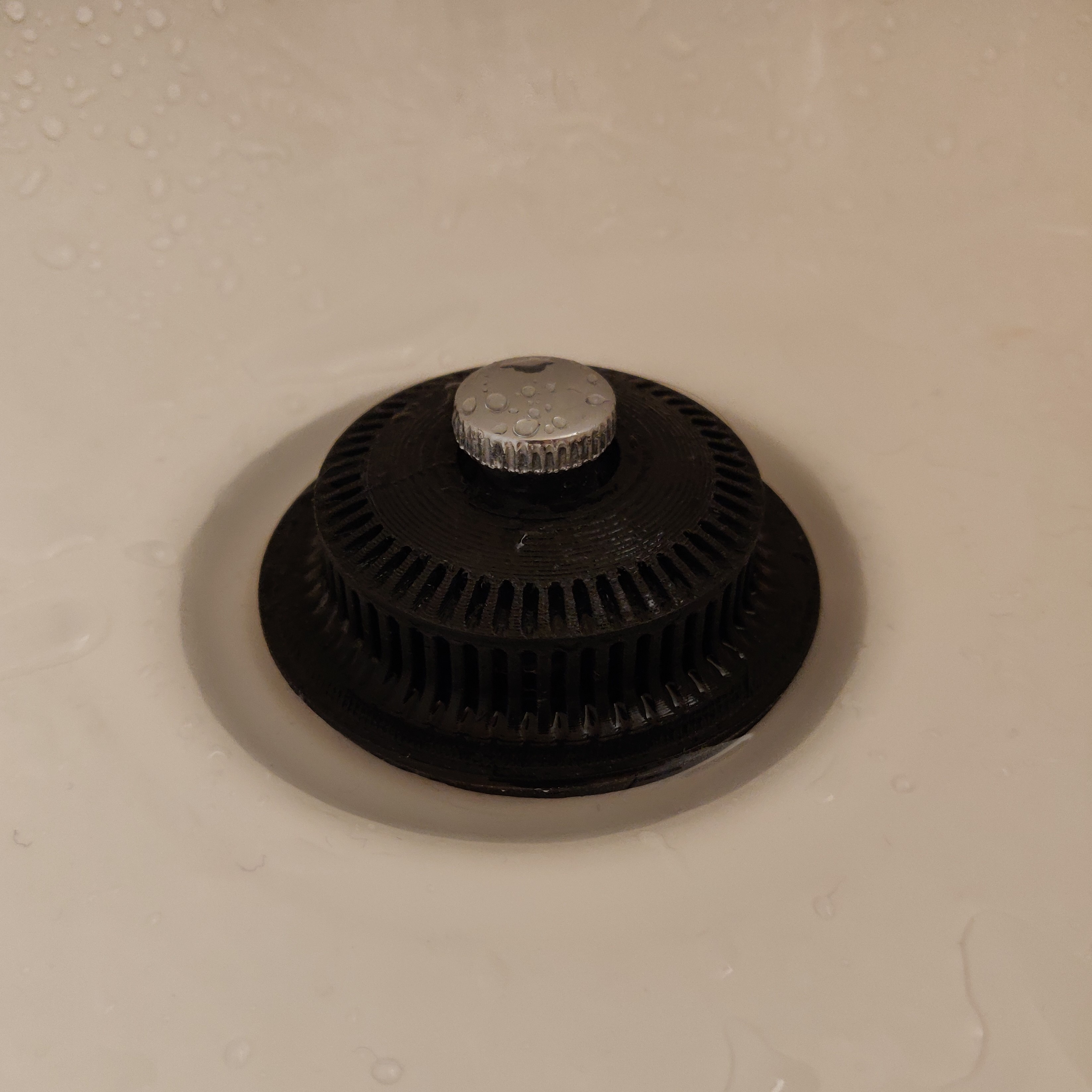

Hair strainer for bathtubs that have built-in stoppers.

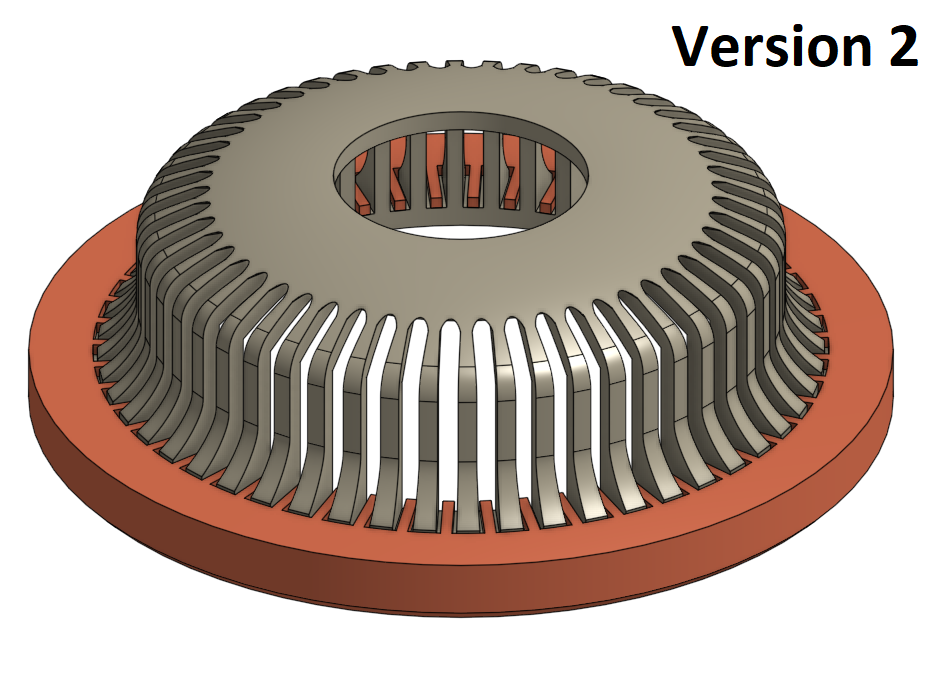

– Version 2.0 –

Now more efficient, easier to print and self-cleaning!

• Simplified grating for better water flow
• Split model into two parts for easier printing
• Designed base to be comb for easy cleaning

Model

I created this in OnShape. After I moved, I realized similar looking stoppers can have different geometry. The model is public so feel free to copy and modify to fit your own

[https://cad.onshape.com/documents/6113846e033995e1af86ede8/w/75d96d46e45025a628db4e84/e/80220d0ee7e2f457c607eba1?renderMode=0&uiState=67469787d453d572b3c1ef08](https://cad.onshape.com/documents/6113846e033995e1af86ede8/w/75d96d46e45025a628db4e84/e/80220d0ee7e2f457c607eba1?renderMode=0&uiState=67469787d453d572b3c1ef08)

Print Instructions

Supports are required for the frame. Print the base upside down to avoid supports.

• Infill 100%
• Layer height 0.2mm
