Modelo 3D Optical table mountable tool holder por Filip Sośnicki no Printables

Descrição

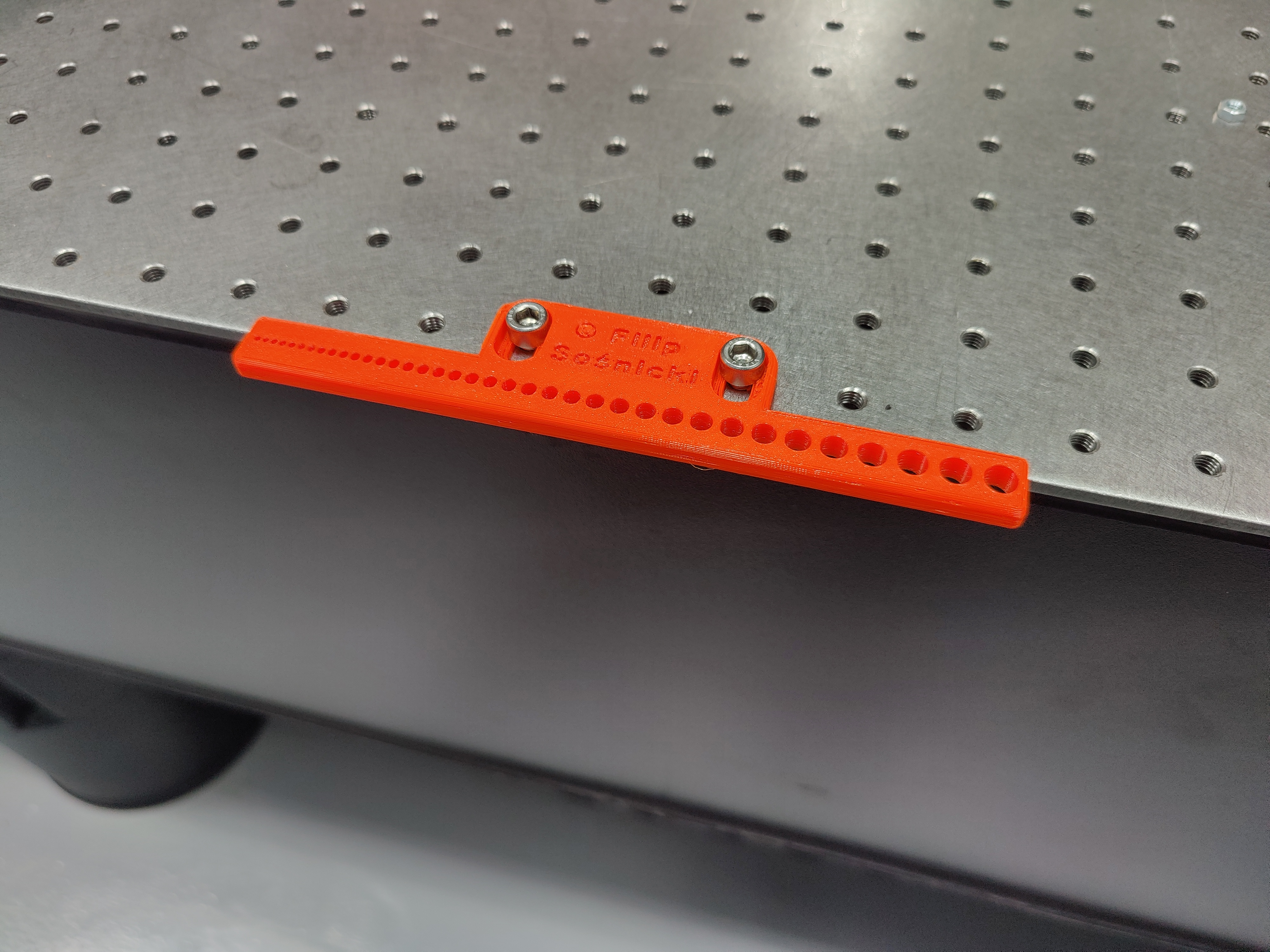

Holder for hex keys and other screwdrivers mountable to the edge of an optical table.



Default parameters:

  • diameter of the holes ranges from 1.5 mm to 6.5 mm, reasonable for all the hex keys normally used in optical labs.
  • distance of the mounting holes from the optical table edge is 12.7 mm (0.5")
  • 175 mm length, 17 mm width, and 7 mm thickness, mounted with M6 cap screws to the optical table.

In the attached .scad file, you can change all parameters such as hole sizes, their scaling, mount type, and its length.

Printables

Optical table mountable tool holder

Publicado em 26 de ago de 2022

12
Curtidas
111
Downloads
Categoria Other Ideas
Tags
table tool holder hex keys laboratory caddy optica
Licença Creative Commons — Attribution
Arquivos (3)
tool_holder_simple.scad 9 KB
tool_holder_simple.stl 2.3 MB
tool_holder_simple_typeB.stl 2.3 MB
