Stackable box with lid

Modeled a box a while ago to store random stuff. Forgot the project for a while, but as I needed more boxes, I thought that maybe someone else has use for these boxes too.

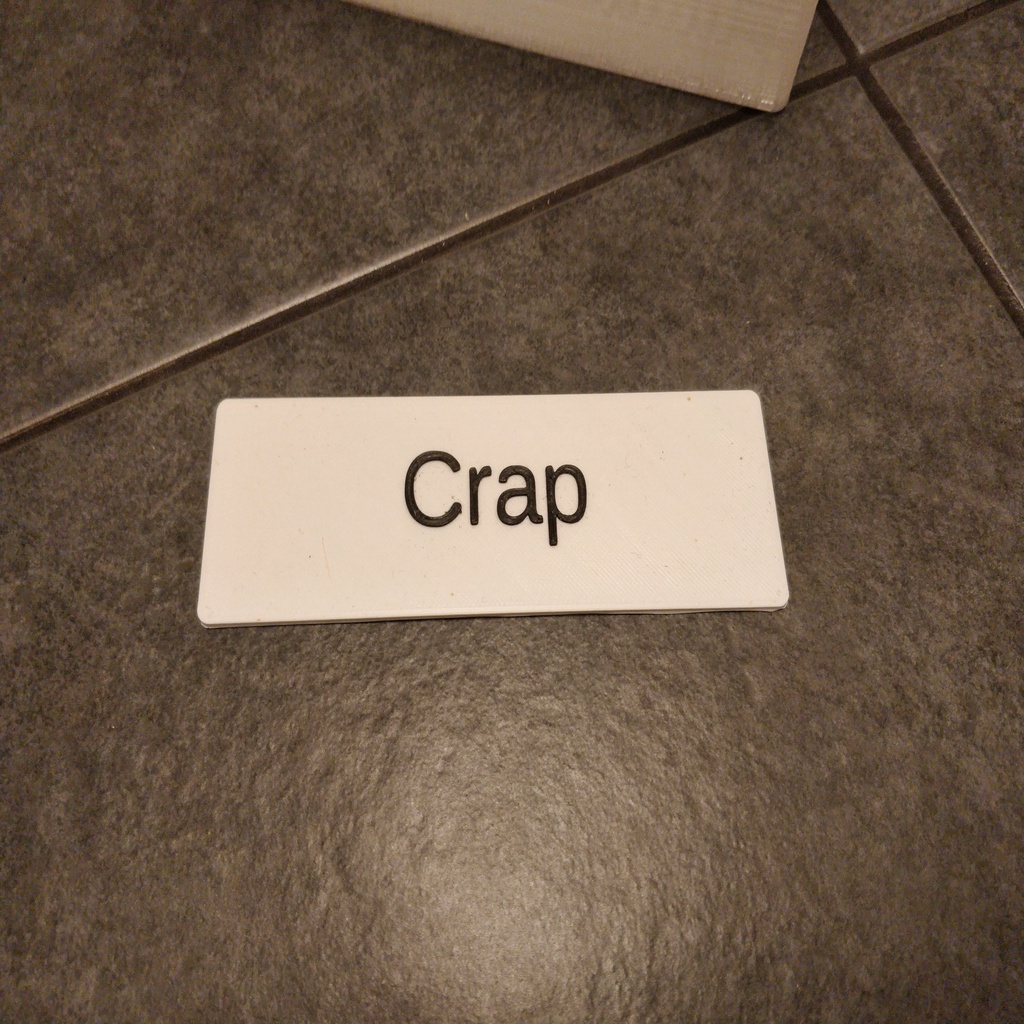

The design is pretty simple; there's a box, matching lid and fasteners that close the lid properly. There's also a slot for cardboard/paper/printed text plate. I included a printable plate with text Crap.

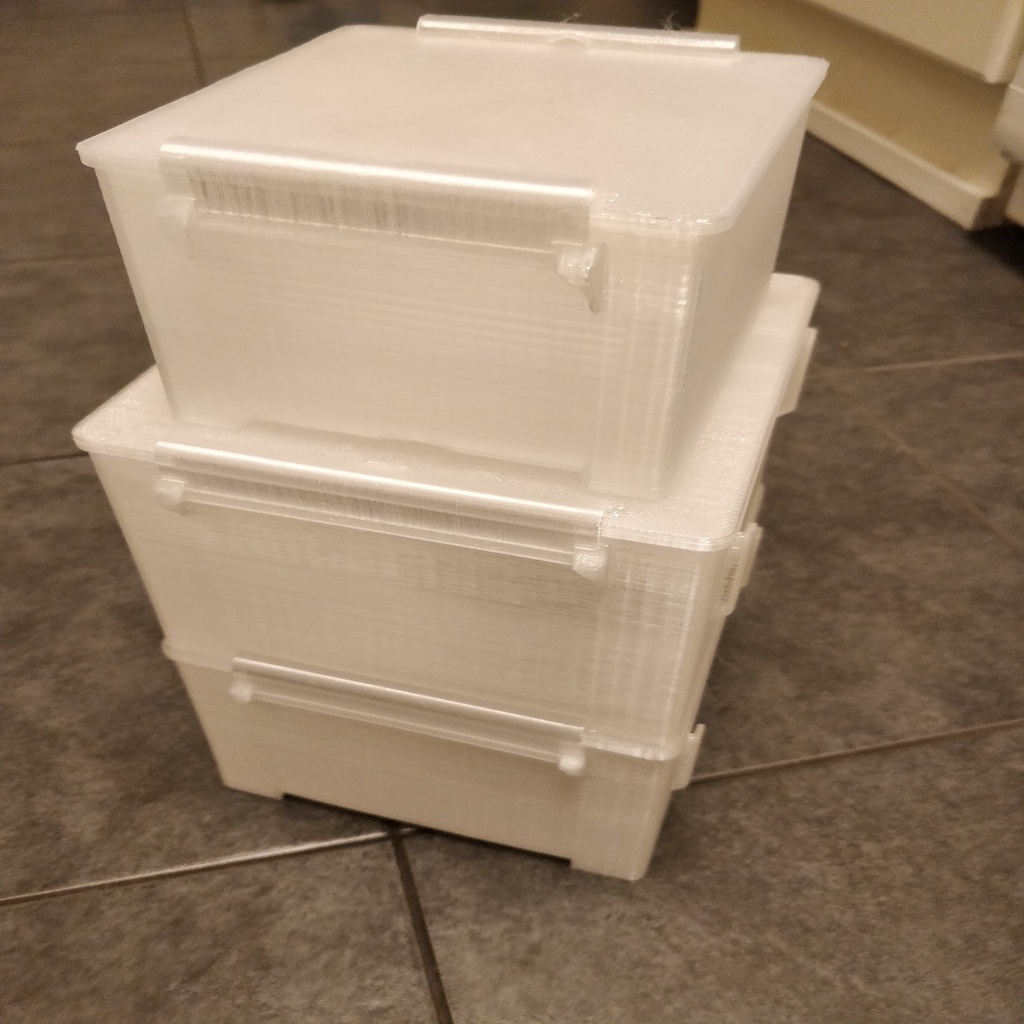

The boxes are stackable, there's a slot for the fastener.

Available sizes are: 120x120x80mm, 150x150x100mm, 180x180x120mm and 200x200x150mm. Wall thickness is 1.7mm. I can add more models if needed.

Print Settings

Printer:

Dollo3D

Rafts:

Supports:

Resolution:

0.2+

Infill:

Doesn't matter

Filament:

Any PLA,PETG

Any

Notes:

Printing these should be straightforward. Use brim if needed, especially for the fastener parts.
For the plate, you can use filament change after 1.5mm to print the text with different color.

Post-Printing

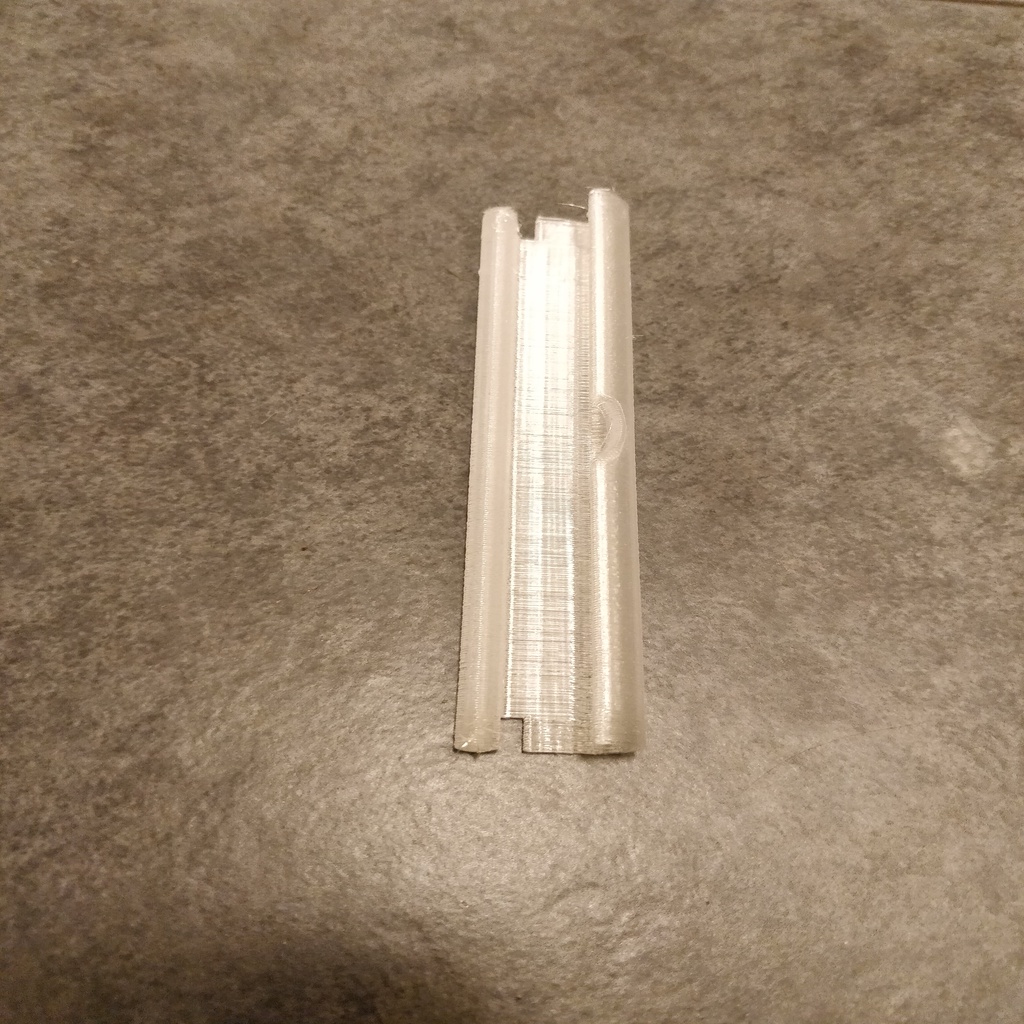

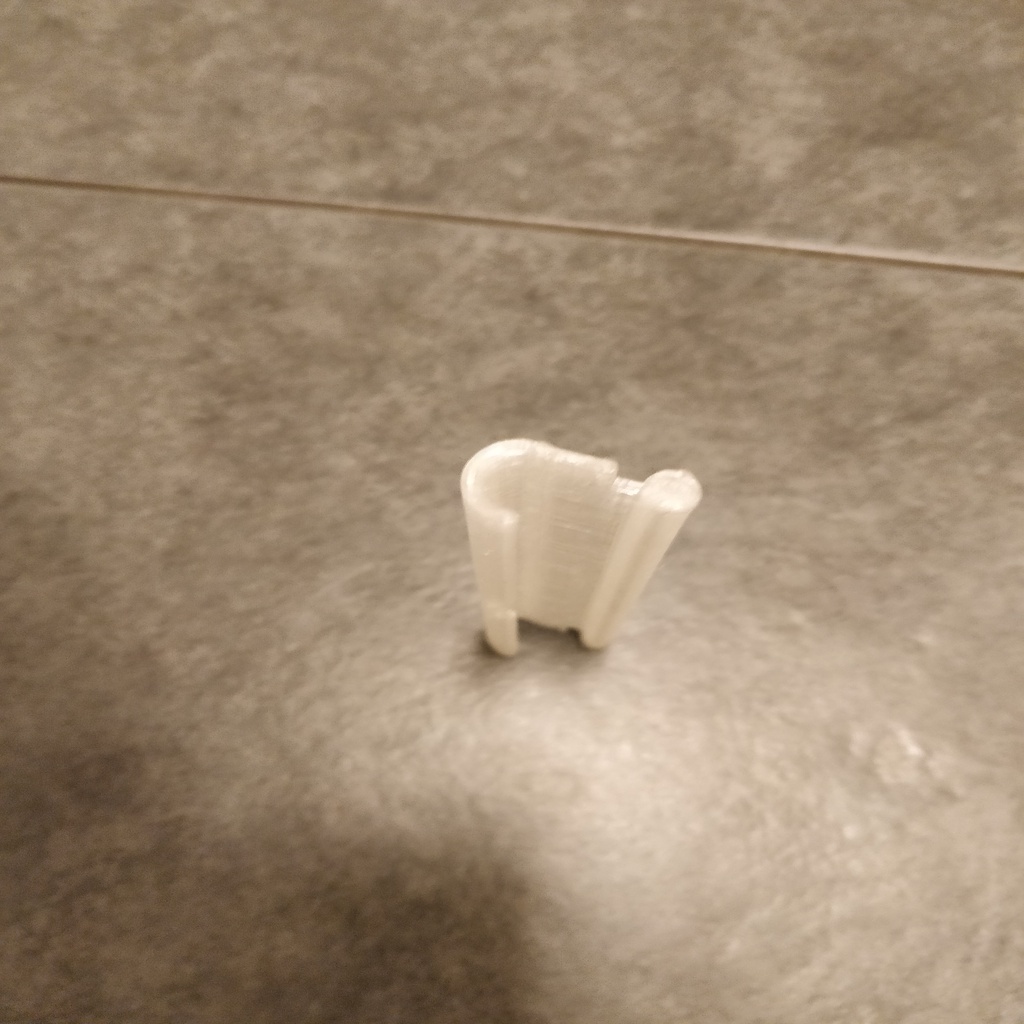

After printing a box, matching lid and two fasteners, insert the fasteners in the hooks on both side of the box. The fasteners should pop in the hooks with a bit of force.

How I Designed This

Designed with OpenSCAD. Source here: [https://github.com/spegelius/3DModels/blob/master/Box/box.scad](https://github.com/spegelius/3DModels/blob/master/Box/box.scad)

Category: Containers
