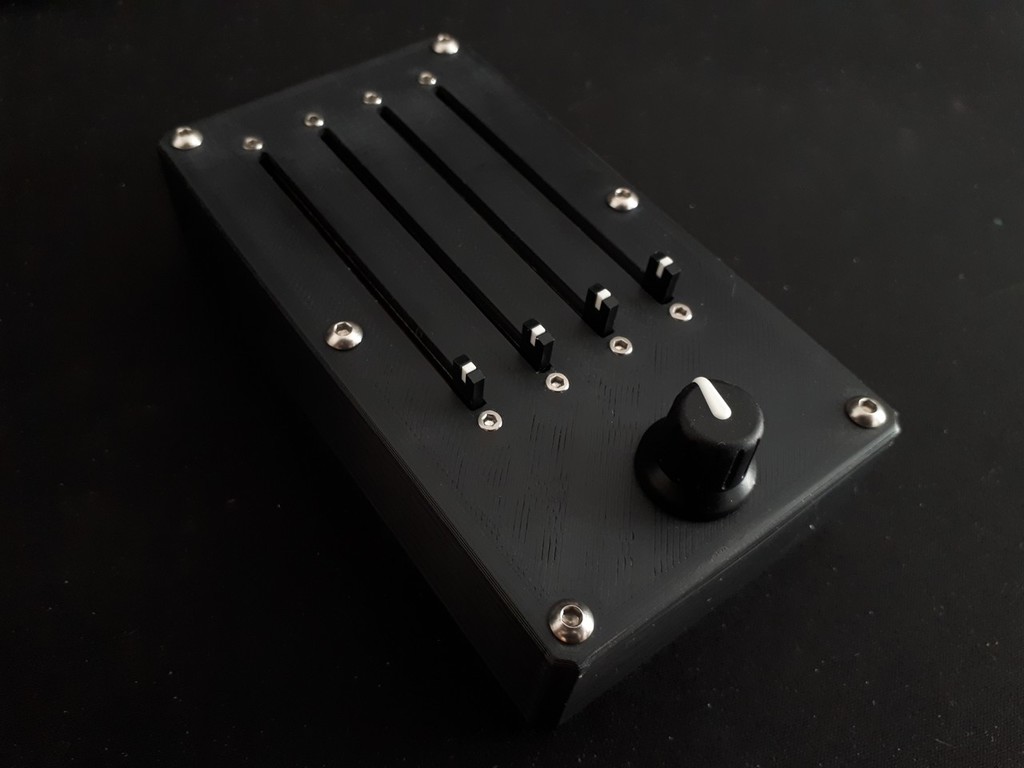

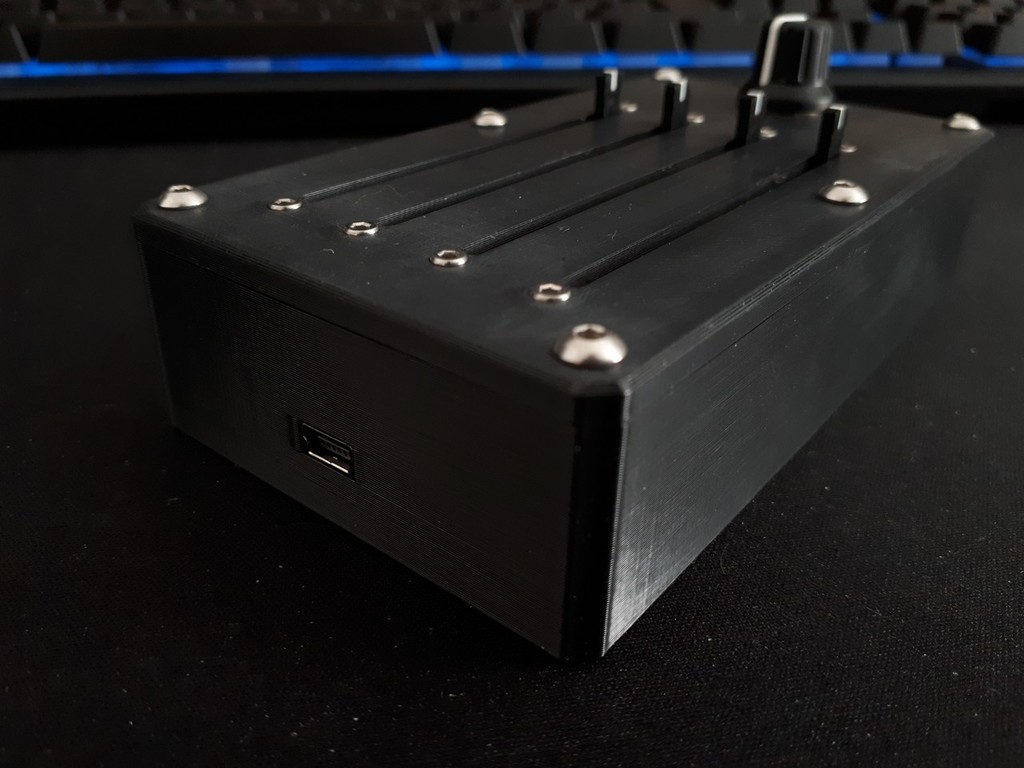

Another enclosure with sliders potentiometers this time, which I prefer.

Deej project info : [https://github.com/omriharel/deej](https://github.com/omriharel/deej)

parts :

arduino mini nano : [https://store.arduino.cc/arduino-nano](https://store.arduino.cc/arduino-nano)

master pot : [https://www.banzaimusic.com/Alpha-16-PC-KN-10k-lin.html](https://www.banzaimusic.com/Alpha-16-PC-KN-10k-lin.html)

slider pot : [https://www.banzaimusic.com/Alpha-Slide-Pot-SP60DT-10K-lin.html](https://www.banzaimusic.com/Alpha-Slide-Pot-SP60DT-10K-lin.html)

master volume knob : [https://fr.aliexpress.com/item/4000005576671.html](https://fr.aliexpress.com/item/4000005576671.html)

screws for the "chamfer" top file : [https://www.vis-express.fr/fr/vis-metaux-tete-fraisee-torx-inox-a2/35331-941245-vis-metaux-tete-fraisee-2x6-t6-inox-a2-3663072147393.html](https://www.vis-express.fr/fr/vis-metaux-tete-fraisee-torx-inox-a2/35331-941245-vis-metaux-tete-fraisee-2x6-t6-inox-a2-3663072147393.html)

screws for the "allen" top file : [https://www.vis-express.fr/fr/chc-btr-inox-a2/36711-917989-vis-metaux-inox-a2-chc-btr-2x6-3663072228955.html](https://www.vis-express.fr/fr/chc-btr-inox-a2/36711-917989-vis-metaux-inox-a2-chc-btr-2x6-3663072228955.html)

screws to close the enclosure : [https://fr.aliexpress.com/item/10000283654076.html](https://fr.aliexpress.com/item/10000283654076.html)

knob : [https://fr.aliexpress.com/item/4000005576671.html](https://fr.aliexpress.com/item/4000005576671.html)

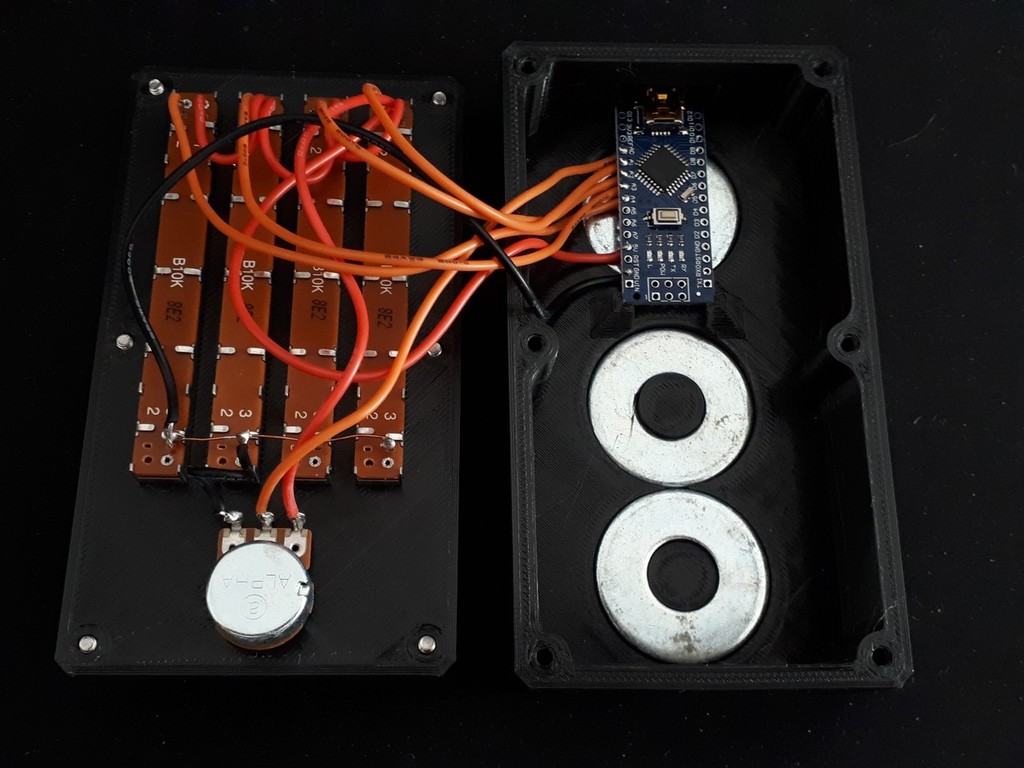

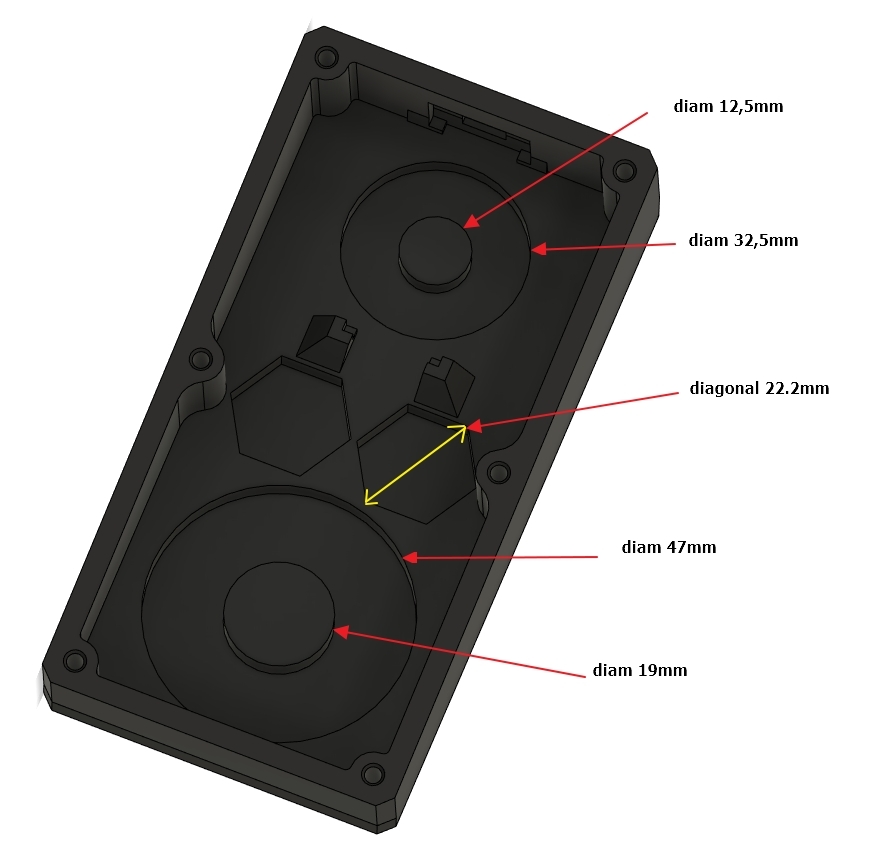

I'm also adding weight with big metal washers so the thing doesn't move as easily

added a V3 for larger knobs (up to 34mm in diameter)

added a V3 angled bottom part

added a wiring diagram
