This is similar to a bracket demonstrated by Joel (3D Printing Nerd). The intention is to use very cheep 1x2 wood as the cross members.

I decided to draw one up from scratch as an exercise. Printed with standard .2 layer height settings, 3 walls, 10% Gyroid infill. The first test was way stronger than I needed it to be. Stronger, I think, than Joel's 100% infill tests.

I could probably have made them far less robust.Maybe I'll go back and do that one day.

Print Settings

Printer Brand:

Creality

Printer:

Resolution:

.2

Infill:

Filament: Any PLA Post-Printing =============

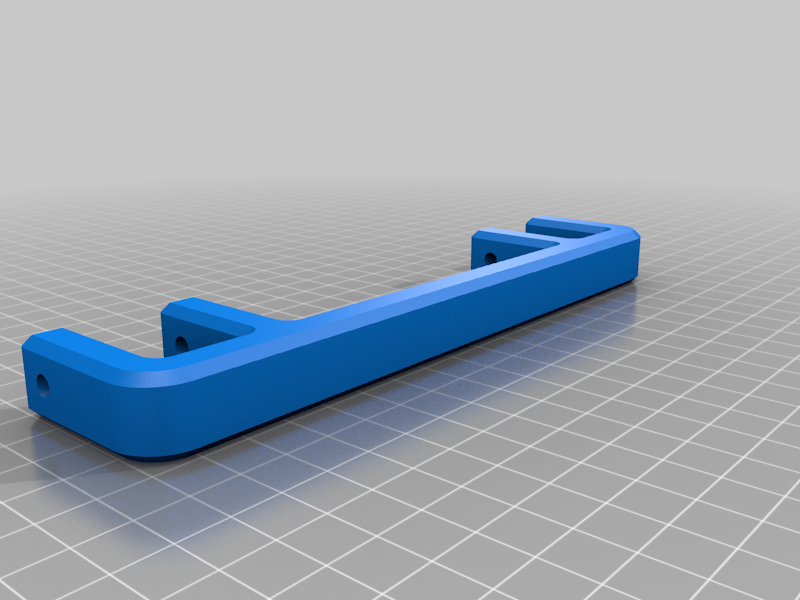

I used "Washer Head" construction screws to mount them to studs. For "reasons" I could not put a bracket on every stud, which is why I made the extra part to hold the rails together in the long stretches.

How I Designed This

Extruded from a simple sketch in Fusion360. I added some screw holes on the 3D object for consistency.
