The remake of Puse RC1 and RC2 face shield.
RC3 is mix of RC1 and RC2, it has extra space for glasses/goggles and better side protection.

If you are printing it for someone else, please wash hands very well and carry mask/shield when handling with it.

Changes:

• thinner - faster printing,

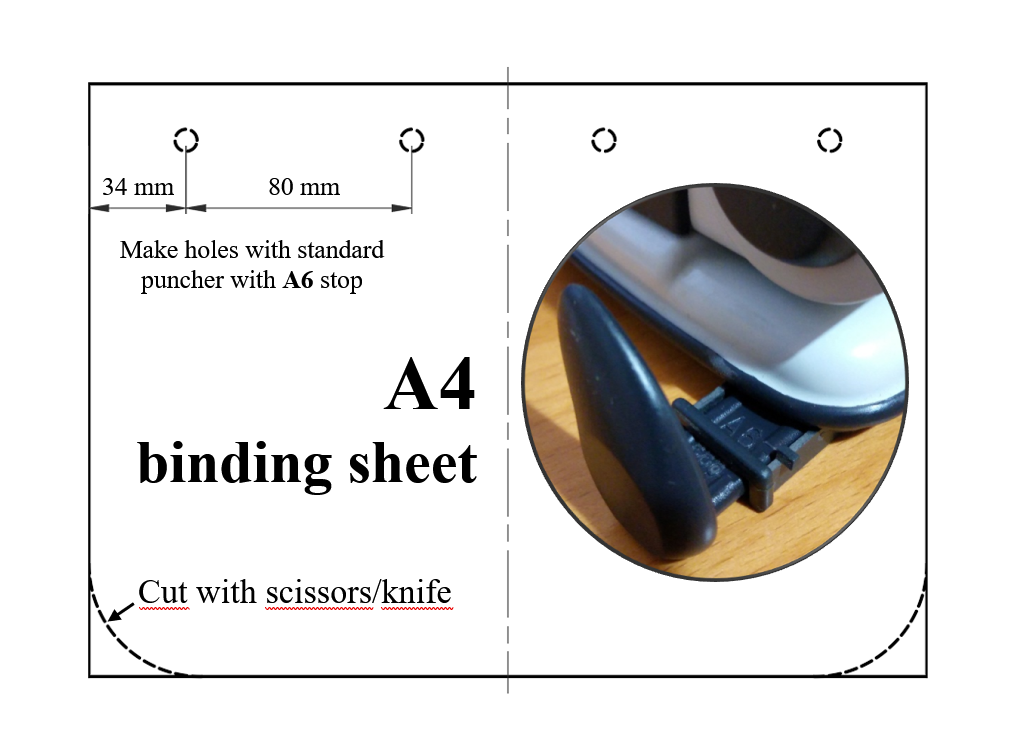

• hole punching using standardized hole puncher (A6 and A4),
• less pressure on the head,
• 15 mm height instead of 20 mm,
• hidden upper corners.

Bottom reinforcement is not necessary.
A4 binding sheet at least 0,2 mm.

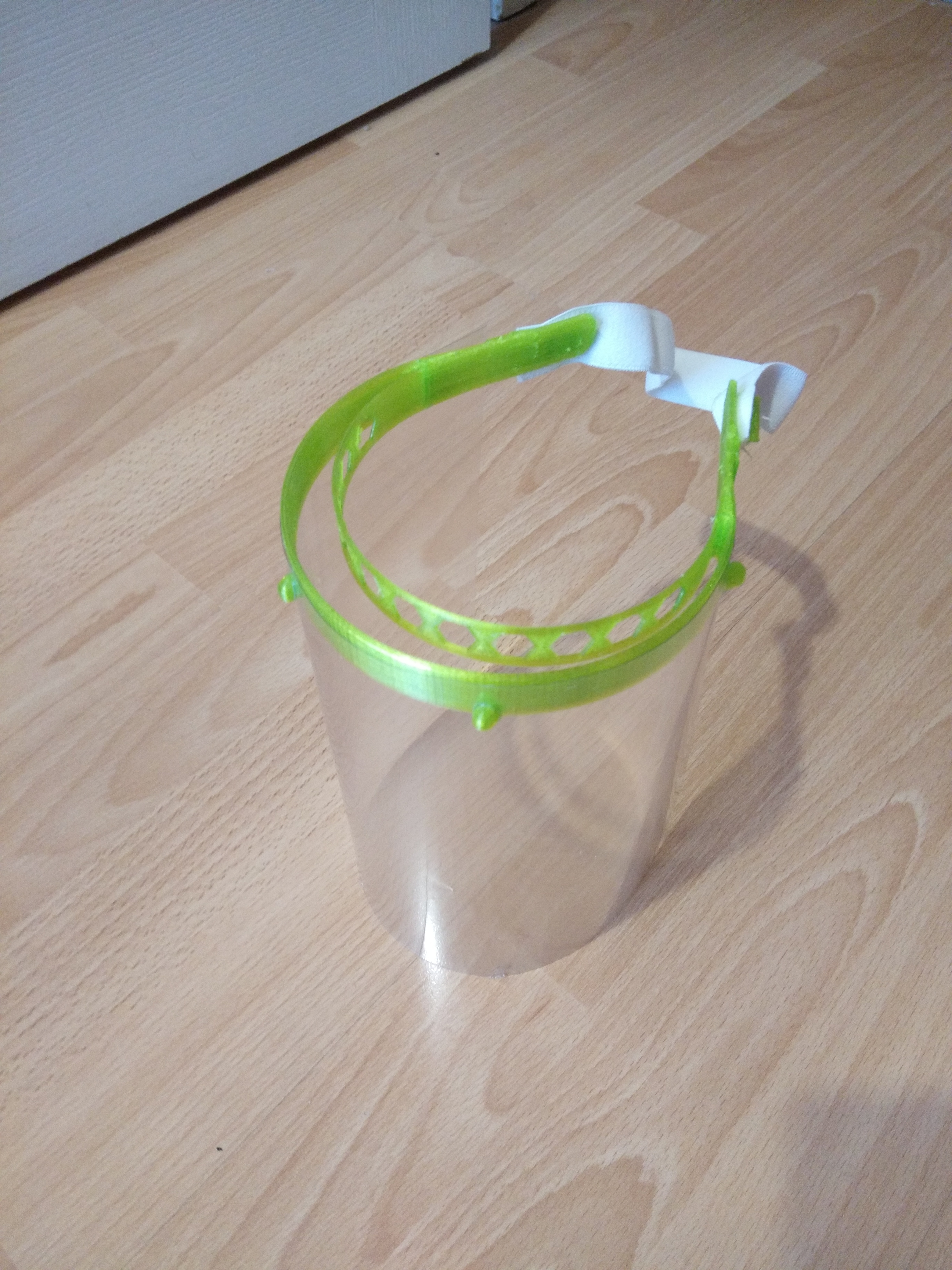

Assembling:

Edit:

• RC2_2 is <200 wide
• RC2_3 rubbers hook is flat on the table (harder to stack printing)
• RC3 mix of RC1 and RC2, most recommended by medical stuff.

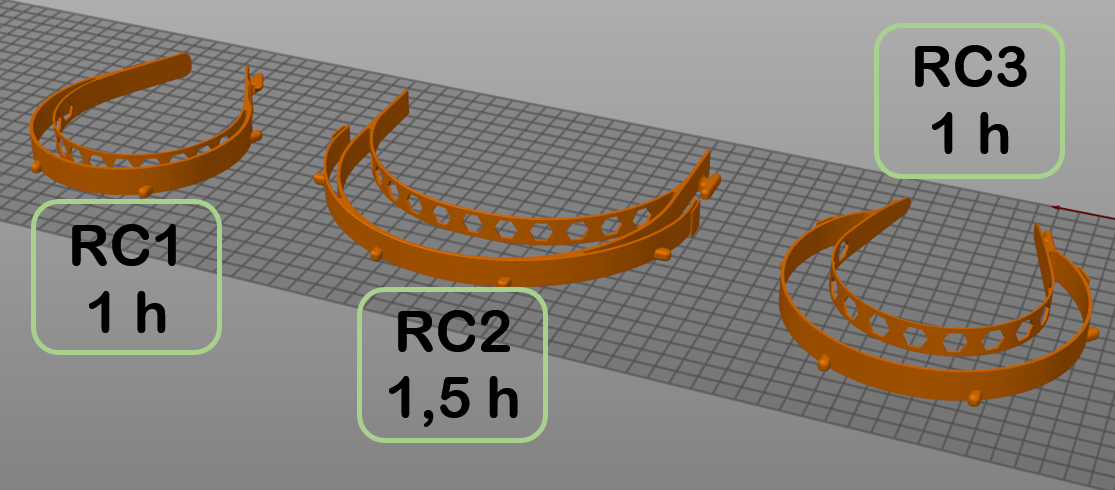

  Added 3 versions of RC3: hex holes; tear holes; no holes.
  RC3 has extra space for glasses/goggles.

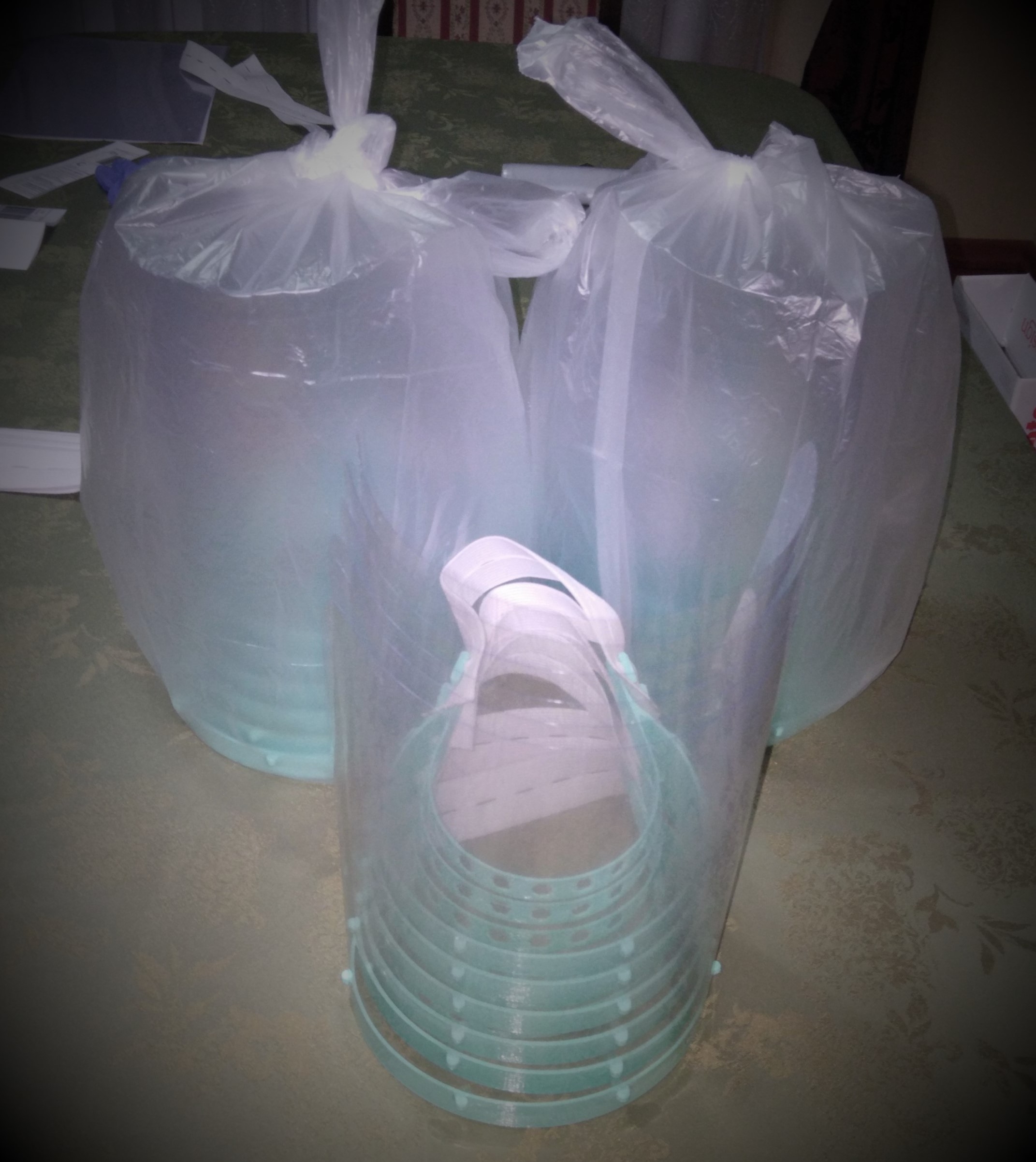

Added RC3 in stack (x7). The author is Konrad G.

Thanks Konrad G., Piotr G. and Witek K. from Wrocław University of Science and Technology for remix RC3.

Print instructions

PET-G
0,3 mm l. height
0,4 mm nozzle
