Setup Scope Mounts (1"/11mm Dovetail)

The scope mounts allow you to quickly and easily find the proper height. The mounts fit on an 11 mm dovetail and fit scopes with a tube diameter of 1" (25.4 mm).
Have now added the mounts in 30 mm as well.

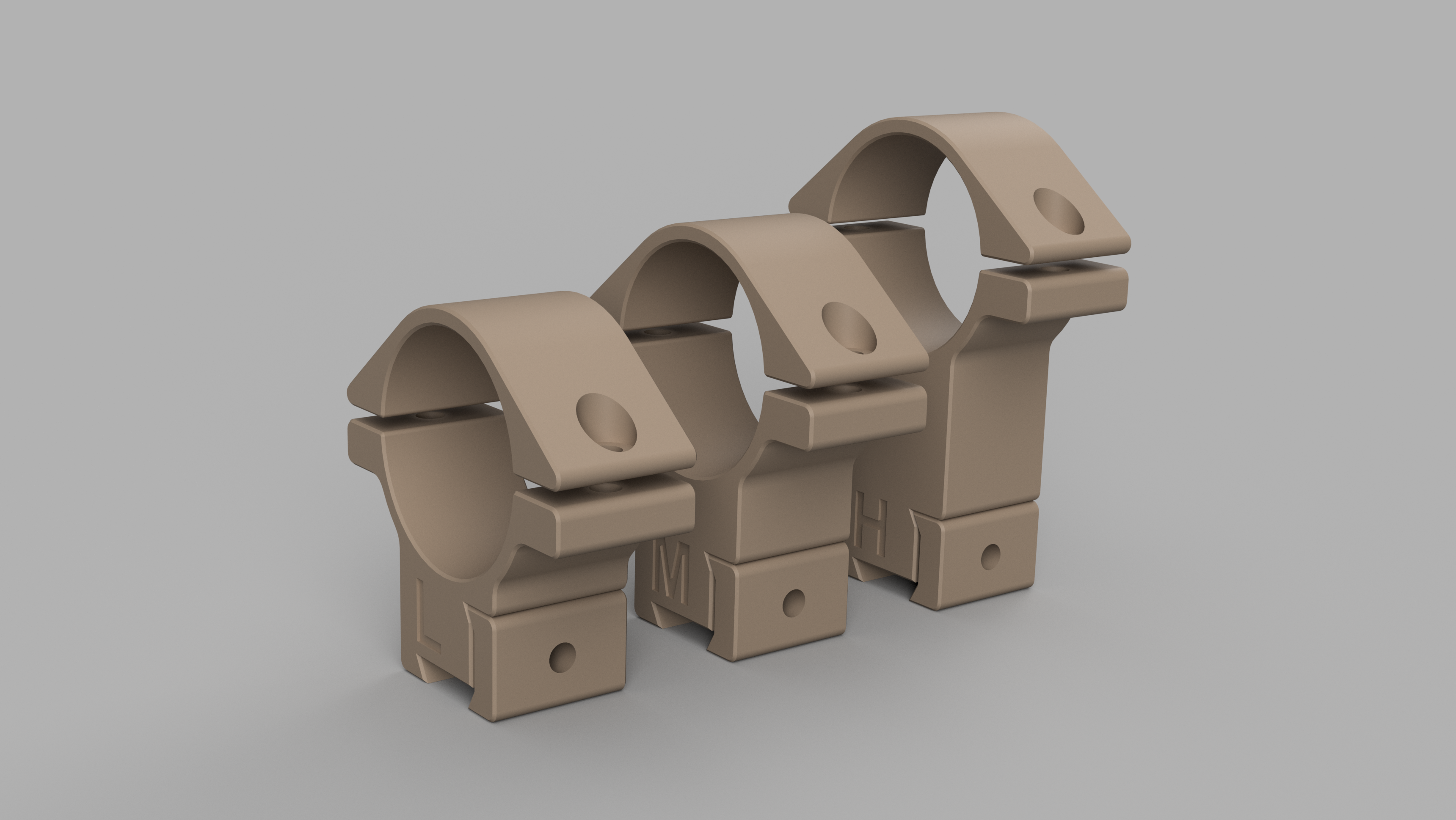

The heights correspond to those of the Sportsmatch UK 1" mounts:

3d printed model	Sportsmatch category	Height (A)
LOW (L)	1" Low (Dovetail)	13 mm

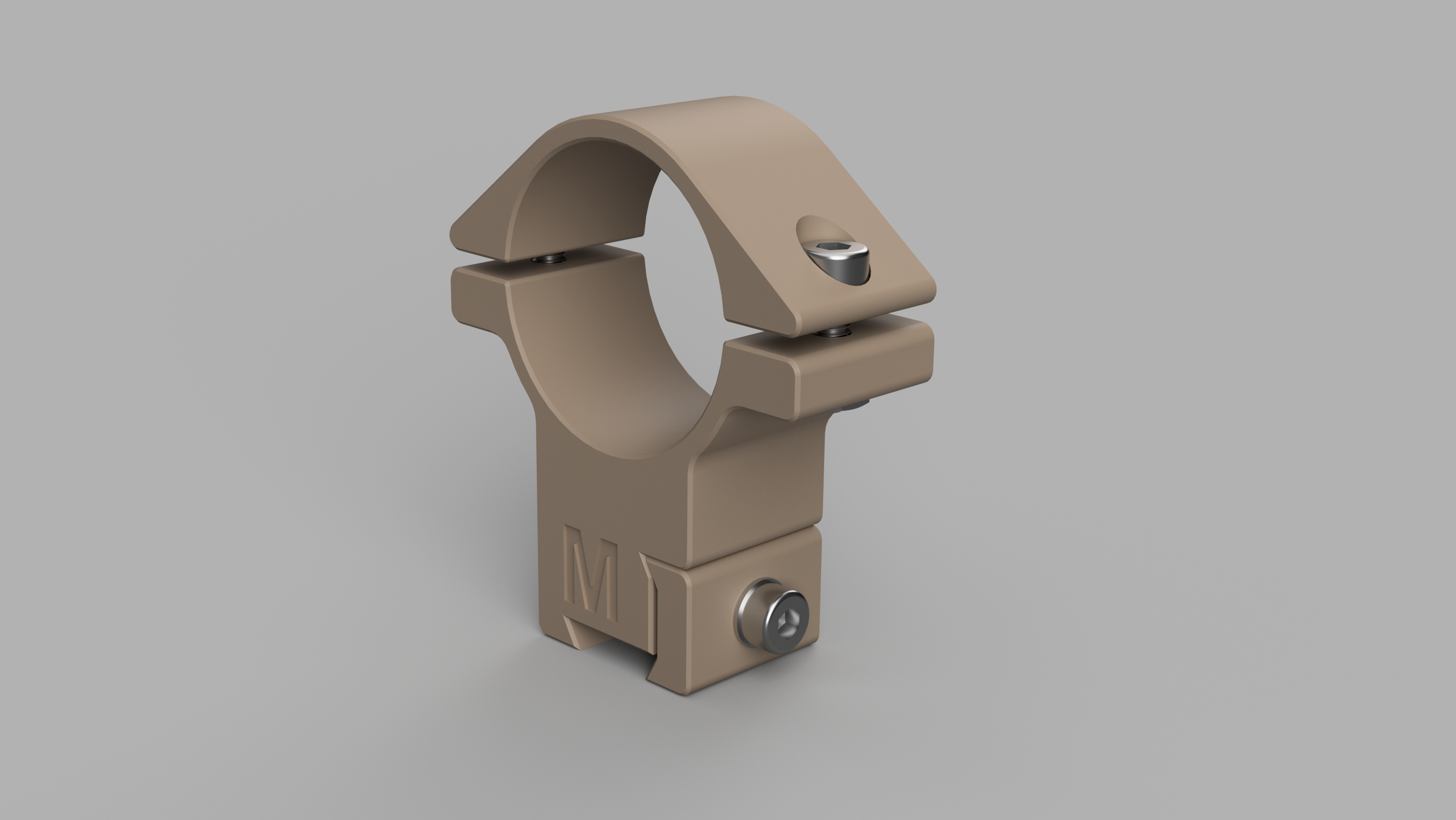

MEDIUM (M)	1" Medium(Dovetail)	19 mm
HIGH (H)	1" High(Dovetail)	29 mm

And this for the 30 mm mounts:

3d printed model	Sportsmatch category	Height (A)
MEDIUM (M)	30 mm Medium (Dovetail)	15 mm
HIGH (H)	30 mm High (Dovetail)	21 mm
EXTRAHIGH (X)	30 mm Extra High(Dovetail)	27 mm

Printing

To get good stability, specially in the dovetail clamping area, all parts should be printed with at least 3 perimeters.

BOM

In addition to the printed mounts, you will need the following parts:

2 pcs. Cylinder head screw M3 x 12
1 pcs. Button head screw M3 x 20
3 pcs. Nut M3 (or better Locknut)
1 pcs. Washer 3.2

Warning

The holders should only be mounted for testing or to find out the proper mounting height. For shooting, the scope should be firmly mounted with the corresponding metal mounts.
