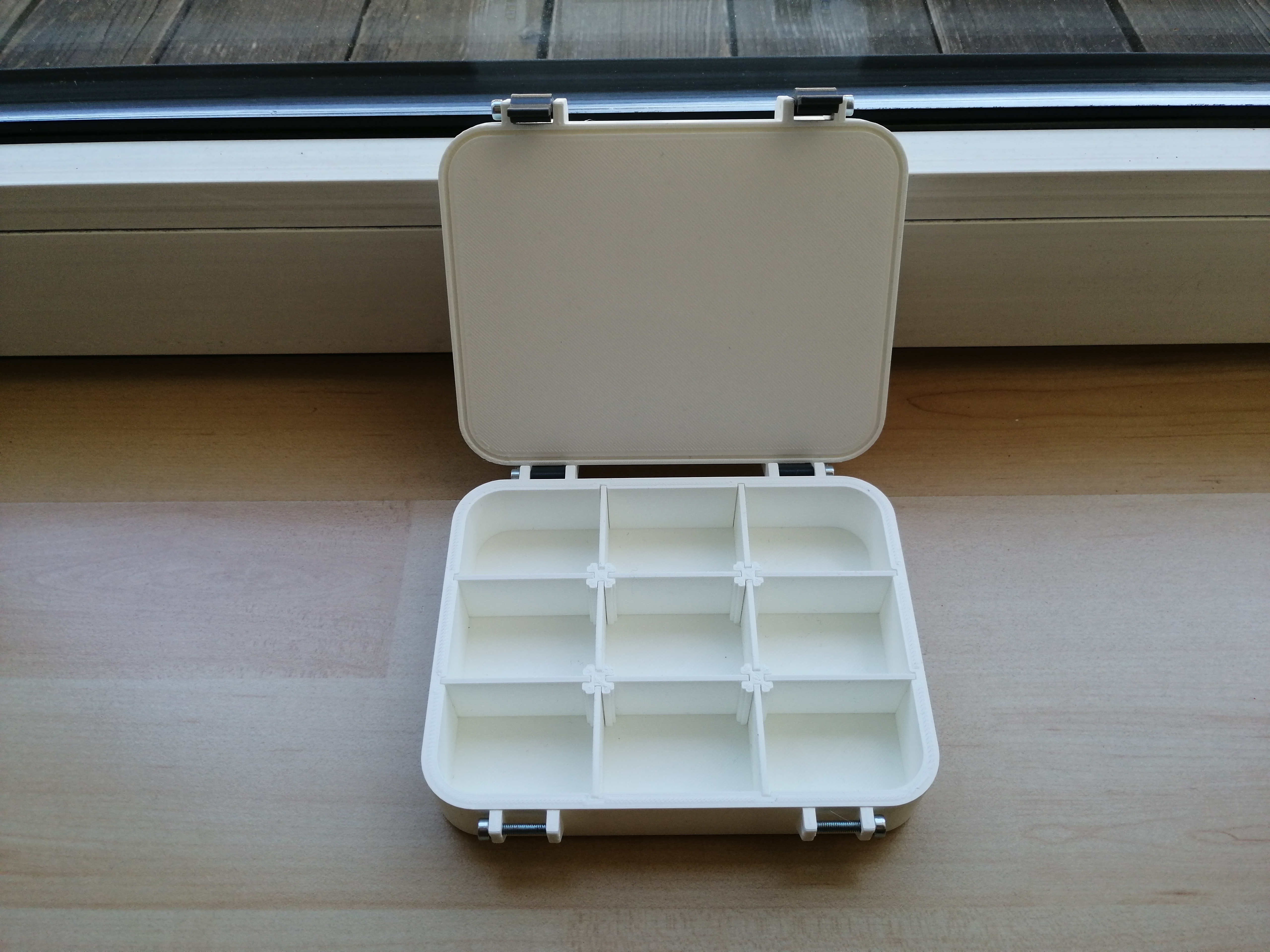

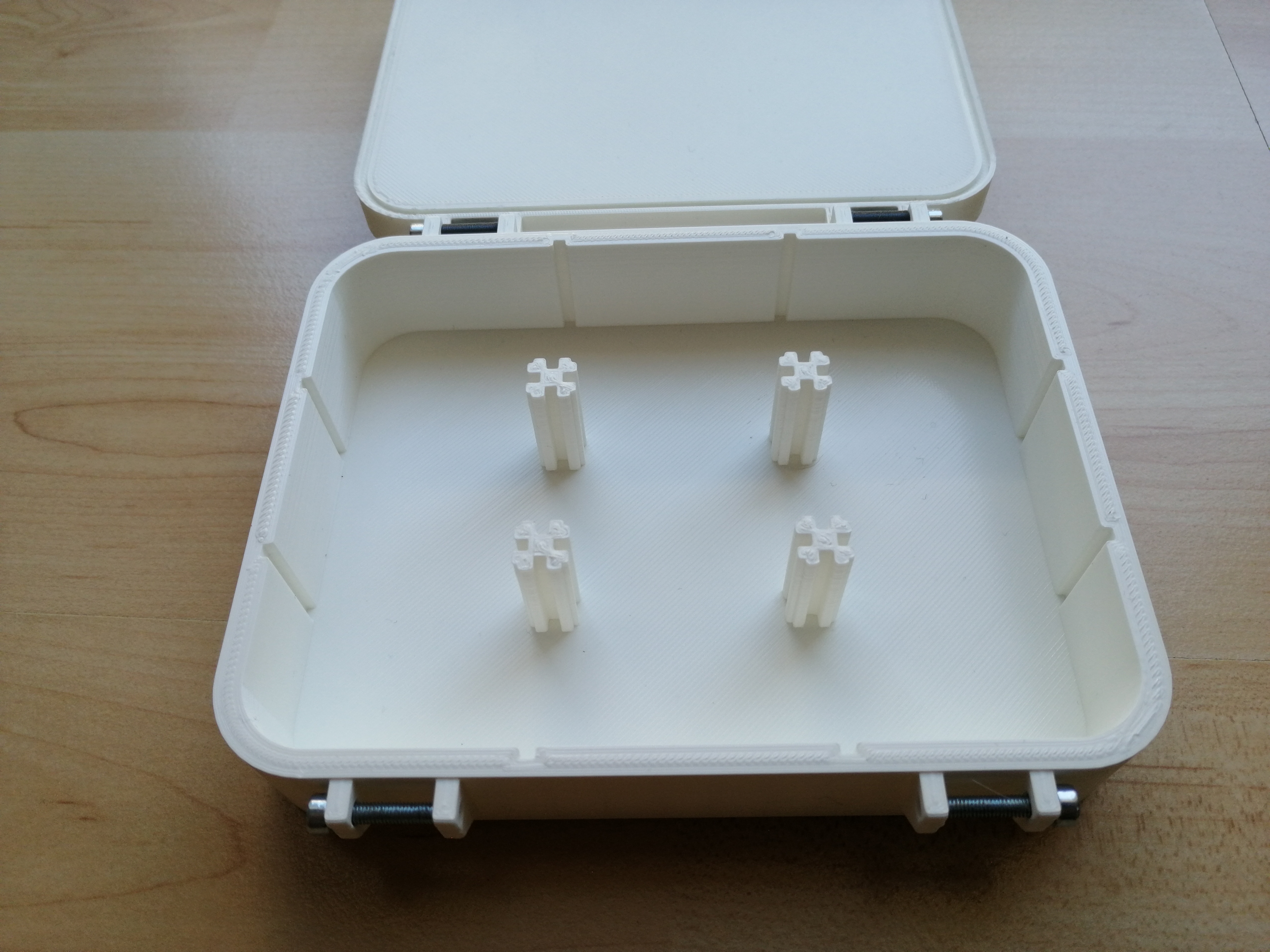

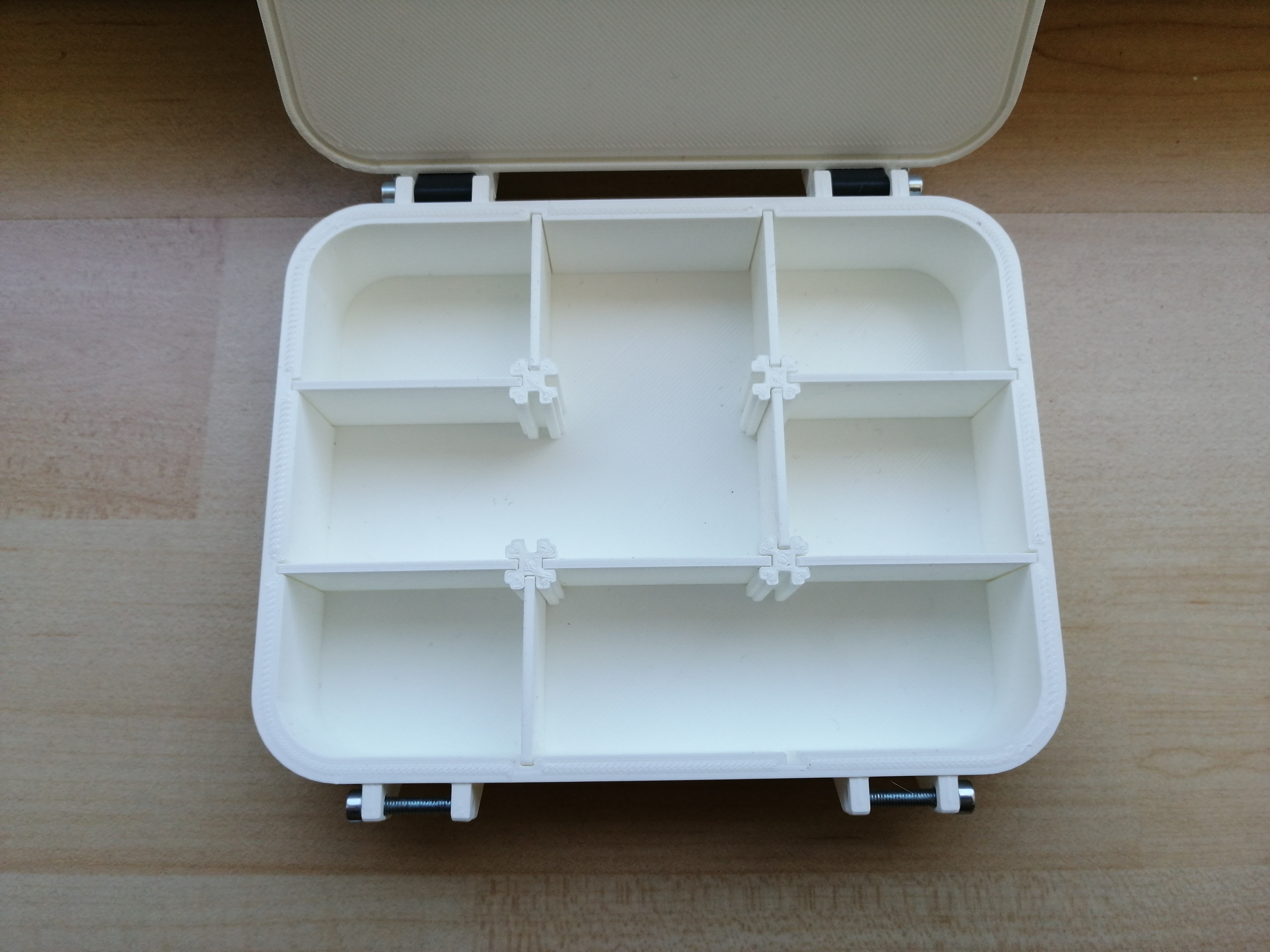

Modelo 3D Sorting Box with customizable compartments por 3DP no Printables

Descrição

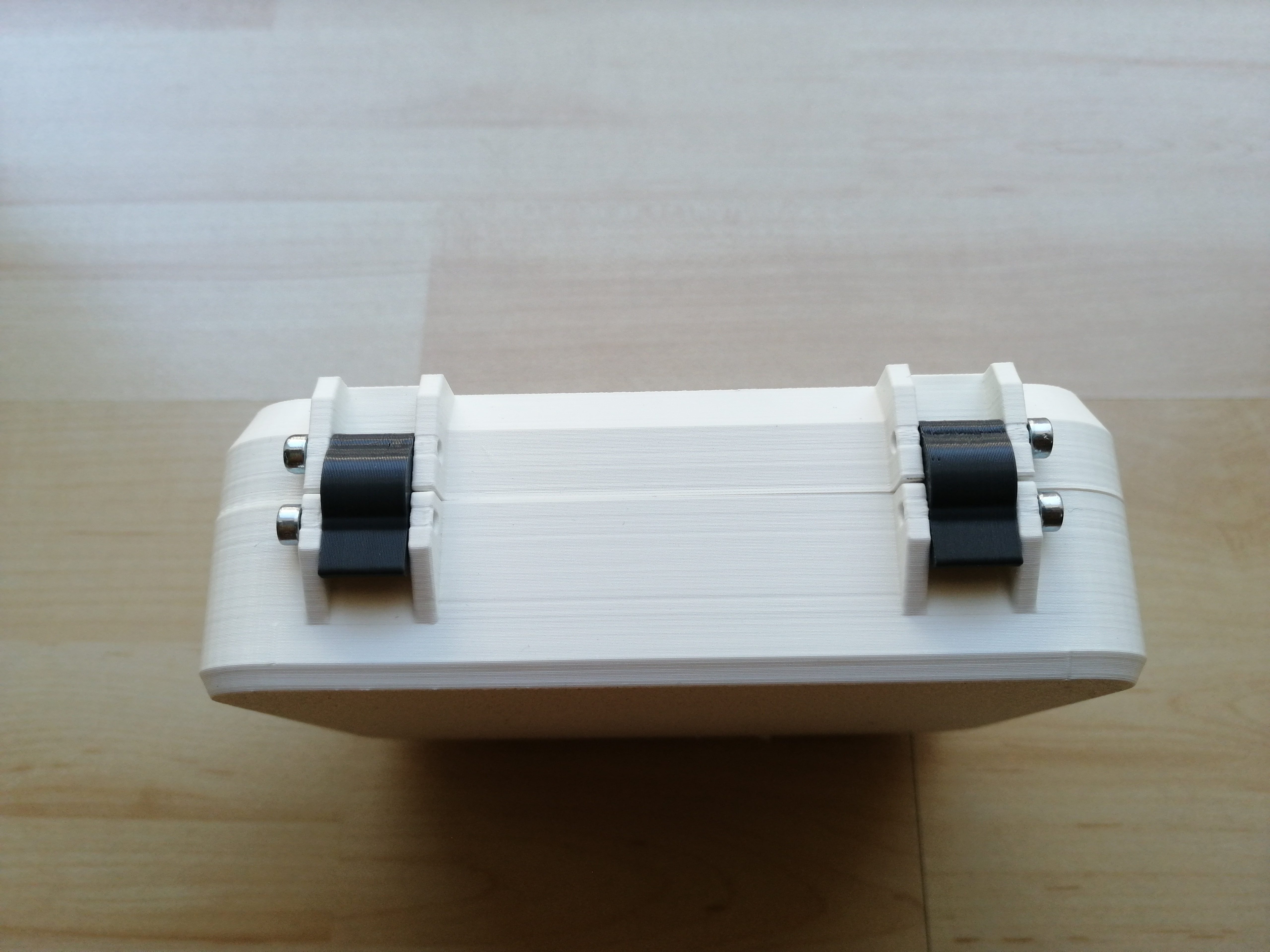

To build it you need four M3 x 16mm (longer ones also work) screws. The hinges and the box lid and bottom are 3D printed. It clicks in really well with a perfect hold.

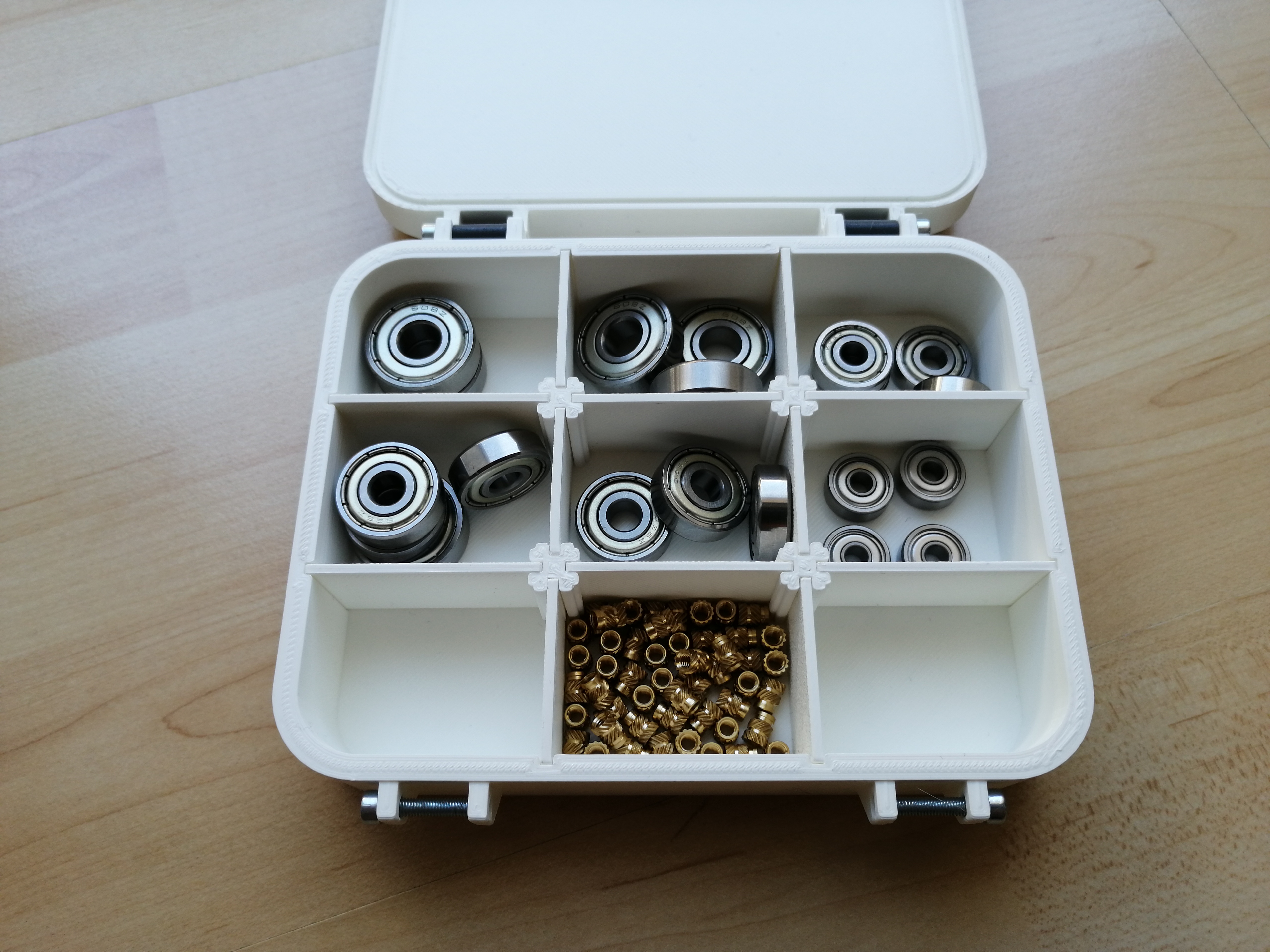

You can use it for example for screws or ball bearings and so on.

The holes for the M3 screws have a diameter of 2,75mm so you cut the thread by screwing in a screw. It's fast and really effectiv!

You can print it with PLA, ABS, PETG or whatever you want. I used a layer height of 0,2mm and printed it without supports.

I used 0,5mm tolerances so you can even print it with a non well calibrated printer!

I also made a recess in the lid so you can make your box waterproof.



Printables

Sorting Box with customizable compartments

Publicado em 14 de ago de 2022

148
Curtidas
456
Downloads
2
Impressões
Categoria Organizers
Licença Creative Commons — Public Domain
Arquivos (8)
Box.STL 225.4 KB
Box_lid.STL 115.8 KB
front_hinge.STL 79.7 KB
back_hinge.STL 52.4 KB
plate_long.STL 684 B
plate_short.STL 684 B
plate_short_2.STL 684 B
plate_long_2.STL 684 B
