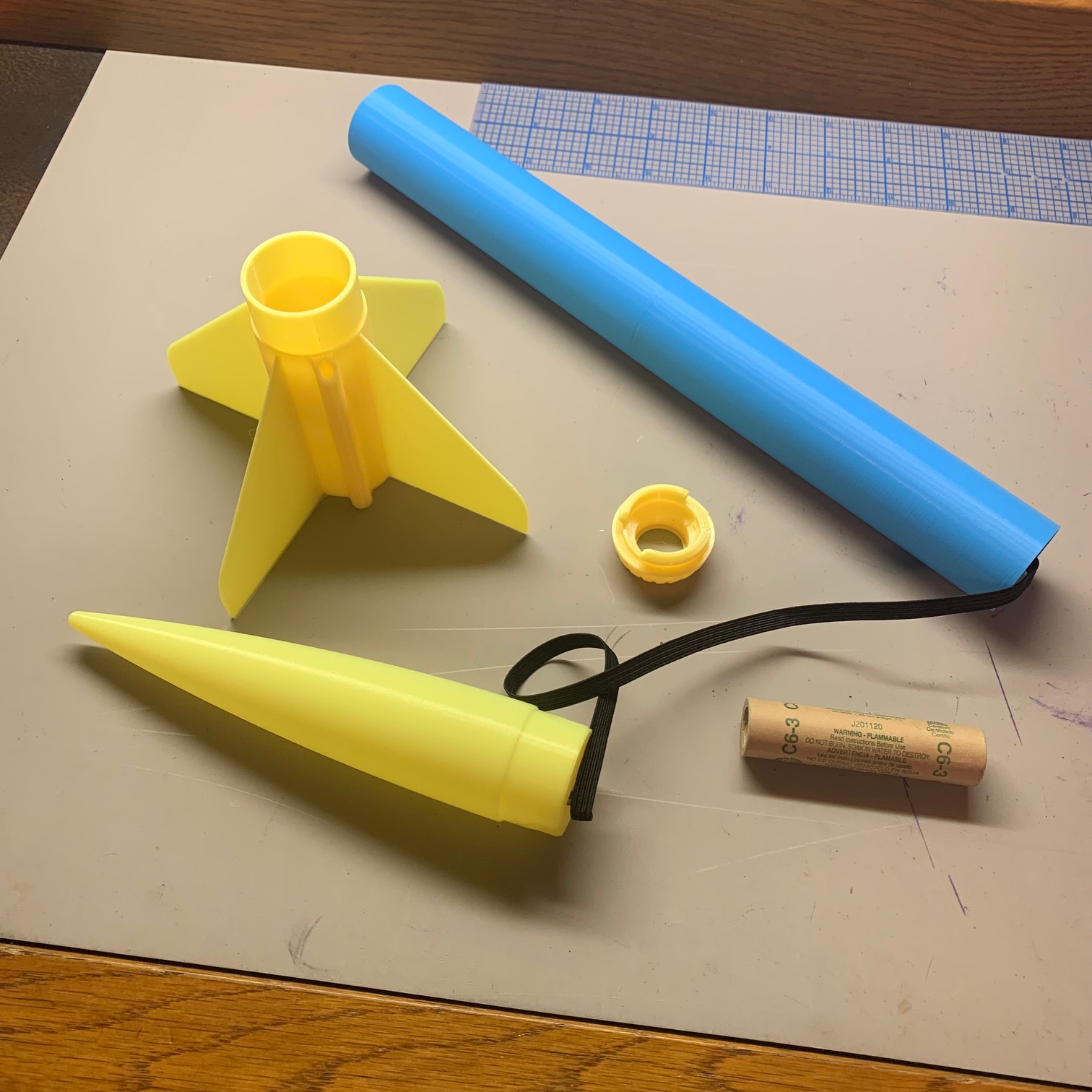

This is a printable model rocket for use with Estes 1/8" rod launch pads. This rocket works with Estes C6-3, and C5-3 motors. The model includes the rocket base, motor cap, nose cone, and body tubes. There are two top tube files included, one with a nose cone tie down and one without.

Print Settings: Print with ABS or ASA plastic. PLA works but it can deform from the heat.

Nose Cone: 0.3mm layer height, 3 perimeter walls, seam position rear, brim, 0% infill.

Upper Tube: 0.3mm layer height, 2 perimeter walls, seam position rear, brim, 0% infill.

Lower Tube: 0.3mm layer height, 2 perimeter walls, seam position rear, brim, 0% infill.

Rocket Base: 0.3mm layer height, 2 perimeter walls, seam position rear, brim, 0% infill.

Motor Cap: 0.2mm layer height, 3 perimeter walls, seam position rear, 0% infill.

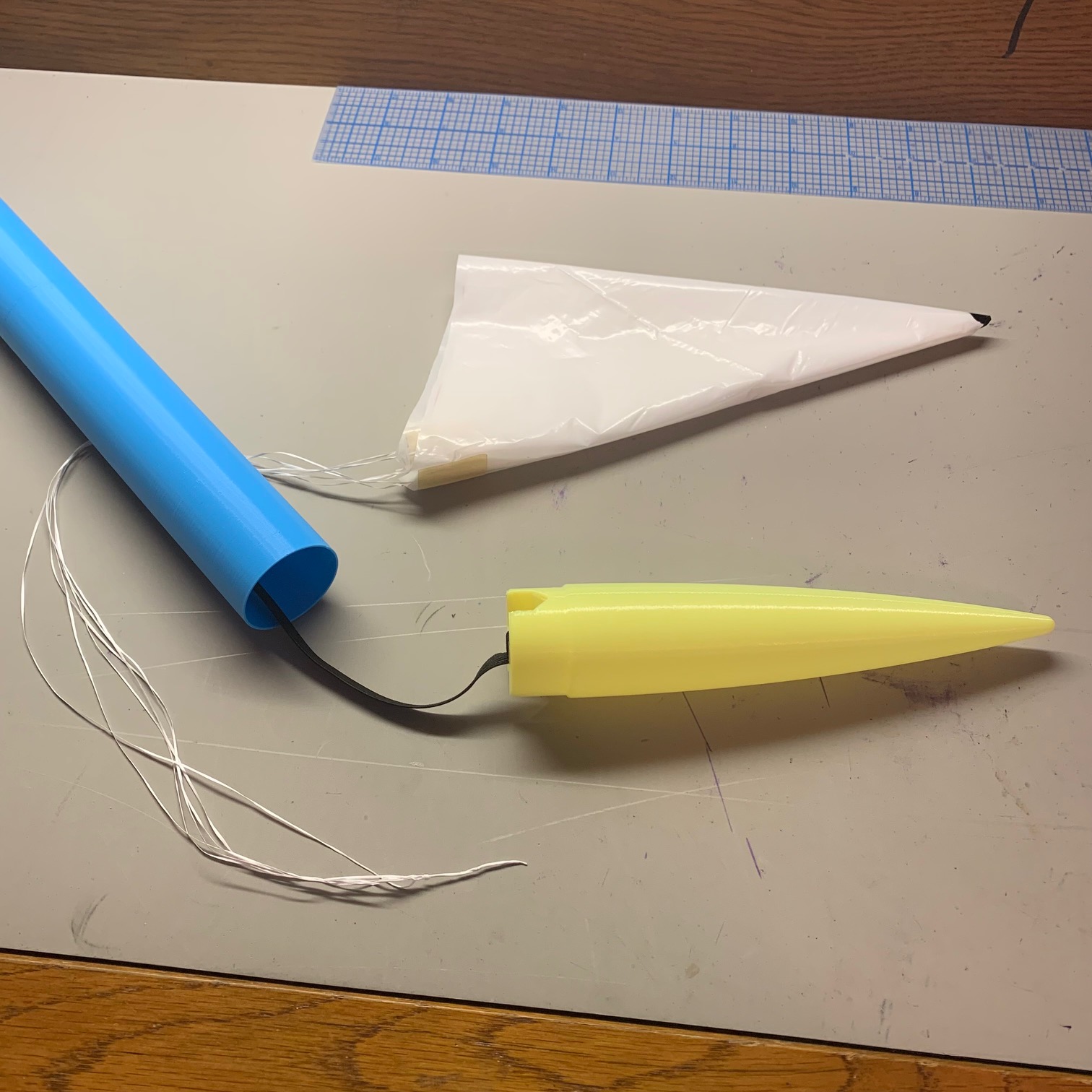

Assembly: Test the fitment before gluing any parts. If the nose cone fit is loose you can add a small piece of masking tape to the base. Line up seams when assembling the parts. Use glue to attach the tube sections together, and then glue the completed tube section to the rocket base. Attach a 24" shock cord to the tube mount. I like to use a slip knot. Attach the parachute to the nose cone first, and then add the shock cord with a double knot. When you are ready to launch; place recovery wadding in the rocket first, next pack the shock cord, and then fold and pack the parachute and install the nose cone. Add the motor at the launch site, the motor cap is a simple twist and lock engagement.

Share a picture if you print one!
