Descrição
Drink organizer.
New model 2024
New model 2023
And modular model:

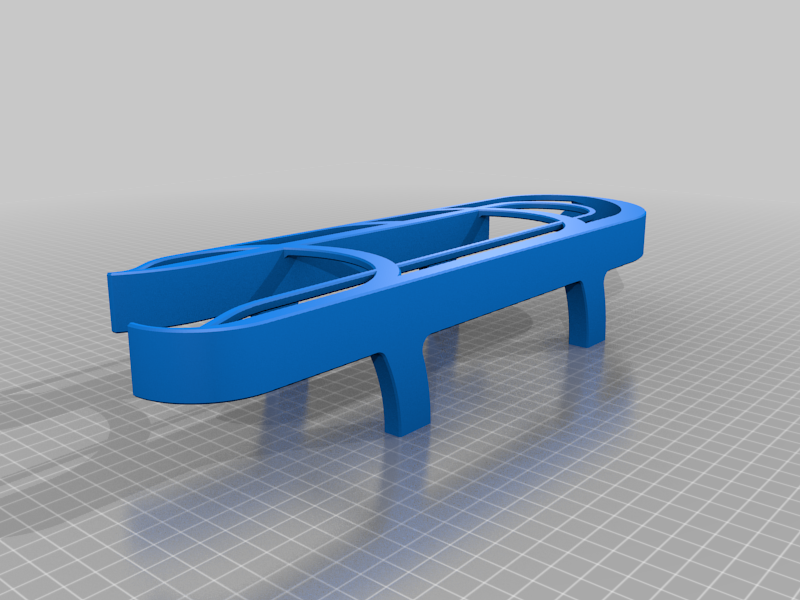

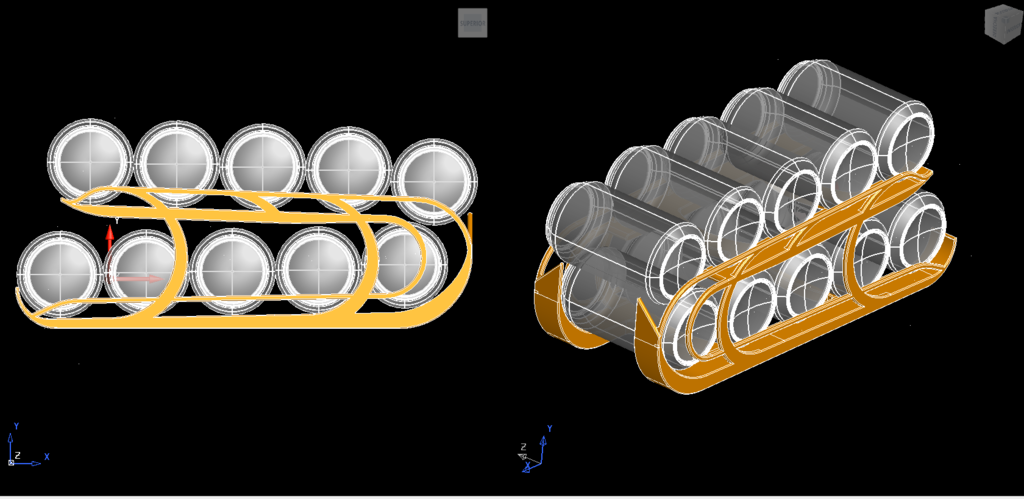

update Drink dispenser 2022 _ 10 units. (only for bed 300x300 _rotate model 45º)

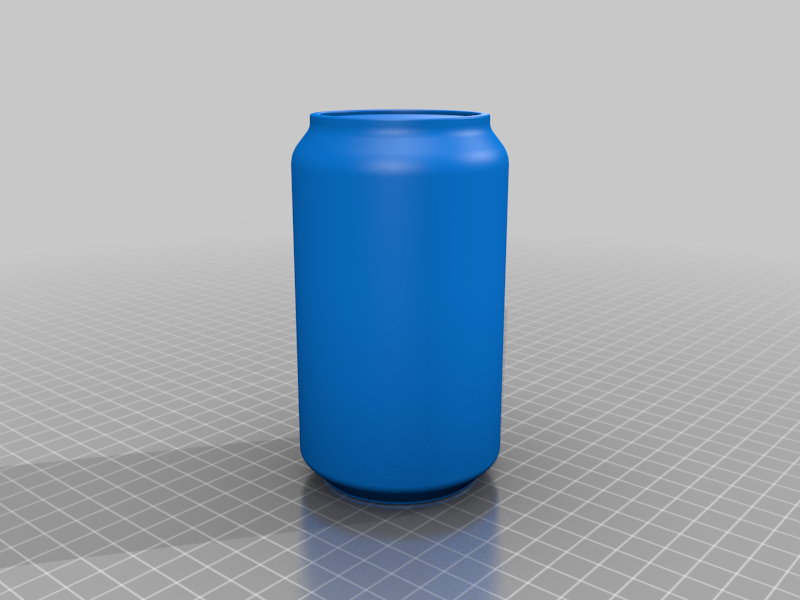

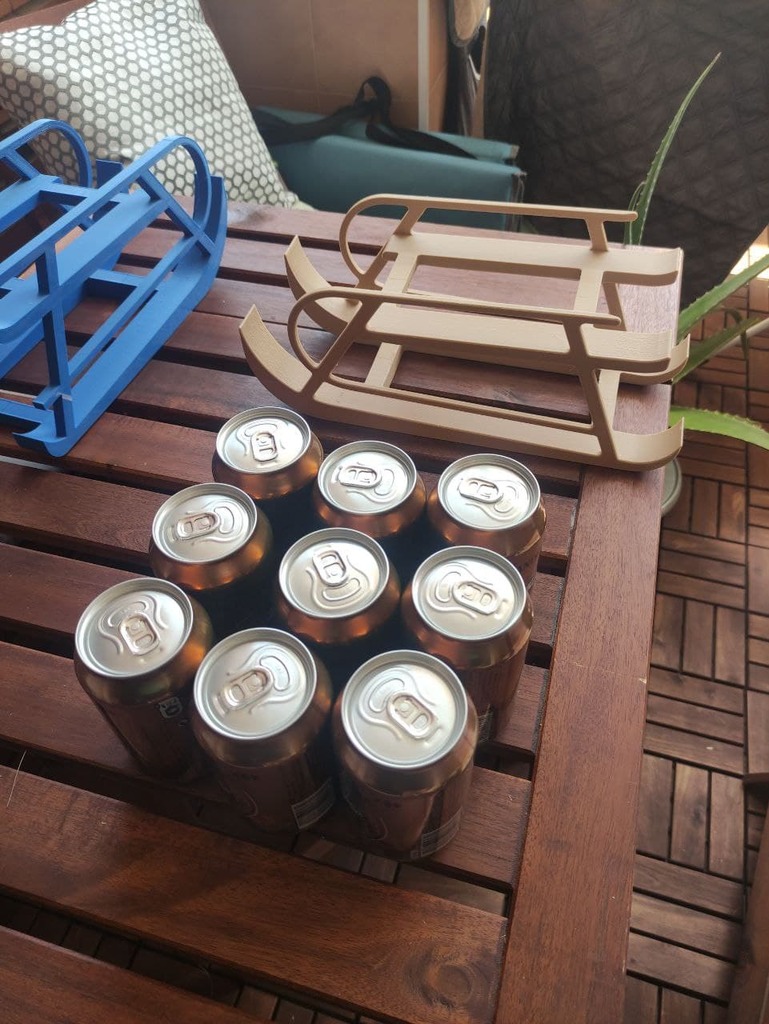

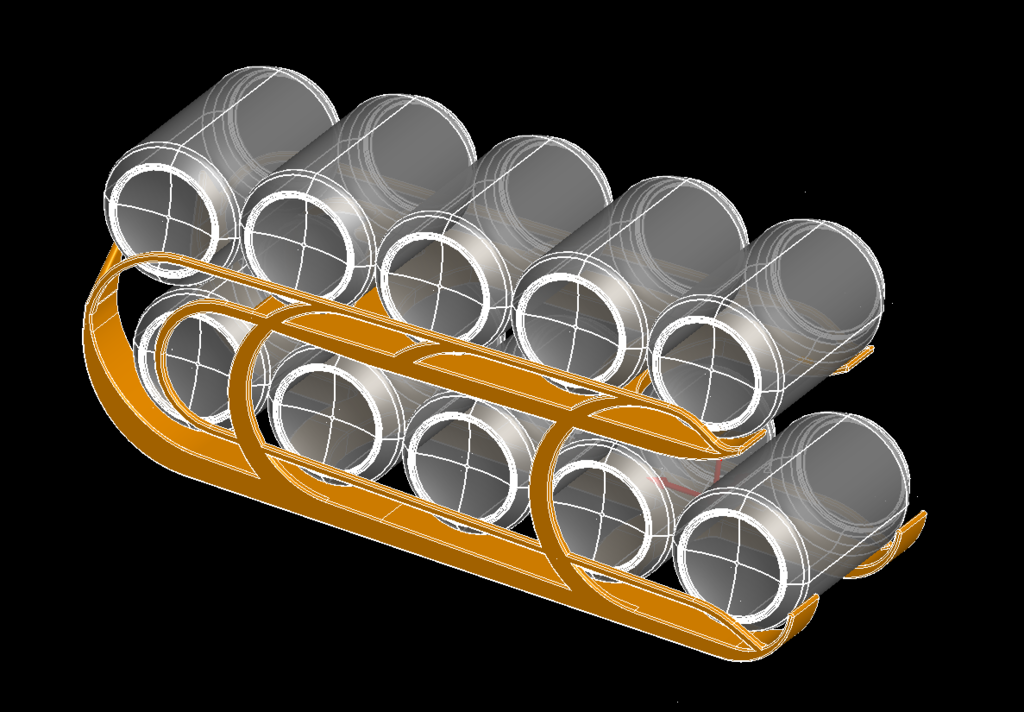

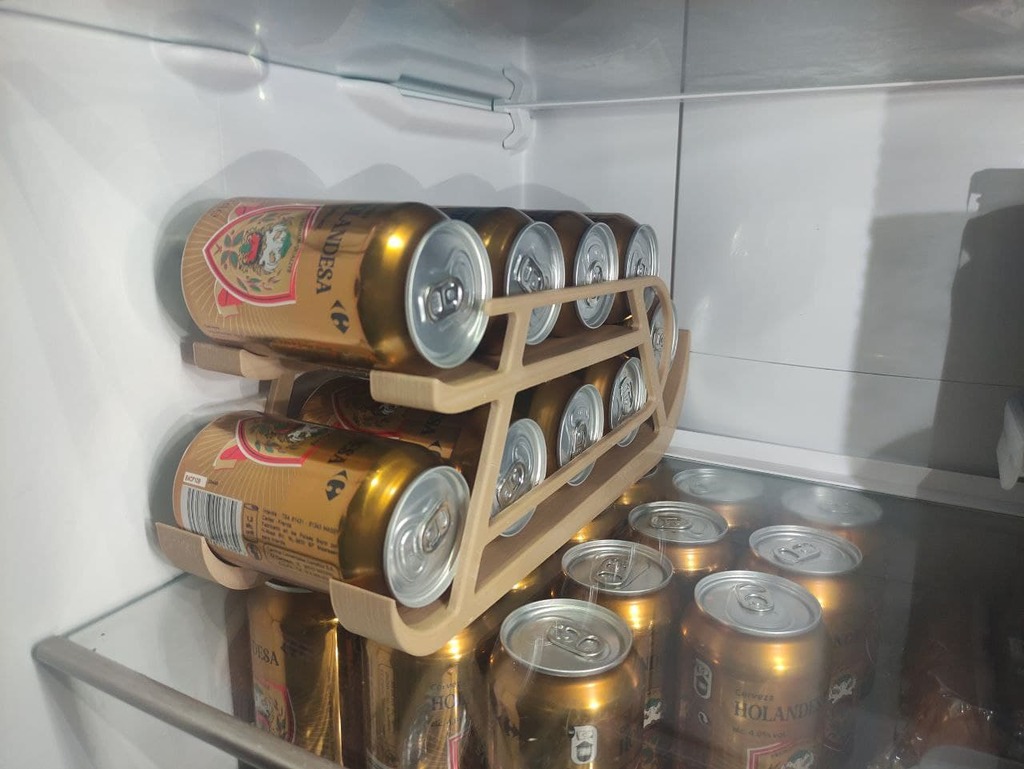

Have always cold drinks, thanks to this dispenser, fill the dispenser up to 9 units.(33 cl Diam 66 x 115 lenght)
The bottom drink is always the coldest.
only 130 wide x 170 high x 330 deep, designed for fridge.

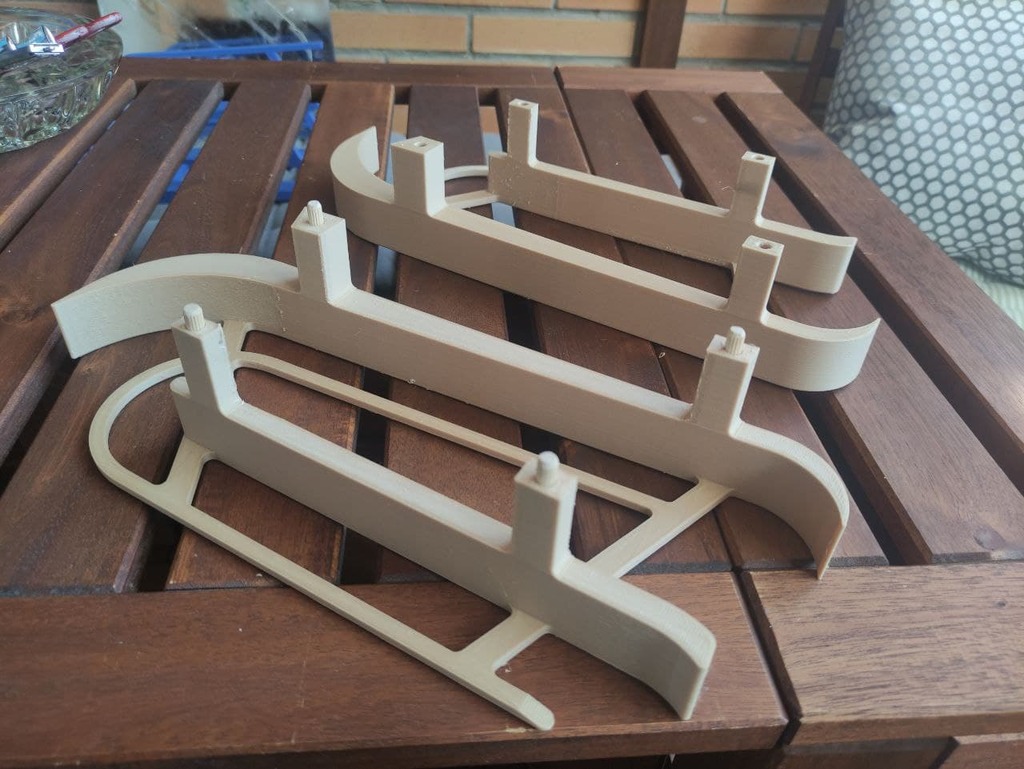

Full print with 3x4x4 walls/top/bottom and aprox 20% infil came to about 140g+140g in weight.

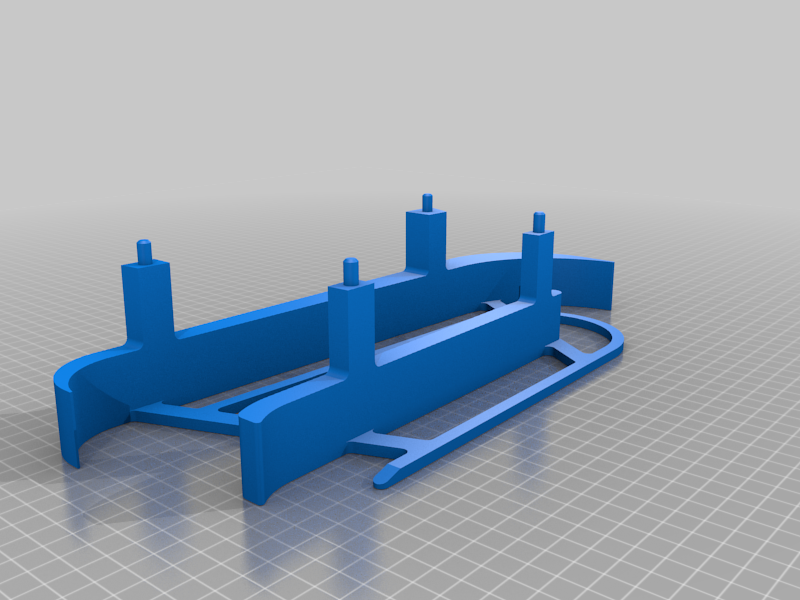

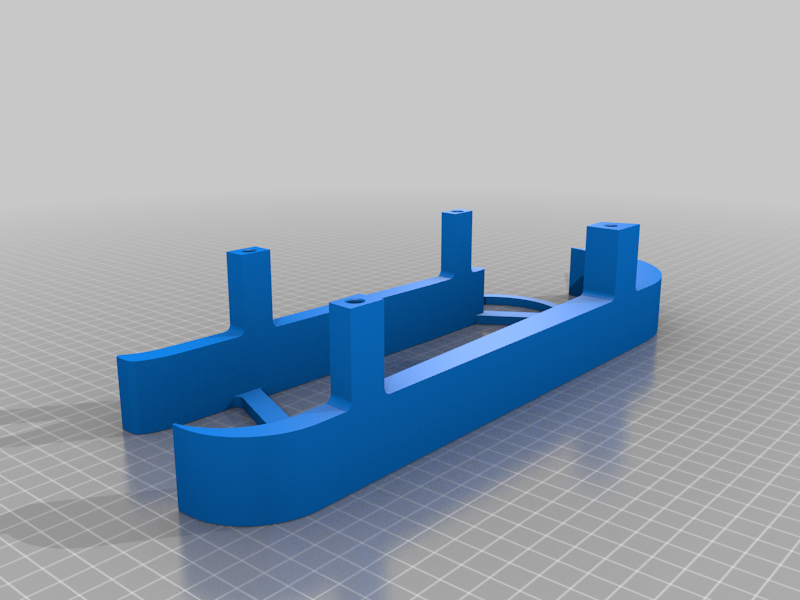

Model 2 pieces for bed 300 x 300 mm rotation 45 degrees. (2 models full)

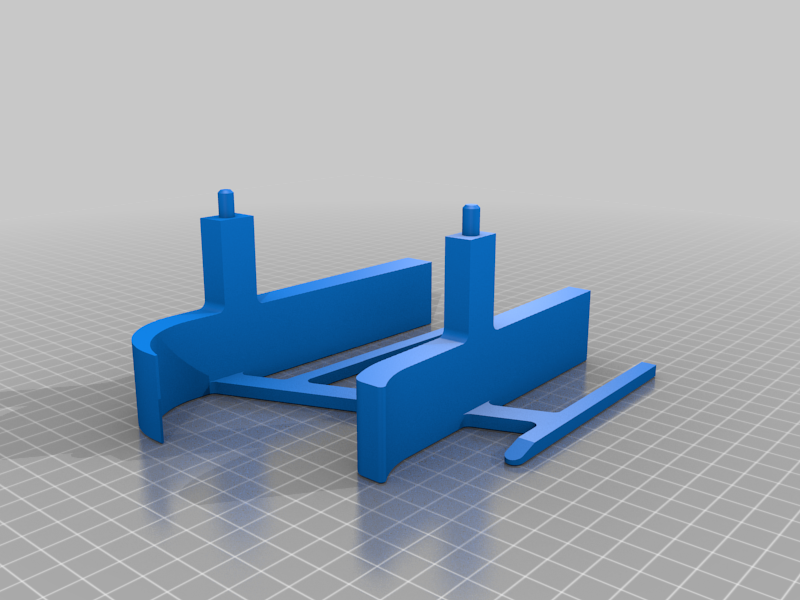

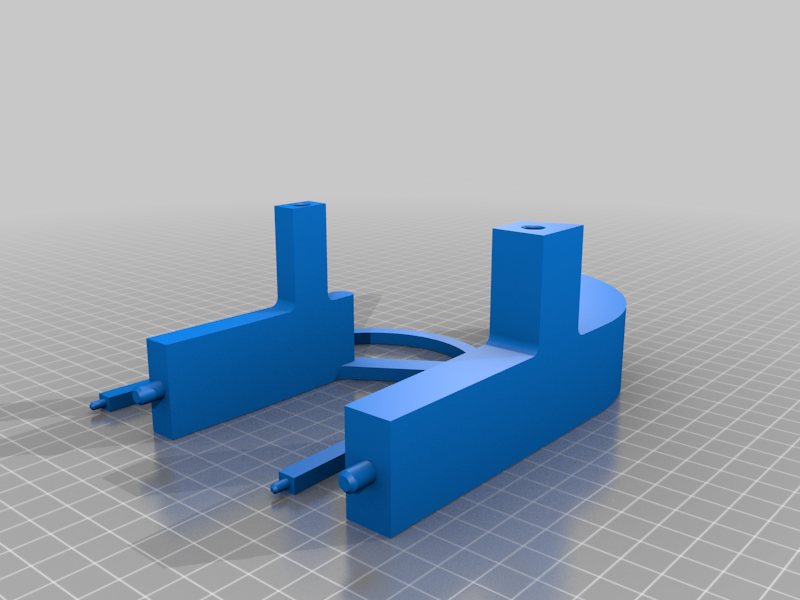

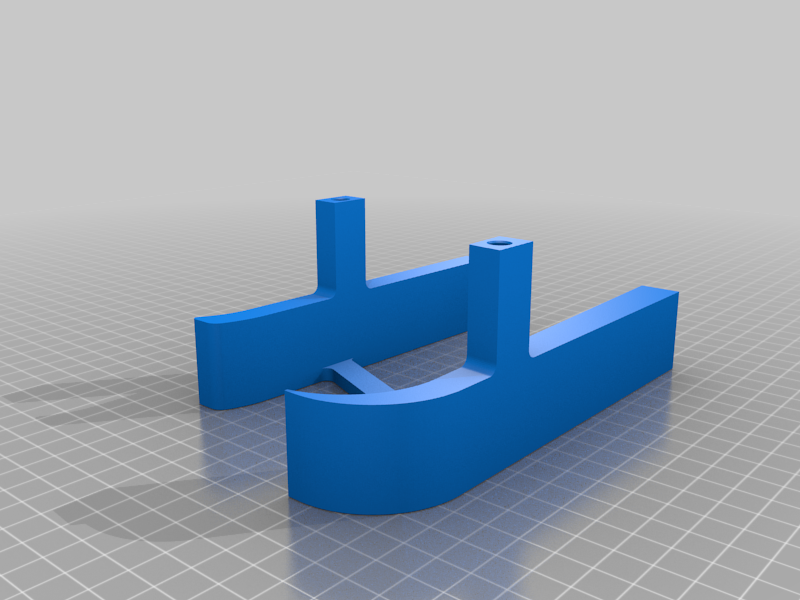

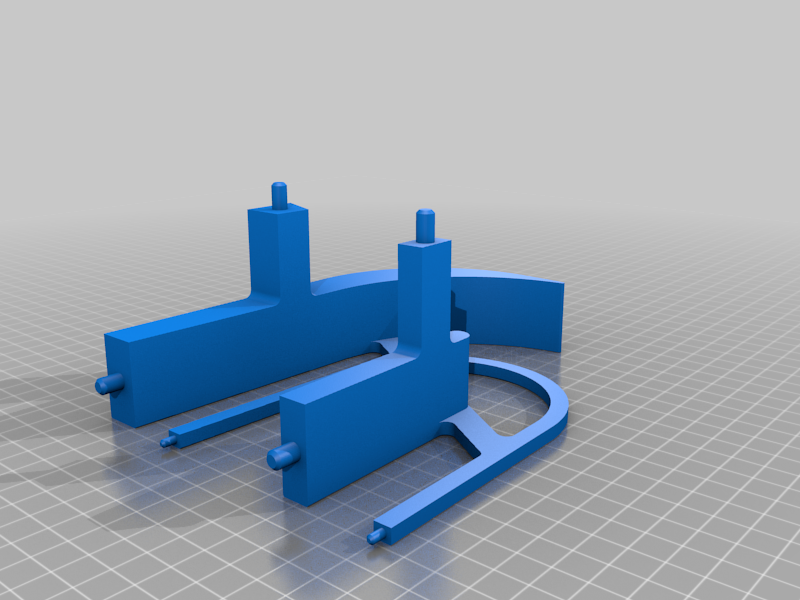

Model 2 + 2 pieces for 220x200 beds (4 models little)

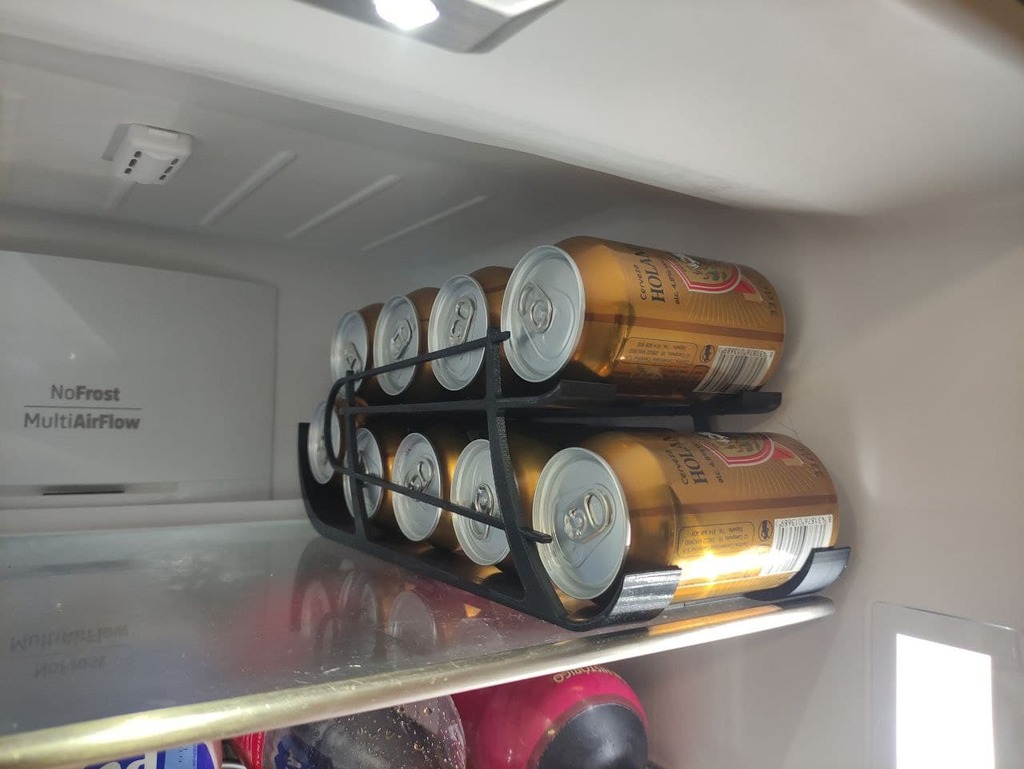

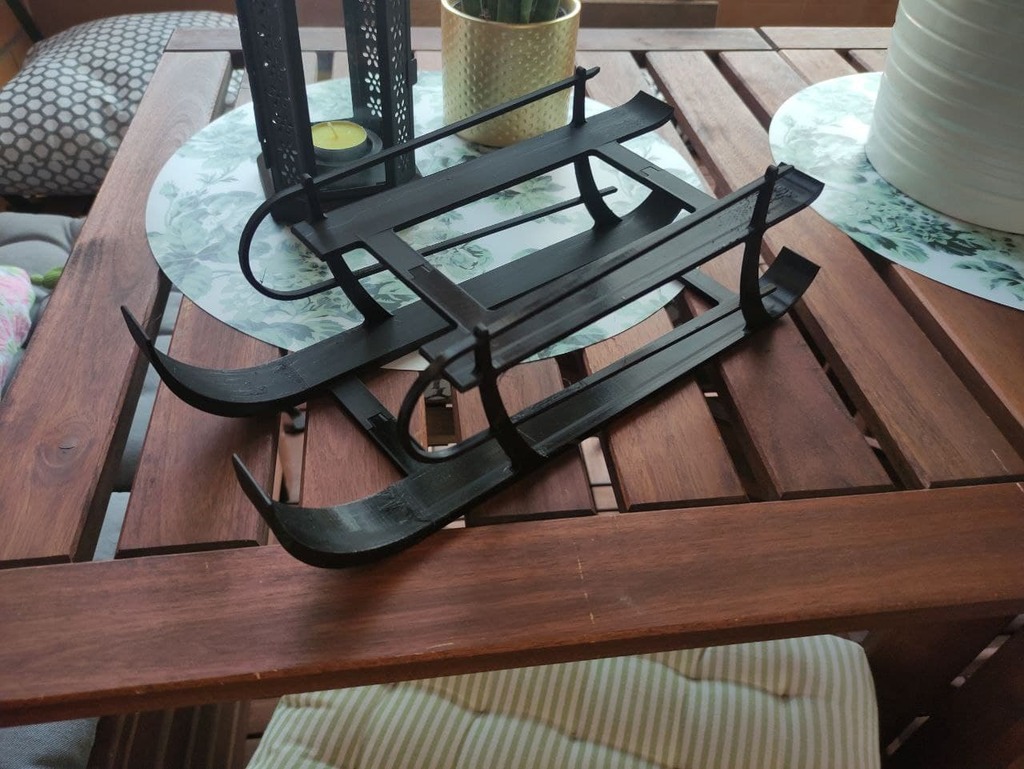

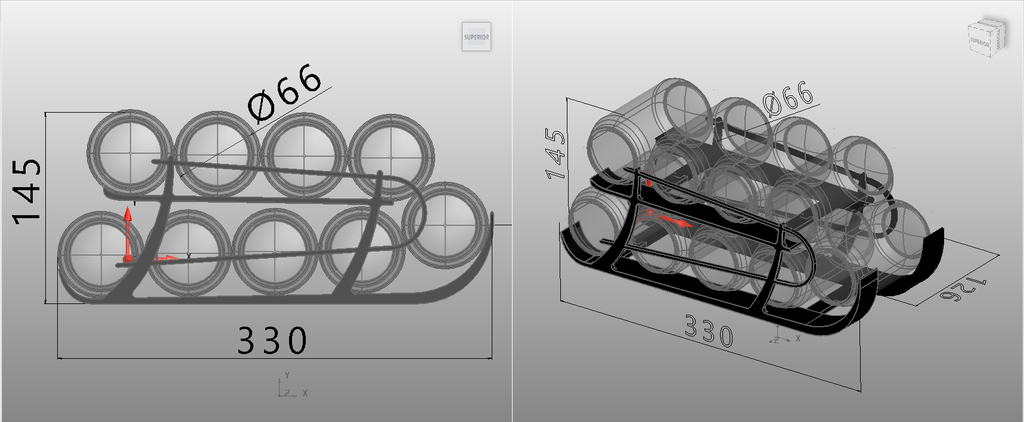

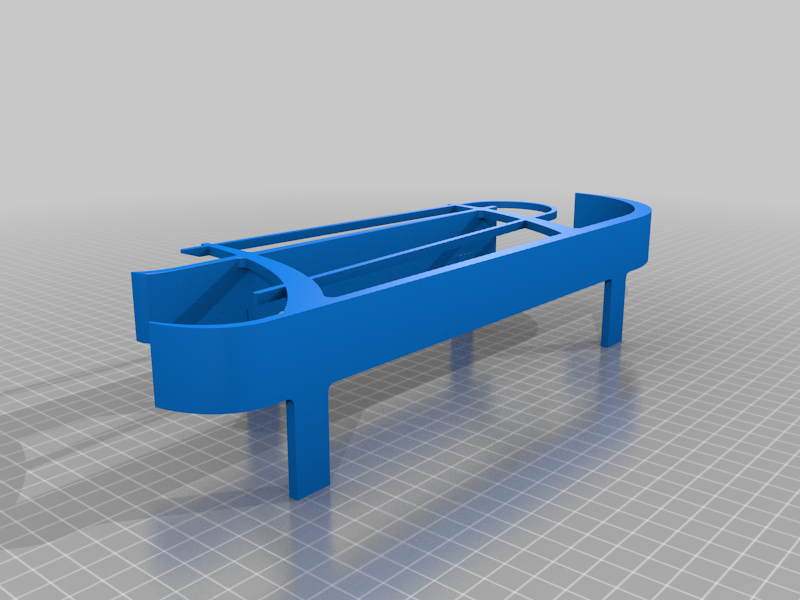

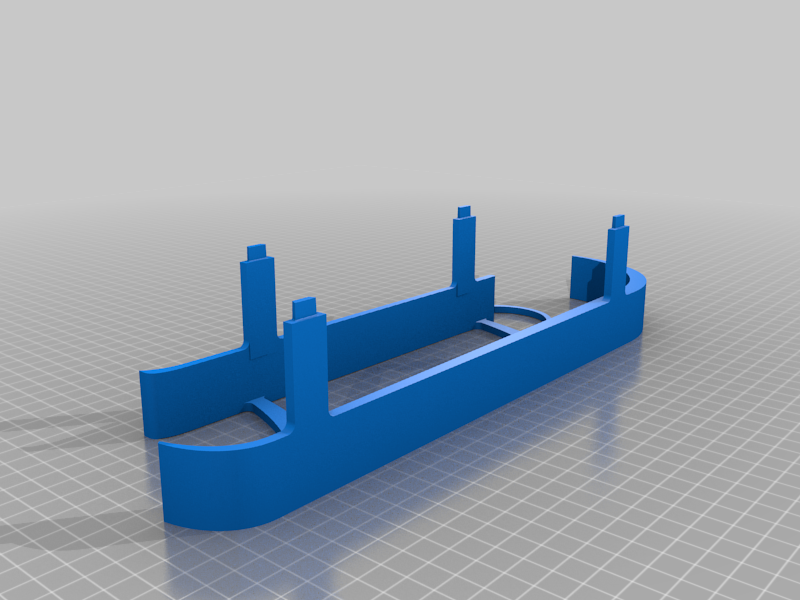

Added slim model, smaller dimensions and only 75 grams (always bed 300x300)
I have also added the CAD files

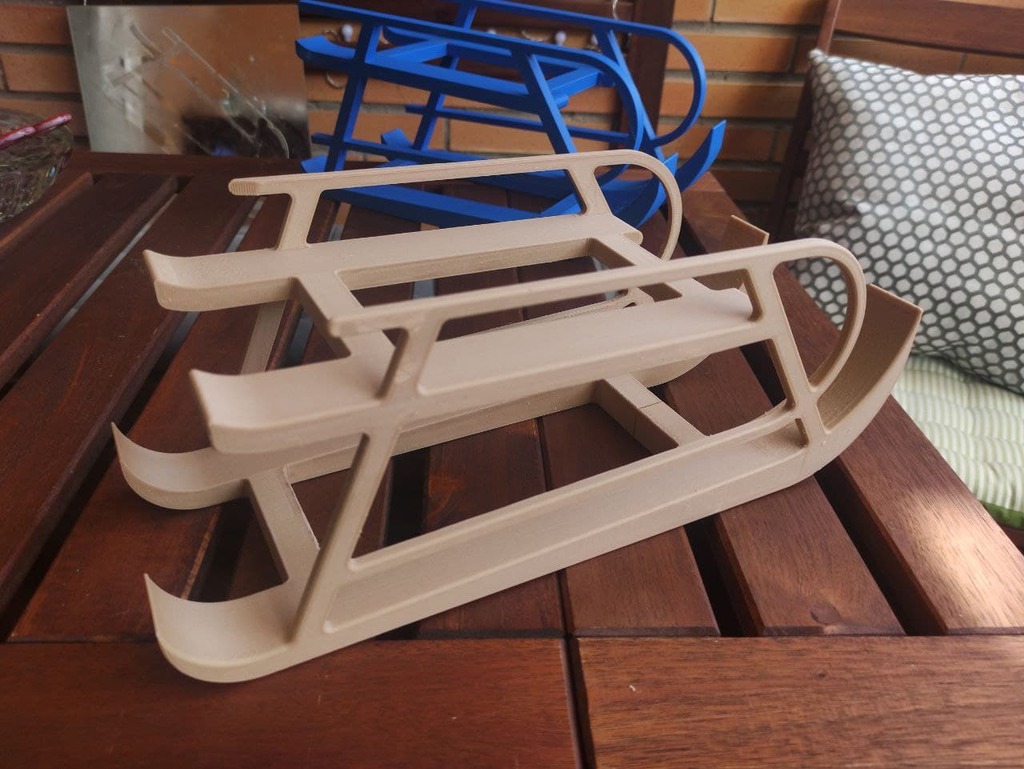

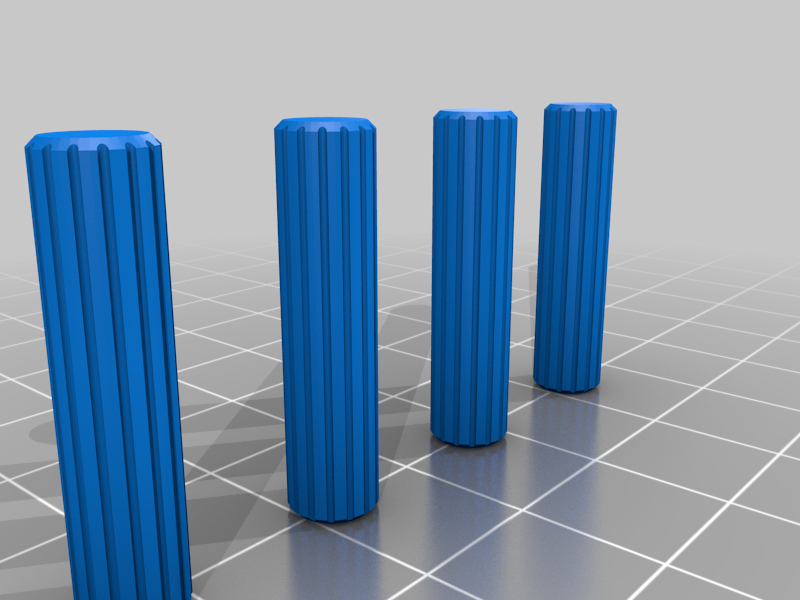

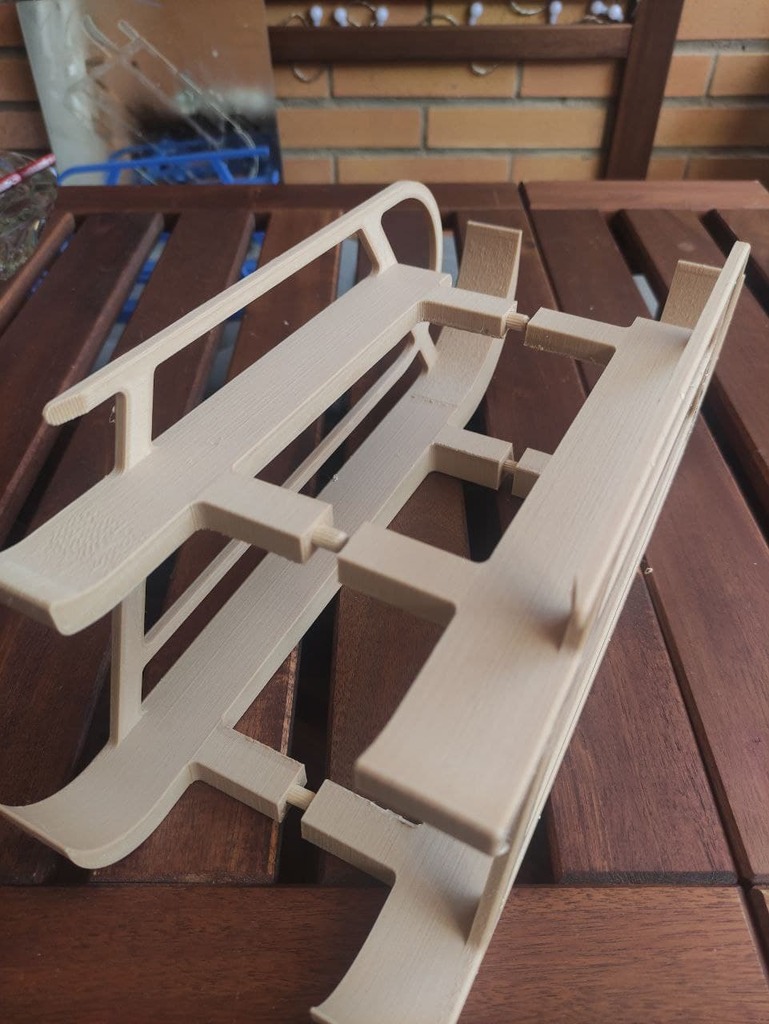

You do not need extra parts, only fit tightly, in case of loose parts you can put a little glue on the lace

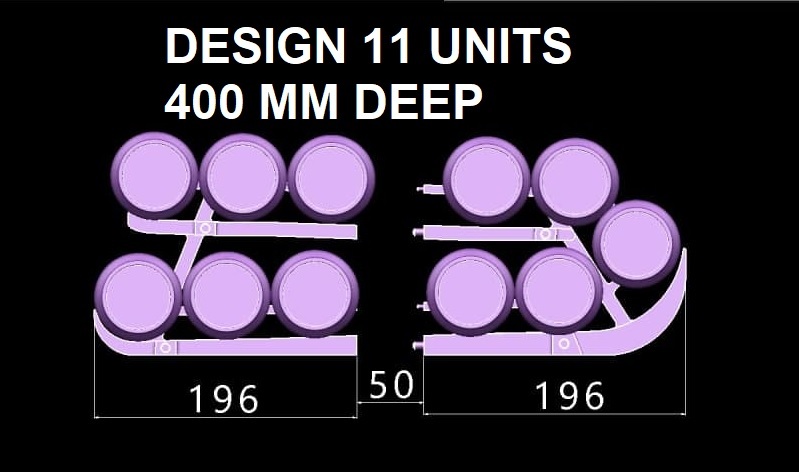

- Add design for 11 unit 66x115 in 4 piezes (bed 220x220)
- Add design for 10 unit 66x115 in 2 piezes (bed 300x300)

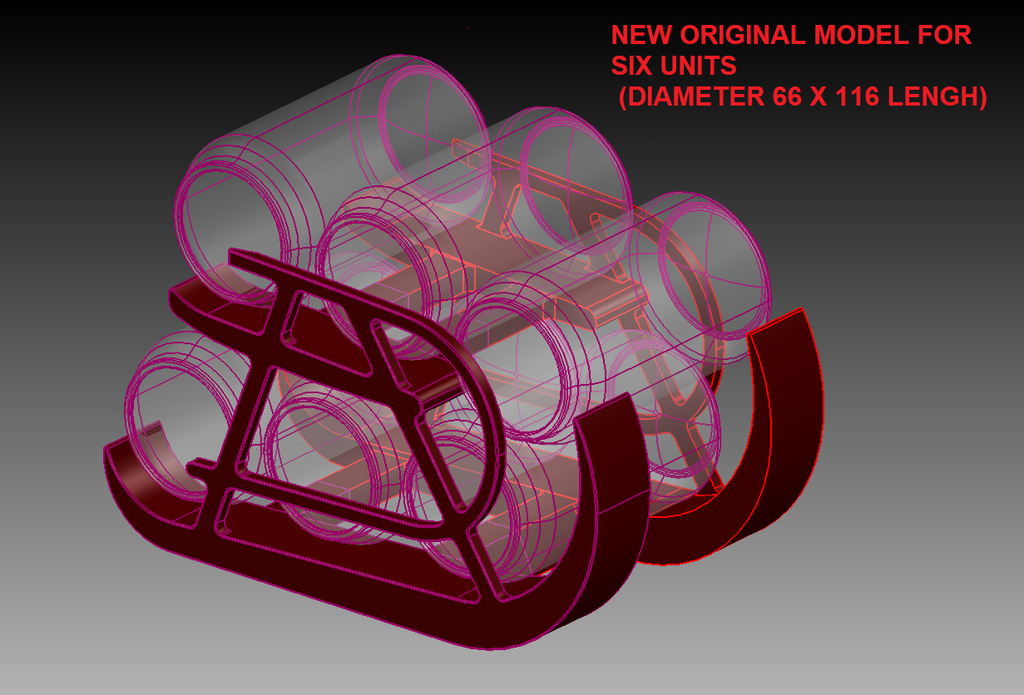

- Add design only 6 unit 66 x 115 in 2 piezes (bed minimum 220x220)
For other dimensions:

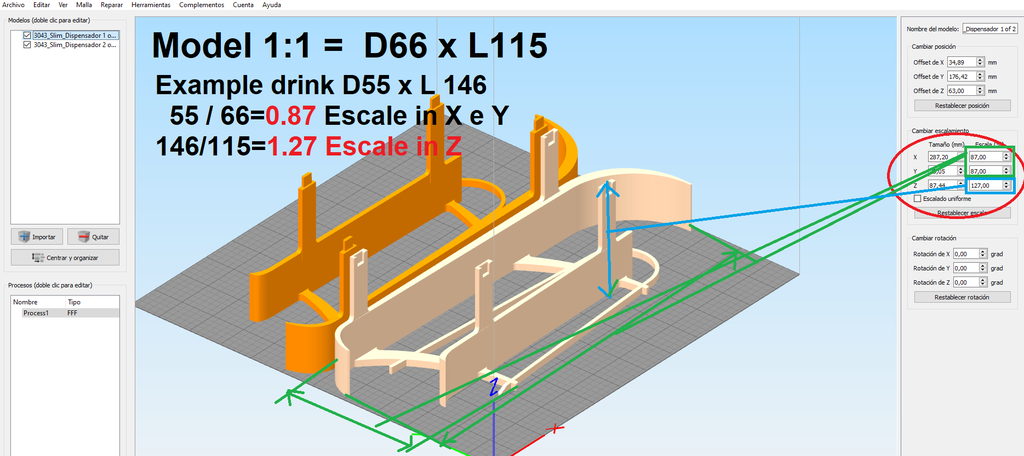

The design is prepared for a can of Diameter 66 x 115 in height. If you have other dimensions it is very easy to adapt it by scale. For example, a can with a diameter of 55/66 = 0.878 of scale in X and Y axis, if it has a length of 146/115 = 1.27 of scale in Z.
So you can make the design for any can, I have added a photo to understand.
Print Settings
Printer:
Two trees Sapphire Plus
Rafts:
No
Supports:
No
Resolution:
200
Infill:
30
Filament:
Pla Fervi Esencial, Petg PLA-PETG Post-Printing =============
Category: Kitchen & Dining
