This modular pliers rack is a variation on a simple holder I printed for my own use.

This version features modular tool inserts to allow customization of the rack.

There is also a small parts tray in the base to keep those little bits that roll around your desktop under control.

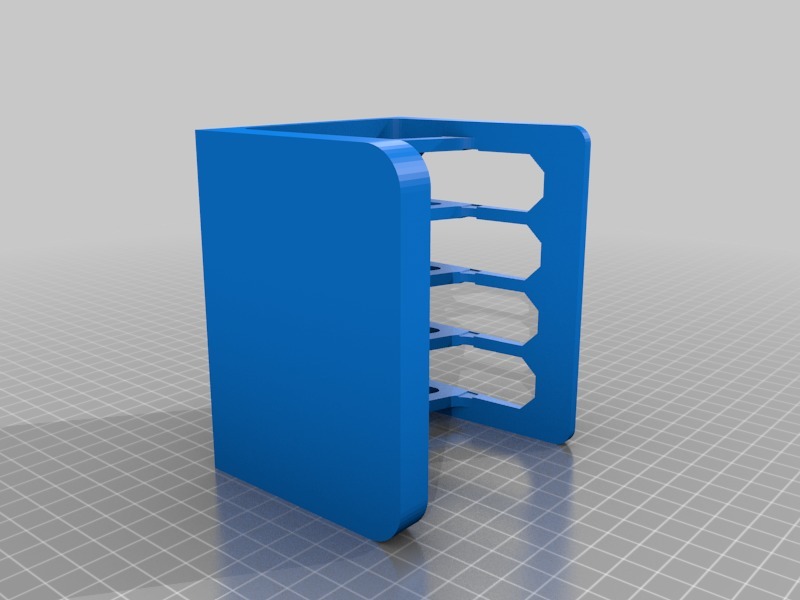

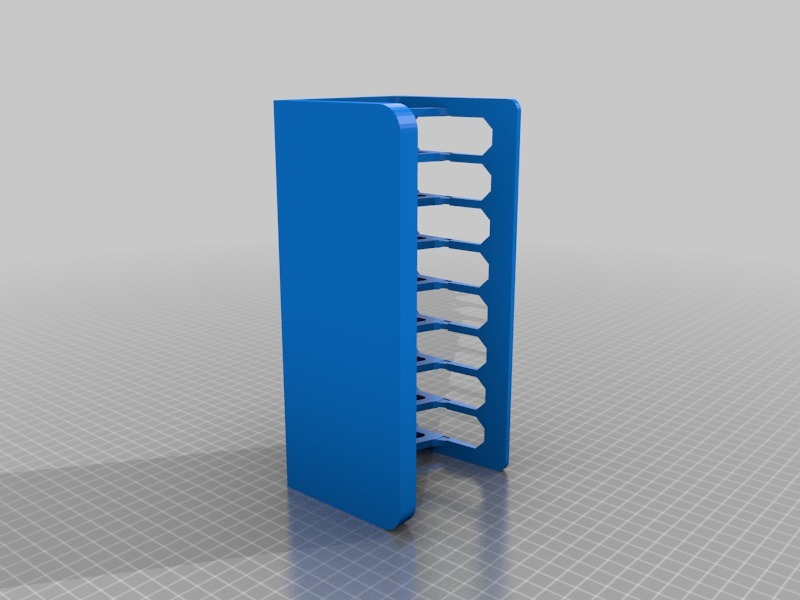

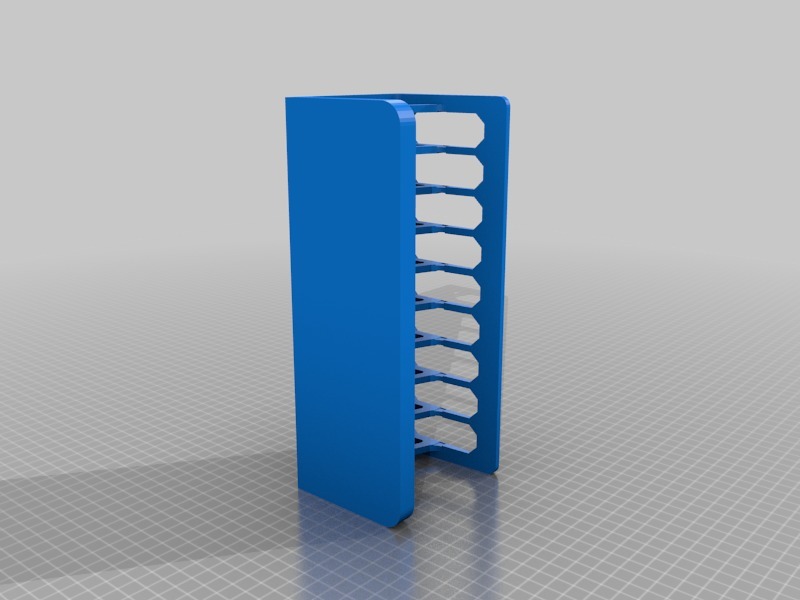

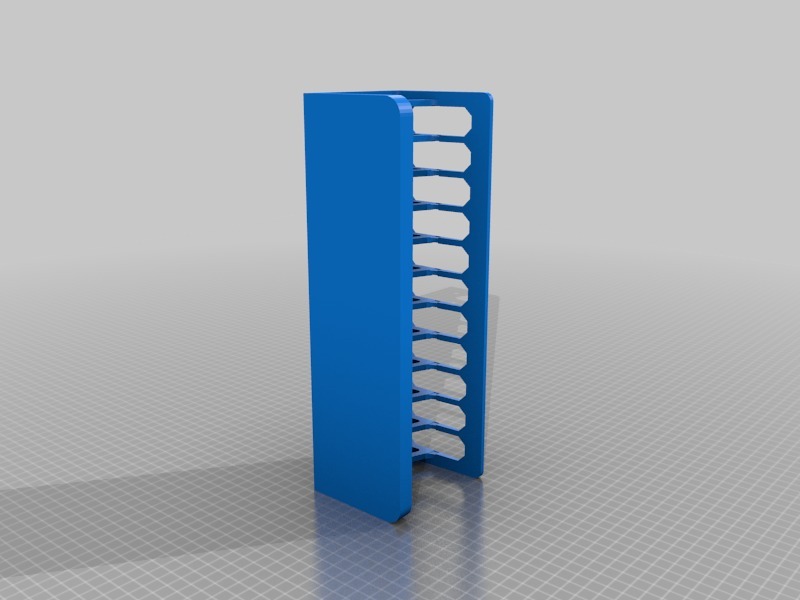

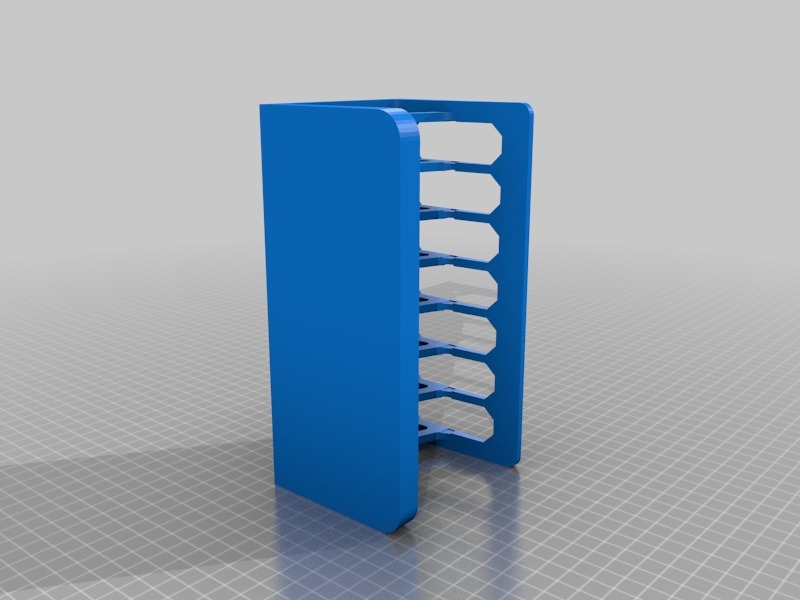

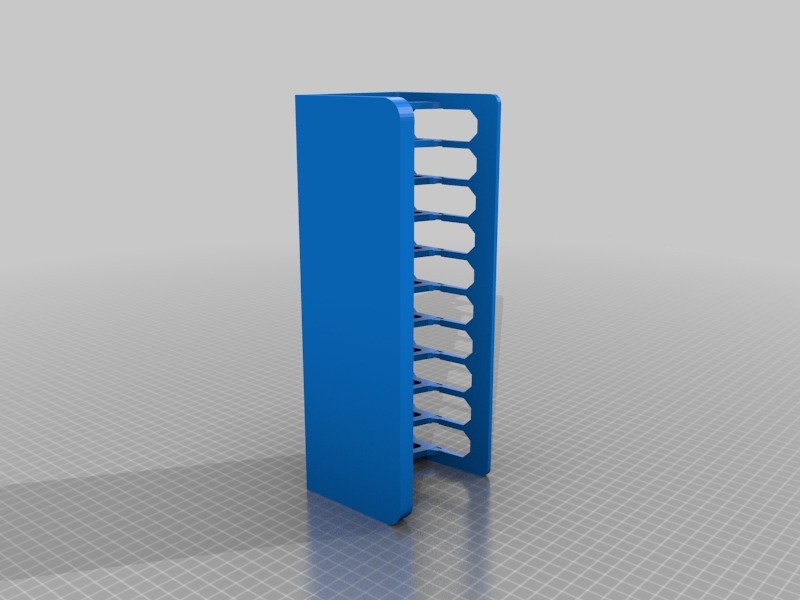

I am providing the base rack in a number of sizes. They are all the same except for the number of tool bays.

The number bays is limited only by the height of your build volume!

Print Settings

Printer Brand:

Creality

Printer:

Rafts:

No

Supports:

Resolution:

.2mm layer height

Infill:

Notes:

Rack Base

The tool rack prints on its "end" with supports.

You want supports "everywhere" not just "from build surface."

That helps keep the slots open and the struts clean.

My best results were using the Cura slicer with "roofs" and "floors" on the supports.

I also had good results with Simplify 3D.

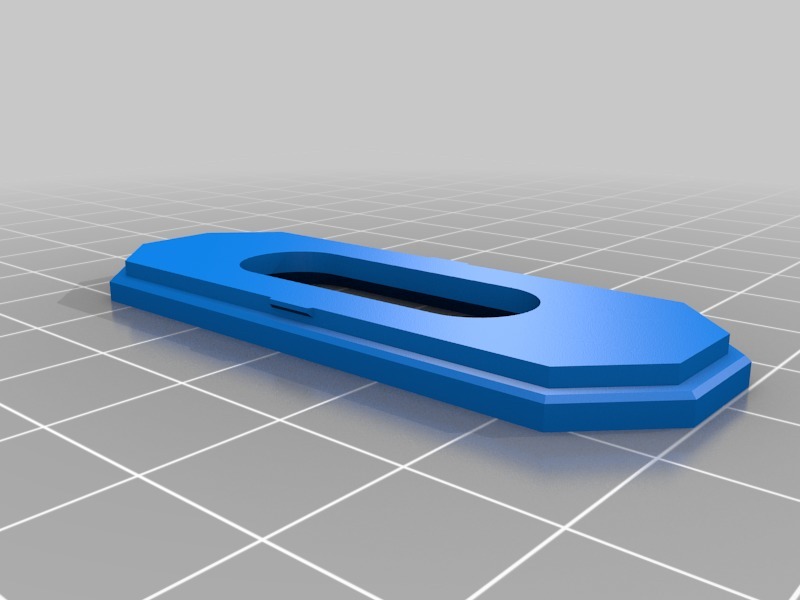

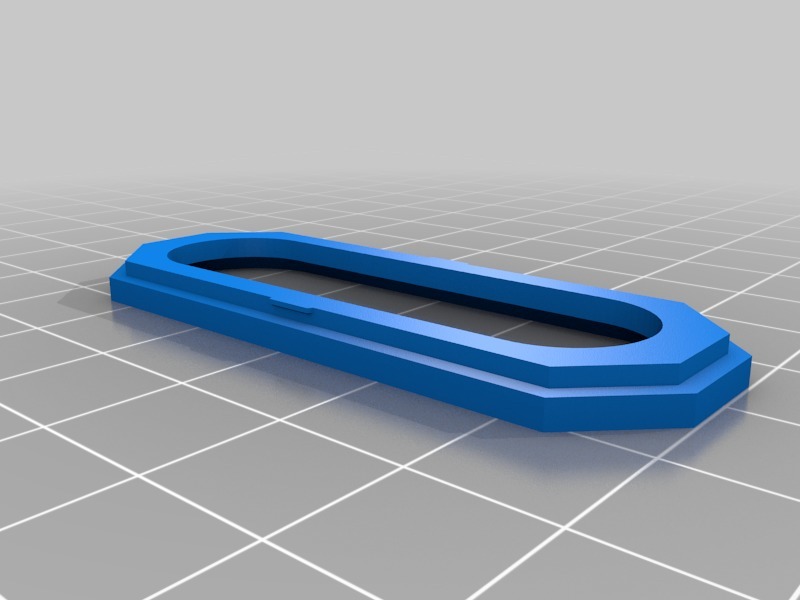

Inserts

The inserts should be printed solid.

I did this by setting the number of top layers to something large like 99.

I also recommend printing these with a bit of a brim since they are flat and can warp easily.

I've printed these in .2mm layers height and .16 and both worked well. Just a slightly cleaner chamfer with the finer layer height.
