Modelo 3D Jaw Inserts for bench vice[vise] (universal version) por JuraS no Printables

Descrição

Jaw Inserts for bench vice (universal version)

When I designed and created jaw inserts type for bench vice YORK 80 ("[https://www.prusaprinters.org/prints/2449-jaw-inserts-for-bench-vicevise-york-80](https://www.prusaprinters.org/prints/2449-jaw-inserts-for-bench-vicevise-york-80)")
so I designed and created universal version not dependent of vice producer:
•C (centering) size 1 UNI
•C (centering) size 2 UNI
•F (flat) UNI
•S (special for screw ISO4762) UNI

•you can use different combination of inserts type as you need
(for example instead standard C-L + C-R you combinate C-L + F, C-L + C-L)

printed parts, material PETG:
[layer height=0,2mm][Infill=100% Rectilinear][vertical shells perimeters=3]

Pos-001_Jaw Insert C-L_UNI (size1)
Pos-002_Jaw Insert C-R_UNI (size1)

Pos-001_Jaw Insert C-L_v2_UNI (size2)
Pos-002_Jaw Insert C-R_v2_UNI (size2)

Pos-003_Jaw Insert F_UNI

Pos-004_Jaw Insert S-L_UNI
Pos-005_Jaw Insert S-R_UNI

Print instructions

Slic3r Prusa Edition settings:
0,20mm QUALITY MK3

Prusament PETG
Original Prusa i3 MK3S

layer height = 0.2mm
vertical shells perimeters = 3
Infill=100% Rectilinear

printing time:

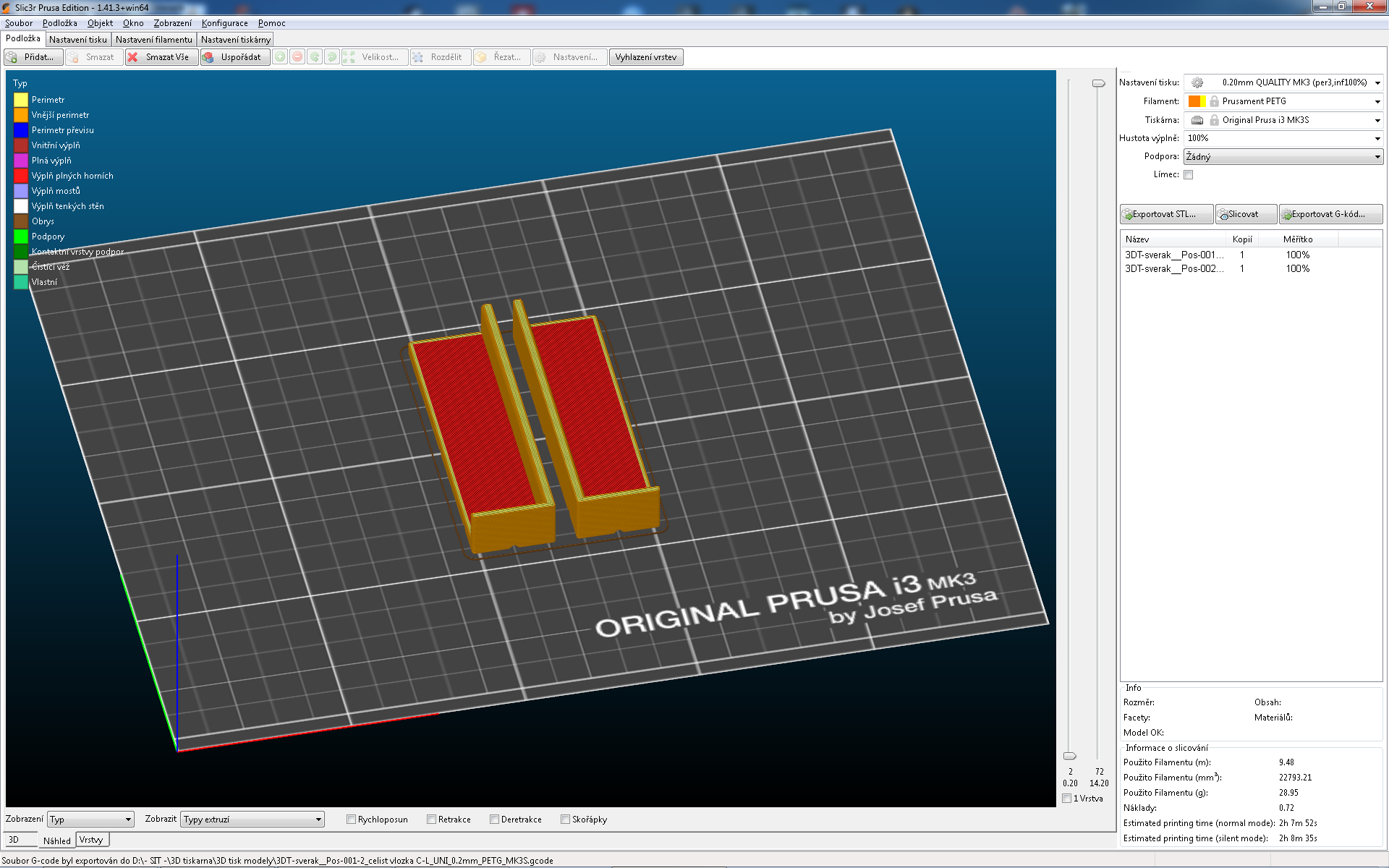

2h 07min [Pos-001-2_C-LR_UNI]

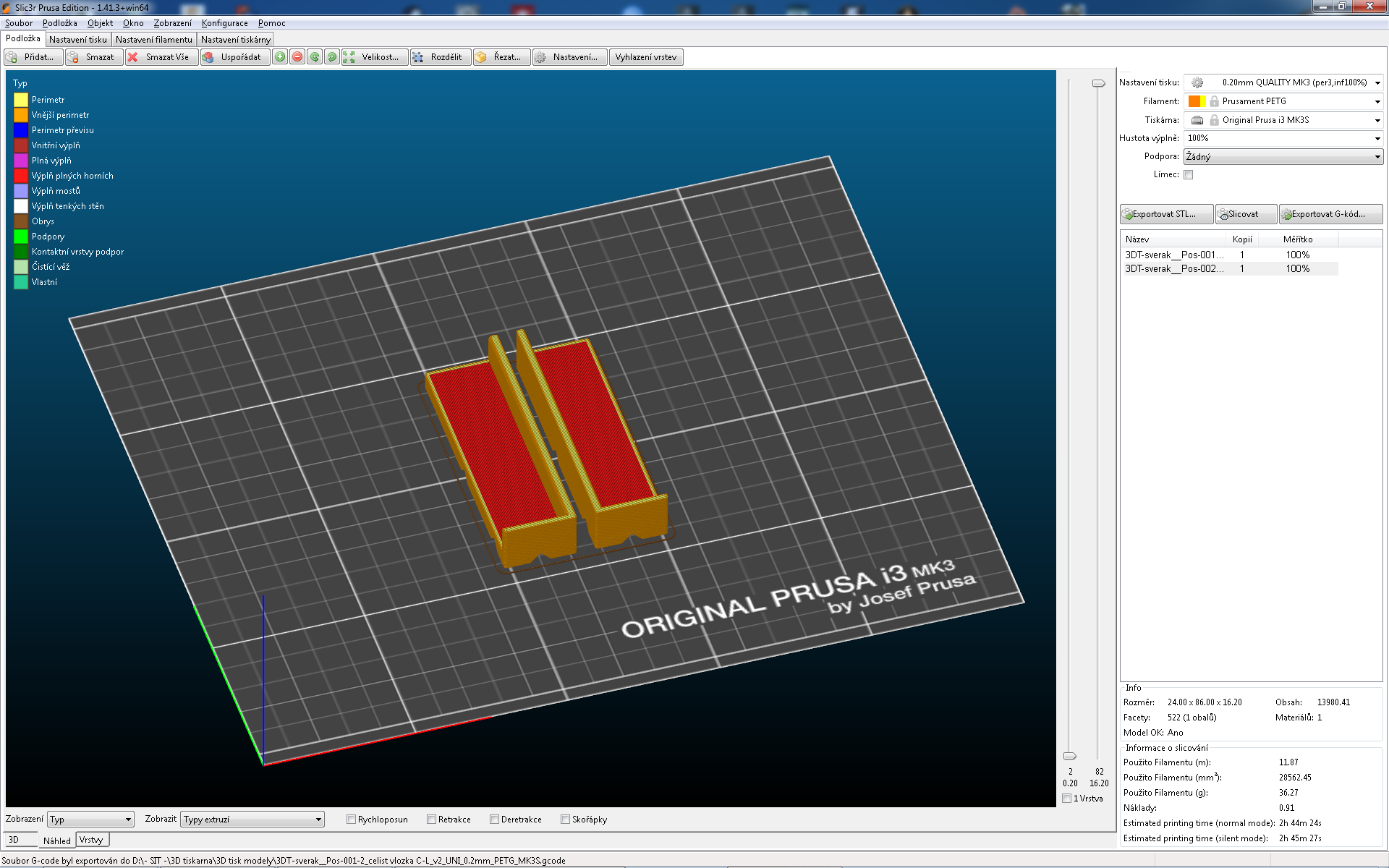

2h 44min [Pos-001-2_C-LR_v2_UNI]

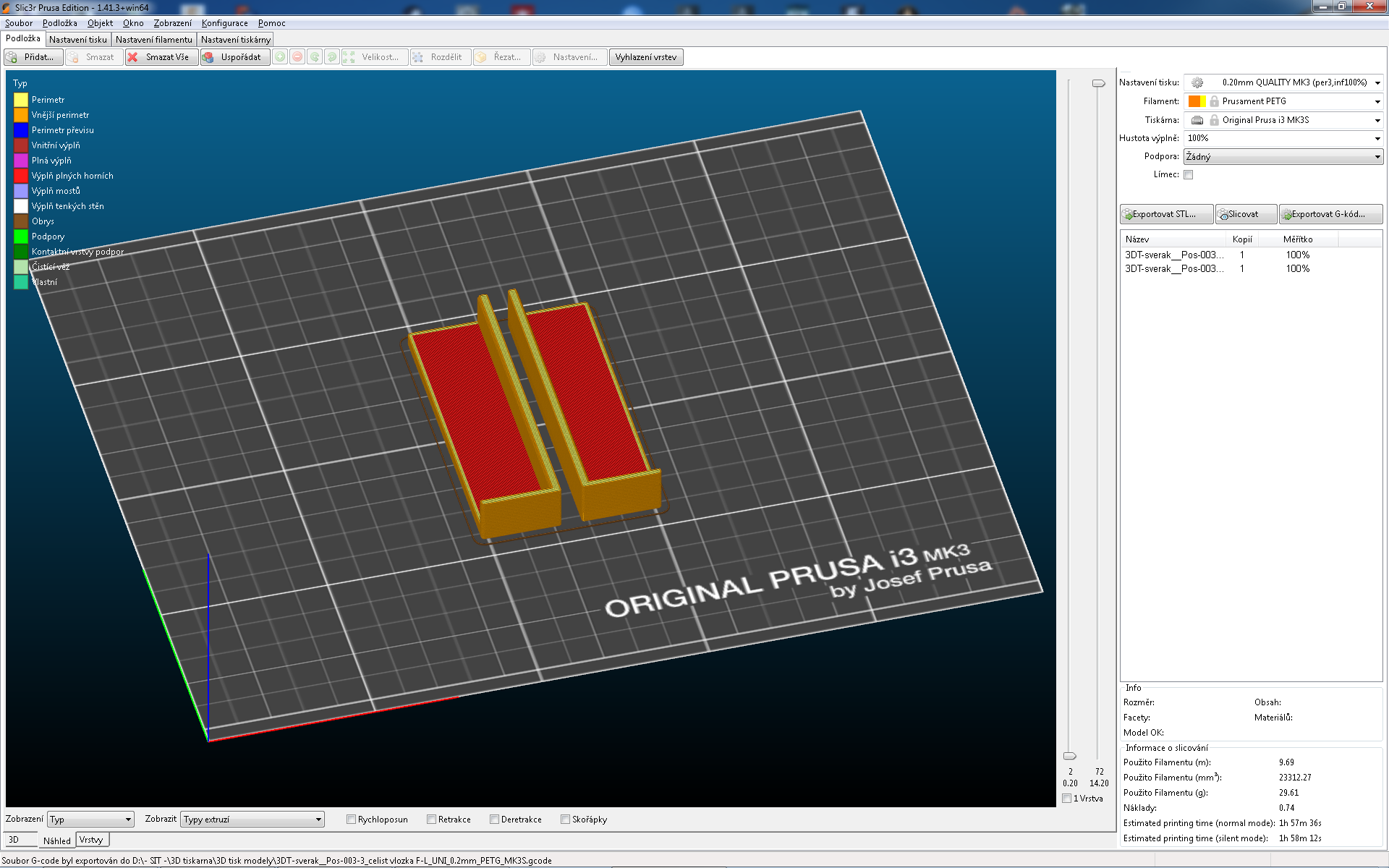

1h 57min [Pos-003-3_F-LR_UNI]

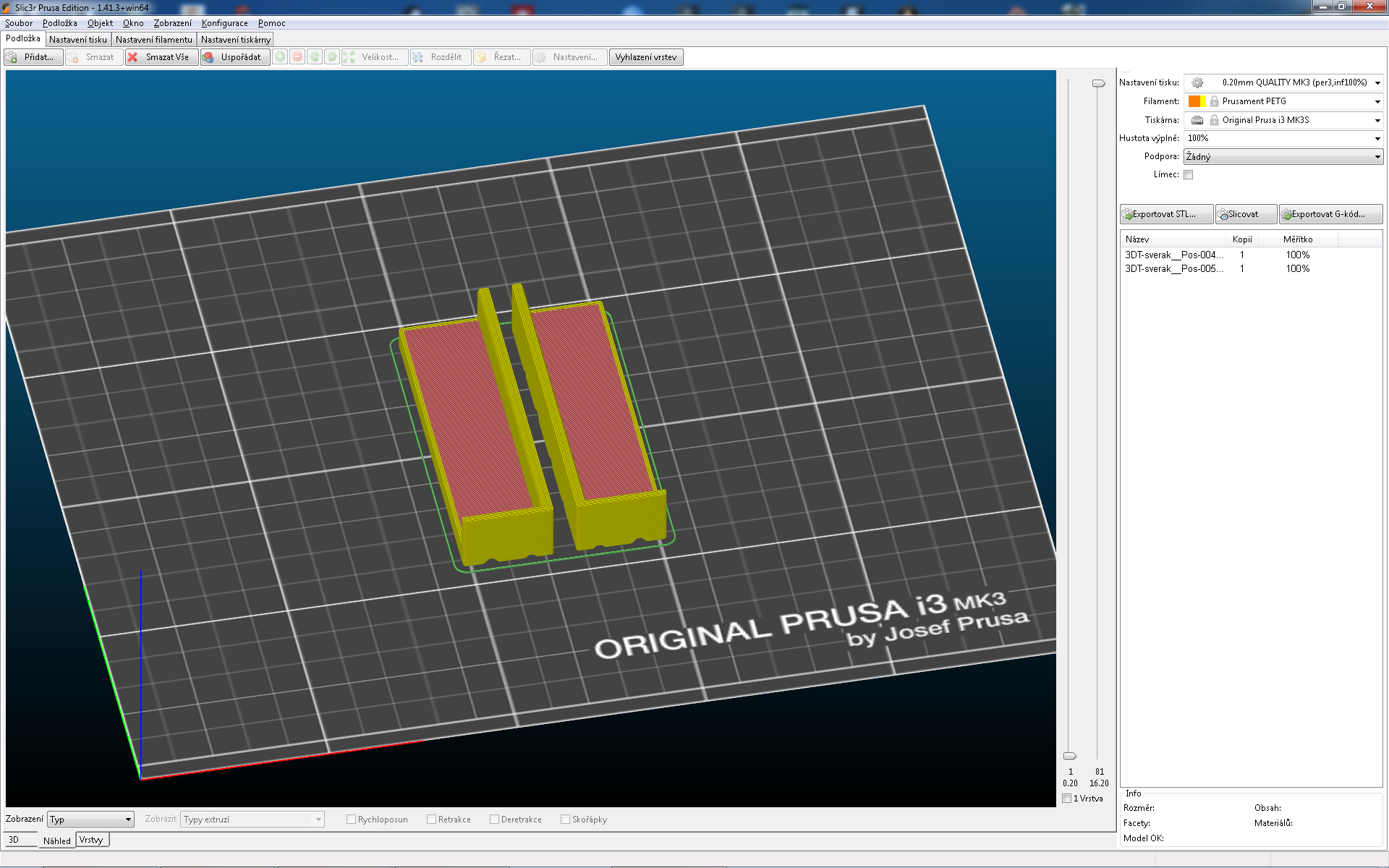

2h 53min [Pos-004-5_S-LR_UNI]

Printables

Jaw Inserts for bench vice[vise] (universal version)

Publicado em 15 de mai de 2019

17
Curtidas
166
Downloads
Categoria Tools
Tags
vice vise inserts jaw jaws universal
Licença Creative Commons — Attribution — Noncommercial — NoDerivatives
Arquivos (8)
js_sverak_pos-001_celist-vlozka_c-l_uni.stl 142.4 KB
js_sverak_pos-002_celist-vlozka_c-r_uni.stl 142.4 KB
js_sverak_pos-001_celist-vlozka_c-l_v2_uni.stl 142.4 KB
js_sverak_pos-002_celist-vlozka_c-r_v2_uni.stl 142.4 KB
js_sverak_pos-003_celist-vlozka_f-l_uni.stl 66 KB
js_sverak_pos-003_celist-vlozka_f-r_uni.stl 66 KB
js_sverak_pos-004_celist-vlozka_s-l_uni.stl 284.2 KB
js_sverak_pos-005_celist-vlozka_s-r_uni.stl 284.2 KB
