Ford FlatHead V8 (8/14) / Engine Stand

This is an Engine Stand extension for the Ford FlatHead V8 ([https://www.thingiverse.com/thing:2537602](https://www.thingiverse.com/thing:2537602)).
The mounting holes are already present on the engine block.

Print Settings

1 x EngineStandBackLeft : Layer:0.15mm Raft:no Brim:no Support:no Infill:20%

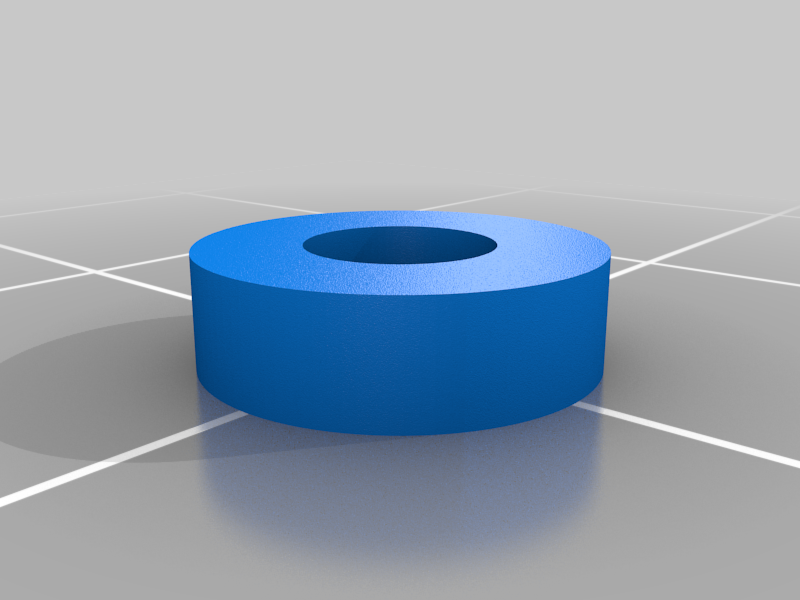

1 x EngineStandBackLeftSpacer : Layer:0.15mm Raft:no Brim:no Support:no Infill:100%
1 x EngineStandBackRight : Layer:0.15mm Raft:no Brim:no Support:no Infill:20%

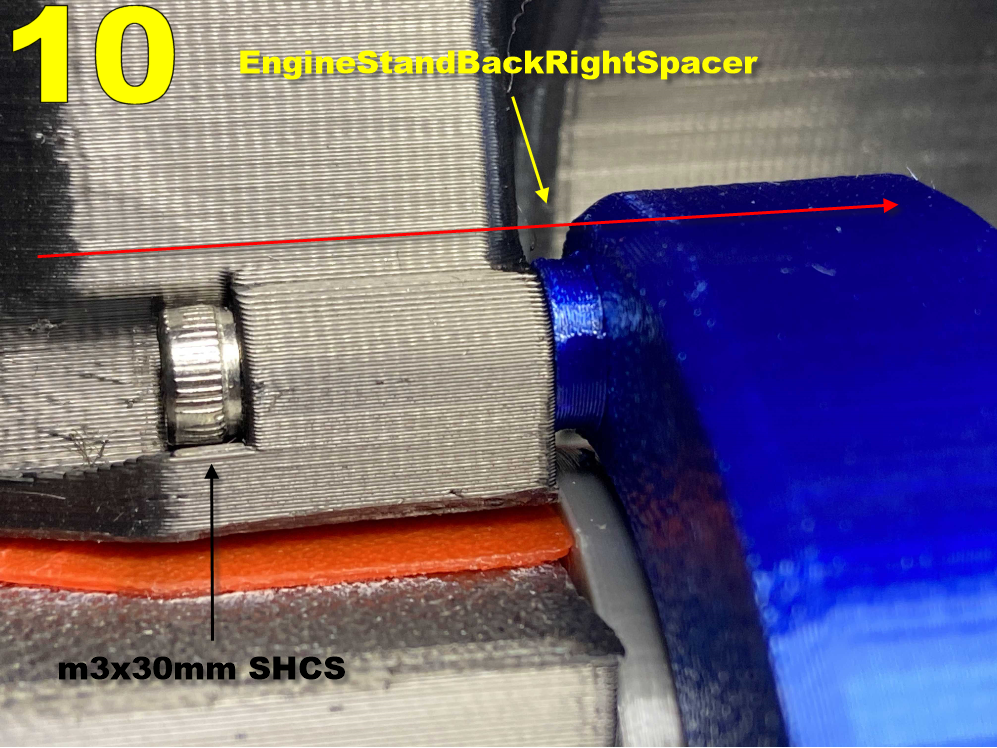

1 x EngineStandBackRightSpacer : Layer:0.15mm Raft:no Brim:no Support:no Infill:100%
1 x EngineStandBottom : Layer:0.15mm Raft:no Brim:no Support:no Infill:20%
1 x EngineStandClasp : Layer:0.15mm Raft:no Brim:no Support:no Infill:20%
1 x EngineStandFrontLeft : Layer:0.15mm Raft:no Brim:no Support:no Infill:20%

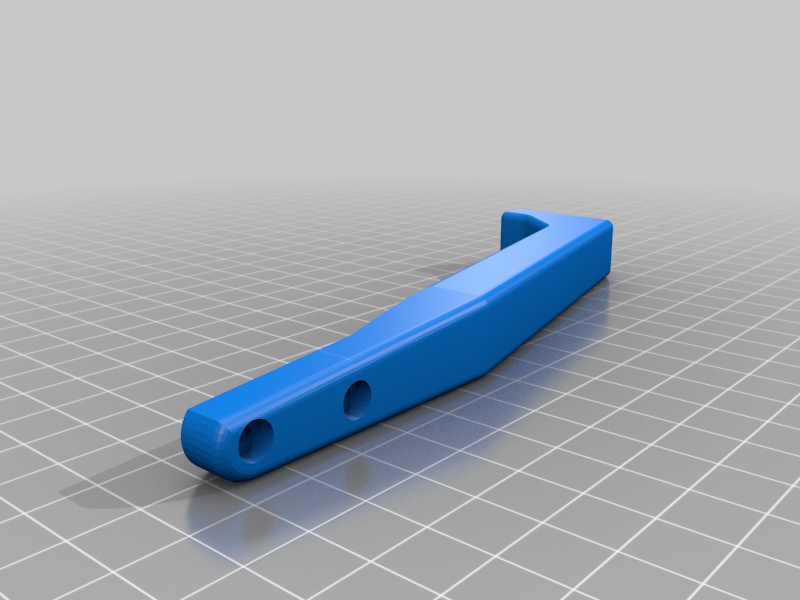

1 x EngineStandFrontRight : Layer:0.15mm Raft:no Brim:no Support:no Infill:20%
1 x EngineStandLogo : Layer:0.15mm Raft:no Brim:no Support:no Infill:20%
1 x EngineStandLogoSupport : Layer:0.15mm Raft:no Brim:no Support:no Infill:20%

Accessories

14 x m3 threaded insert
2 x m2x5mm SHCS

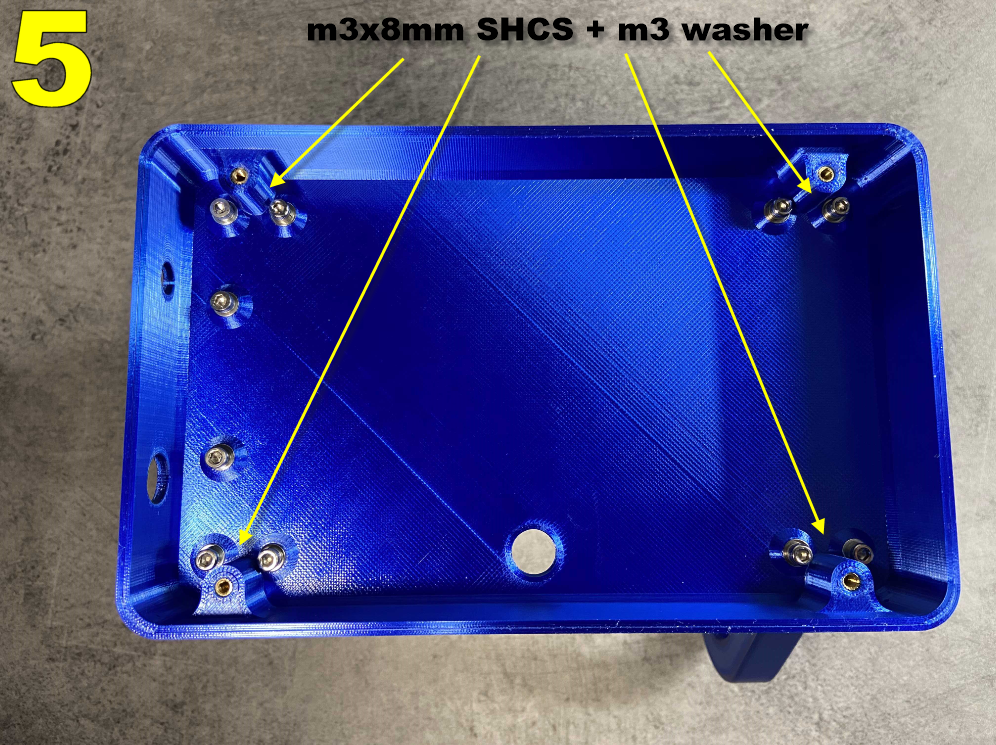

18 x m3x8mm SHCS
2 x m3x30mm SHCS
10 x m3 washer

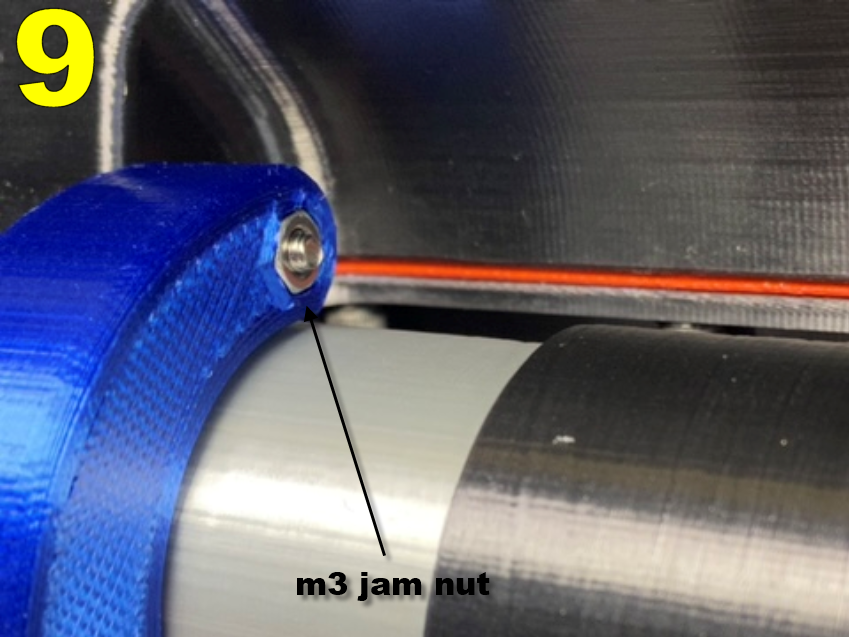

2 x m3 jam nut

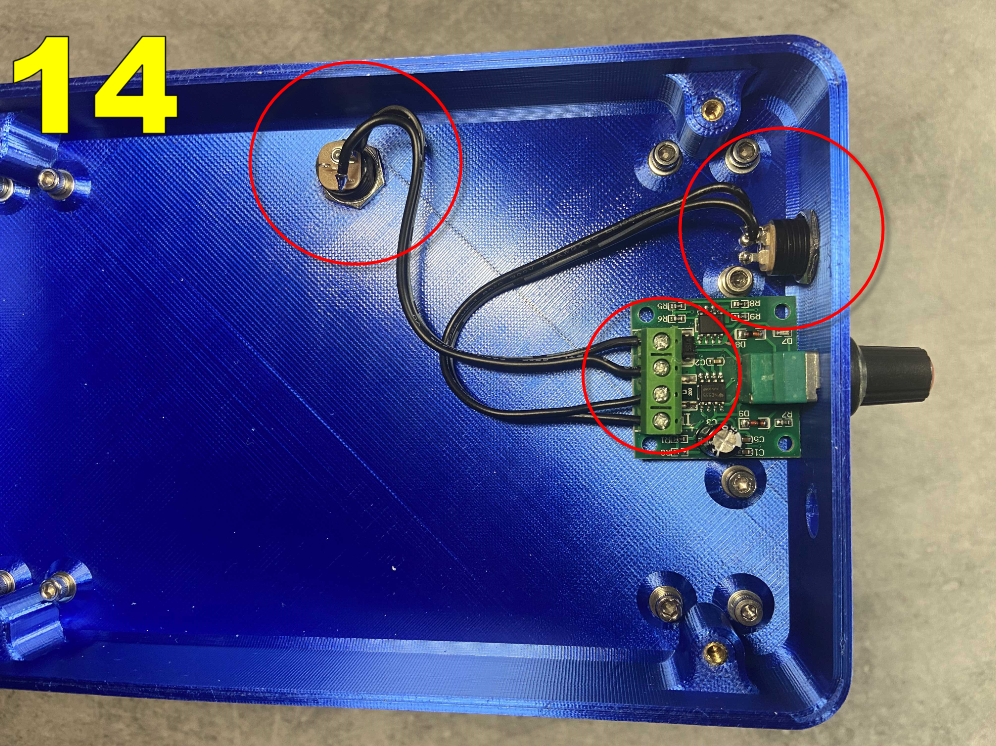

1 x electric wire (~20cm)

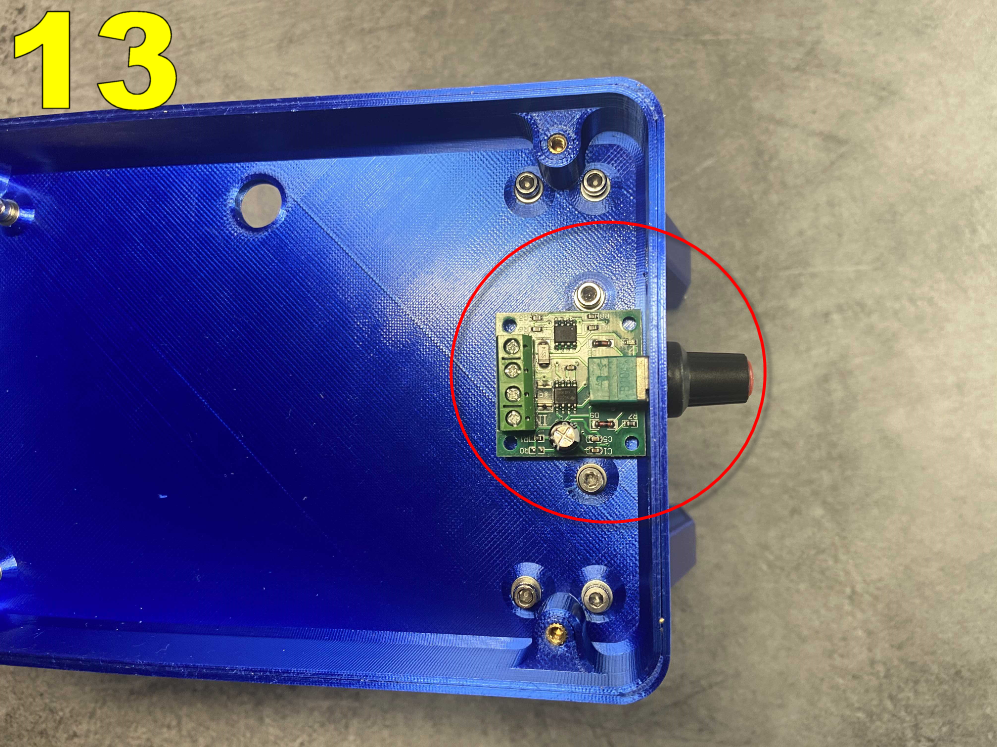

1 x variable speed controller : [https://www.amazon.fr/gp/product/B07MPWGF7P/ref=ppx\_yo\_dt\_b\_asin\_title\_o08\_s00?ie=UTF8&psc=1](https://www.amazon.fr/gp/product/B07MPWGF7P/ref=ppx\_yo\_dt\_b\_asin\_title\_o08\_s00?ie=UTF8&psc=1)
2 x DC female panel mount jack : [https://www.amazon.fr/gp/product/B07QPZTHDK/ref=ppx\_yo\_dt\_b\_asin\_title\_o00\_s00?ie=UTF8&psc=1](https://www.amazon.fr/gp/product/B07QPZTHDK/ref=ppx\_yo\_dt\_b\_asin\_title\_o00\_s00?ie=UTF8&psc=1)

Assembly

Look at pictures.

More add-ons

[https://www.printables.com/fr/model/690204-ford-flathead-v8-engine-complete-package-of-paid-a](https://www.printables.com/fr/model/690204-ford-flathead-v8-engine-complete-package-of-paid-a)
