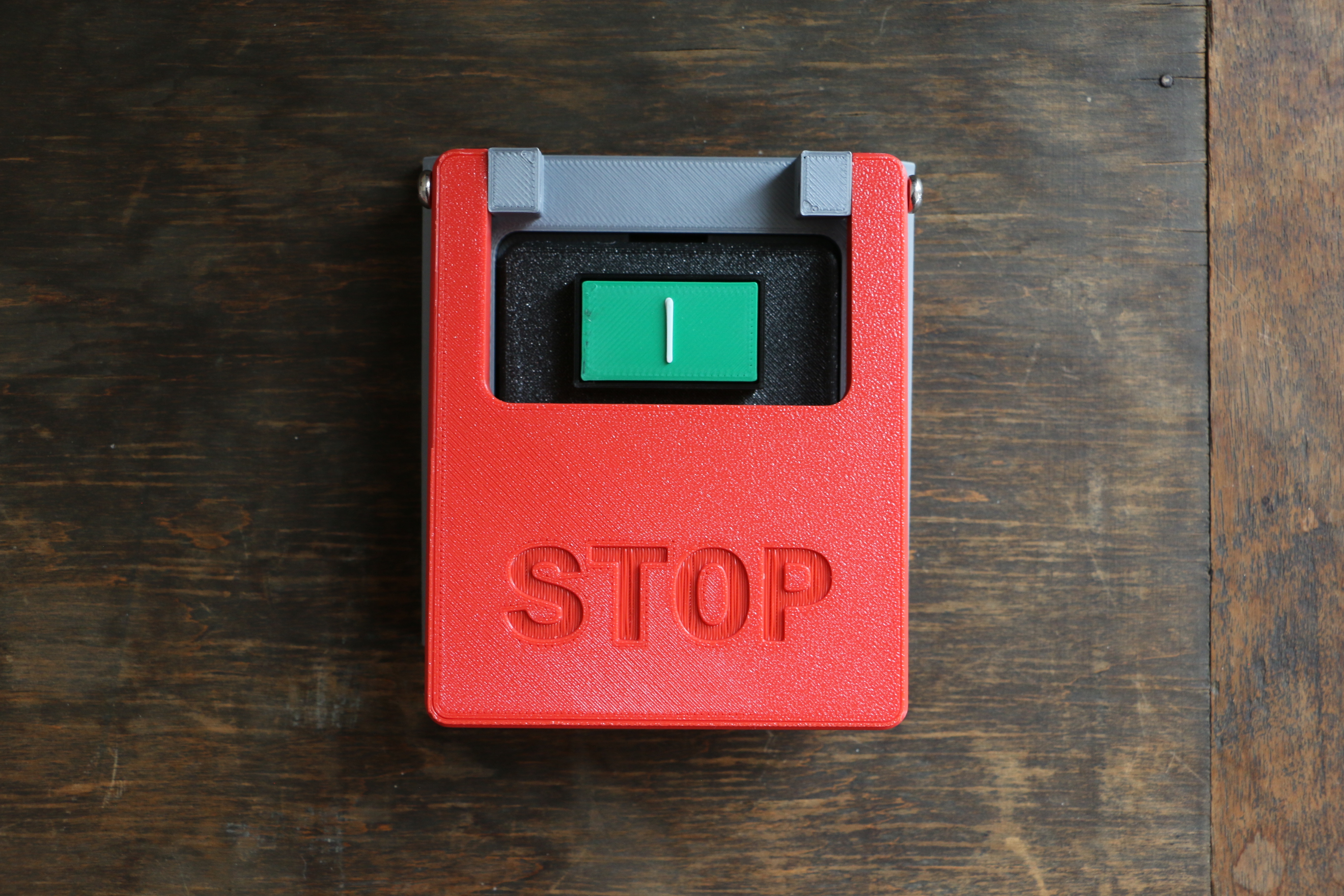

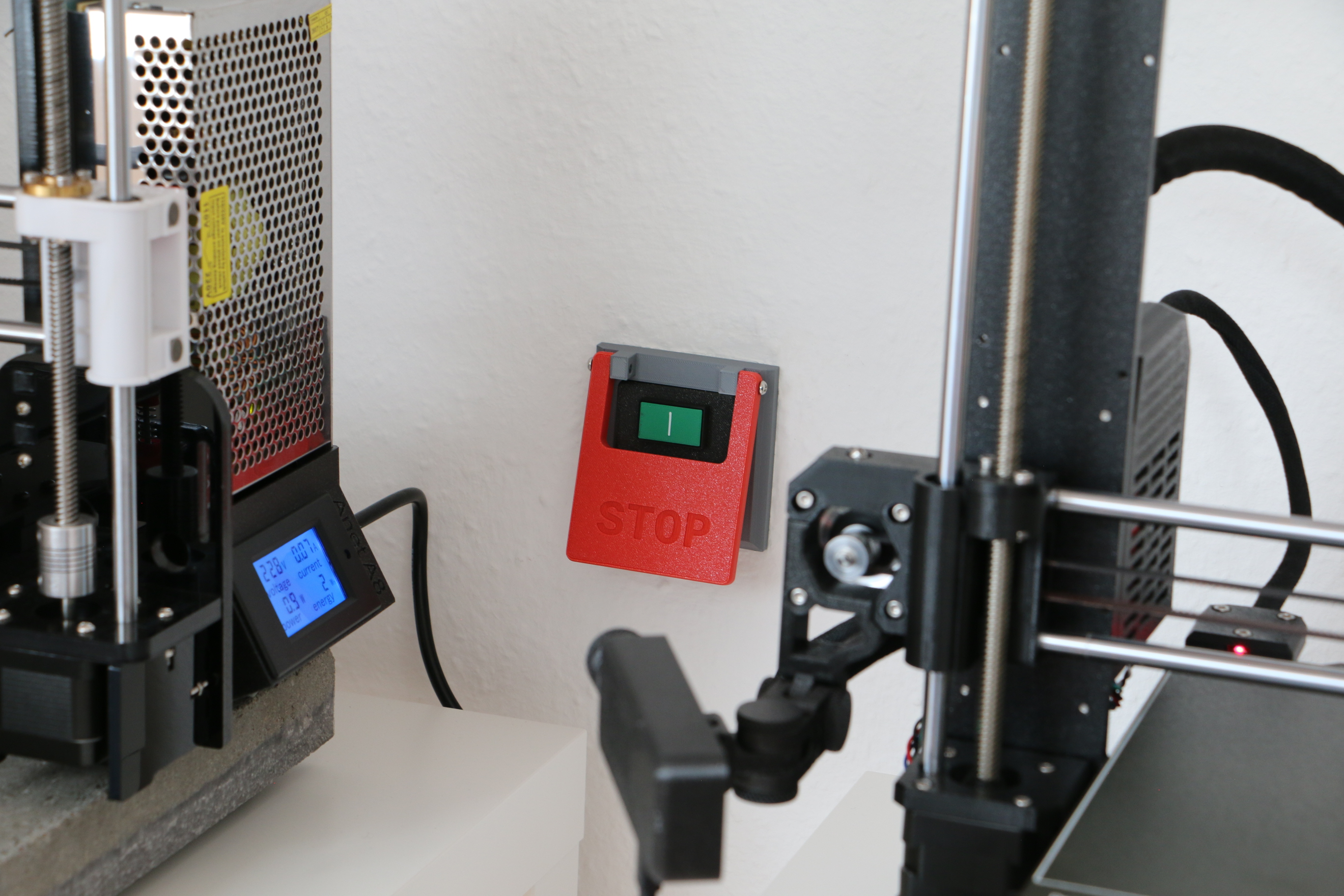

Between two of my printers there is an unnecessary light switch. Whenever I looked at it, I thought I could do something with it. Finally I turned the light switch into an emergency stop light switch. The switch is still superfluous, but now I use it all the time anyway. :D

The frame and switch replace a Berker light switch, which are mainly used in Germany and Europe.

Print instructions

The material doesn't matter, but the click sound of the switch depends on what material you use.

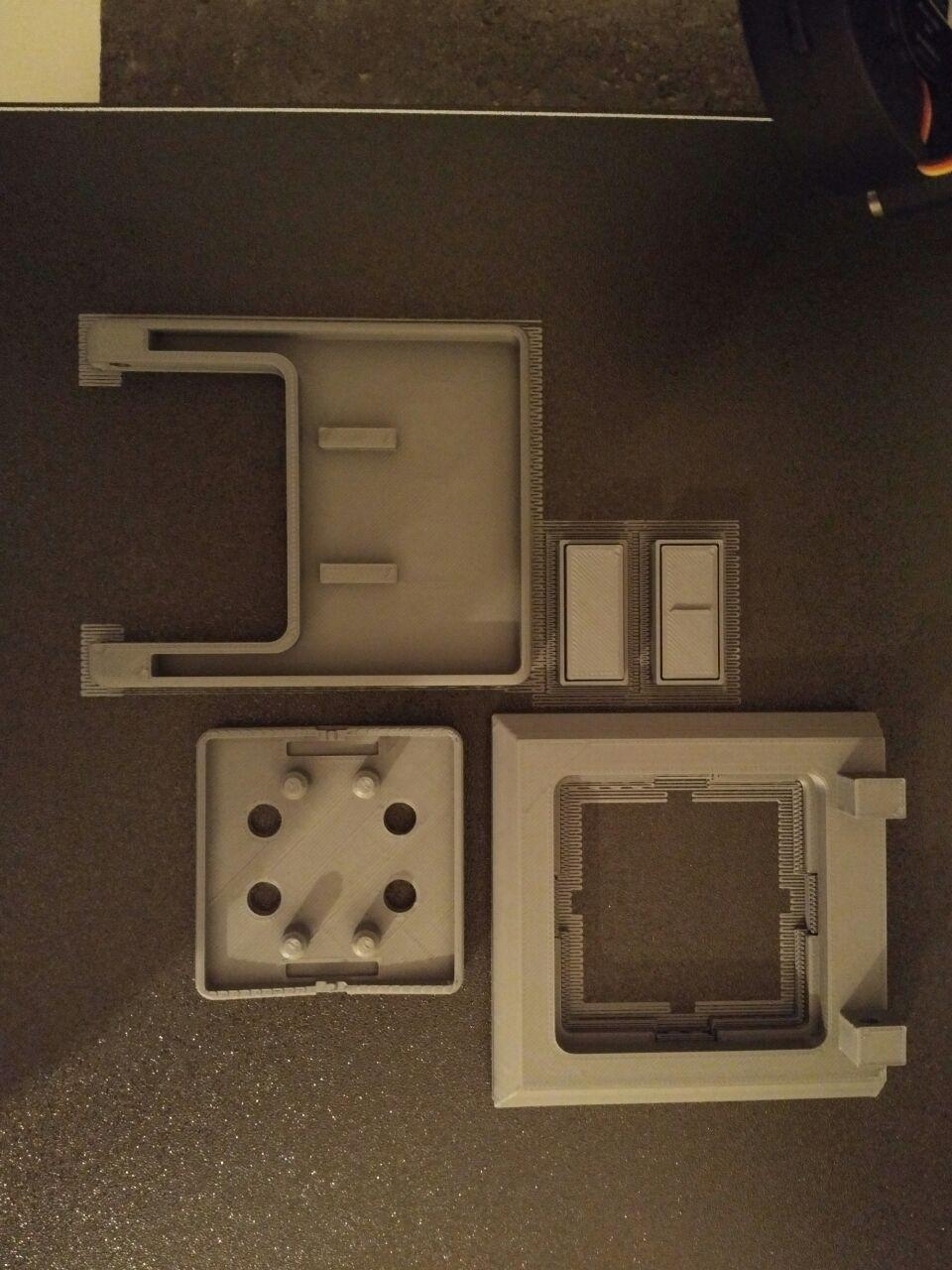

Printed at .20 mm layer height and 25% infill. You need only build plate support for the on/off buttons and the frame.

If you want to print the on/off buttons in color, you must make two color changes for each one.

The on/off buttons are fixed with a few drops of glue on the light switch.

Additionally needed:

1. two M4 screws for the hinge.
