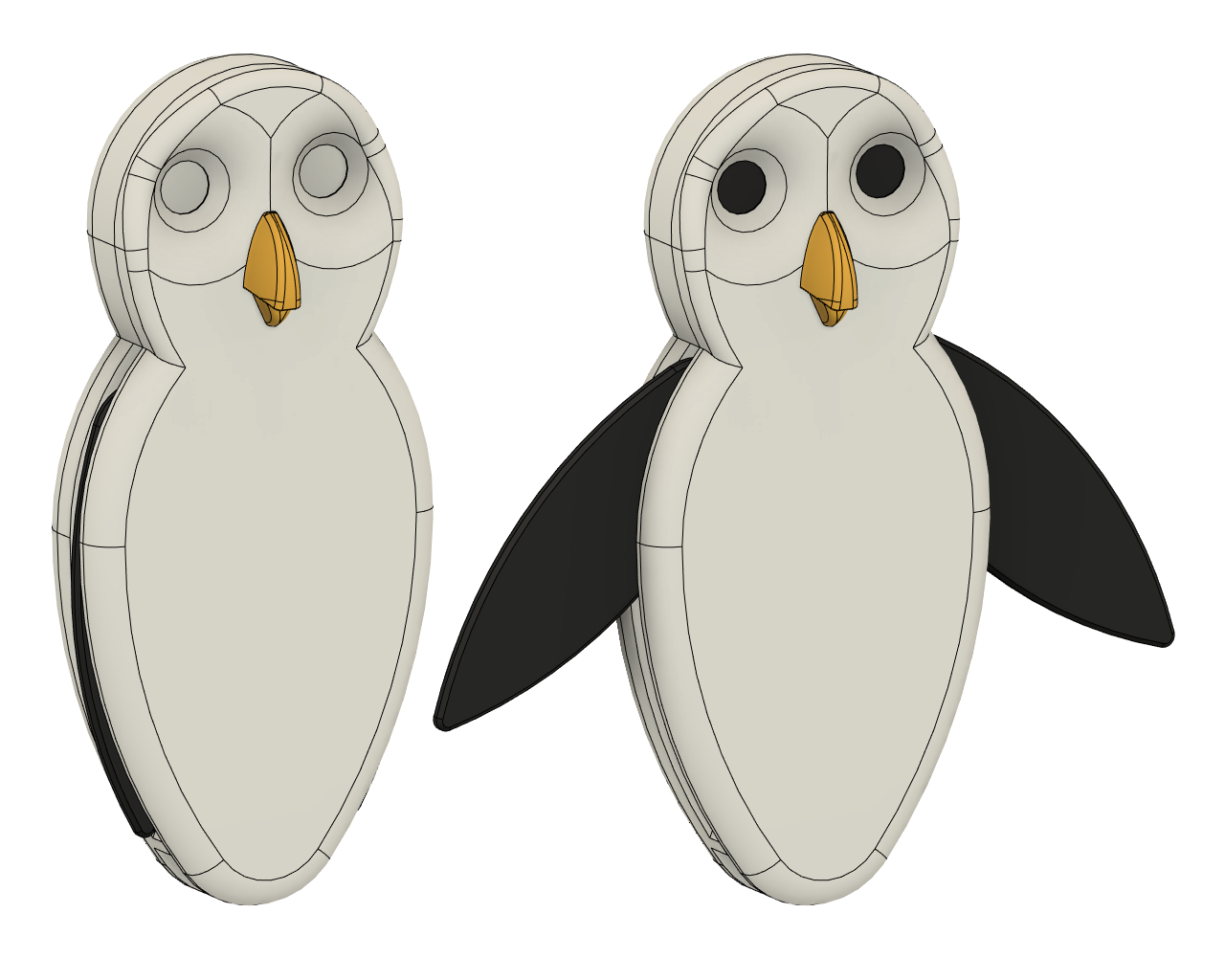

A cute litte holder for your keys. Opens the eyes and folds out the wings when you give it your keys.

Demo:

Print instructions

Layer height 0.2mm
No supports needed.

Additional parts needed

Two 8x3mm neodymium magnets.

Links

Print in the color you want the eyes to be when open, e.g. black.

Backplate and wings

No special instructions

Frontplate

To print the beak in another color, switch filament after 5mm (i.e at the start of layer 5.2 if using 0.2mm layer height)

MMU

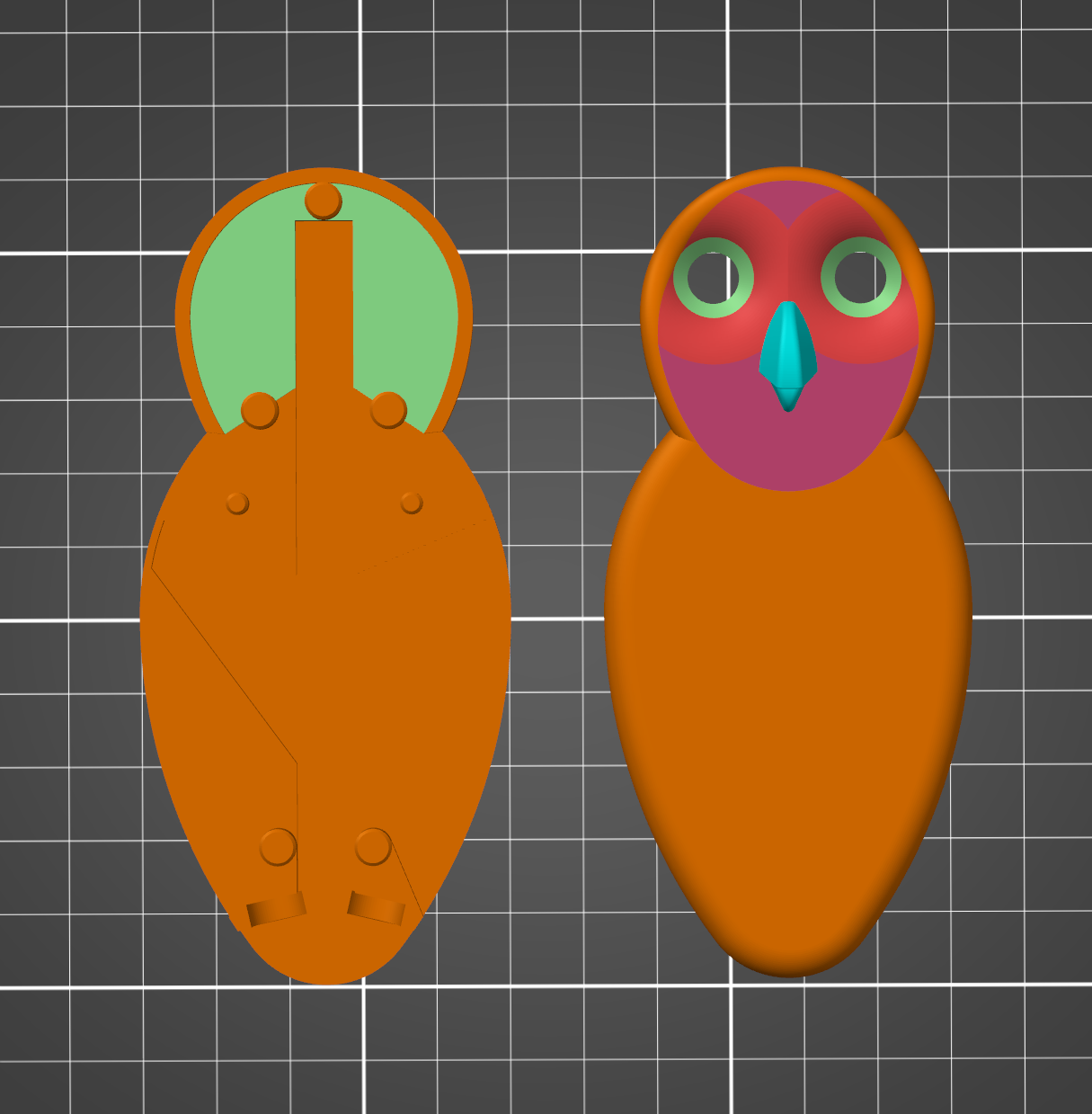

Use FrontplateMMU and BackplateMMU. See last picture for color areas.

Assembly

For maximum strength the magnets should be rotated so that they attract each other when inserted in the slots.

A drop of super glue to hold the magnets in place makes assembly easier but is not required.
