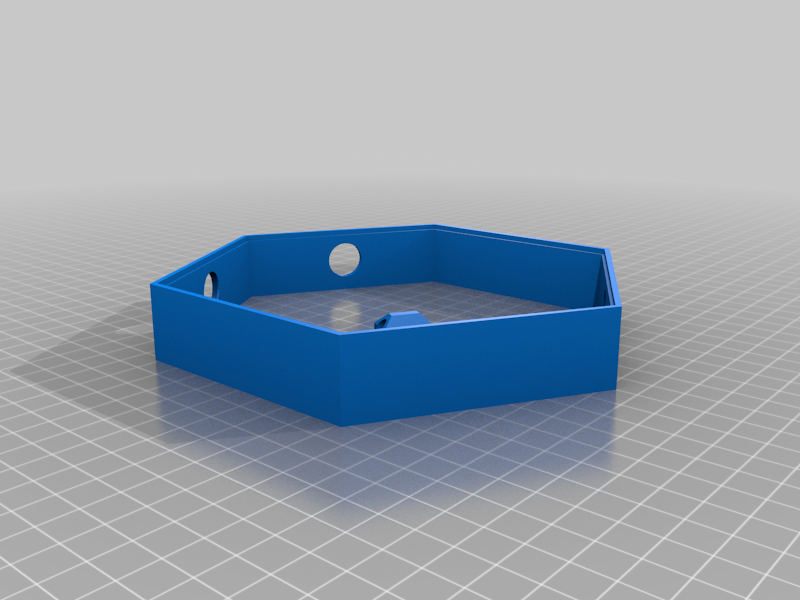

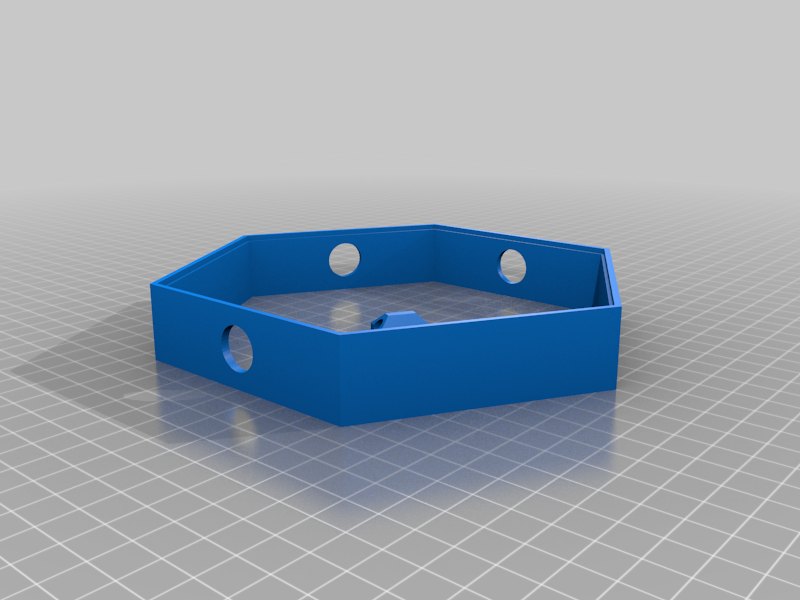

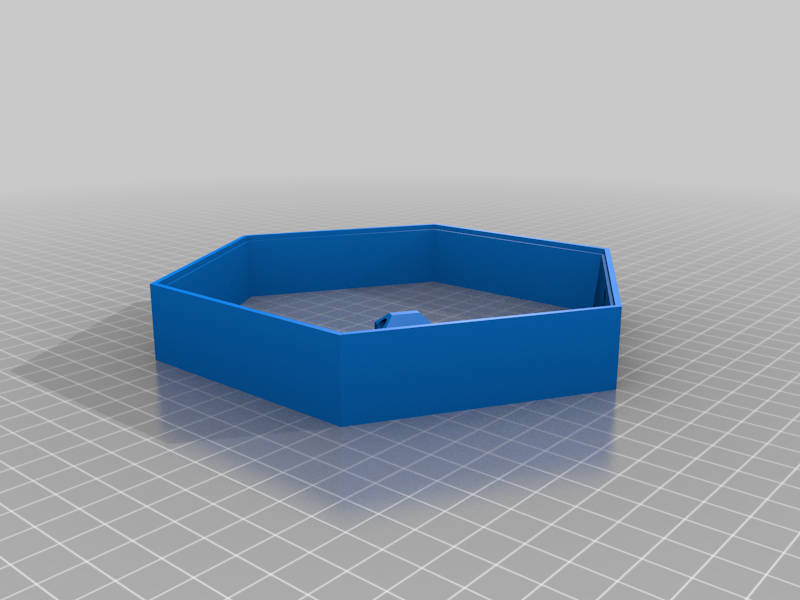

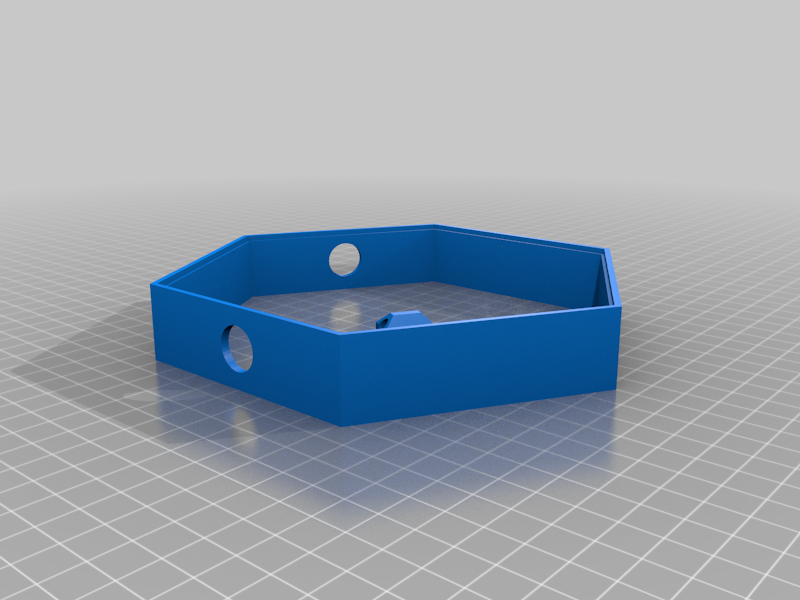

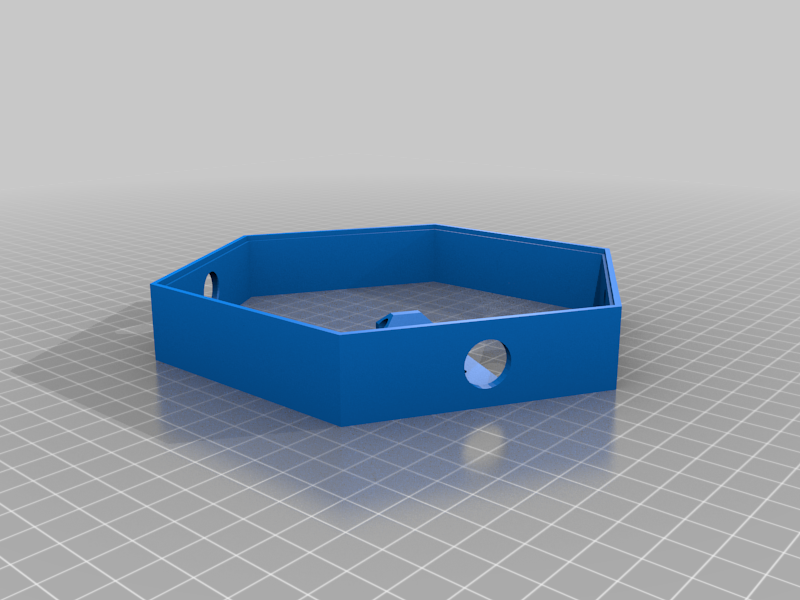

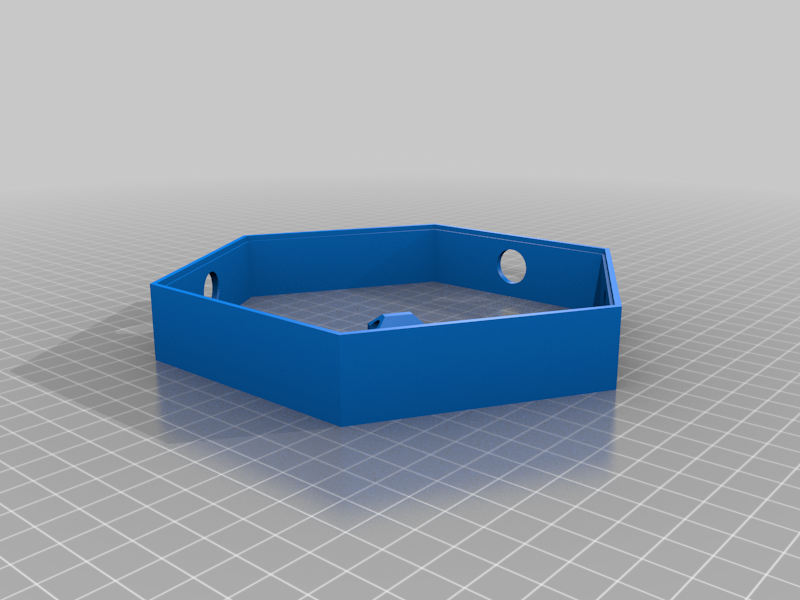

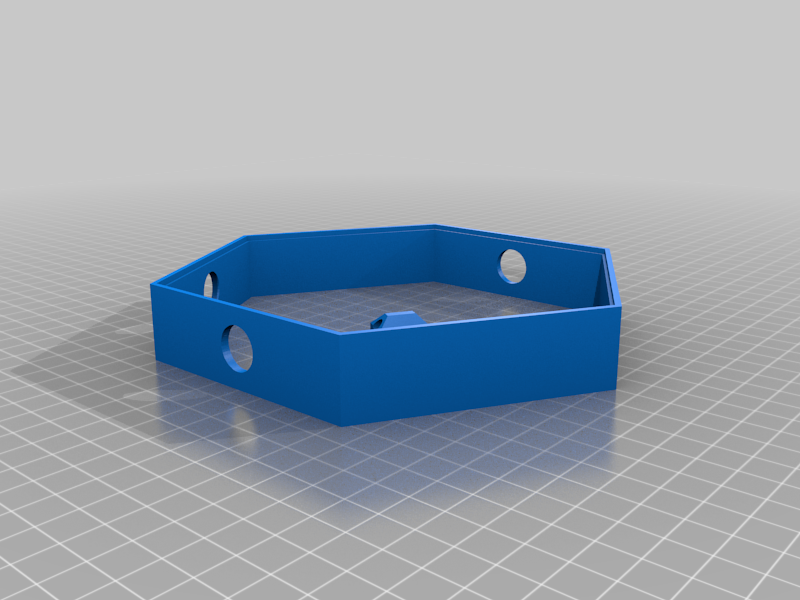

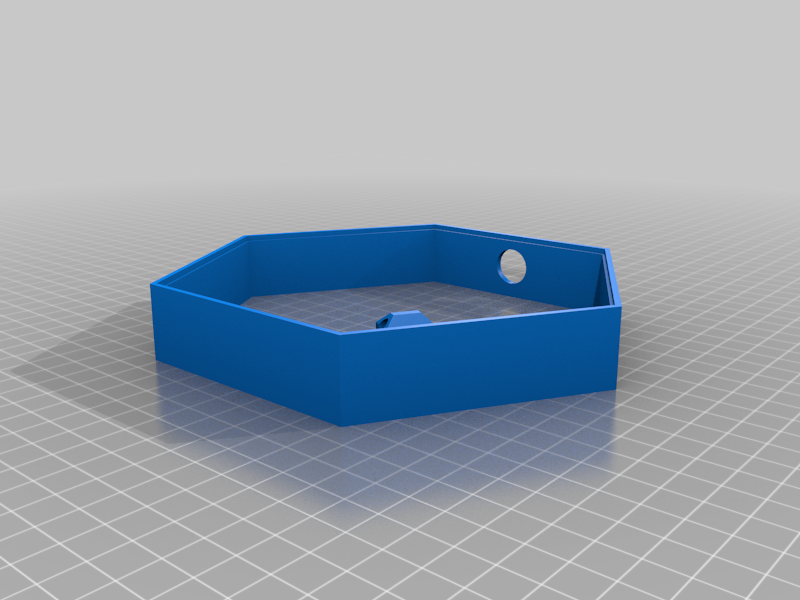

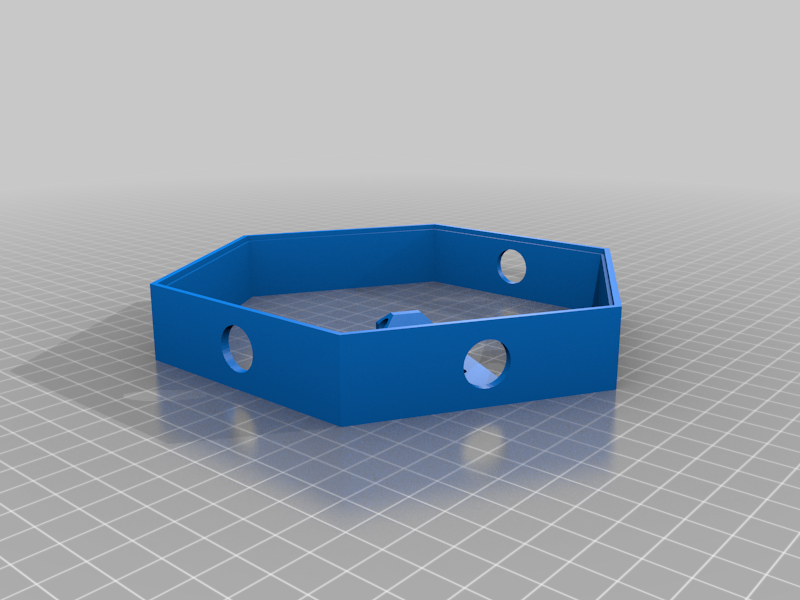

I took BigJim36's design and modded it to my needs. I've added a tab which not only adds a screw hole to mount it cleanly but adds a way to cable tie to the wires out of the way. I also moved holes to where I need them.

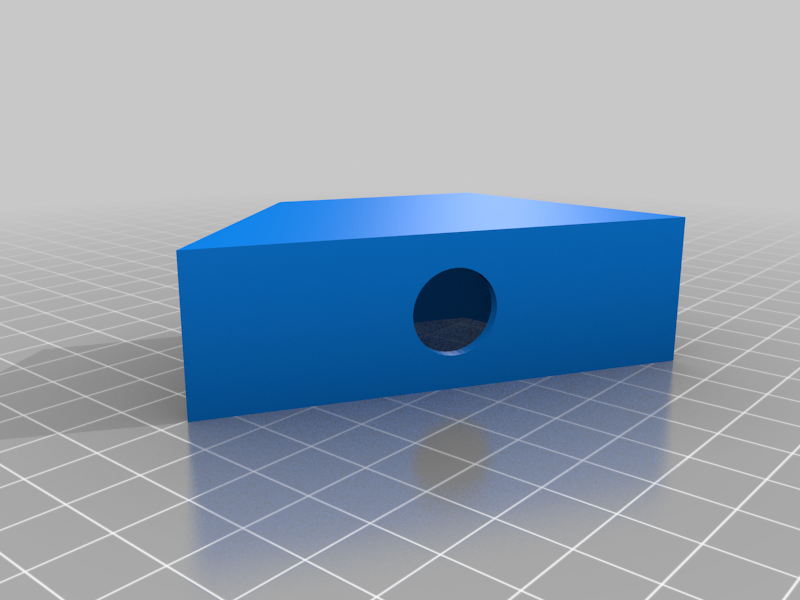

I've have added new piece to put the wemos d1 mini I used for the controller. The wemos friction fits on the inside.

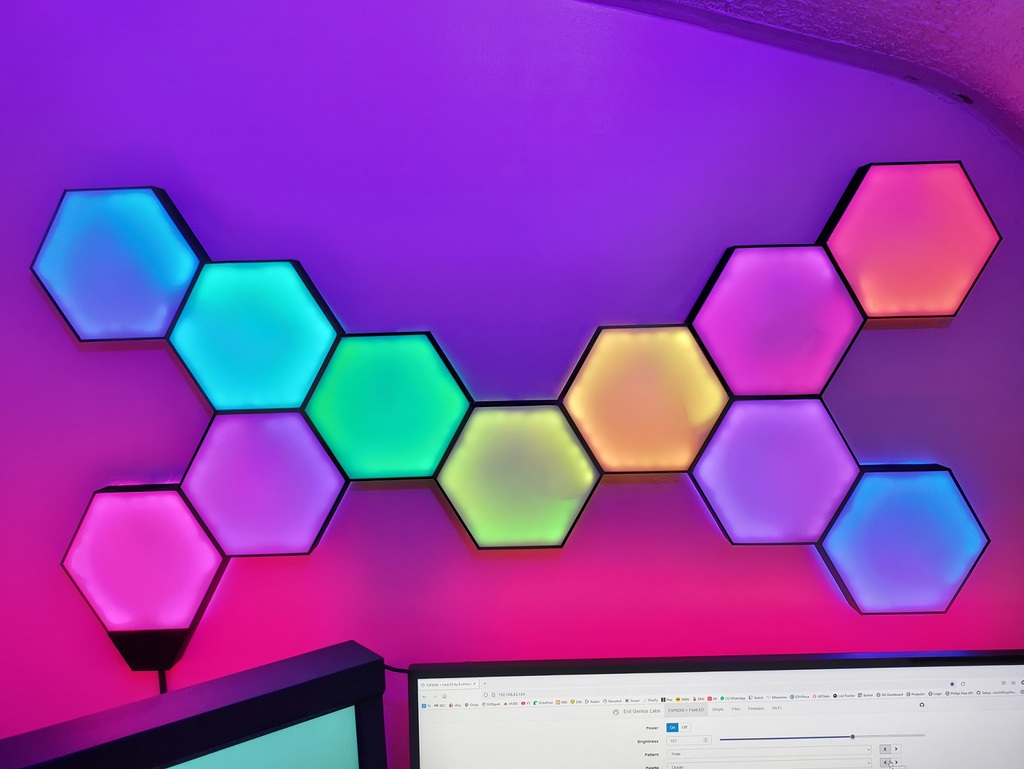

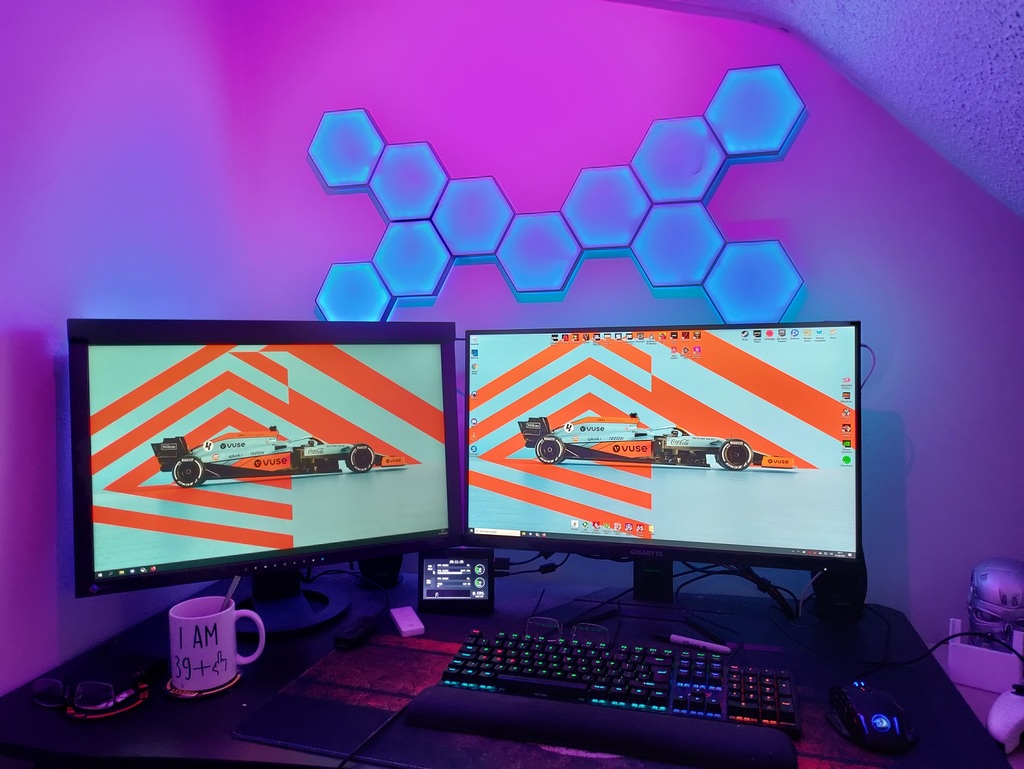

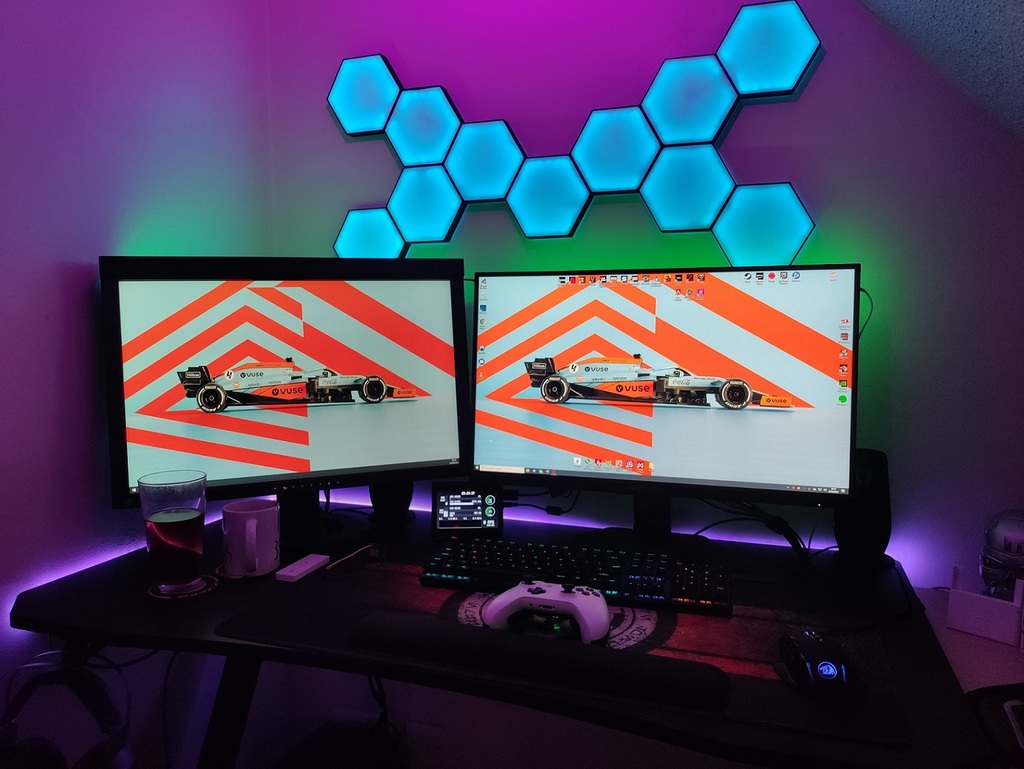

I used 27 leds per panel (60leds per meter), you can probably fit 28 in each panel but I wanted 11 panels. A 5m strip had 3 leds left over.
Using a 5v 20amp power supply which I created a cover for here: [https://www.thingiverse.com/thing:4945757](https://www.thingiverse.com/thing:4945757)

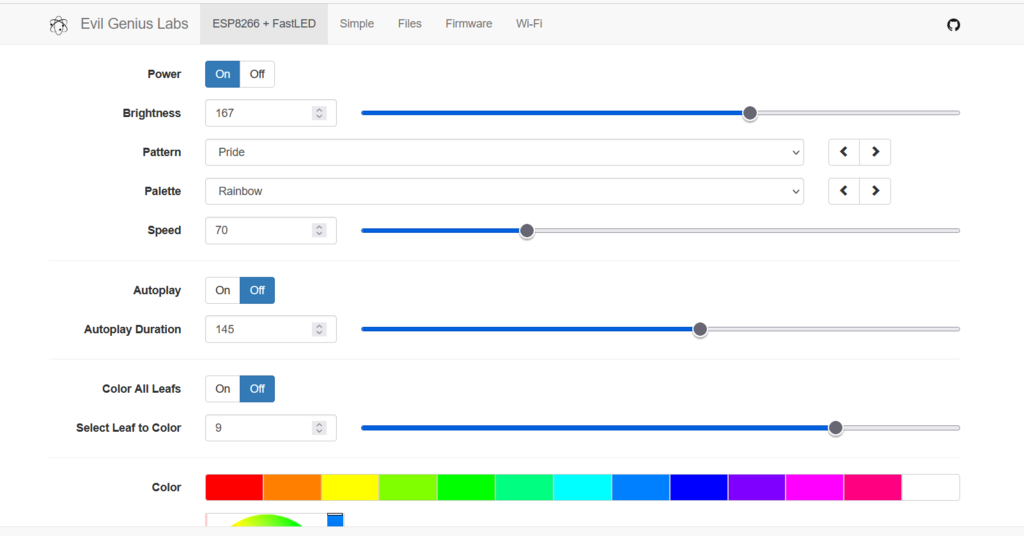

The code I used was from here: [https://github.com/NimmLor/esp8266-nanoleaf-webserver](https://github.com/NimmLor/esp8266-nanoleaf-webserver)
These are very helpful when wiring: [https://www.amazon.co.uk/SRunDe-Connector-Controller-Adapter-WS2812B/dp/B08TLZBCLC/](https://www.amazon.co.uk/SRunDe-Connector-Controller-Adapter-WS2812B/dp/B08TLZBCLC/)
LEDs used: [https://www.ebay.co.uk/itm/124295445848](https://www.ebay.co.uk/itm/124295445848)
Power supply used: [https://www.ebay.co.uk/itm/384284198672](https://www.ebay.co.uk/itm/384284198672)
PLA used was Sunlu Black PLA+ and White PLA+
