Horizontal dust separator.

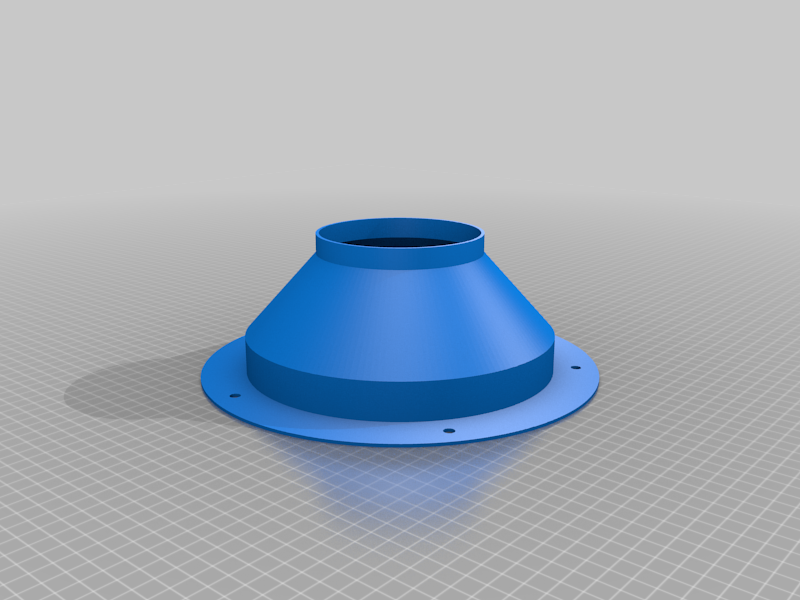

The parts all bolt together with 1/4 20 bolts.

The outlets on the bottom need to go into a sealed chamber. The air should not blow out of them, the material should just fall out.

Still lots of testing to do.

The prints are fairly large. I have a 280mm x 280mm print bed. You could probably thin some of the flange without causing problems.

Fusion File [https://a360.co/372ZY3s](https://a360.co/372ZY3s)

I found that “Woodbutcher and the Mighty Termite” channel on YouTube printed and tested the design and posted a video of it

Print Settings

Printer:

Railcore

Rafts:

No

Supports:

Yes

Resolution:

200

Infill:

10

Filament:

PolyMaker PETG

Notes:

I printed with a combination of PETG and Tough PLA and both seemed to work pretty well.
