Modelo 3D Chenbro 4U Server Handle por w00h no Printables

Descrição

One of my server cases (Chenbro RM42300 and RM41416) was missing the handles on the front. The respective L-brackets on the side were still mounted to the case. You can probably fit those handles to other Chenbro cases, too.

Required parts

To assemble, you will need two M6 threaded inserts and screws (M6x16, countersunk, e.g. DIN 965) and some M6 threaded inserts.

Test print

In my first test print, the holes were a tiny bit too close together. For a scaling test, you could print just a small part of the mounting holes together with a small bridge you made in the slicer (see picture). The final file should fit accordingly.

Print settings

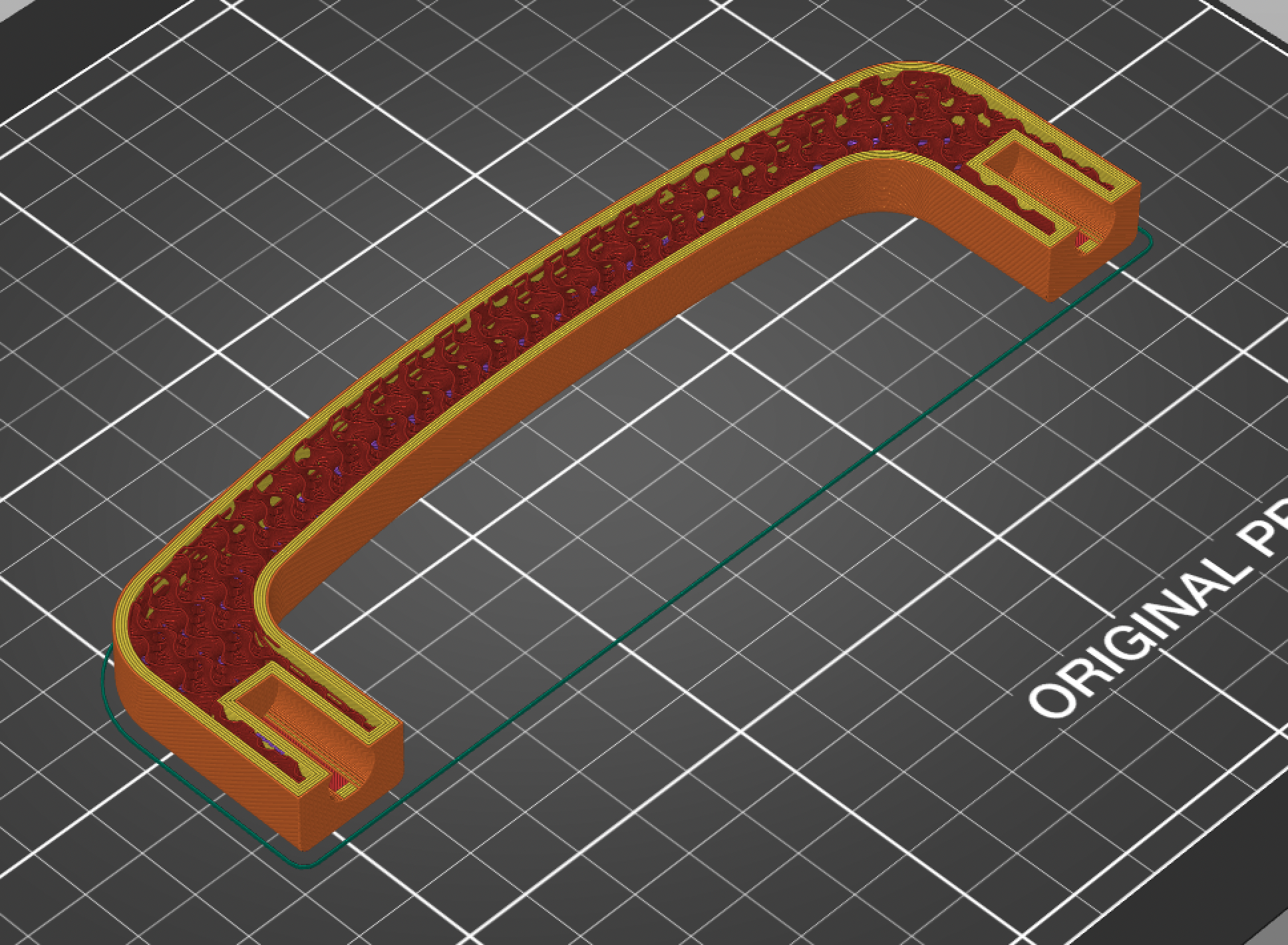

The final part can be printed laying on its side. Add a few perimeters for enhanced strength. I used Prusament PETG jet black with five perimeters.

Please make sure you print the test print beforehand and scale accordingly! With my then limited skills in the CAD software I had no idea of parametric designs etc :/

Printables

Chenbro 4U Server Handle

Publicado em 16 de mai de 2023

5
Curtidas
38
Downloads
Categoria Computers
Tags
handle grip server rackmount serverrack 19inch 19inchrackmount 4u chenbro
Licença Creative Commons — Attribution — Noncommercial
Arquivos (2)
Chenbro 4U Server Handle.3mf 83.3 KB
Chenbro 4U Server Handle - test print.3mf 51.4 KB
