Descrição

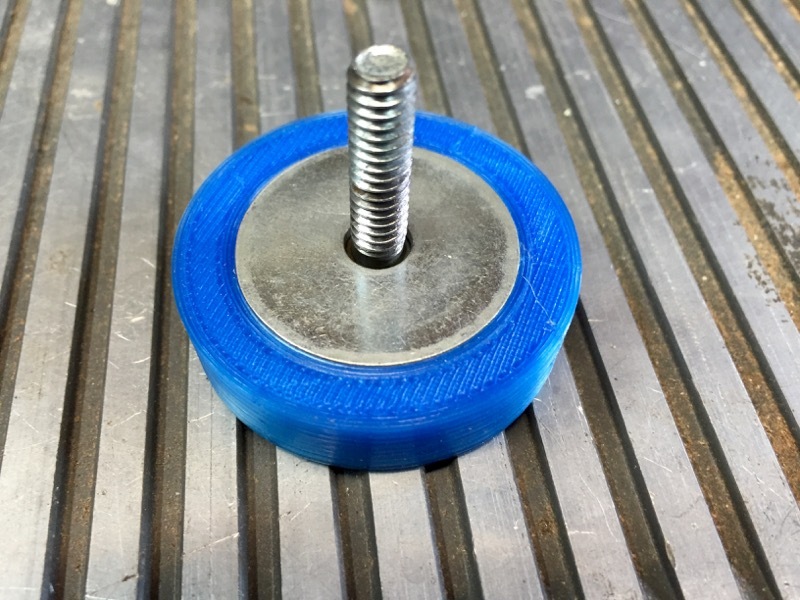

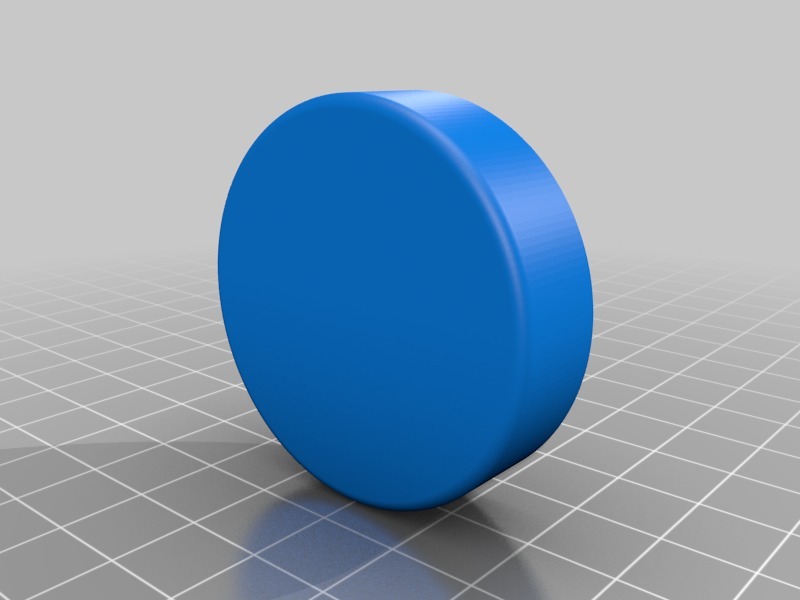

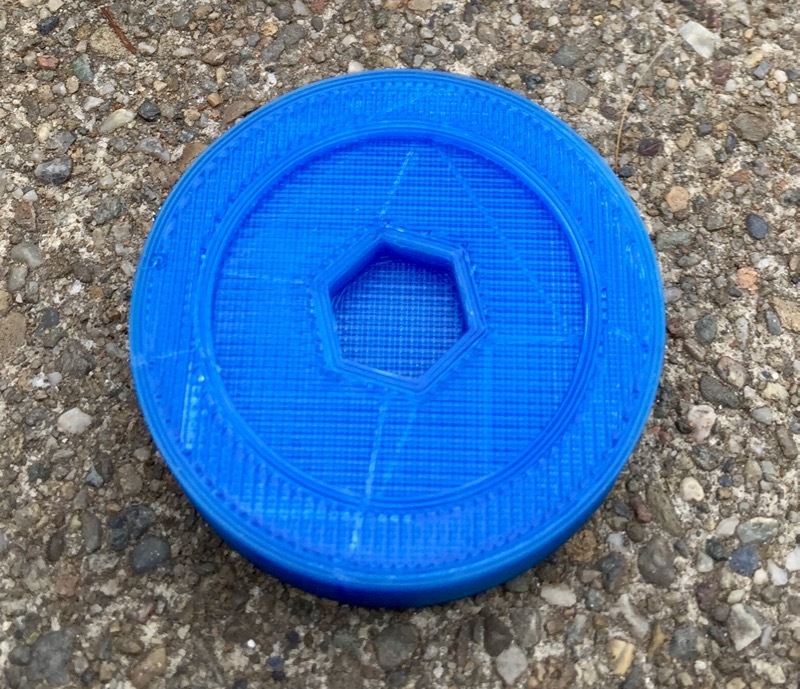

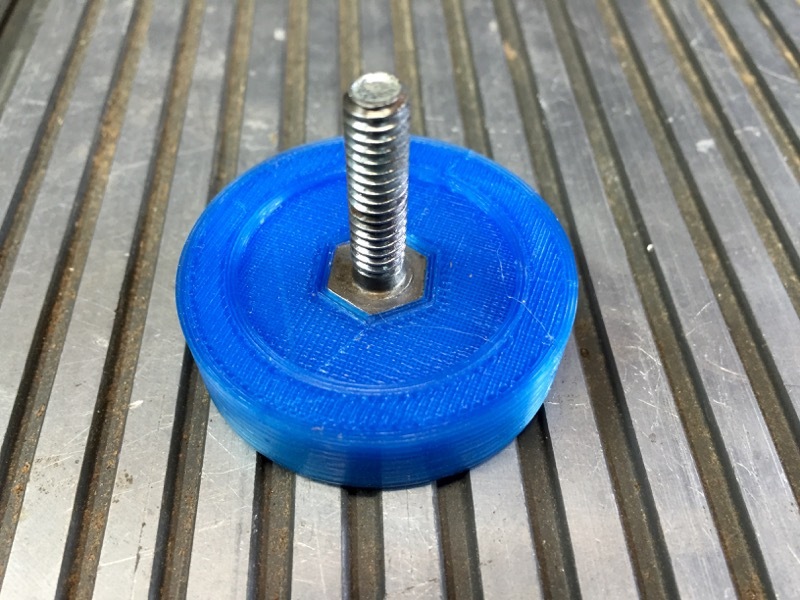

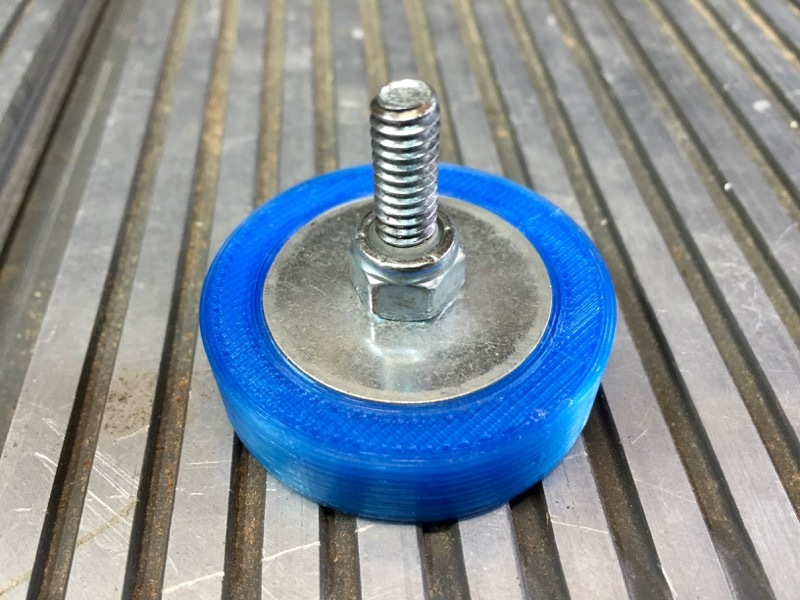

My corner desk needed better support to hold my soon to arrive Raise3D N2. I decided to add a leg with adjustable height. It has a flange to secure the leg to the desk and a foot that screws into the bottom of the leg to adjust the height.
The leg is a fir 2x2 (actually 1.5"x1.5") and hardware includes (4) #12x1" screws, a 1/4-20 bolt (I think it was 1.25" long), a 1/4-20 nyloc nut, a 1/4" fender washer, and a 1/4-20 E-Z Lok Threaded Insert (0.789" Length).
Print Settings
Printer:
Ord Bot Hadron
Rafts:
No
Supports:
No
Resolution:
.2mm layers
Infill:
100%
Notes:
Printed in PLA. ABS, PETG, or Nylon would probably be better (stronger and less brittle) but the PLA version seems fine. The next version should probably have fins to retain strength but use less plastic.
Category: Household
