Modelo 3D Speed tower - test your maximum print speed por Print-3D no Printables

Descrição

I needed a calibration model to verify my maximum print speed without sacrificing too much quality.

Made a quick one and it works pretty fine in my opinion...

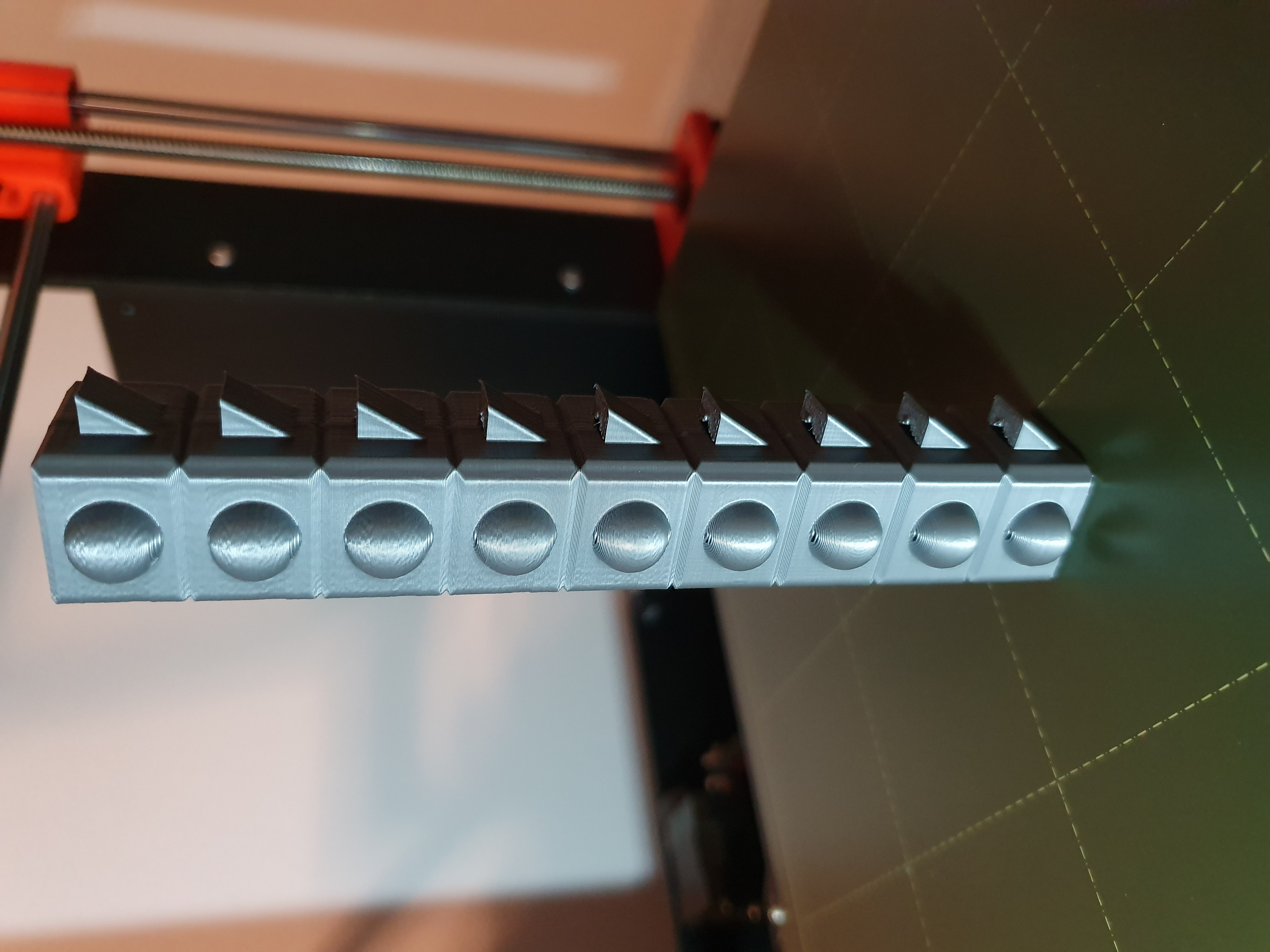

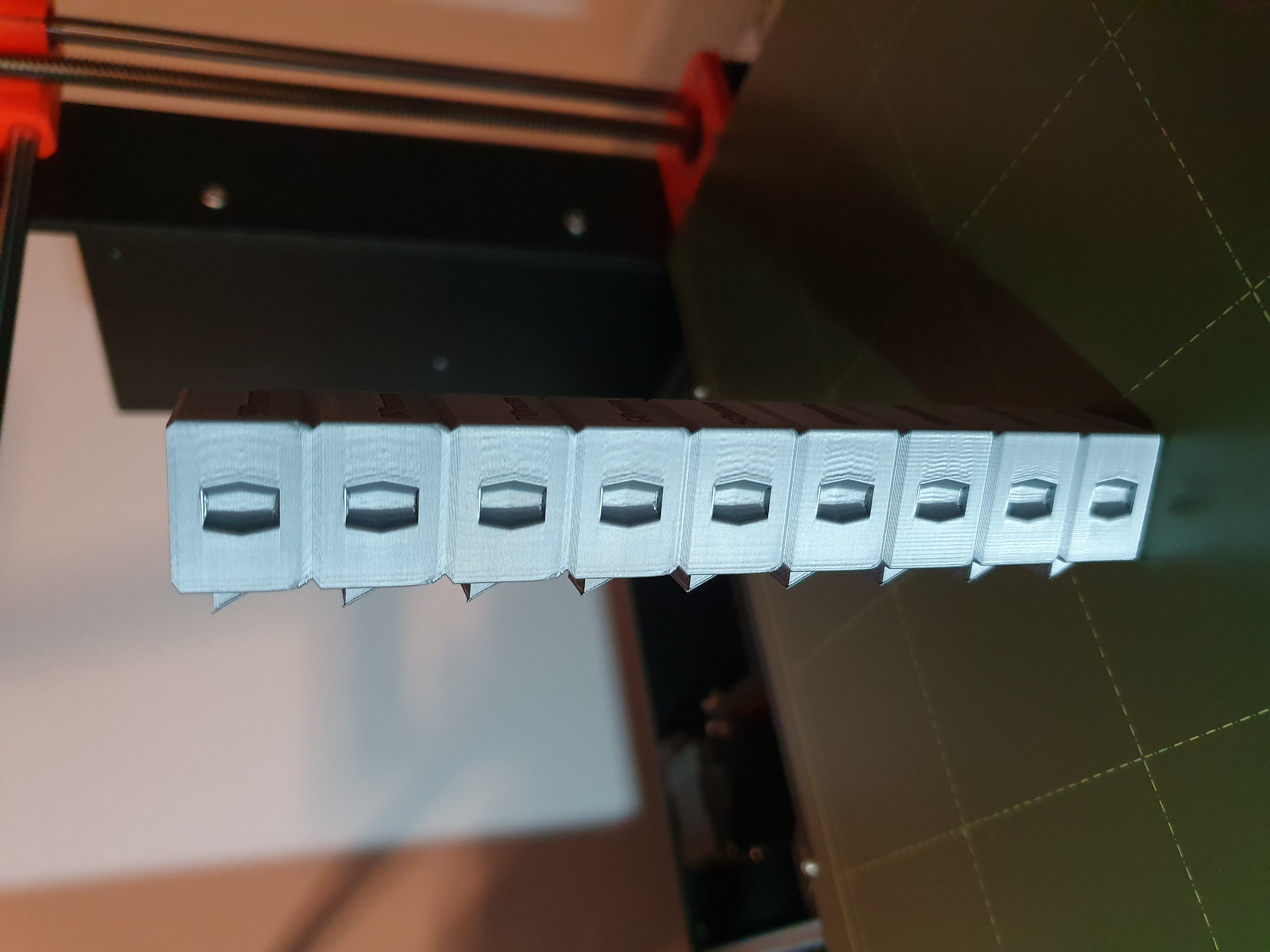

Basically it is a cube with chamfers, sharp corners, a hemisphere and overhangs.

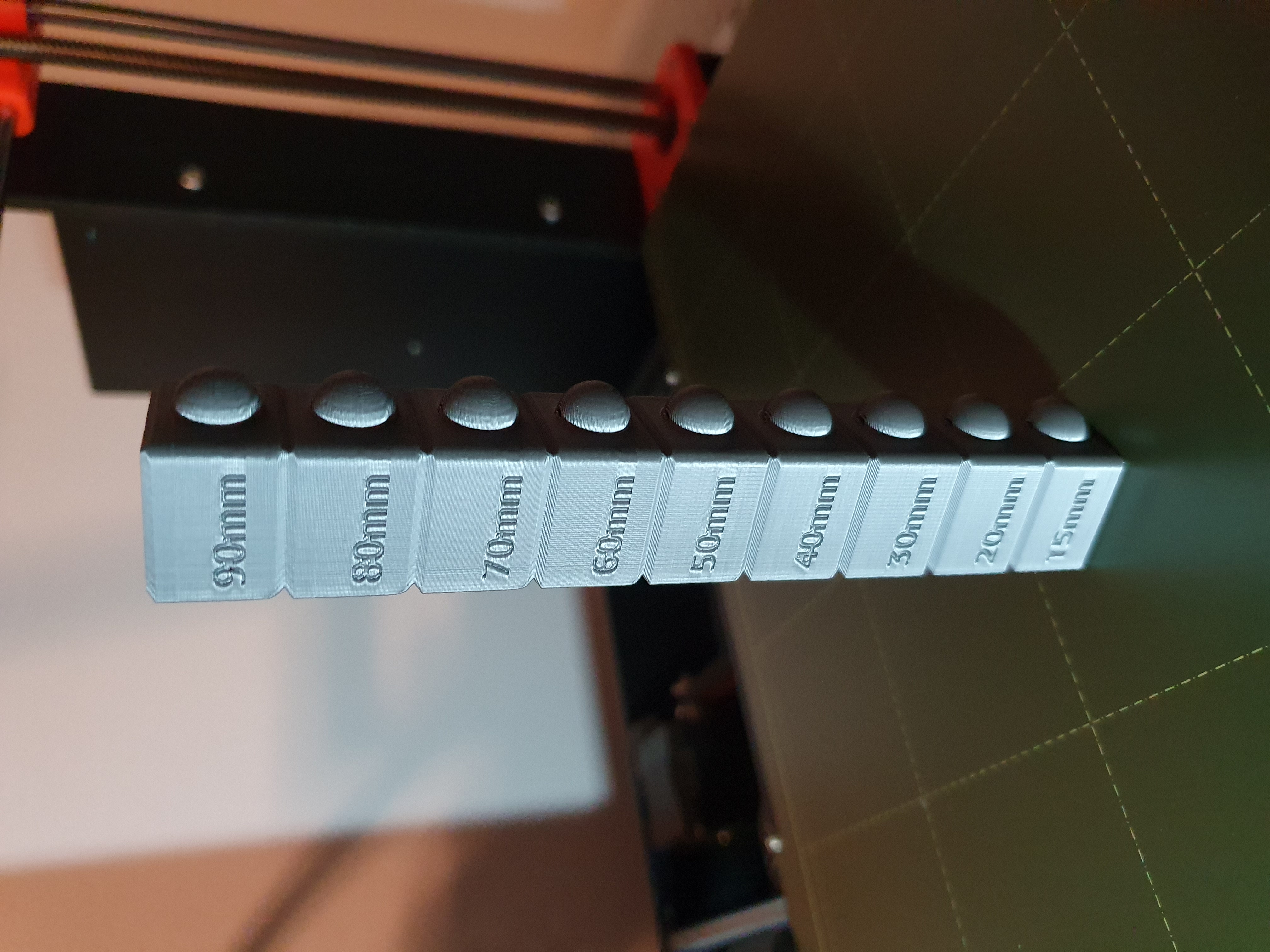

The print itself changes its outer shell speed every 15mm height by 10mm/s increments, from 15mm/s up to 90mm/s.

Feel free to edit, modify or do whatever you like...

Posting your results in the comments with your printer model is very much appreciated!

Thx!
print-3d.at

Print instructions

IMPORTANT:
To print correct, you have to set
"filament settings -> cooling -> Print slower if minimun layer print time is slower than: 1 sec. "!!
Otherwise it wouldnt work correct!!!
Please see the attached screenshot!

Prints in pretty much every material, but make sure to correct the temps for each material in the .3mf-File.

Base can easily be broken off of the tower after the print is finished, so you can compare different materials more easily.

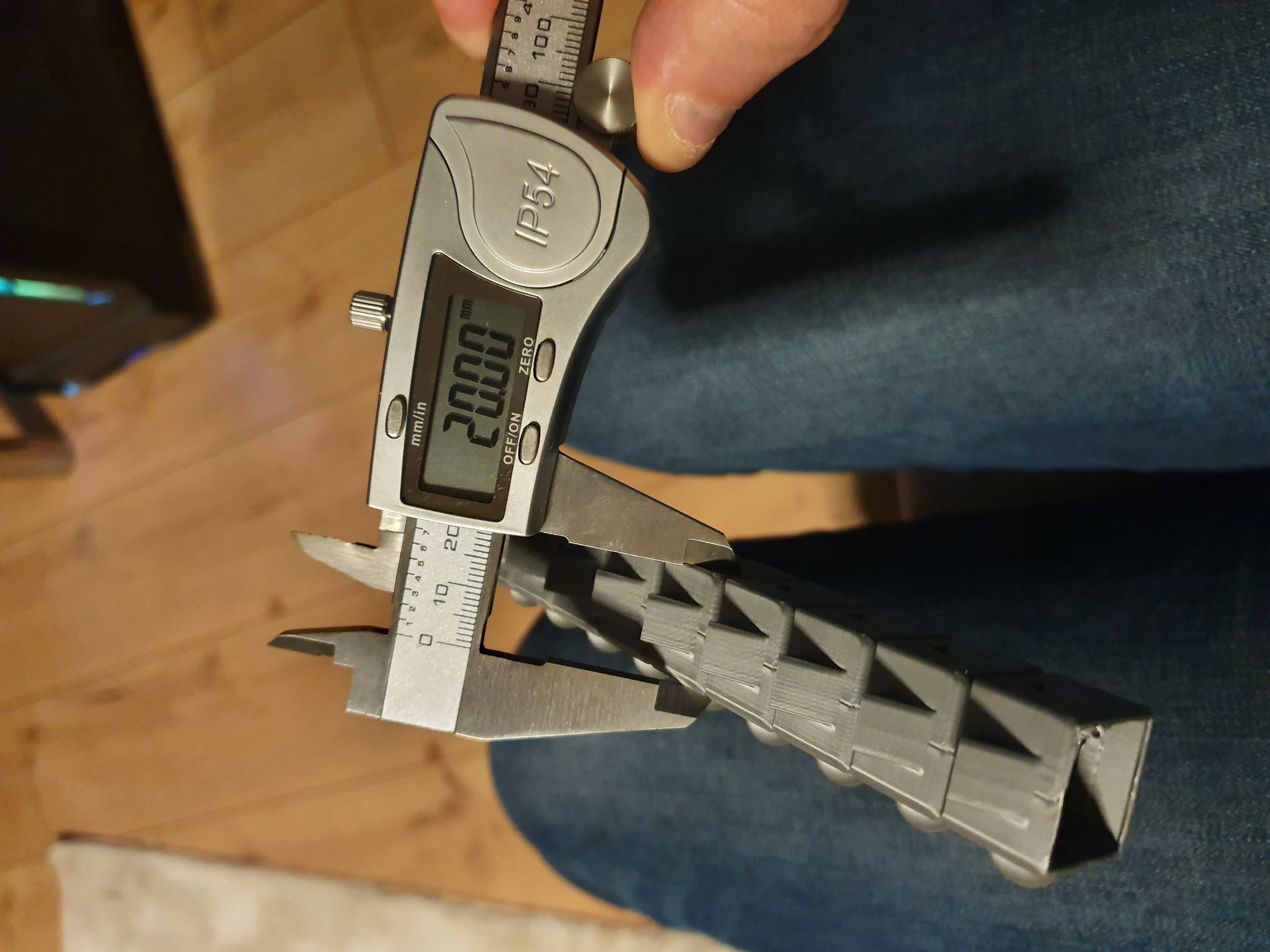

The main cubic shape is exactly 20mm wide, so yours should be too... see attached photo.

Only tested the MK3S version. Maybe someone could verify if the gcode for the mini works also.
You can find the file in the user-print-files...

Printables

Speed tower - test your maximum print speed

Publicado em 19 de fev de 2020

469
Curtidas
9,448
Downloads
43
Impressões
Categoria Test Models
Tags
speed tower
Licença Creative Commons — Attribution
Arquivos (3)
speed-tower.3mf 296.9 KB
speed-tower.stl 1.5 MB
speed-tower.step 3.1 MB
