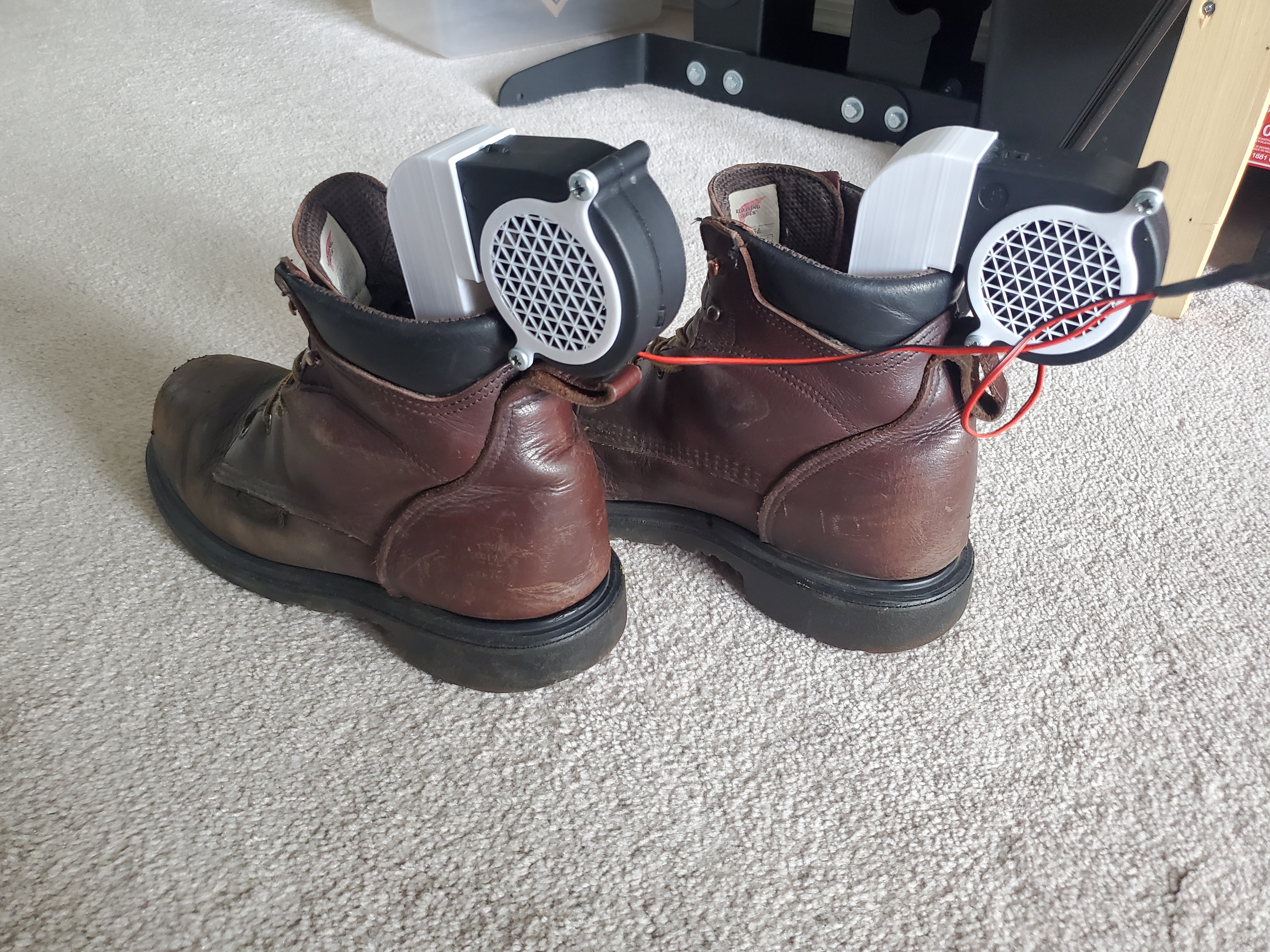

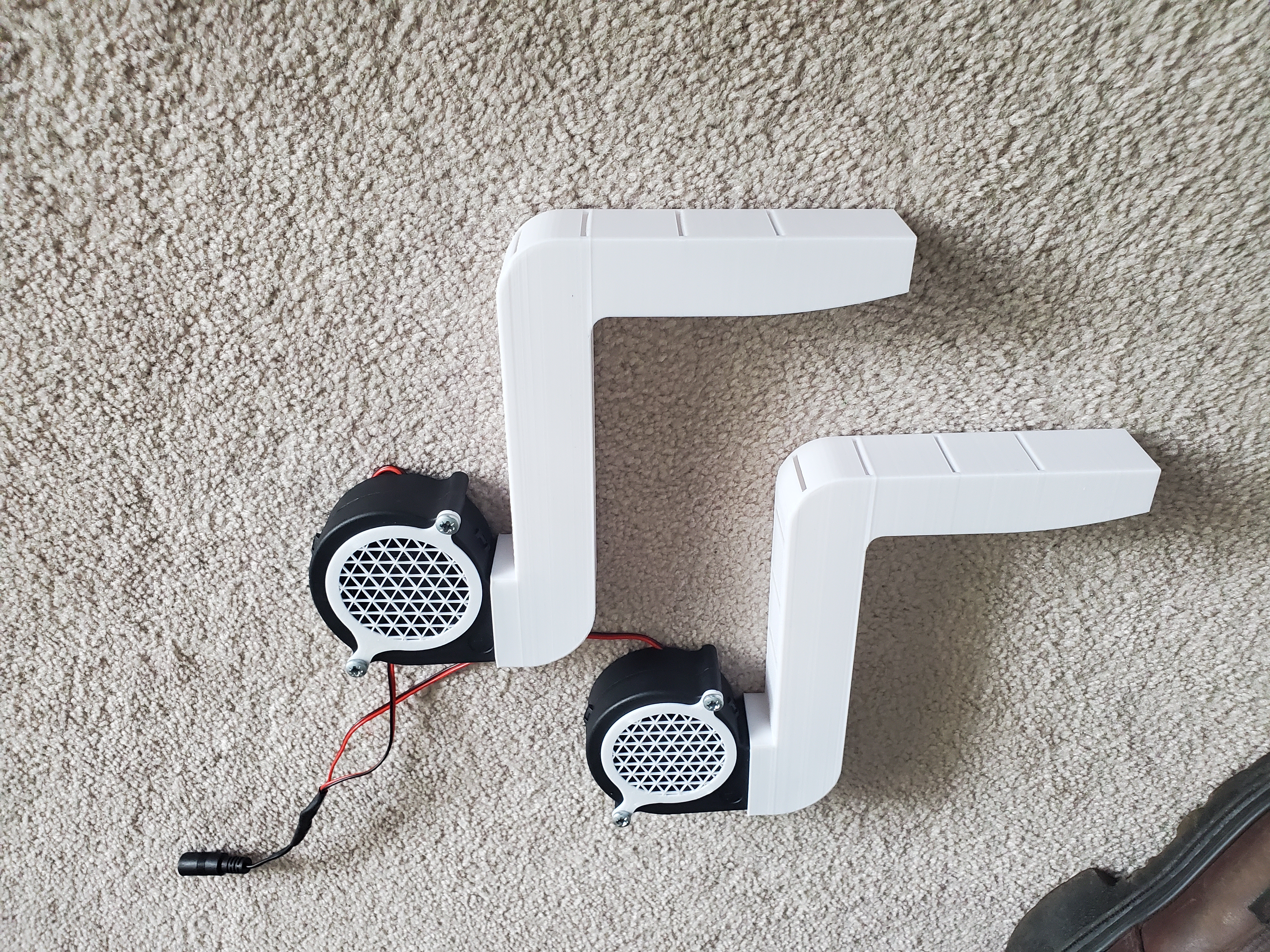

Boot dryers. Fits 7530 blower fans. Ball bearing / 24v type recommended.

• I used these: [https://www.aliexpress.com/item/1807313991.html](https://www.aliexpress.com/item/1807313991.html)

• Angled slots on back and bottom to assist with airflow coverage.

• Measures ~165 x 142mm

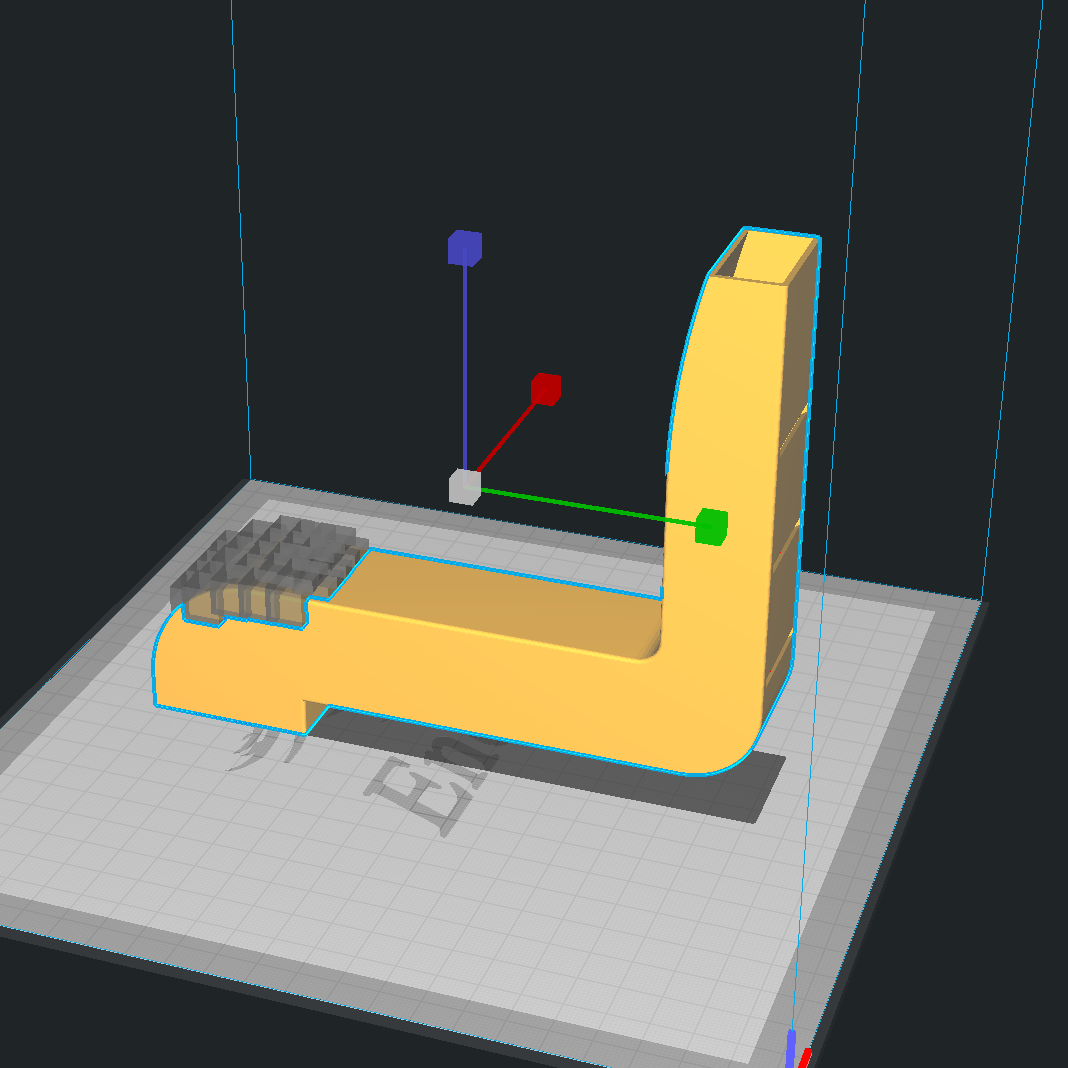

• Print with orientation and supports as shown. Block supports for fan intake as they're unnecessary.

• Printed in PLA.

• 3-4 walls so no infill.

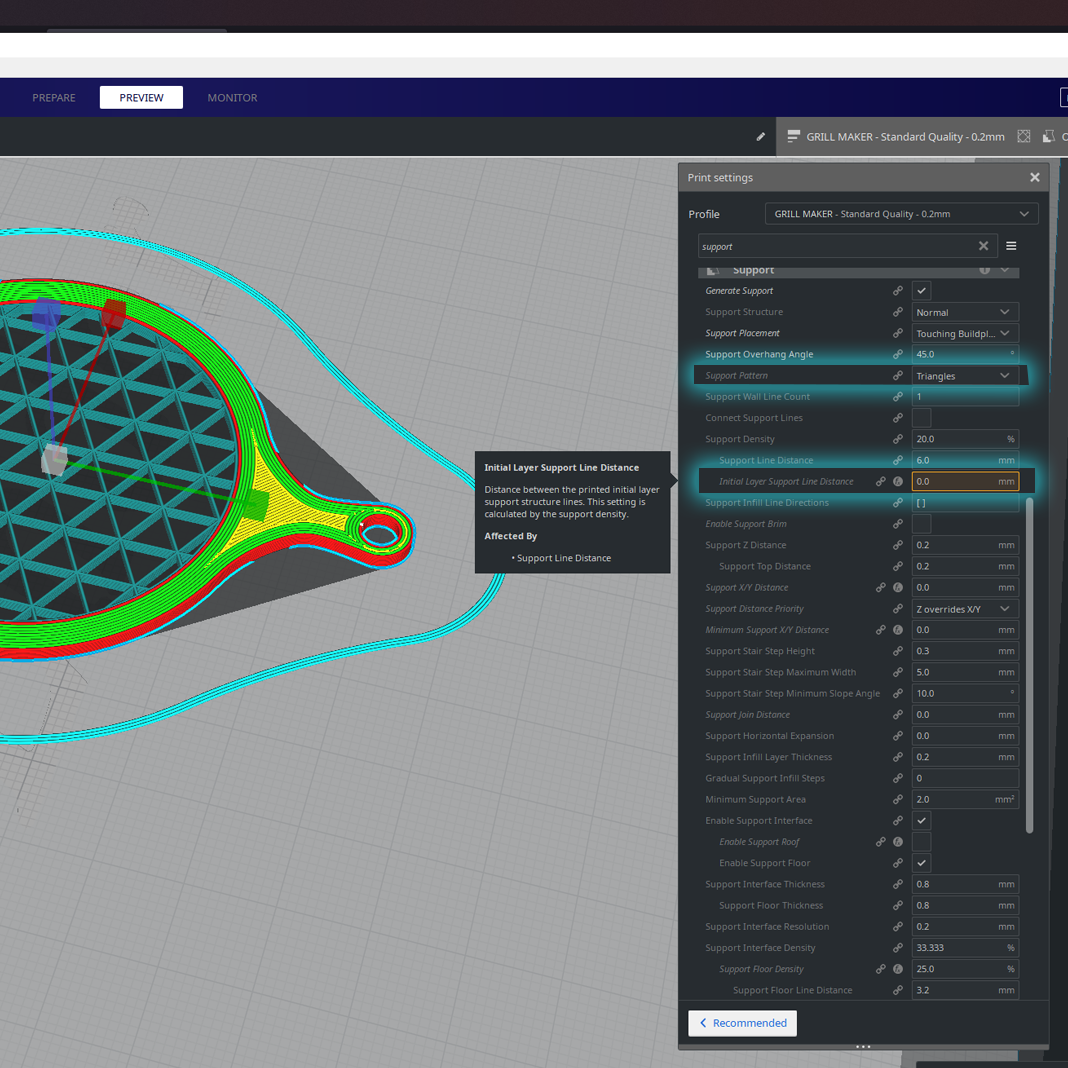

***I don't know how to model “grills” in fusion so I just print the fan grills with triangle supports (20%) with initial layer line distance set to 0.00 and stop the printer before the the top layer begins. Screenshot of cura settings attached!***
