Modelo 3D Hex bit holder - 18 bits por Phrat no Printables

Descrição

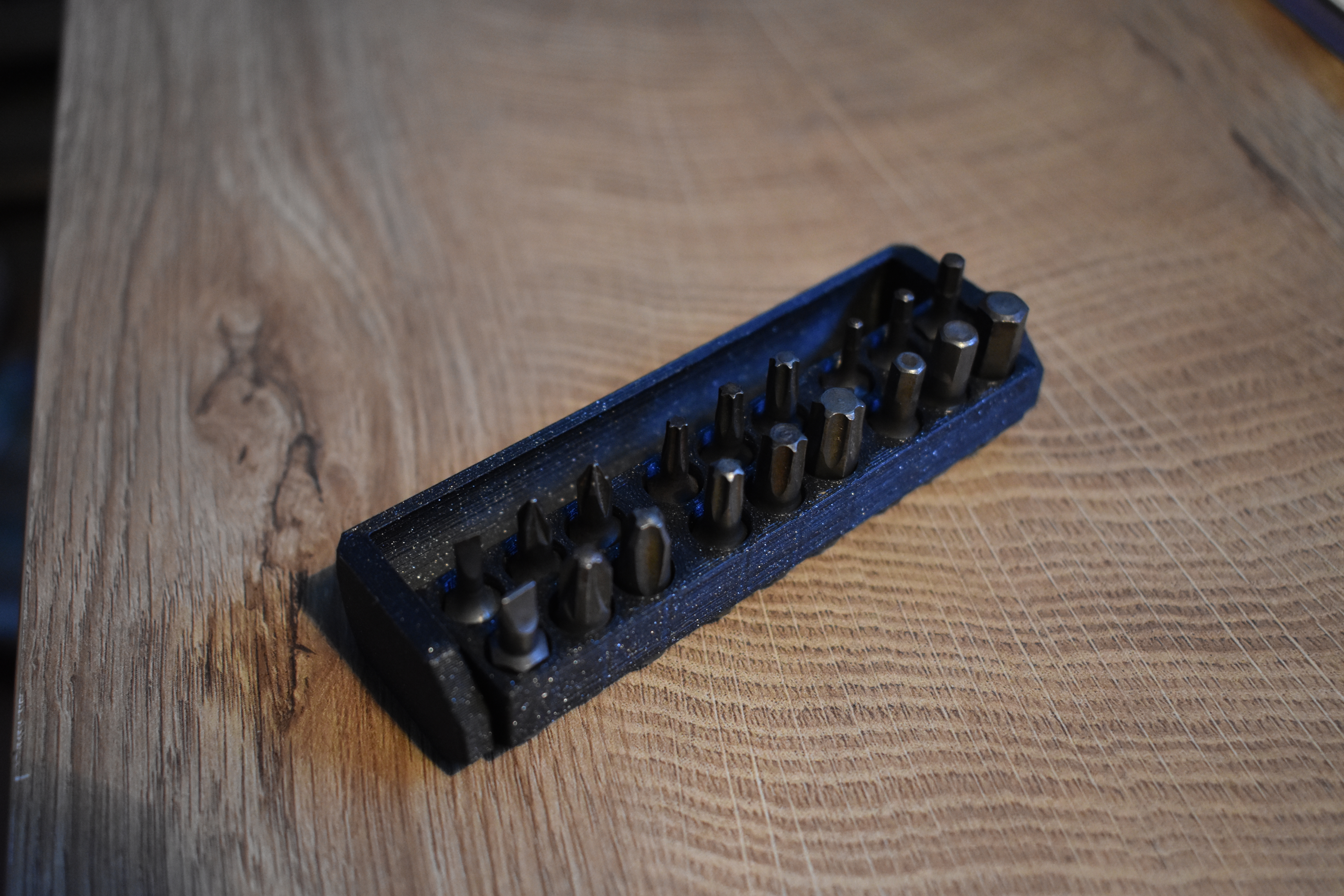

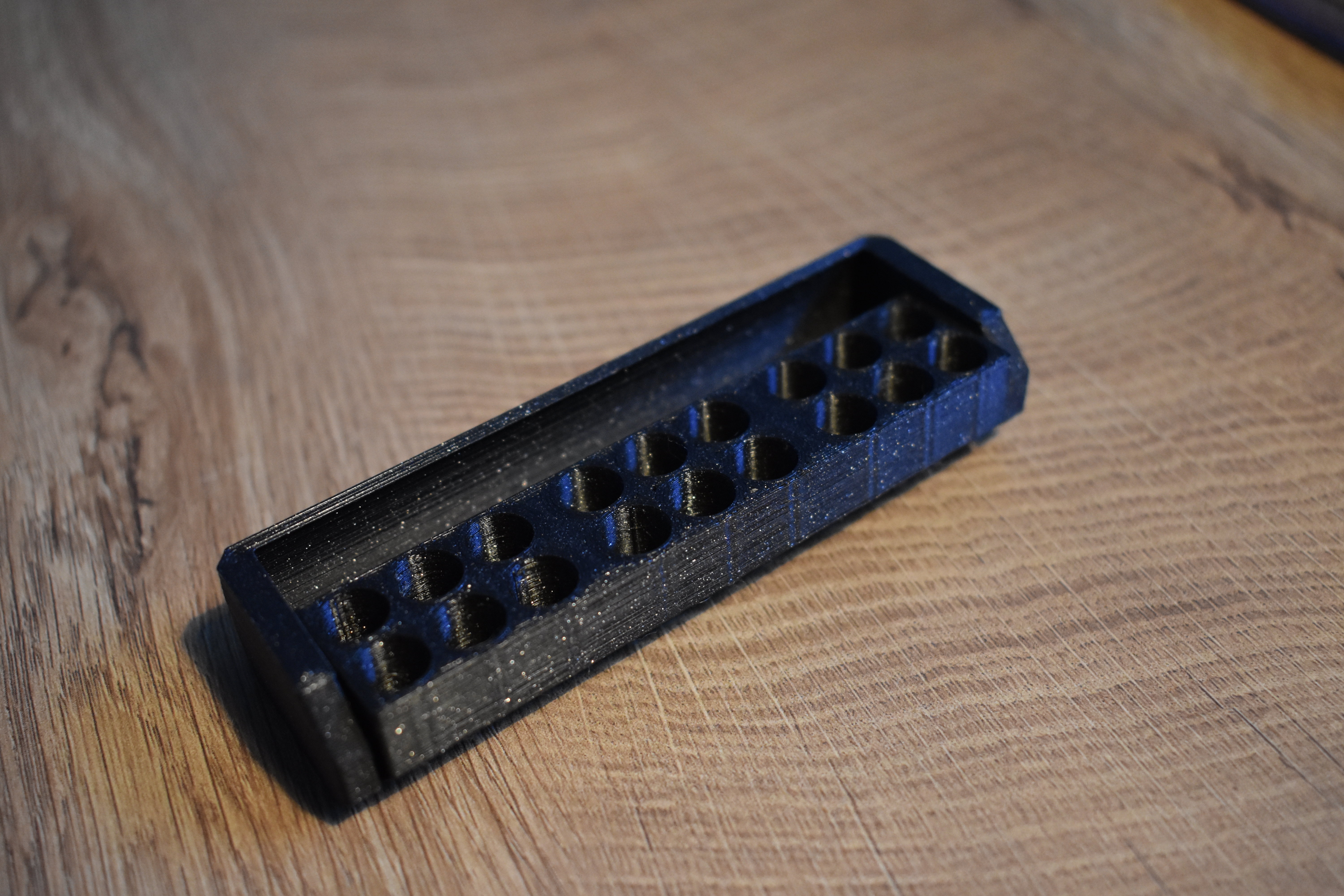

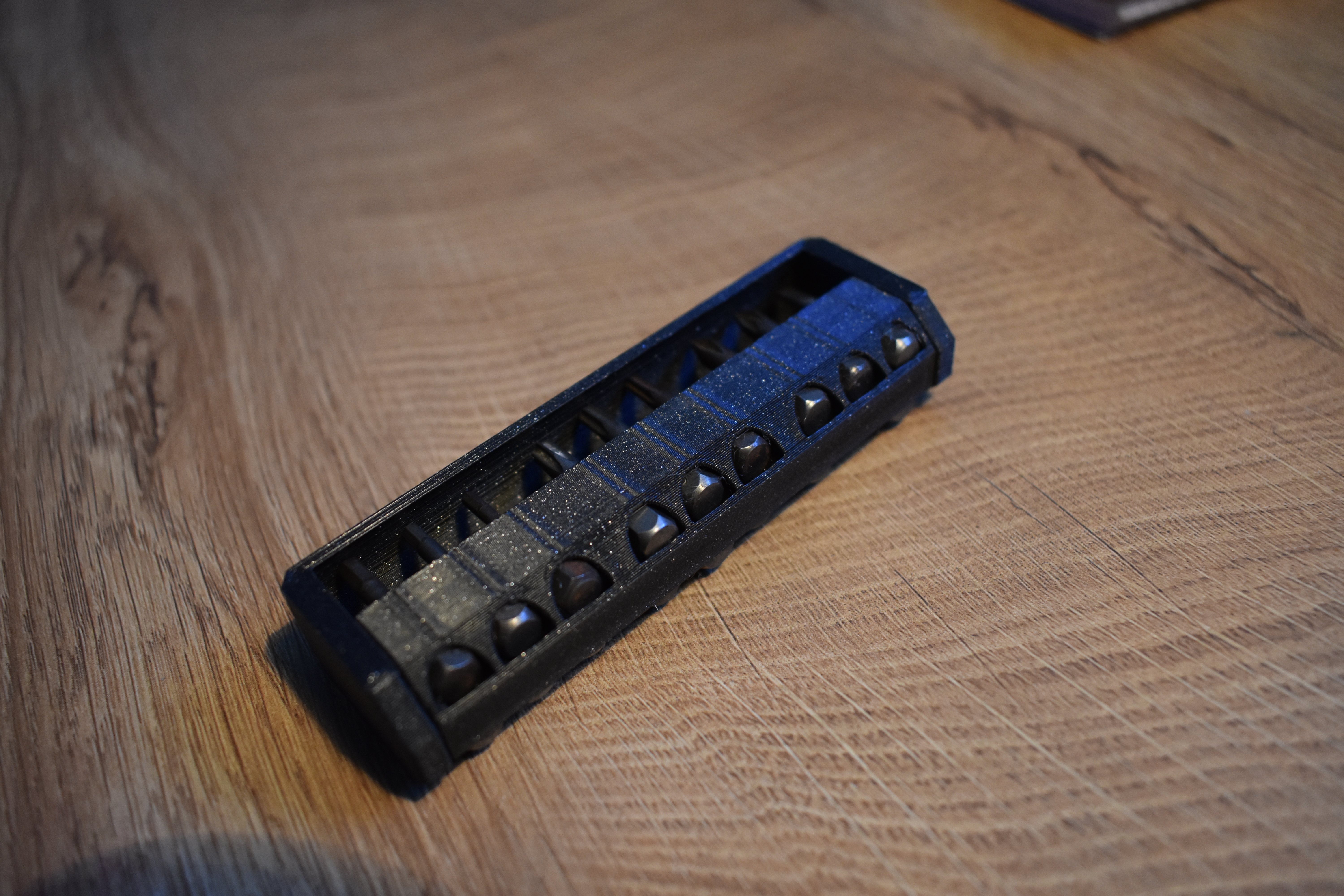

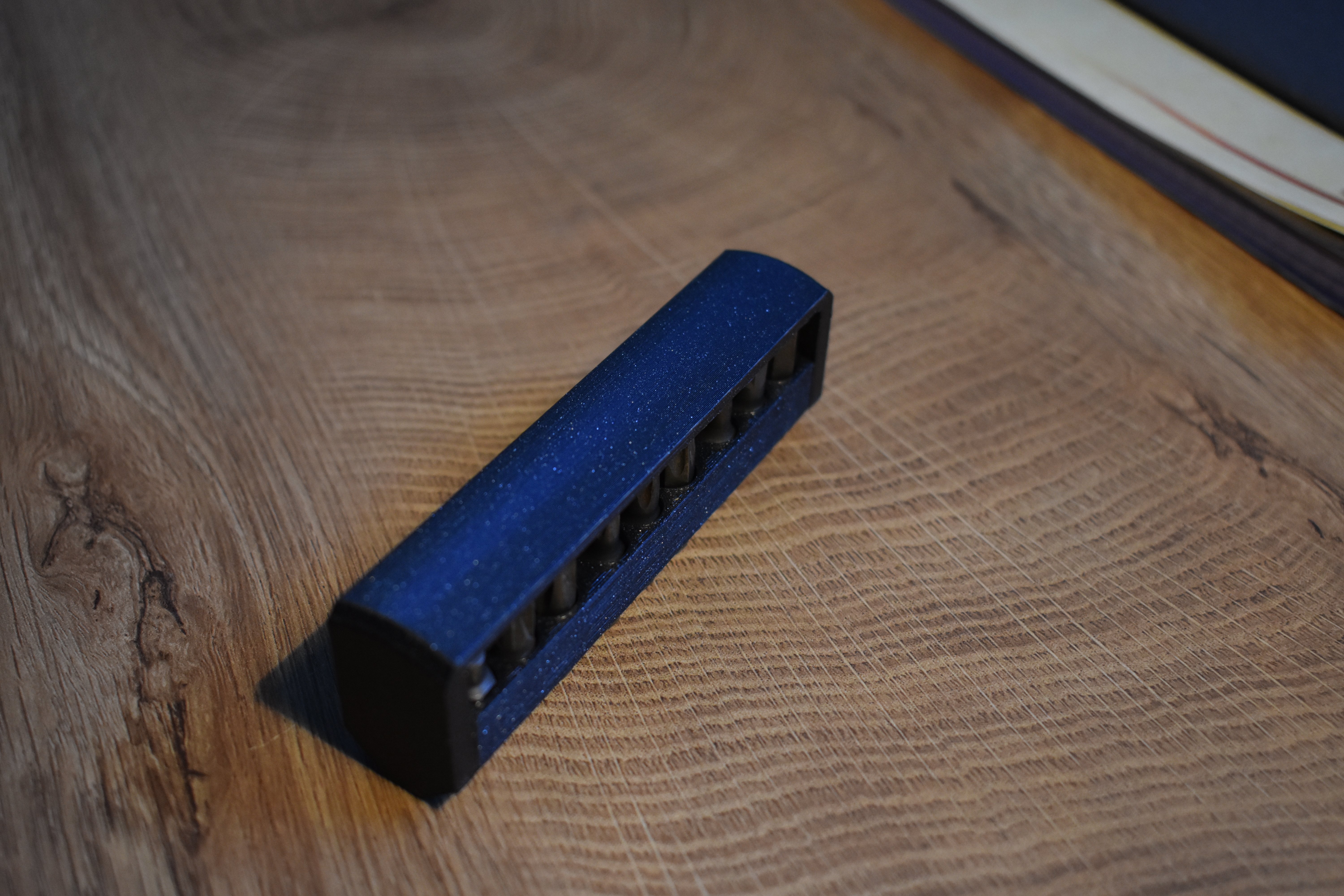

I EDC a screwdriver with storage for 6 bits in it, but wanted to carry more, so I came up with this little holder that suits my needs perfectly. I took some inspiration from the Wera bit-check and designed an holder with space for 18 bits, arranged in groups of 6. it features a swing open cover, which allows it to be put in a bag or pocket without losing all the bits. You can also push the bit you wish to use out from the bottom of the holder, making it a bit easier to extract.

Printing

I printed mine out of prusament PLA, but any material should do the job if you don't plan to use the holder in particular conditions.

Layer height doesn't really matter for this one.

I used four perimeters to make it stronger, but it's probably overkill.

No supports are needed.

You might want to use a brim when printing the cover as it doesn't have very much surface contacting the bed

The body should be printed with the holes for the bits facing downward and the cover should be printed laying on its side.

Assembly

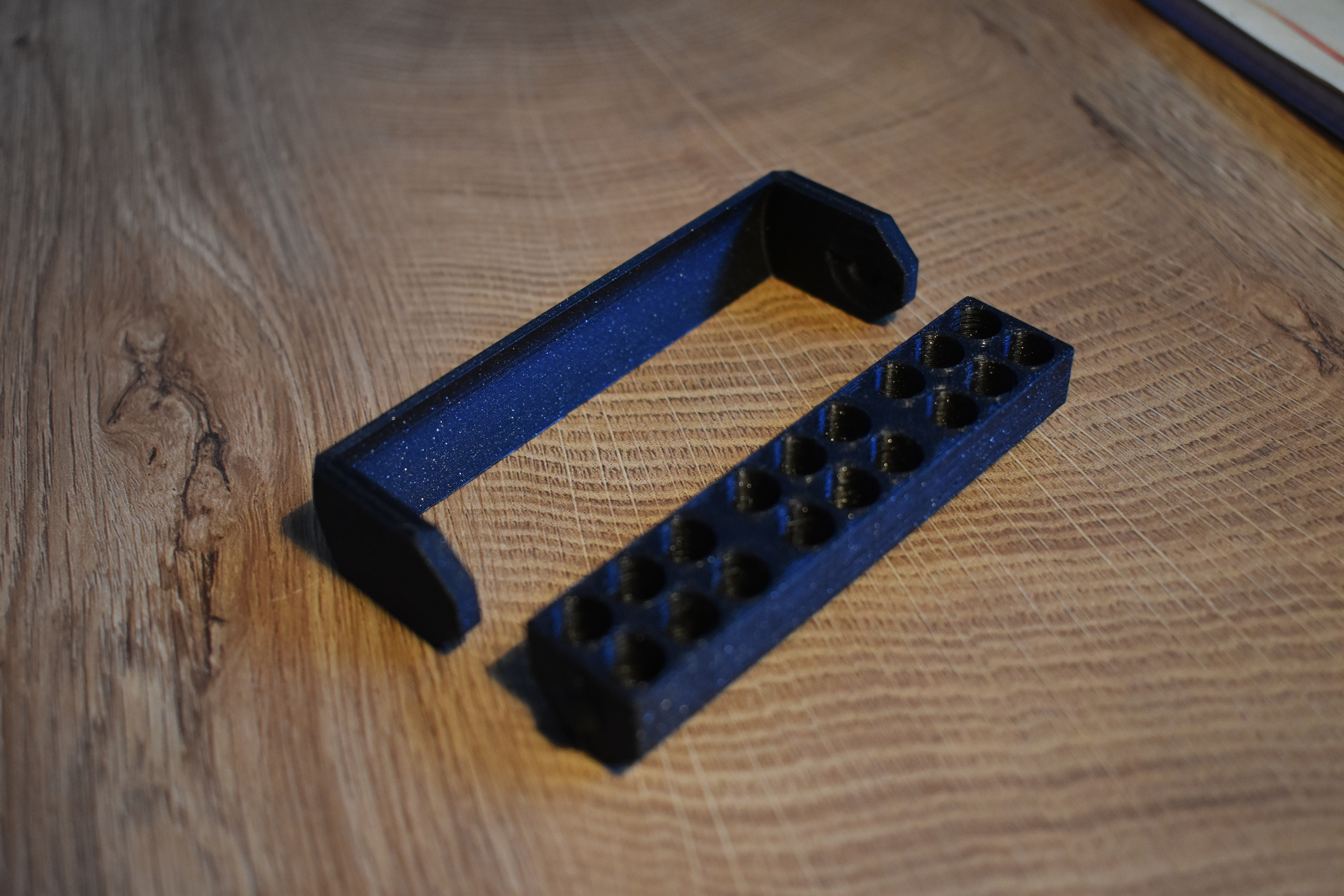

Just flex the cover slightly and slide it on top of the main body, lining up the hinges and you are done.

Printables

Hex bit holder - 18 bits

Publicado em 10 de jun de 2022

35
Curtidas
176
Downloads
1
Impressões
Categoria Tools
Tags
screwdriver bits edc hexbitholder hexbits hexbitstorage hexbitorganizer
Licença Creative Commons — Attribution — Noncommercial
Arquivos (3)
18 bit holder.3mf 90.9 KB
body.3mf 52.7 KB
top.3mf 12.6 KB
