New Version V2 available:
-------------------
Stackable can dispenser
I've uploaded different dispensers:
- Ø58x115mm (250ml)
- Ø58x146mm (330ml)
- Ø67x124mm (355ml)
- Ø54x134mm (250ml redbull)
There is a "short version" of each dispenser so you can print it on a 200x200 bed
Edit 2017/03/18:
I've uploaded a "short version" of the dispenser. This should fit onto a 200x200 bed Edit 2017/04/07:

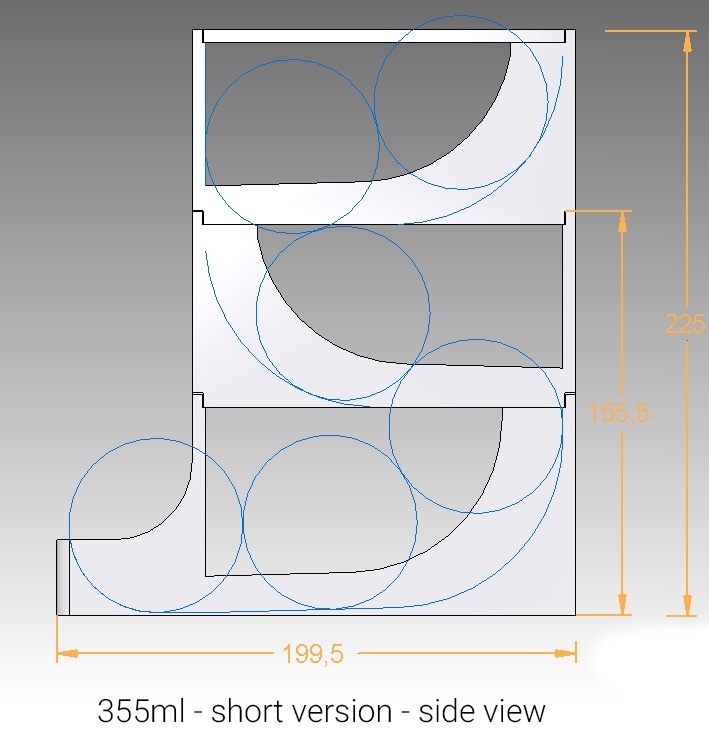

Added .stl-files for the 355ml cans. I've also uploaded a screenshot so you can see how many 355ml cans fit into the dispenser. Edit 2017/08/22:
Added .stl-files for the 250ml redbull cans as requested in the comments. Files are named 250rb / 250rb_short
I've only printed the 250ml version but the others should work as well. (Let me know if anybody tested it)

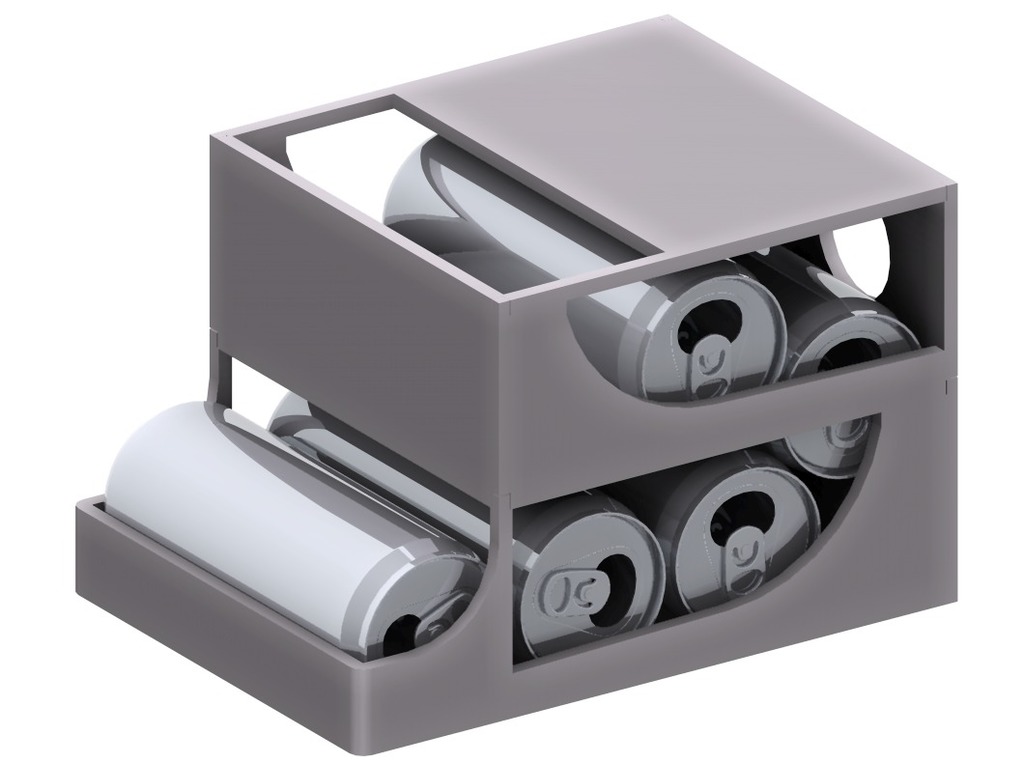

I used the following can model in the above renderings: [https://grabcad.com/library/coke-can-2012](https://grabcad.com/library/coke-can-2012)

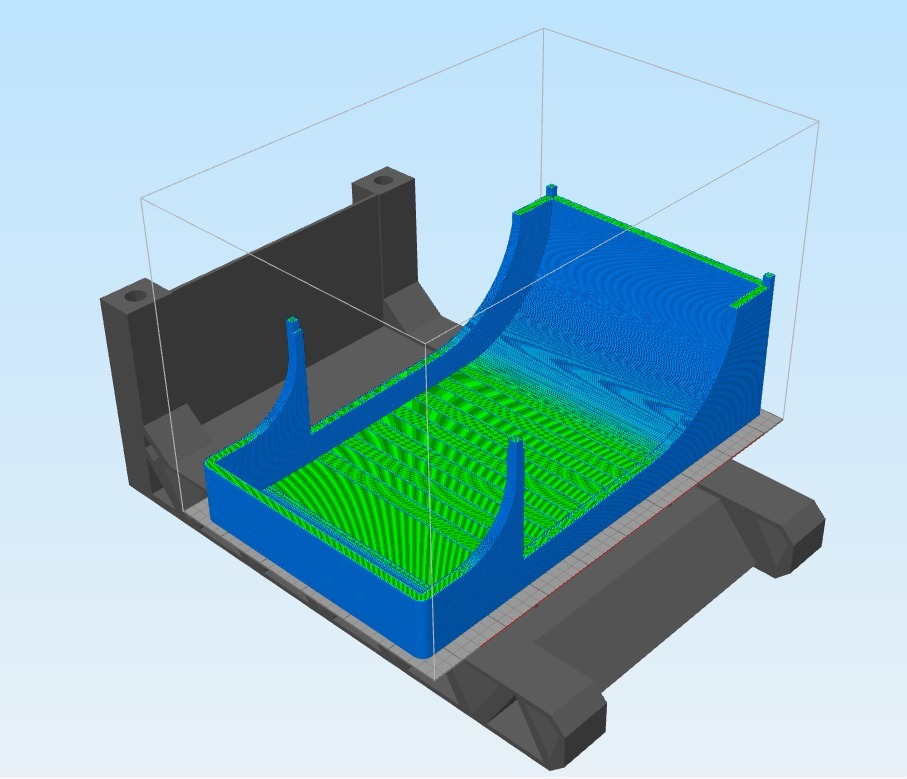

Print Settings I used
Printer:
CTC
Rafts:
No
Supports:
Yes
Resolution:
0,2mm
Infill:
15%
Notes:
If you print the parts with a resolution higher than 0.2mm the cans probably won't roll down.
