Tealight lithopane stand

I uploaded a modular and customizable lithophane lamp:

[https://www.printables.com/model/222458-customizable-and-modular-lithophane-lamp](https://www.printables.com/model/222458-customizable-and-modular-lithophane-lamp)

In case you want to change a single lithopane on that lamp, I designed this little tealight stand for a single lithopane so you don't have to throw it away.

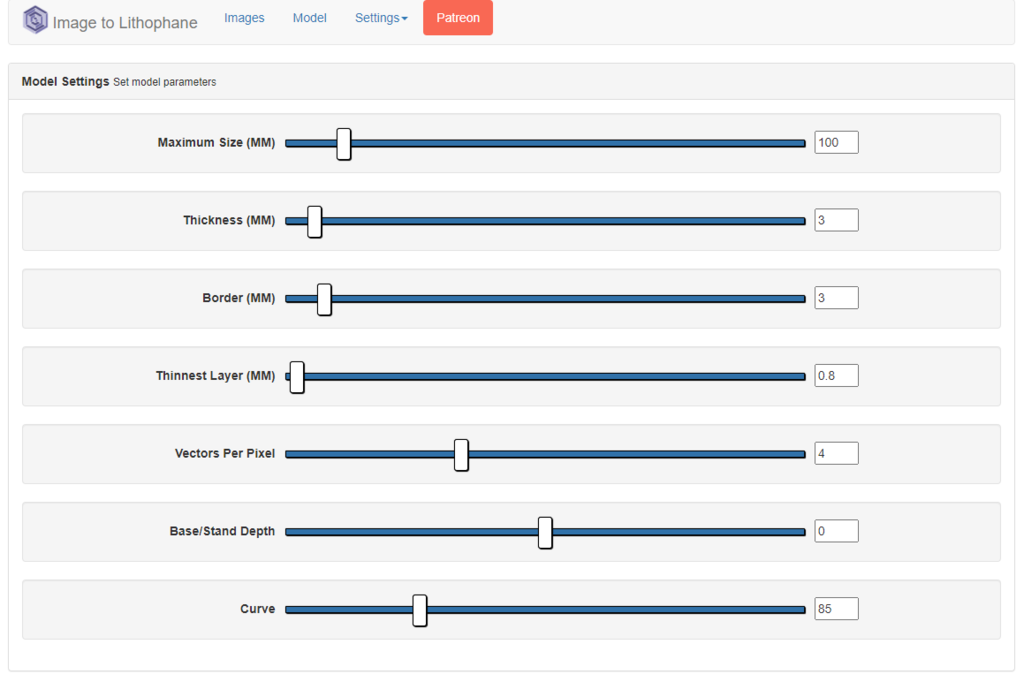

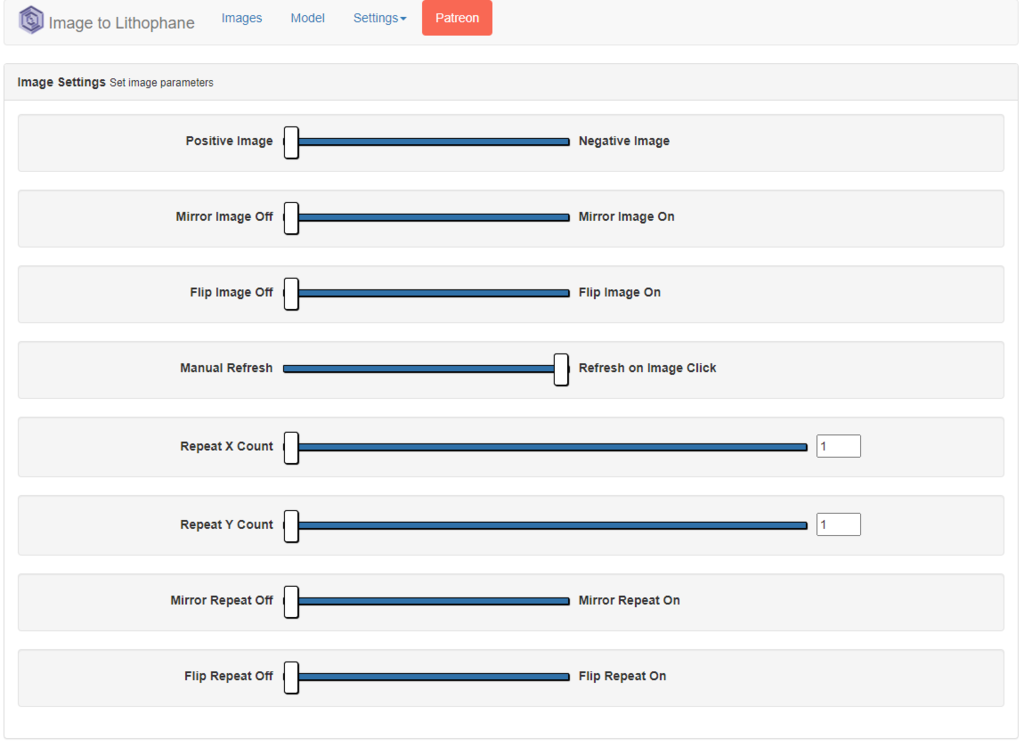

Lithophane: I've used the following site to create the lithophane: [http://3dp.rocks/lithophane/](http://3dp.rocks/lithophane/) Make sure to use a square picture (1:1 height:width ratio) on the website select "outer curve" model Set your model settings to maximum size 100mm, thickness 3mm and border 3mm Also choose "positive image" in the image settings Set Curve to 85

I made the radius of the groove a little bit smaller than the radius of the lithophane so that it has a nice tight fit.

Let me also know if you have any suggestions!

Print Settings I used

Printer:

Up! Mini

Rafts:

Yes

Supports:

No

Resolution:

0.2

Infill:

15%

Filament:

Amazon Basics ABS

White
