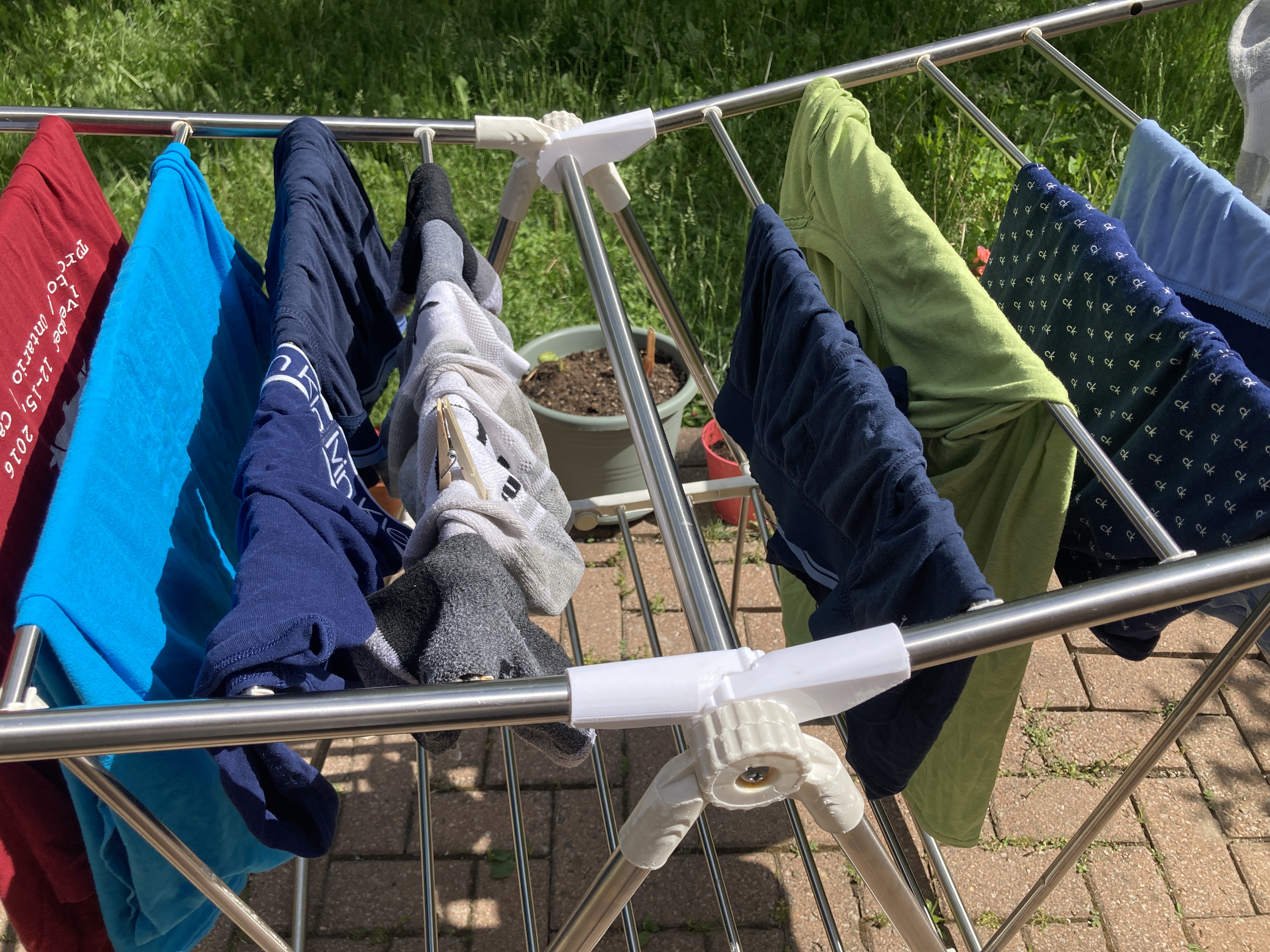

Replacement hinge for Type A Gullwing / Cross Wing drying Rack.

Pipe diameter - 19.3mm model tolerance 0.1mm

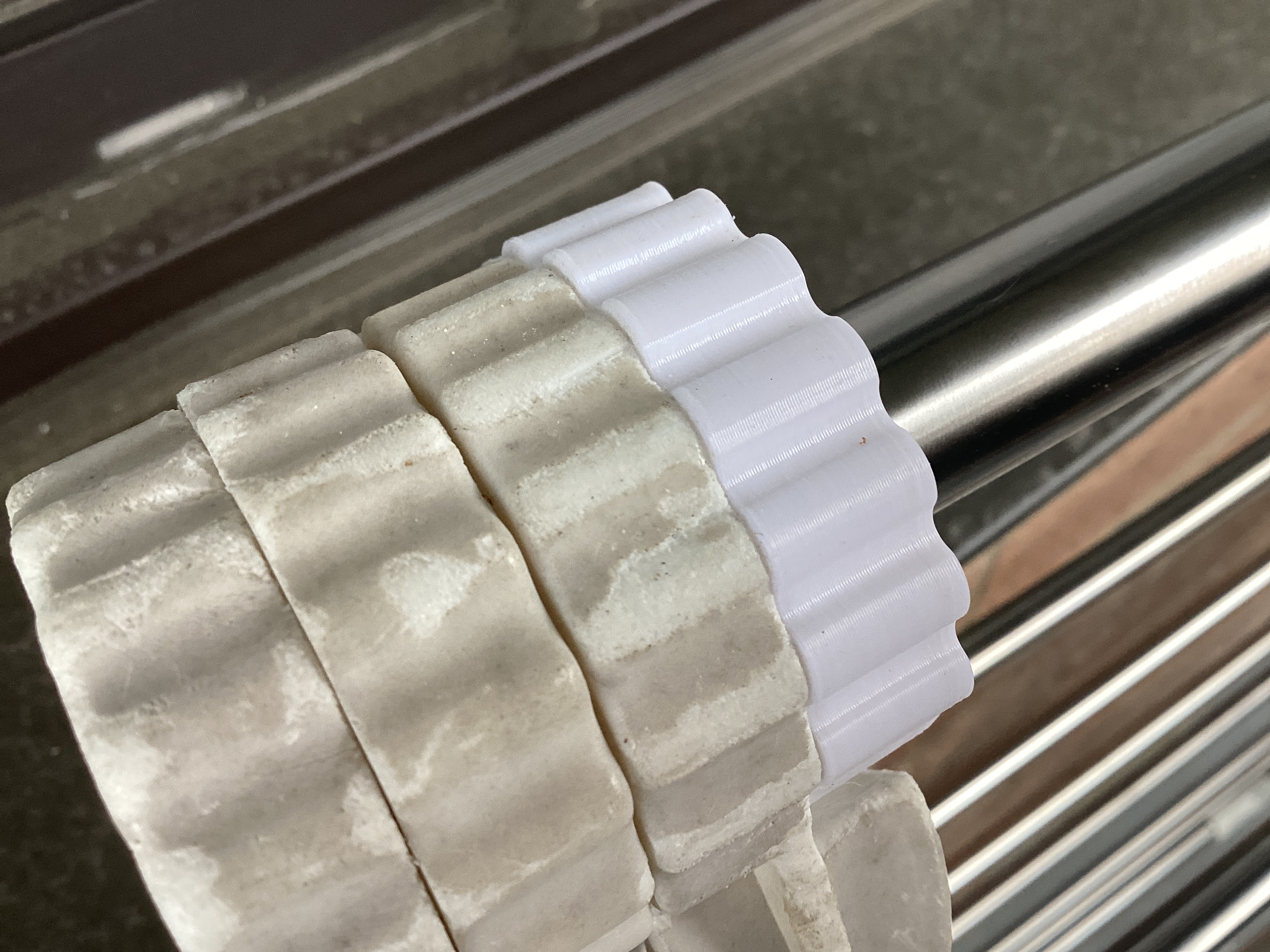

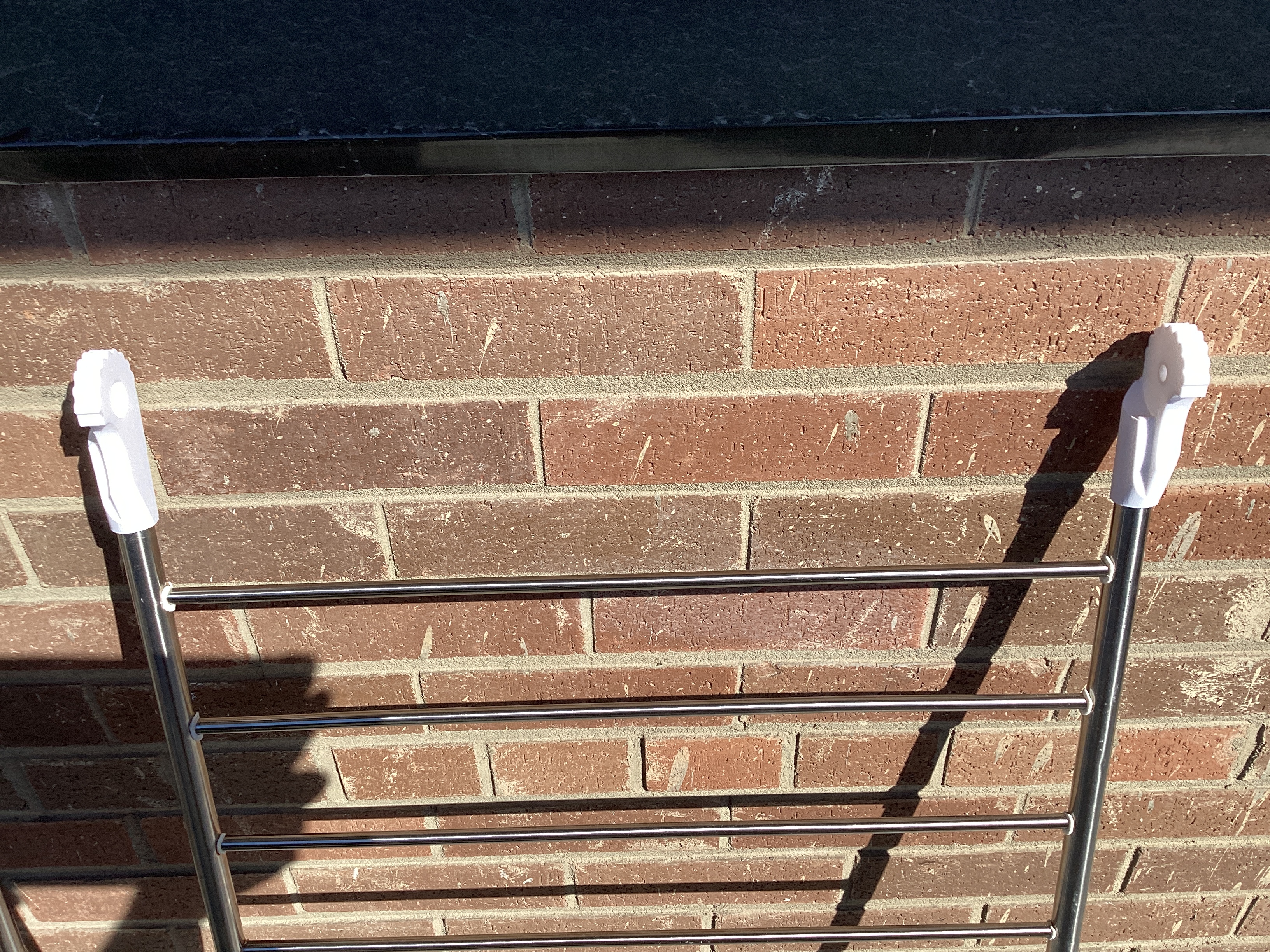

This replace any wing / foot hinge. The replacement model has a fit that doesn't require any glue, and will firmly press against the pipe. Remove any residual glue left over from the old part.

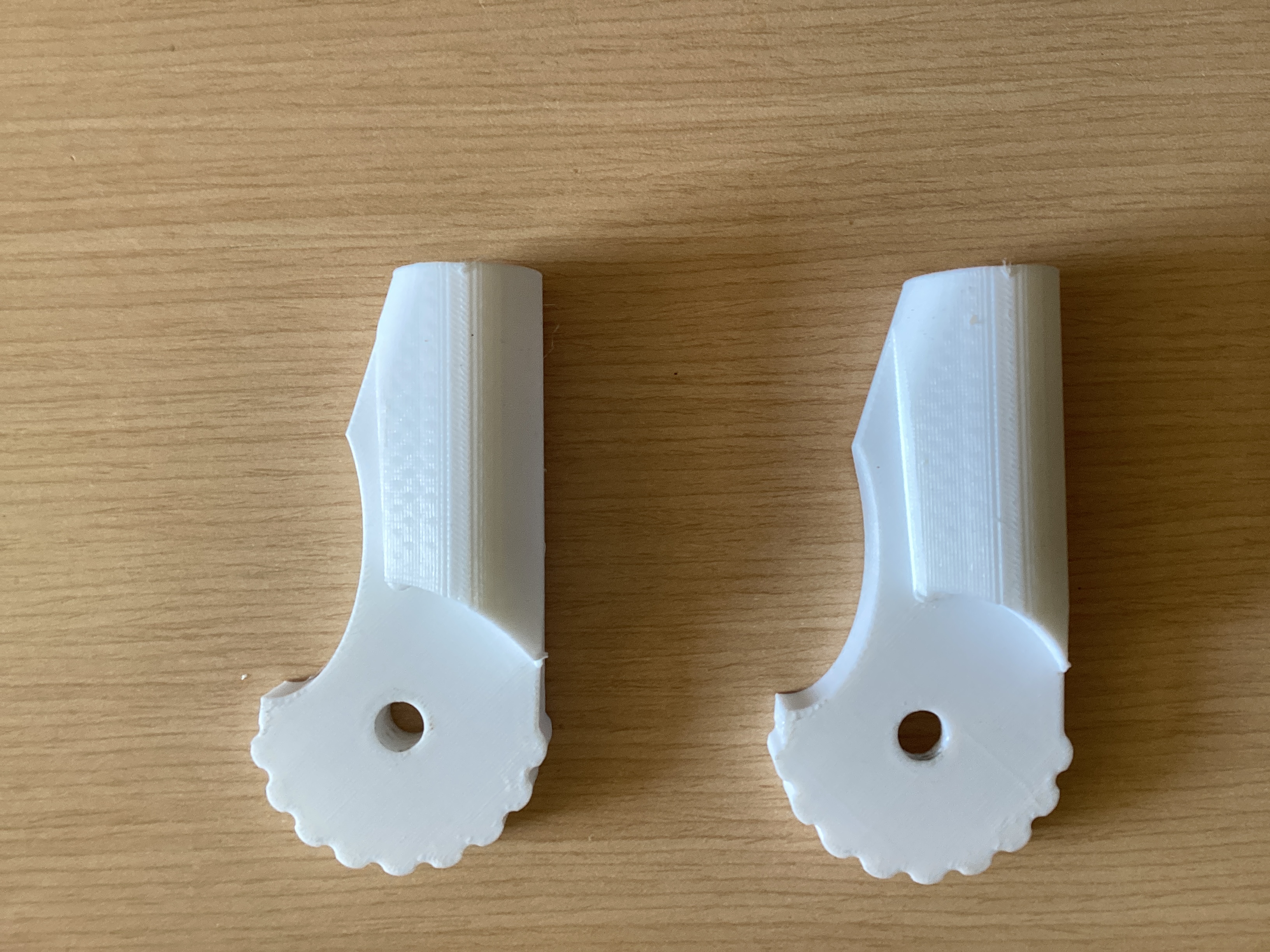

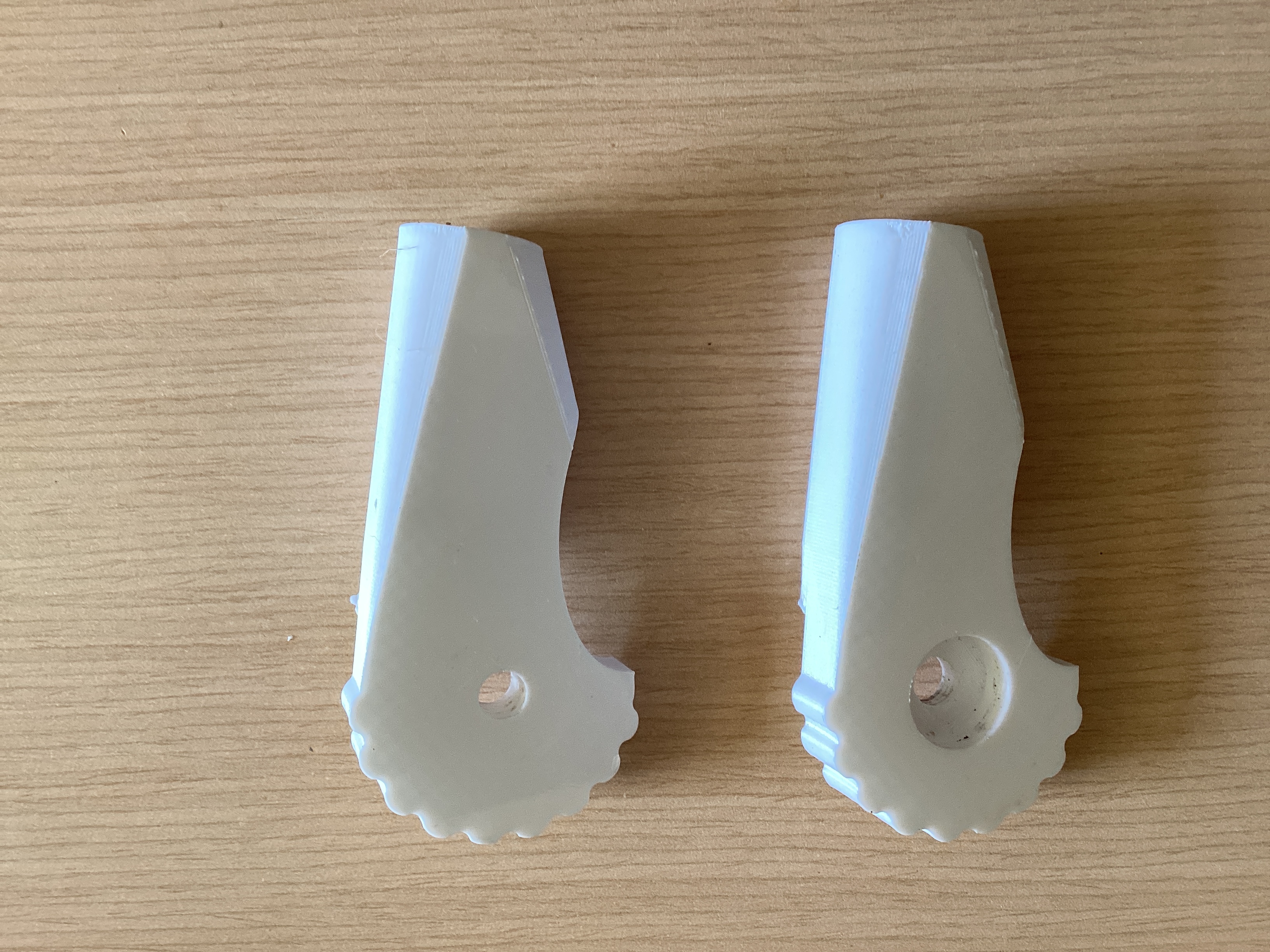

The model with larger hole accommodates mid pipe/ bolt (inner and outer part), the model with the smaller hole accommodates sections in the middle – bolt thread.

Layer Height: 0.2mm

The model was designed for 0.2mm layer height and different layer height will no be a proper fit. For more information see – [https://github.com/nophead/NopSCADlib#Horiholes](https://github.com/nophead/NopSCADlib#Horiholes)

Material: PETG

Openscad model requires NopScadLib
