Descrição

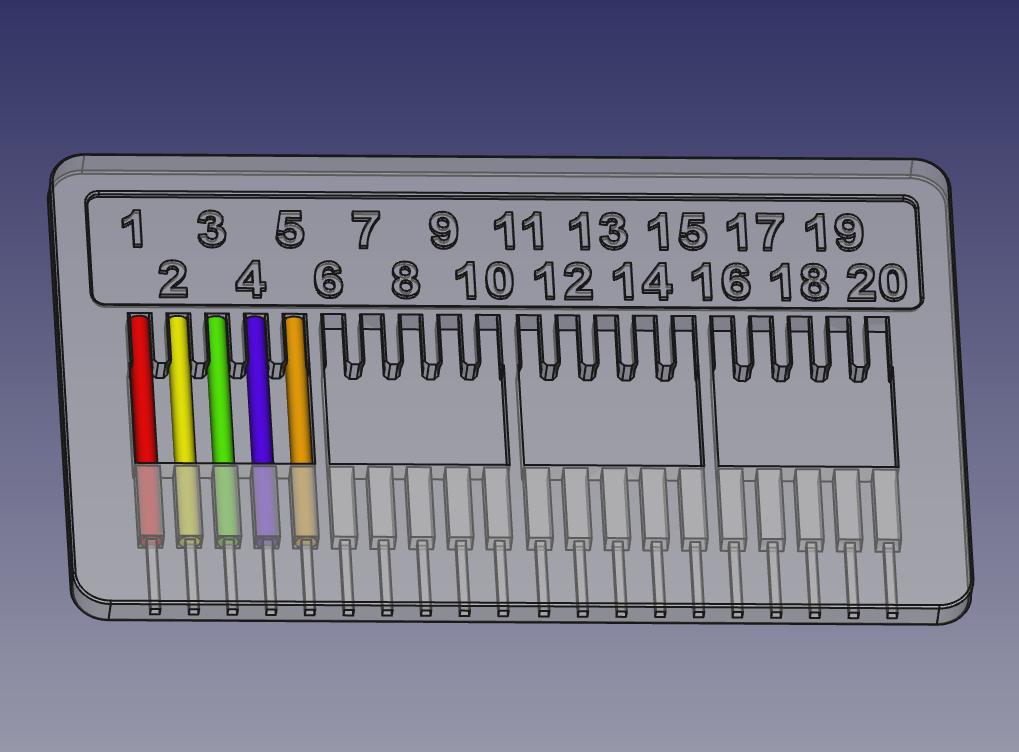

Filament Sampler using 21mm of the filament wire.
Use different colors, different additional labels (top right) or optional paper label to distinguish the filaments.

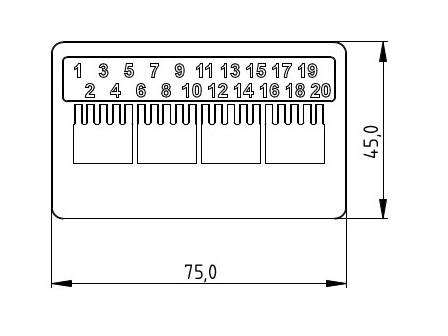

Dimensions:
75mm x 45mm x 2.8mm
Cards:
- Common
- Label Material: ASA, PETG, PLA
Print:
| Recommended Filament | PETG |
| Time (single card) | ~ 47m |
| Layer height | 0.20mm |
| Nozzle diameter | 0.40mm |
| Weight | ~ 8g |
| Prusa Slicer | PETG Profile, 0.20mm Quality 100% Infill - Fill pattern: Rectilinear - Perimeters: 3 |
Assembly:
Insert the previously correctly cut wire (21mm) from top to bottom and then click it into place at the top. For pressing in, you can use the cutting gauge, for example, by holding it crosswise and applying pressure to it.
Updates:
2022-06-11 Images / Description
34
Curtidas
141
Downloads
8
Impressões
Categoria
Accessories
Tags
filamentsample
colorsample
samples
filamentsamplecard
Licença
Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (5)
MFSC_01-20.stl
1.3 MB
MFSC_01-20_ASA.stl
1.3 MB
MFSC_01-20_PETG.stl
1.3 MB
MFSC_01-20_PLA.stl
1.2 MB
MFSC_CuttingGauge.stl
60.8 KB
