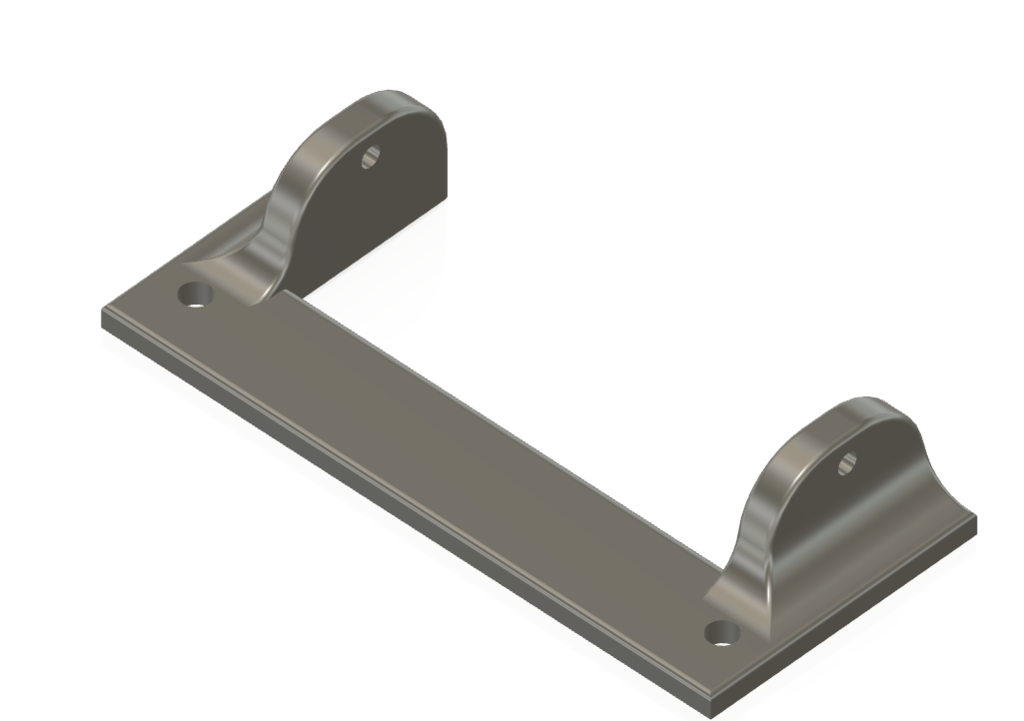

This is designed for the Lightburn camera, specifically for the fisheye-120 but any variant should fit. This is designed to fit on the inside onto the handle-bolts of the lid of the laser engraver/cutter. Specifically the KH-750 but presumably more chinese-red-laser engravers should fit.

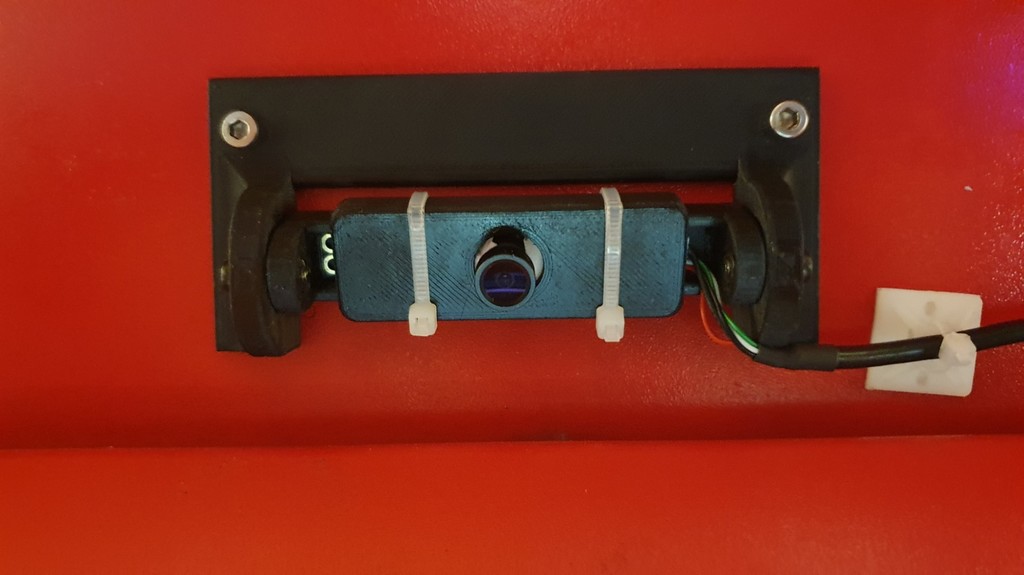

Two M3 nuts and screws/bolts are needed to lock the swivel in place. The cover does not snap but has a very tight fit. I locked the camera in place with some tissue and locked the cover with two tie-wraps.

I based my design of these two other holders:

• [https://www.thingiverse.com/thing:3891092](https://www.thingiverse.com/thing:3891092)
• [https://www.thingiverse.com/thing:4321156](https://www.thingiverse.com/thing:4321156)

But needed to create my own that shifted the camera a bit more to the top of the lid since otherwise the laser-carriage would hit the camera.

I included a .STEP file and the Fusion360 design file if you wish to customize the design.

Print Settings

Printer Brand:

Prusa

Printer:

Rafts:

No

Supports:

Resolution:

200

Infill:

Filament: Realfilament PETG Black

Category: Tools
