Descrição
This is a simple and robust housing for a KFB 2.0 Controller.
It will coincidentally fit as a controller housing on a Renkforce RF500 (it was originally designed with this printer in mind).
Measurements:
- housing approx. 114x149x75mm (with mounted fan)
- 4 mounting holes provided (for 4-5mm screws): hole distance x=87mm and y=117mm
Please refer to the mockup for further information and assembly.
Additional parts needed:
- 80mm fan with 8 mounting screws
- 4 x 3x8mm screws to mount the KFB 2.0 board
- 4 x 3x8mm screws if you optionally want to fasten the cover (it is designed to be snap-on)
Print Settings
Rafts:
Doesn't Matter
Supports:
No
Infill:
at least 25% for smooth surface
Category: 3D Printer Accessories
0
Curtidas
21
Downloads
Categoria
Accessories
Tags
thingiverse
Licença
Creative Commons — Attribution — Noncommercial
Arquivos (6)

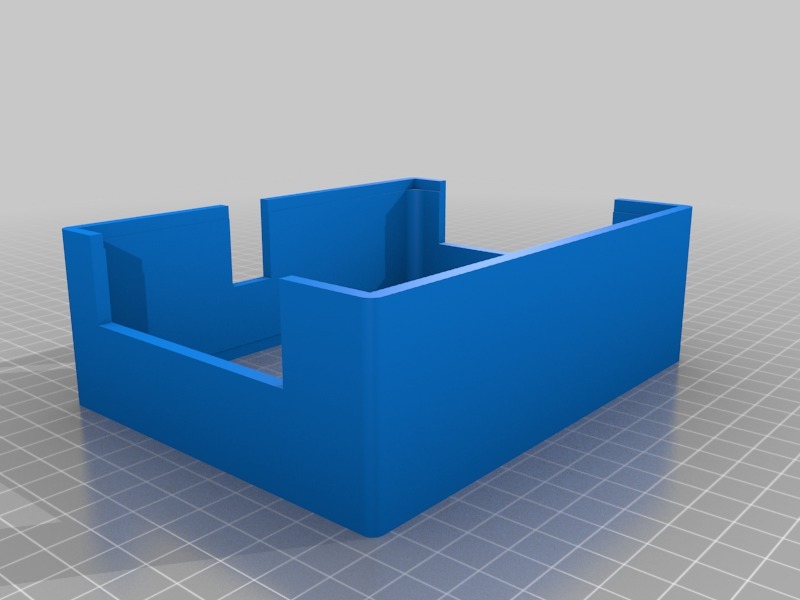

KFB_2.0_Housing_Bottom.stl
165.1 KB

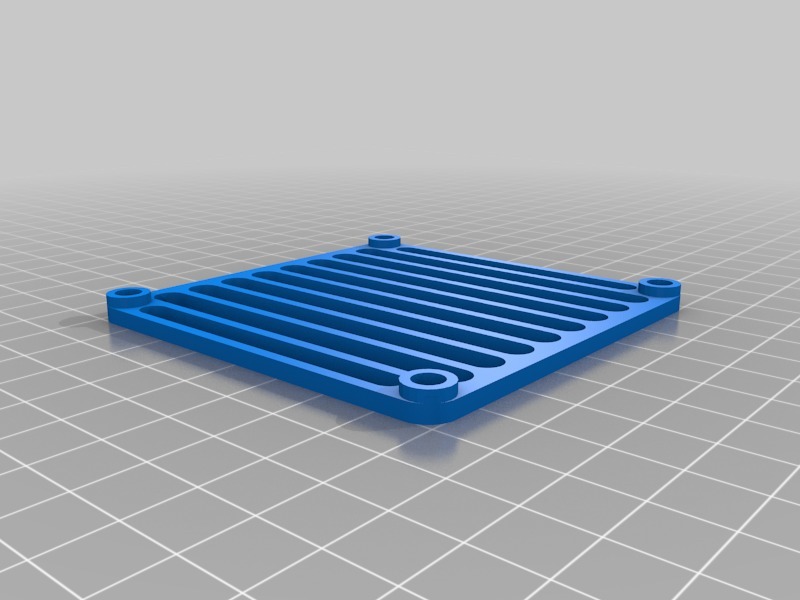

KFB_2.0_Housing_Grille.stl
664.6 KB
KFB_2.0_Housing_Bottom_modified_for_RF500.stl
158.9 KB

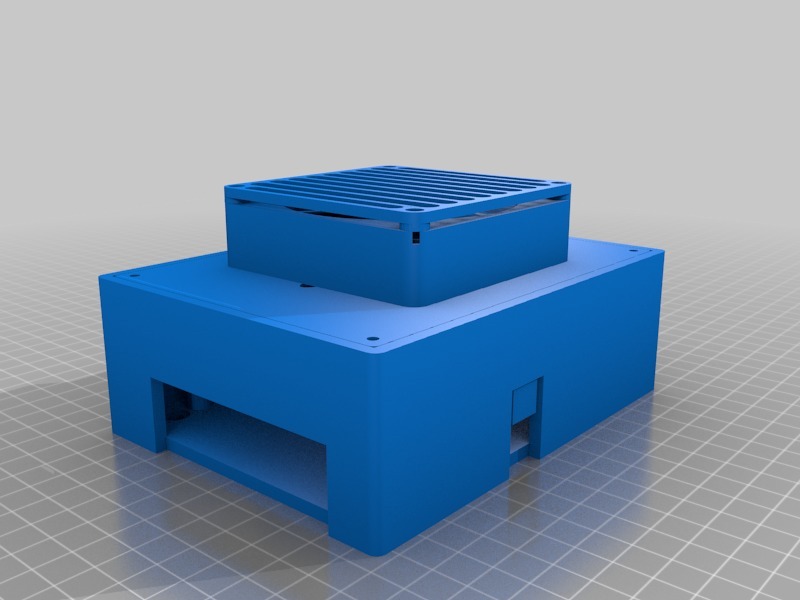

KFB_20_Housing_Mockup_-_DO_NOT_PRINT.stl
1.3 MB

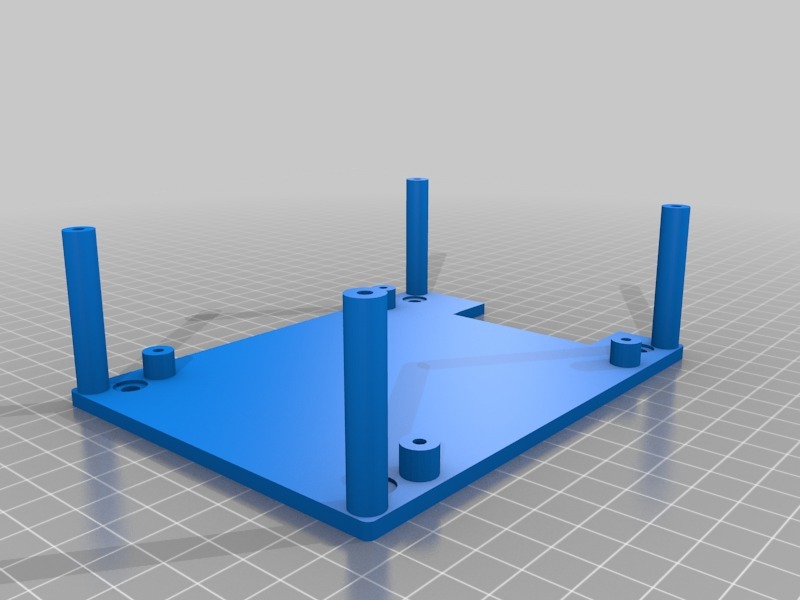

KFB_2.0_Housing_Middle.stl
120.5 KB

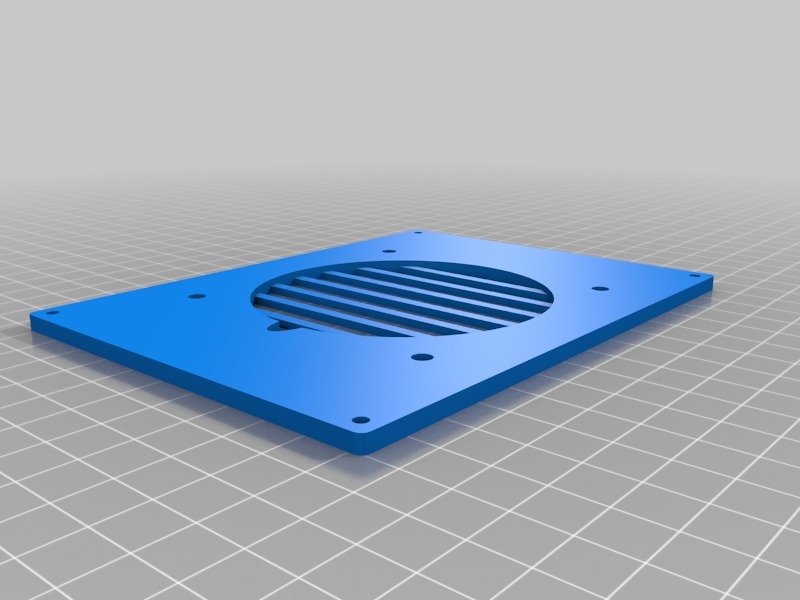

KFB_2.0_Housing_Top.stl
104 KB
