What you need:

2x 3x20mm countersink head screw

2x M16 nut (optional)

1x switch ([https://www.aliexpress.com/item/33058852726.html?spm=a2g0s.9042311.0.0.27424c4dzMrfLQ](https://www.aliexpress.com/item/33058852726.html?spm=a2g0s.9042311.0.0.27424c4dzMrfLQ))

led strip ([https://www.aliexpress.com/item/33023149663.html?spm=a2g0s.9042311.0.0.27424c4dzMrfLQ](https://www.aliexpress.com/item/33023149663.html?spm=a2g0s.9042311.0.0.27424c4dzMrfLQ))

power supply ([https://www.aliexpress.com/item/33012054726.html?spm=a2g0s.9042311.0.0.27424c4dzMrfLQ](https://www.aliexpress.com/item/33012054726.html?spm=a2g0s.9042311.0.0.27424c4dzMrfLQ))

Image ratio: 4x5/5x4

Lithophane stl generated in [https://3dp.rocks/lithophane/](https://3dp.rocks/lithophane/)

Lithophane settings:

Max size: 170mm

Thickness: 3mm

Border: 3mm

Workflow:

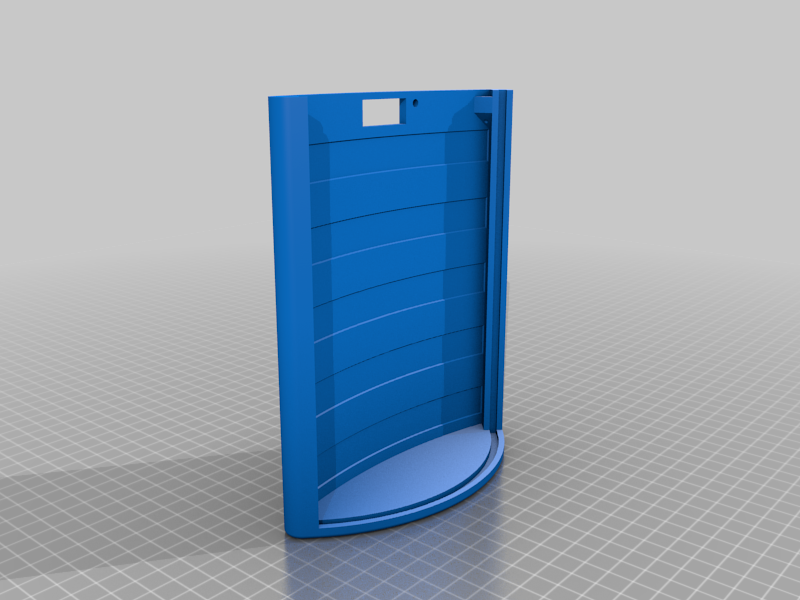

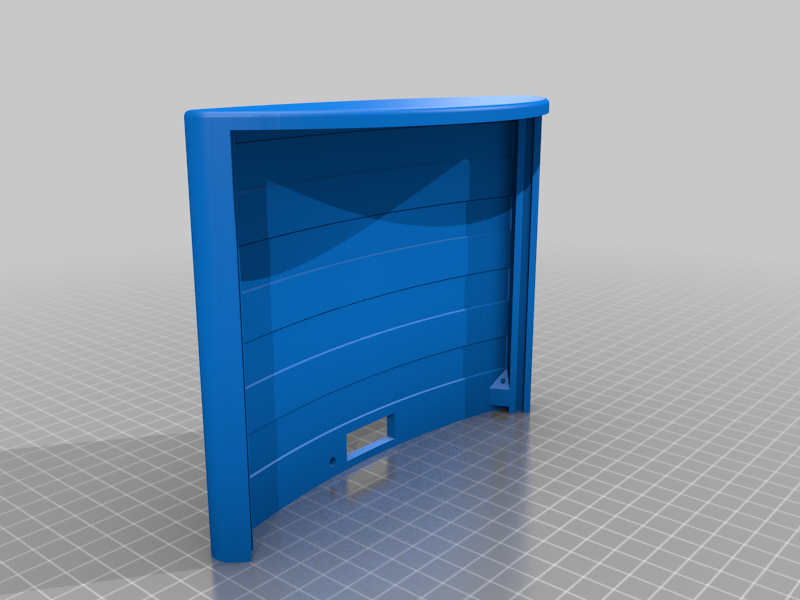

1. Print details

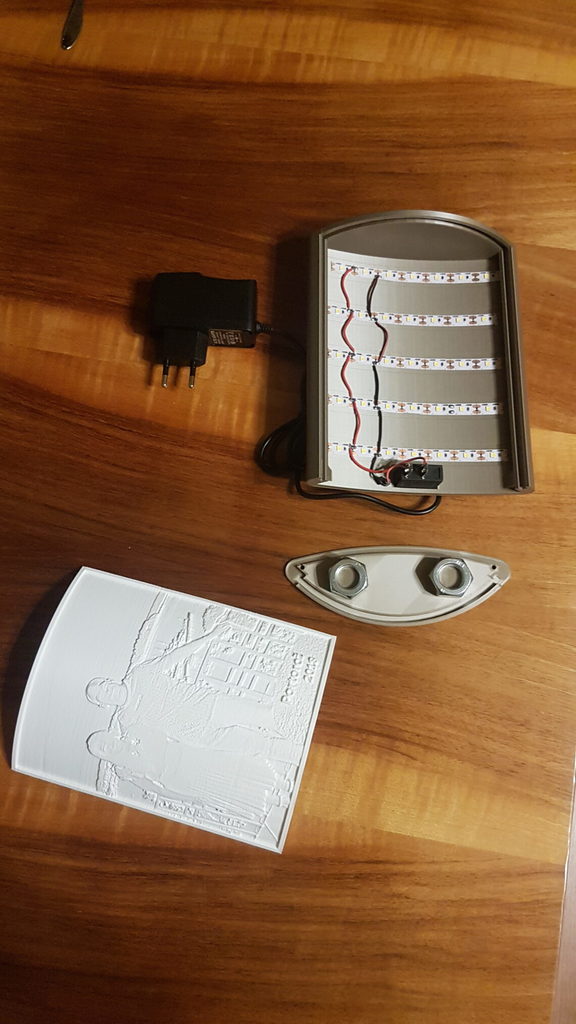

2. Cut led ribons to length and install all electrical parts
3. Solder led ribbons, switch and power supply together
4. Slide lithophane in
5. Install nuts (for weight)

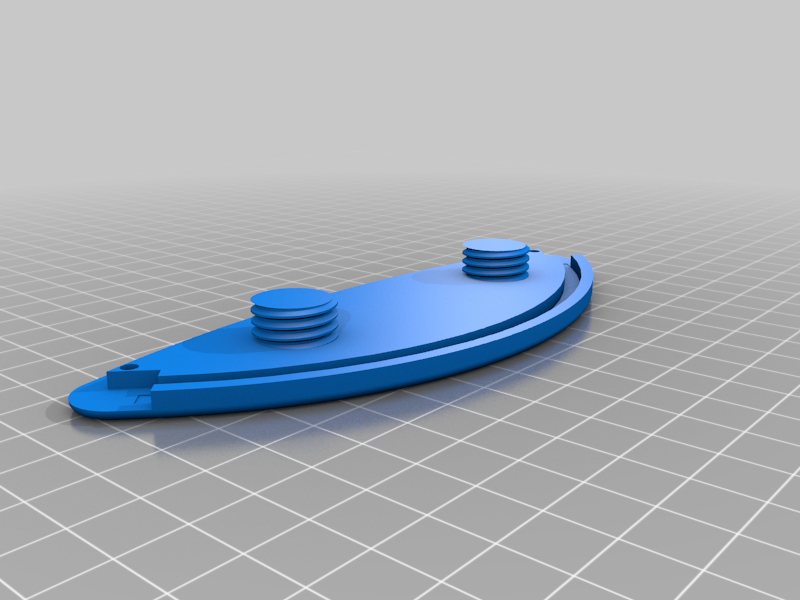

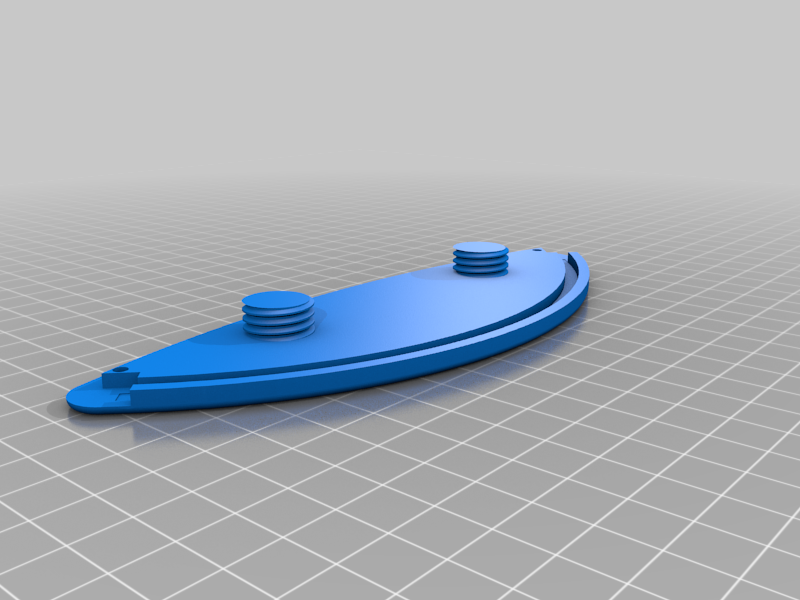

6. Install bottom and screw it to body
7. Enjoy

Category: Art
