This is the robot from the icy snowy planet in the Fifth movie and not screen accurate. Model is finished and print verified. This model is best printed at 100% scale on FDM. SLA/SLS - go as small as you'd like. I find on FDM, 120% to 130% scale works really well and all the details show super nicely.

Dec 27, 2017 Update -Added a new bottom which changes the orientation fo the legs and some bottom hardware. See instructions below. Enjoy.

Nov 27, 2017 - Added a new head with a rounded top and better antenna nubs. Also added a new body top and a thinner lower body. I removed all the split heads because the split along the seam on the model - prints well but makes it harder to assemble. I would suggest splitting it vertically between some of the eyes and then laying that edge to the build plate.

Printing the Model:

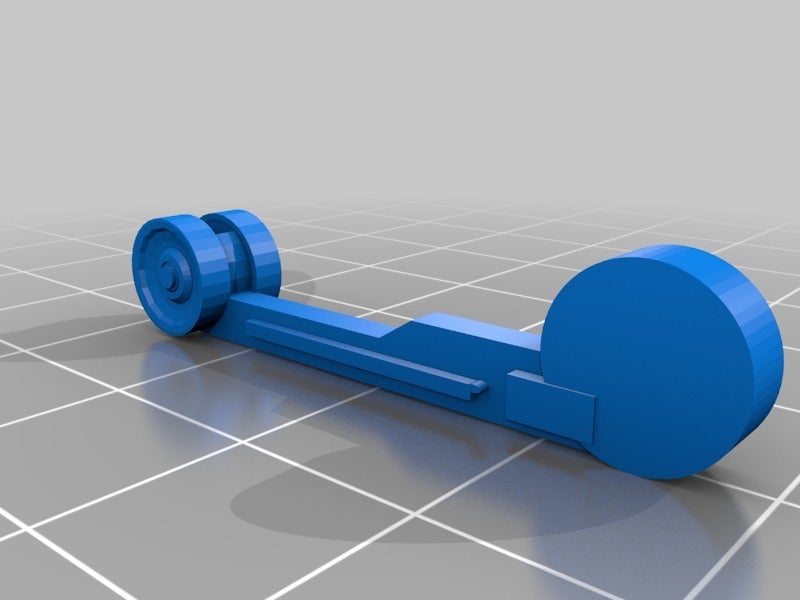

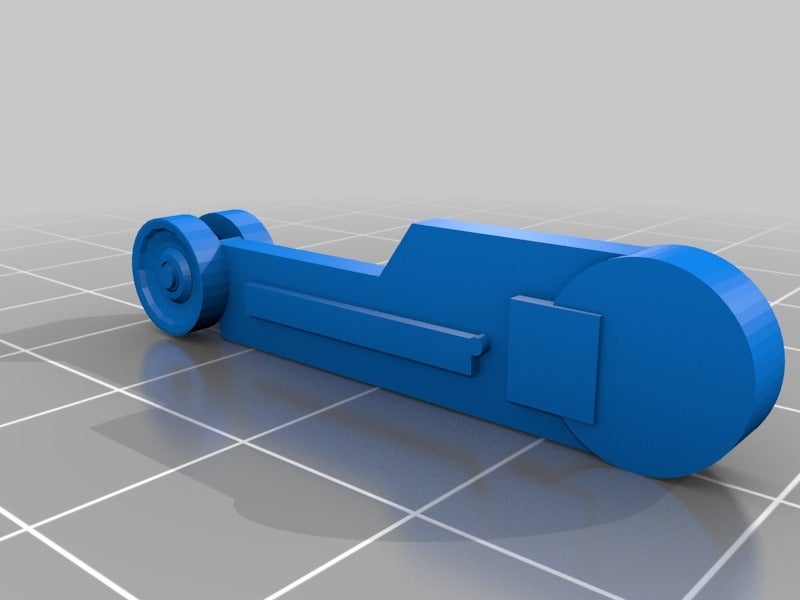

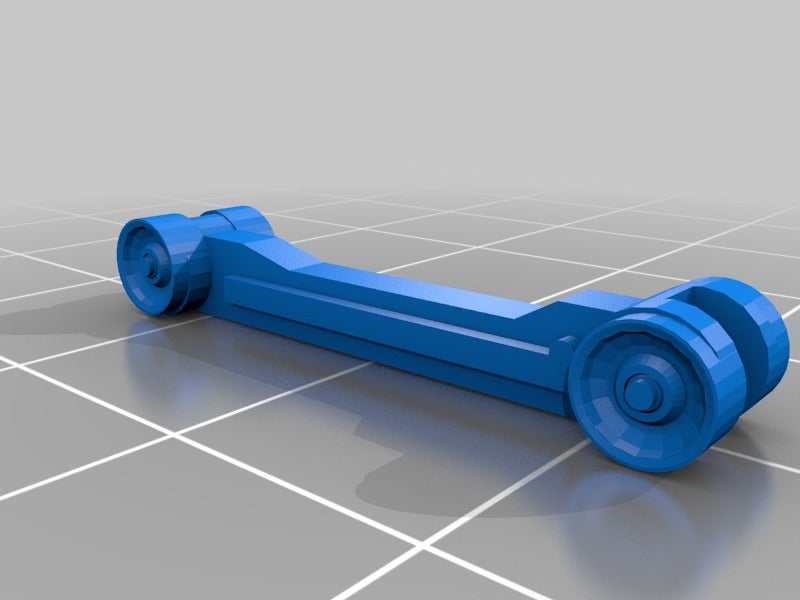

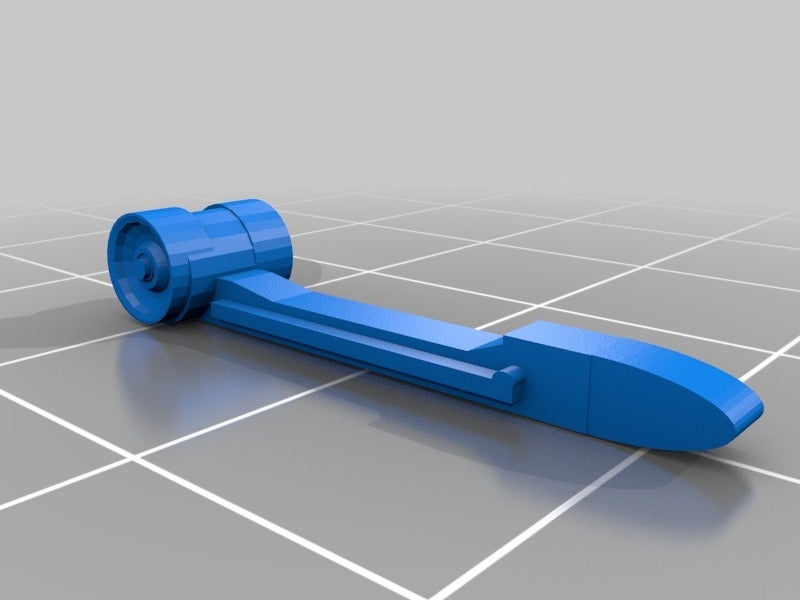

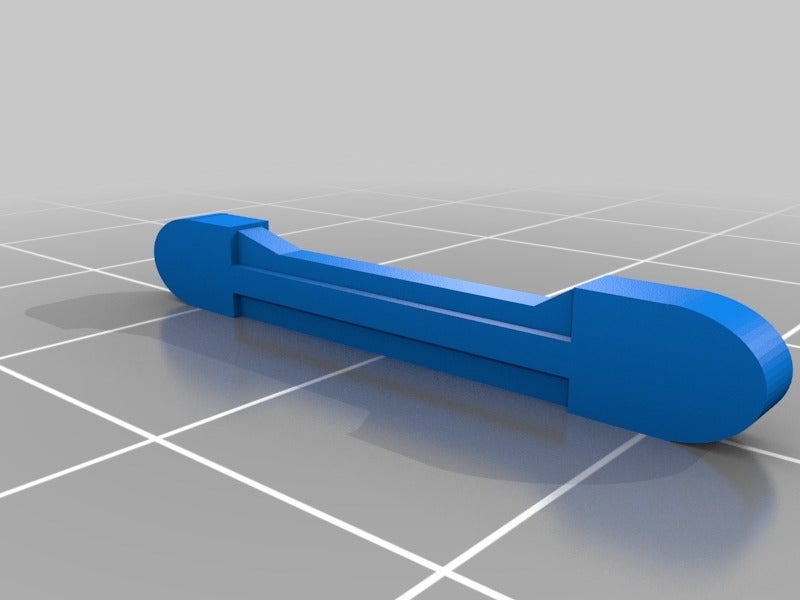

• Print 3 sets of the LongLeg 1,2 &3
• Print 2 sets of the ShortLeg 1 & 2

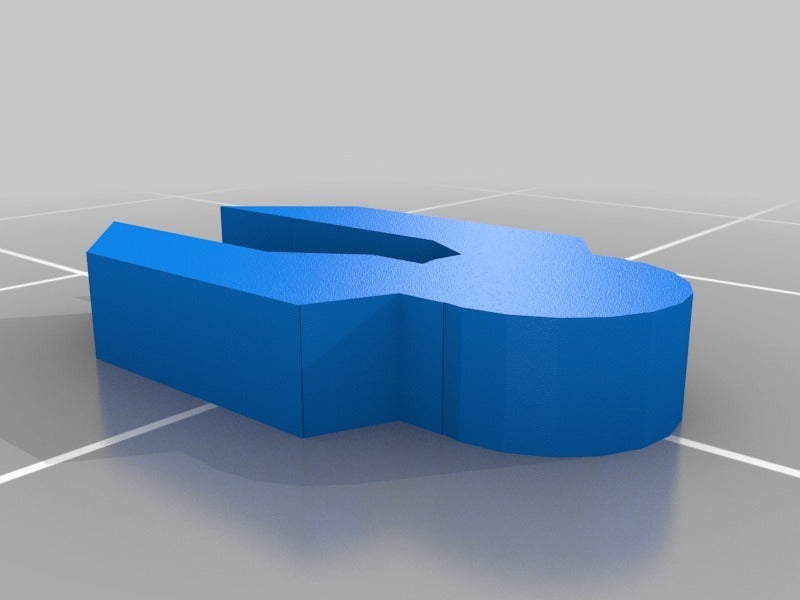

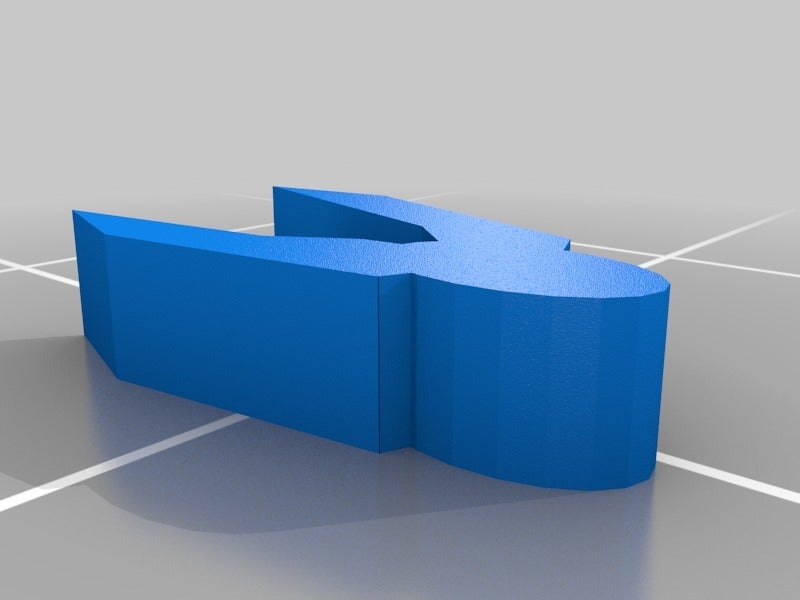

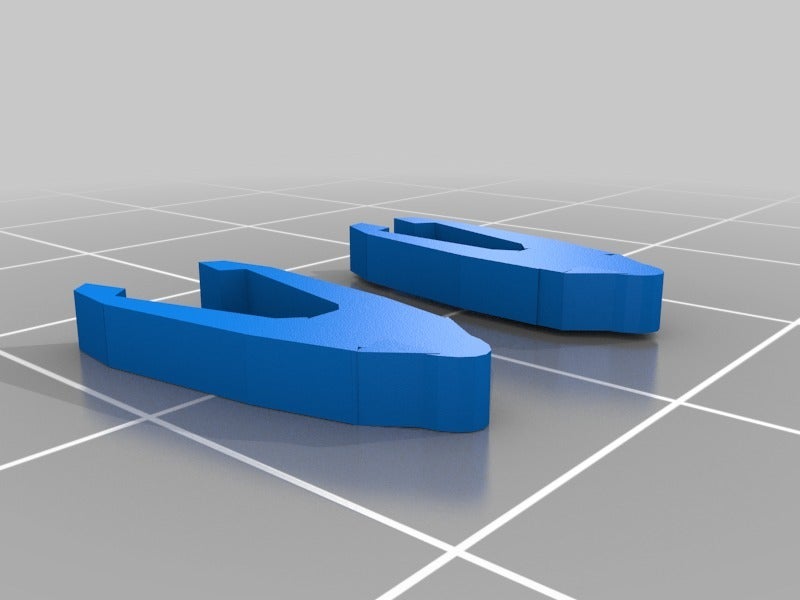

• Print 5 of the claws of any mix and match between the 3 styles

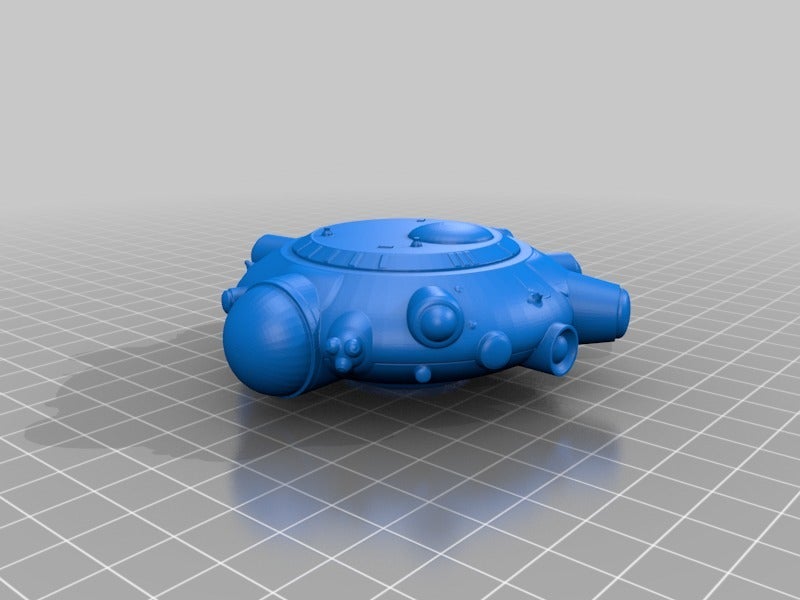

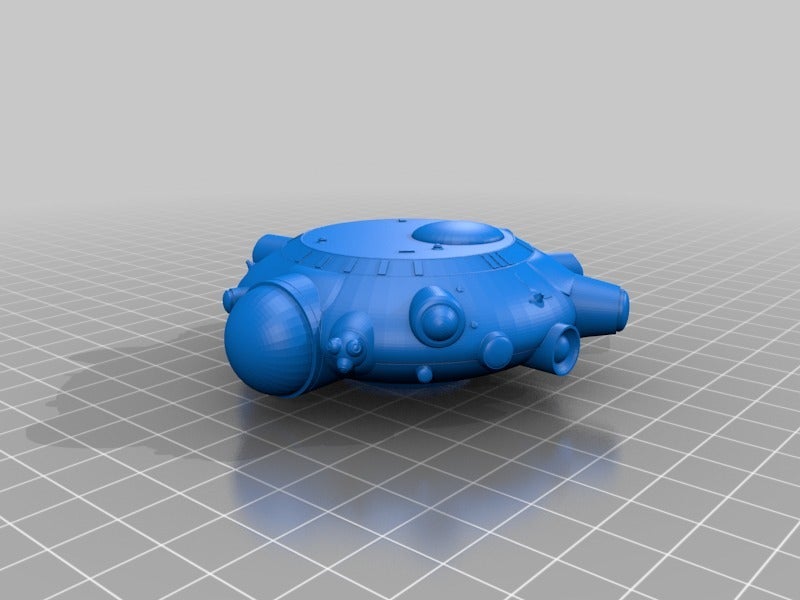

• Print one head of your choice.

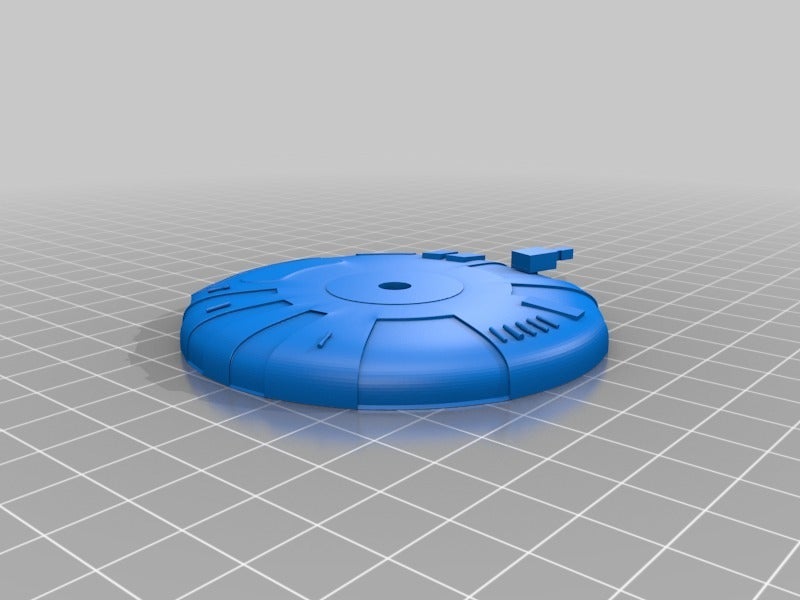

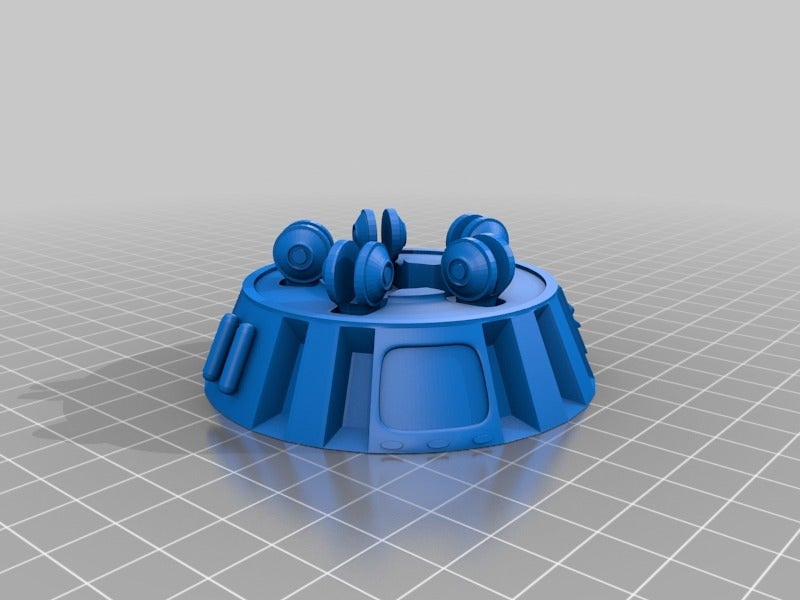

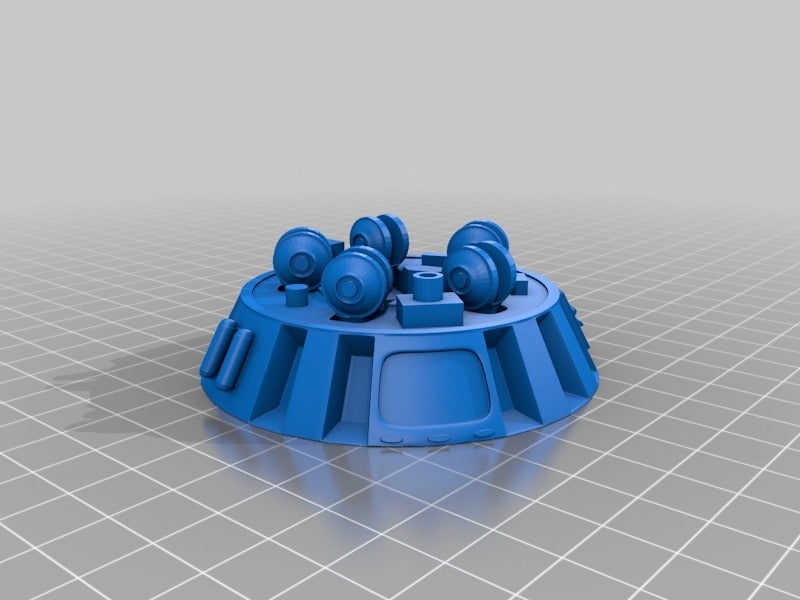

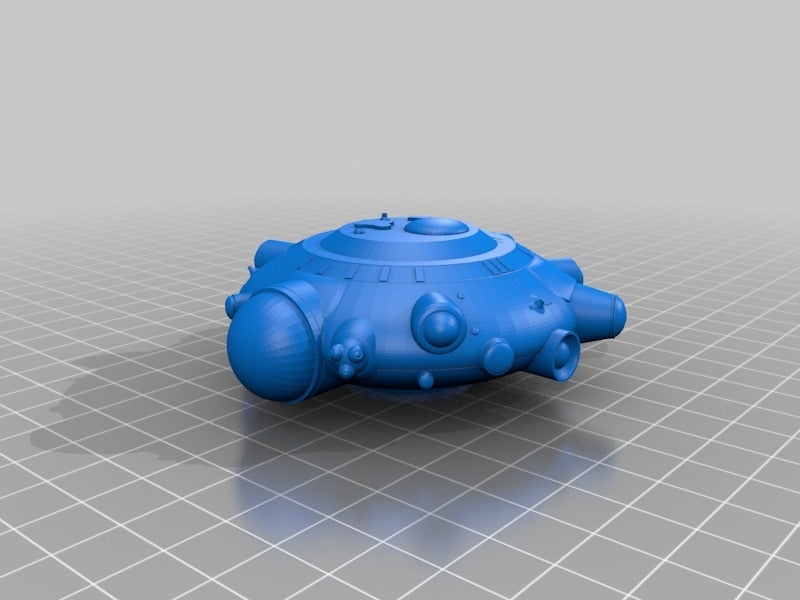

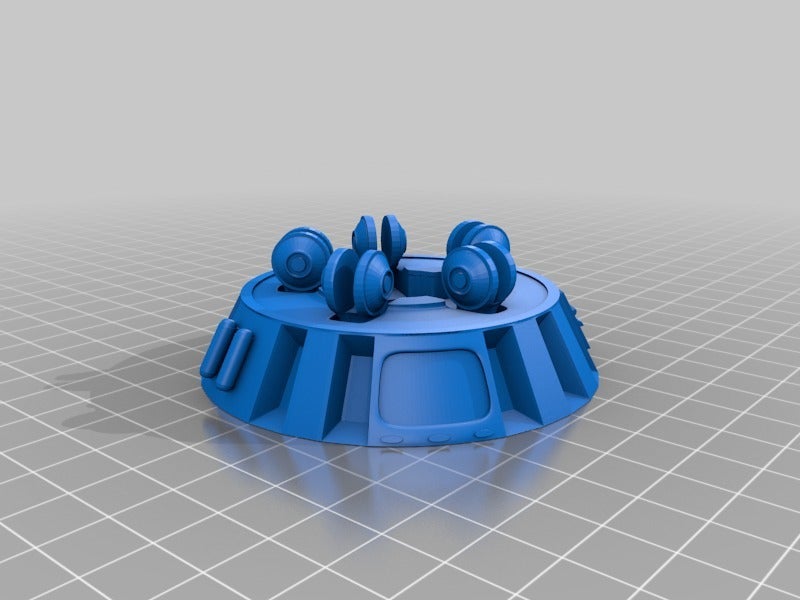

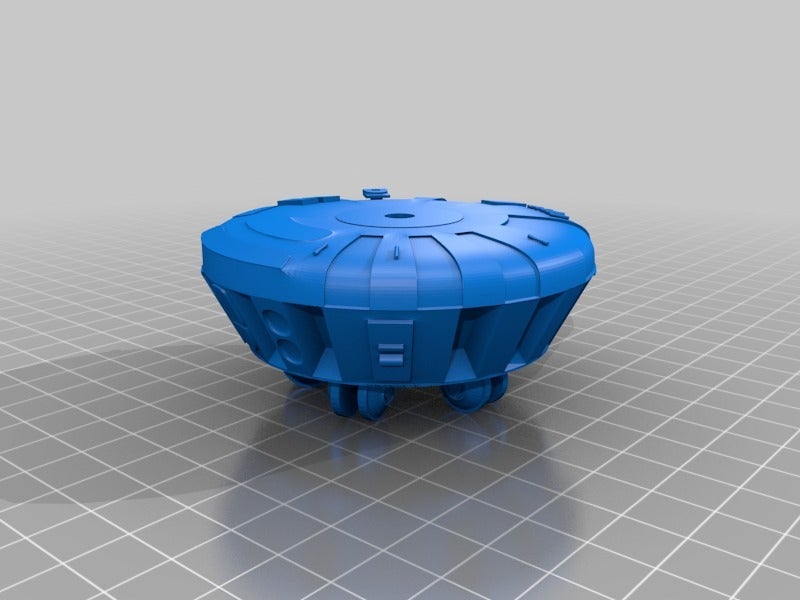

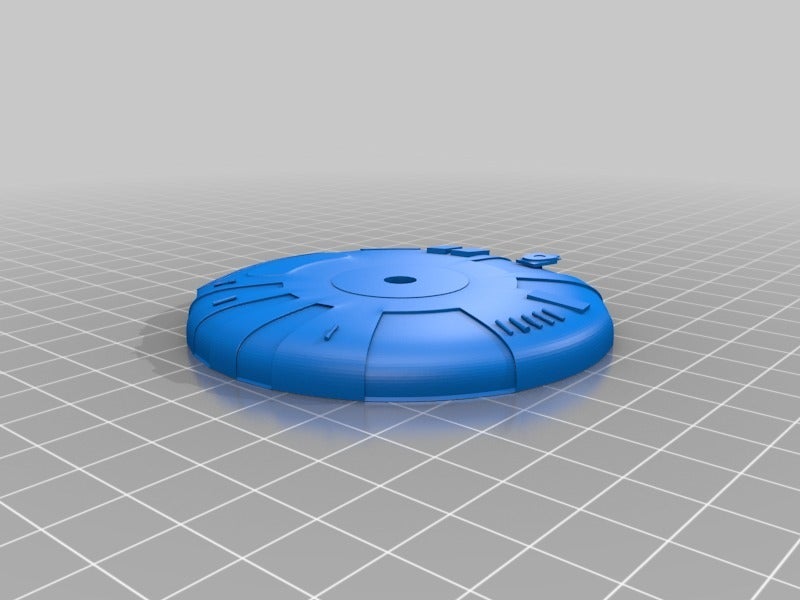

• Print one body top and one body bottom

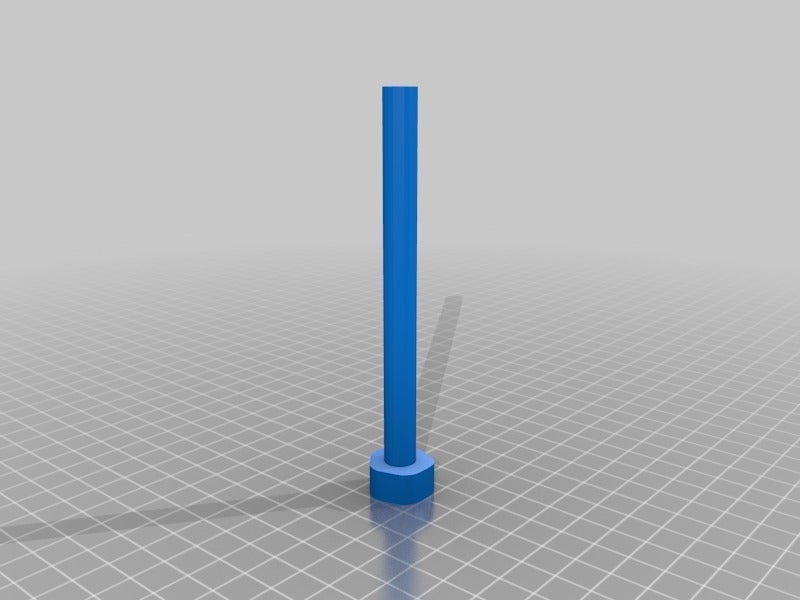

• Print display post with higher infill

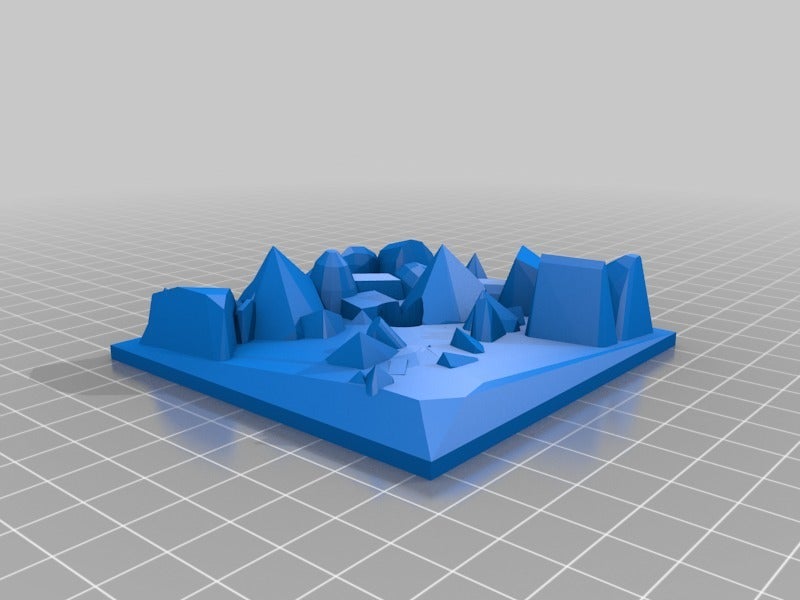

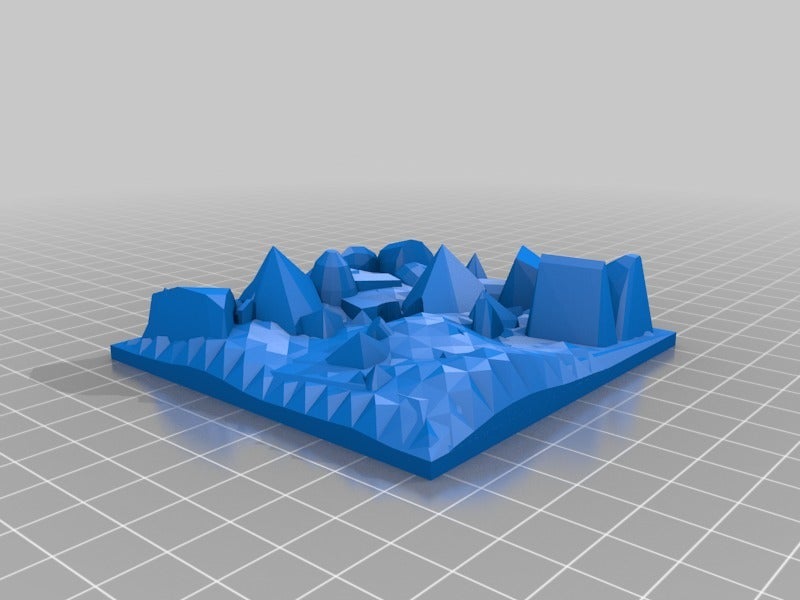

• Print the base - Hoth
  Assembly:

• Glue the body top to body bottom. You can align it to the full body or anyway you like.

• Glue the head parts together.
• For the legs, glue the upper and lower and the claw. Position them the way you like and then glue to the bottom body

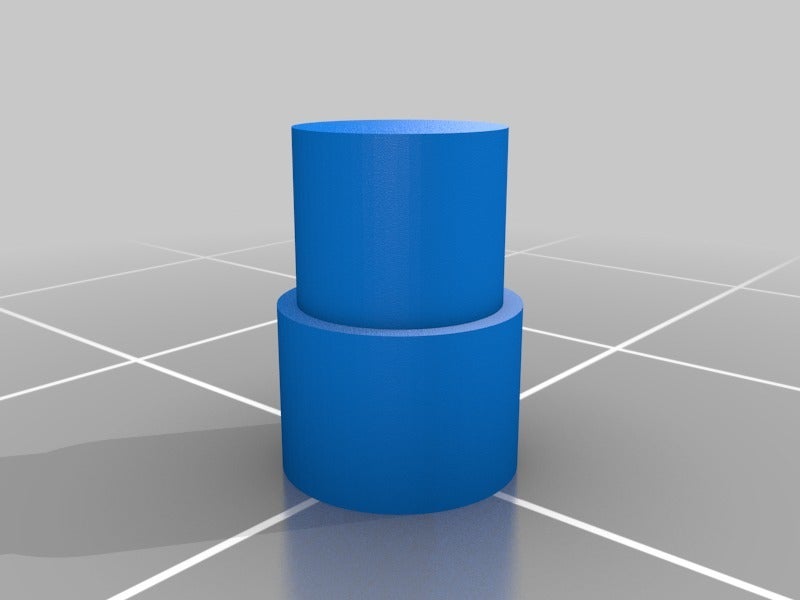

• Use the peg to hold the head to the body. This allows the head to spin on the body. You know for that critical missed shot against a big hairy monkey and that bag of mostly salty water named Nan.
• Glue the display post to the display stand
• For the long range comm antennas, I did not include them. You should take a piece of filament and heat it up and stretch it out. Cut 2 equal length pieces and glue on the antenna nubs. There's no point in trying to print these since it can't be done.

Print instructions

Category: Model Robots Print Settings

Printer Brand: MakerBot

Printer: MakerBot Replicator (5th Generation)

Rafts: Doesn't Matter

Supports: Yes

Resolution: .1mm

Infill: 10% or less

Notes:

I split this model so you can minimize support scarring. The Empire is coming. We've picked up something outside the base in zone twelve, moving east.
