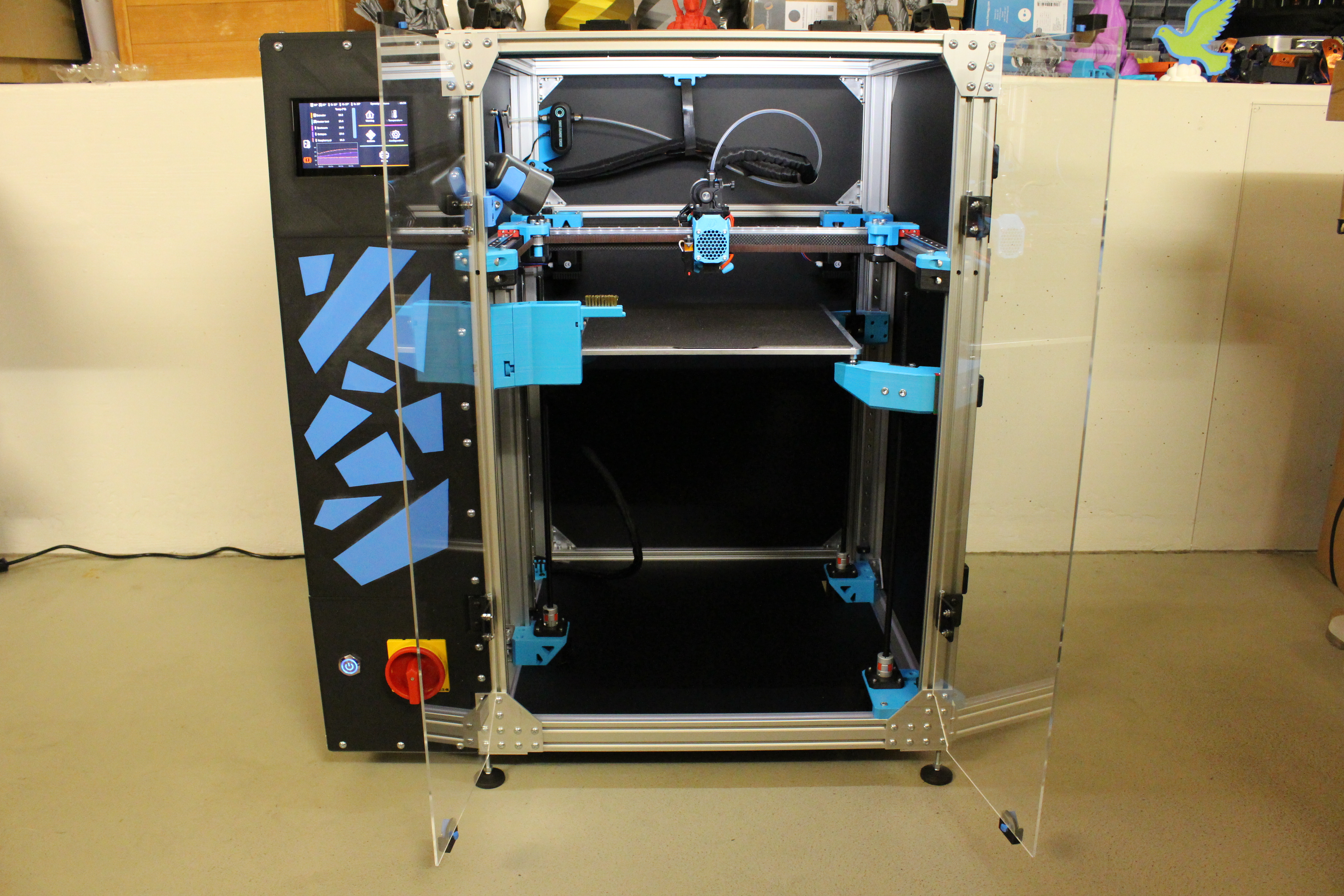

Here are the files of the Dynasty 3D printer, a large format printer with a core XY kinematic I developed. Most of the pieces are 3D printed, except the structure which is made of 2040 aluminum profiles. The full enclosure allows to easily print ABS but also PLA, PETG and even more. It batches all the features I found interesting on other printers I tried. Most of these features make a maximally optimized printer, which simplifies the user work and allows to save time. Moreover, Dynasty uses the Klipper firmware. More information are available on the Github. I've decided to share Dynasty's files to encourage people to build and/or develop their own printer.
Features list
Print volume 300x300x360mm
CoreXY kinematic
Easy maintenance
Sturdy Structure with 2040 Aluminium Profiles
Good speed and print quality (Good result at 100mm/s @ 3k accel)
Accepts spools of 2kg

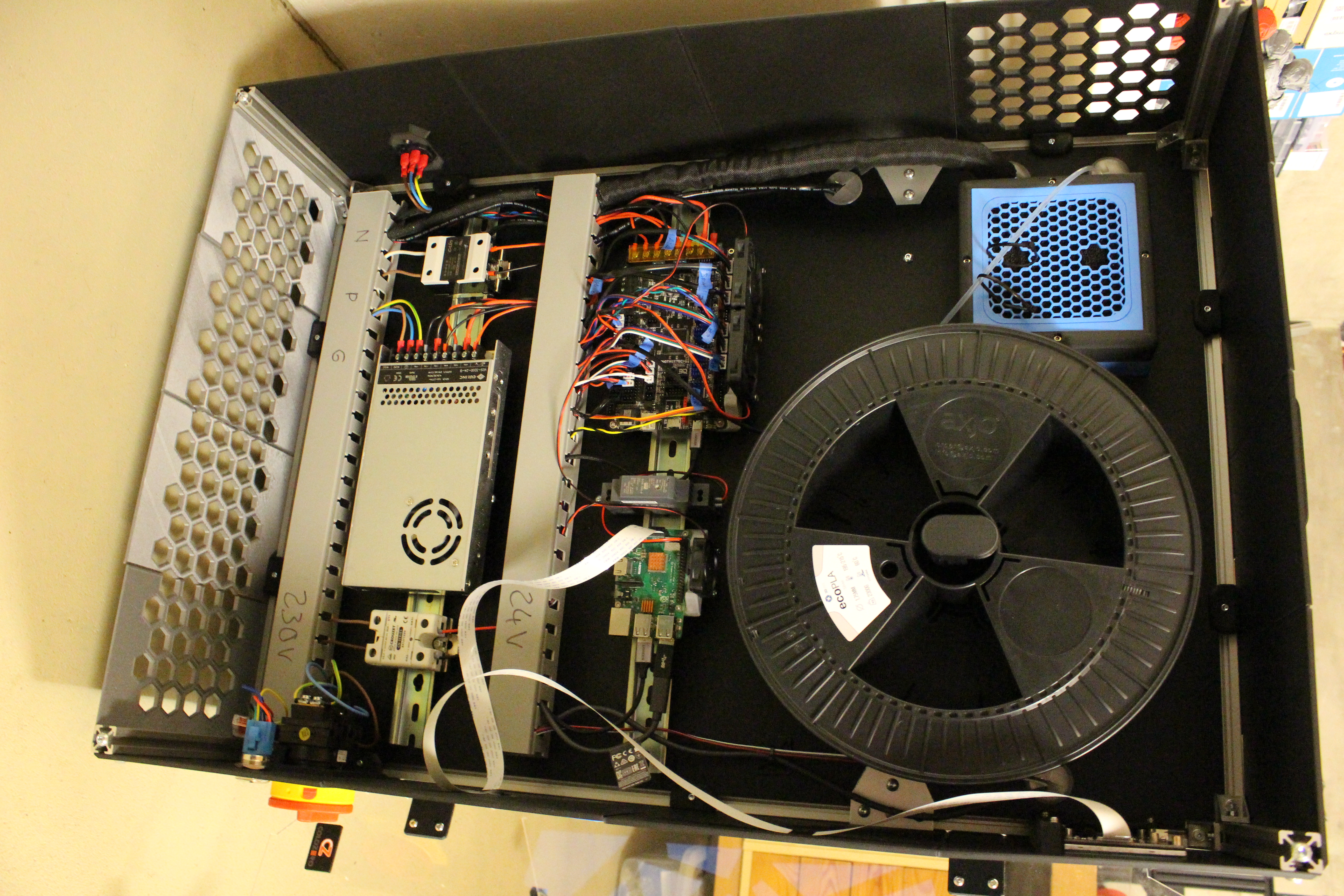

Electronic Bay
Full enclosure

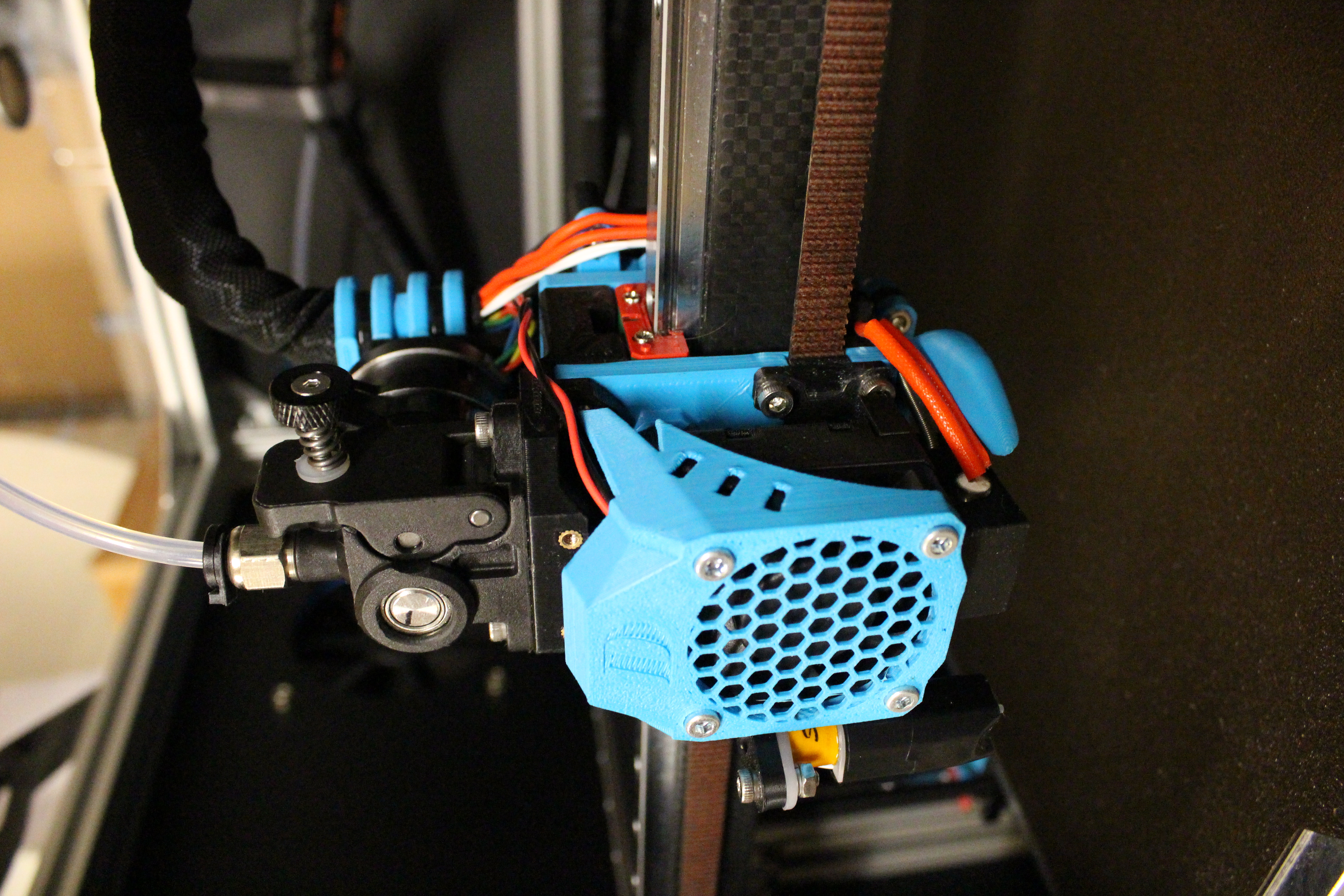

Direct drive extruder

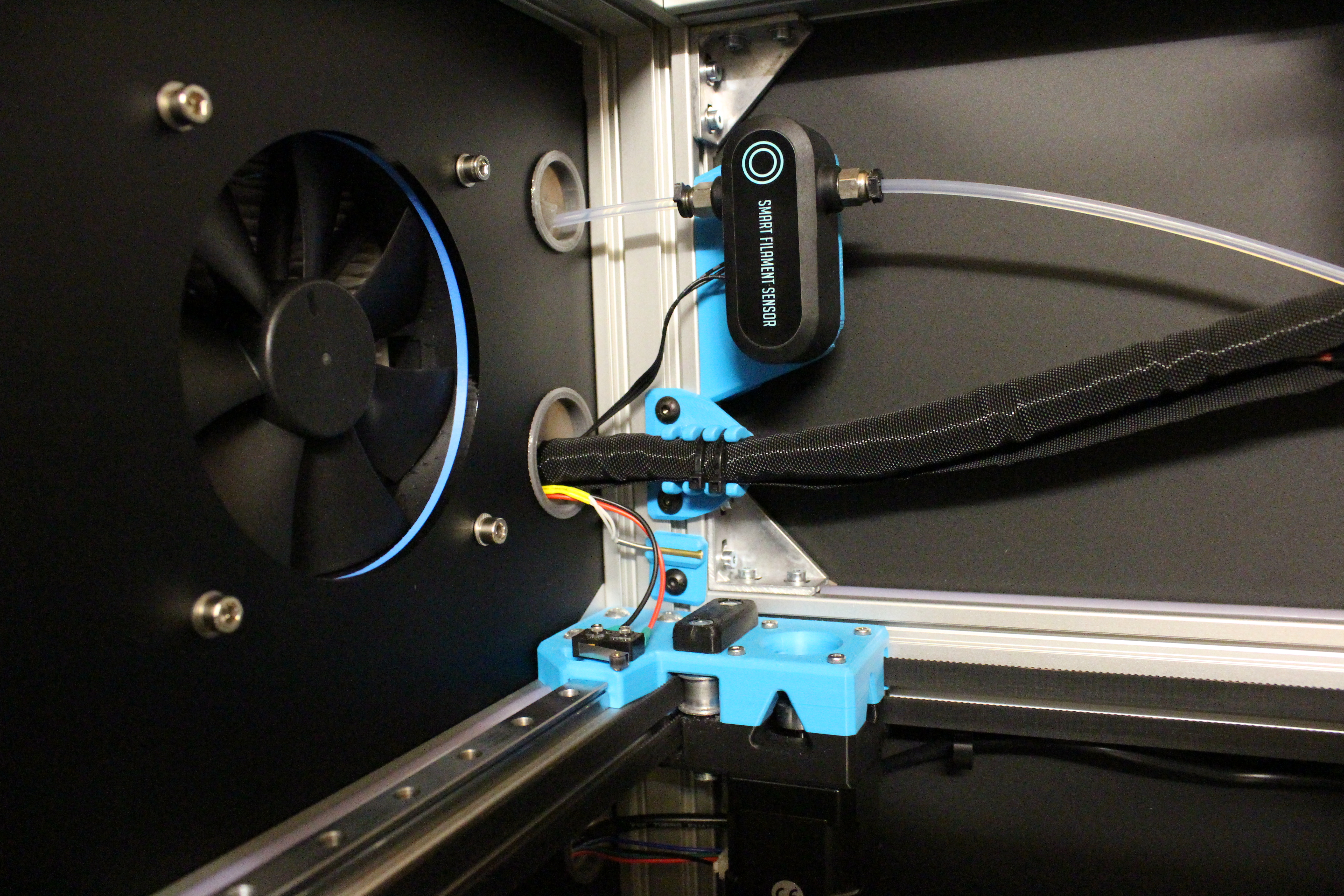

Filament fault detector
Purge Bucket
Bed thermal expension compensation
LED strip
Auto bed leveling
Access to the printer outside a local network
Streaming video
Timelapse
Automatic power off after print completion
Printing information
All files are available in .3MF and .STL format. Files with the prefix "a_" are printed with the secondary color. Blue is the secondary color of the reference model. Some files that need to be printed several times have the number of units to be printed as a suffix, for example "_x2". It is recommended to print the parts used inside the enclosure in ABS or any other equivalent plastic. Other parts that are not sensitive to temperature can be printed in PLA or PETG. Grommets are the exception. They are printed in TPU A95 to be flexible enough to let the cables pass through. Parts are printed with 0.2mm layer height and 40-60% infill. The motion system parts need to be solid, because they undergo mechanic constrains. For this reason, they need to be printed with 4-5 walls and 5 top and bottom layers.
Credit
Some of the files were created by other people. I have slightly reworked some of them to fit the printer. All credits go to their original creator and these files retain their original license. A complete list with credits is available on the Github. I have added these files to the others to have all the files available in one place.
Warning
Dynasty was supposed to be a personal project. Today, the project is achieved but it is still a prototype and some points could still be improve.
