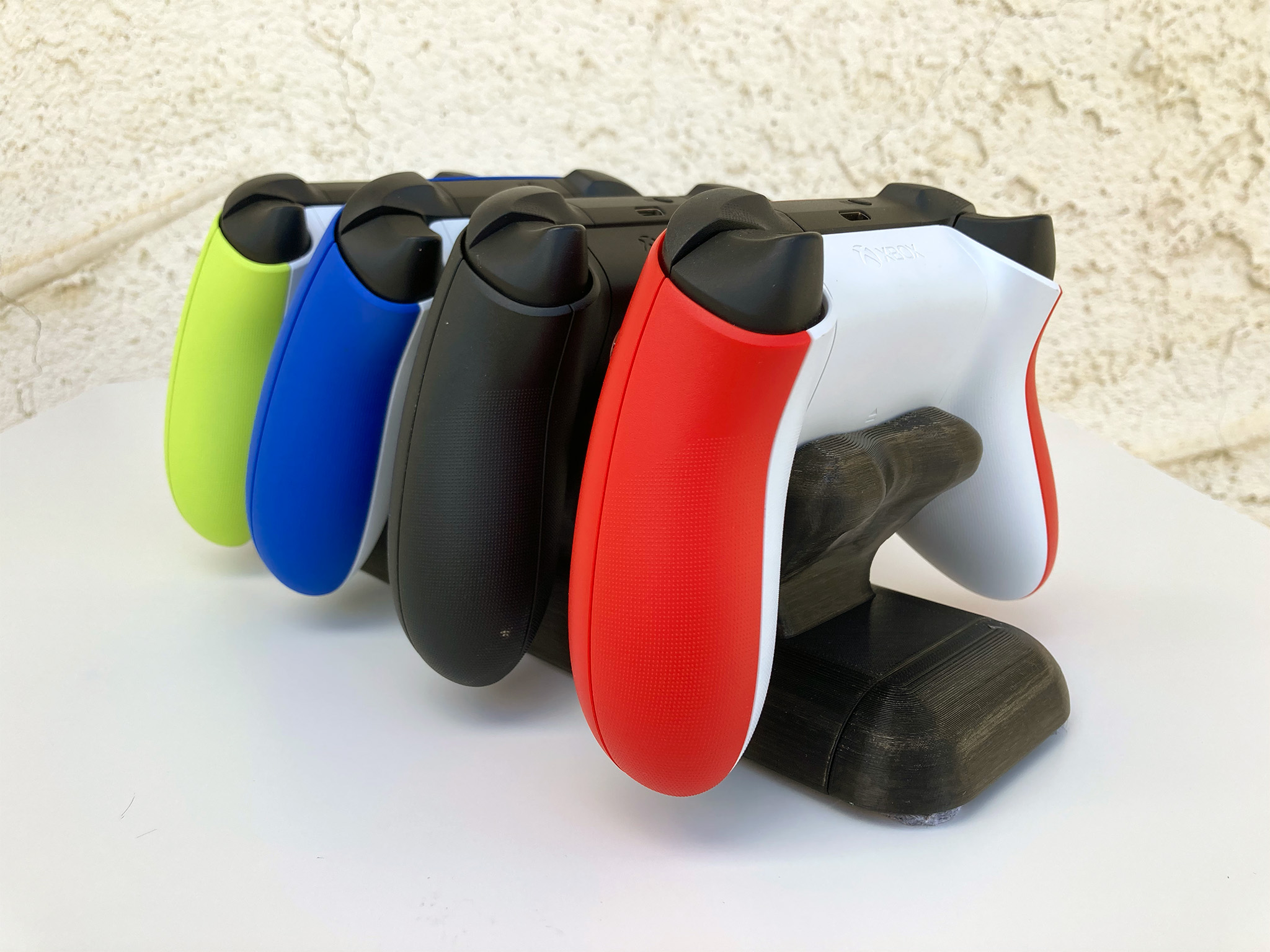

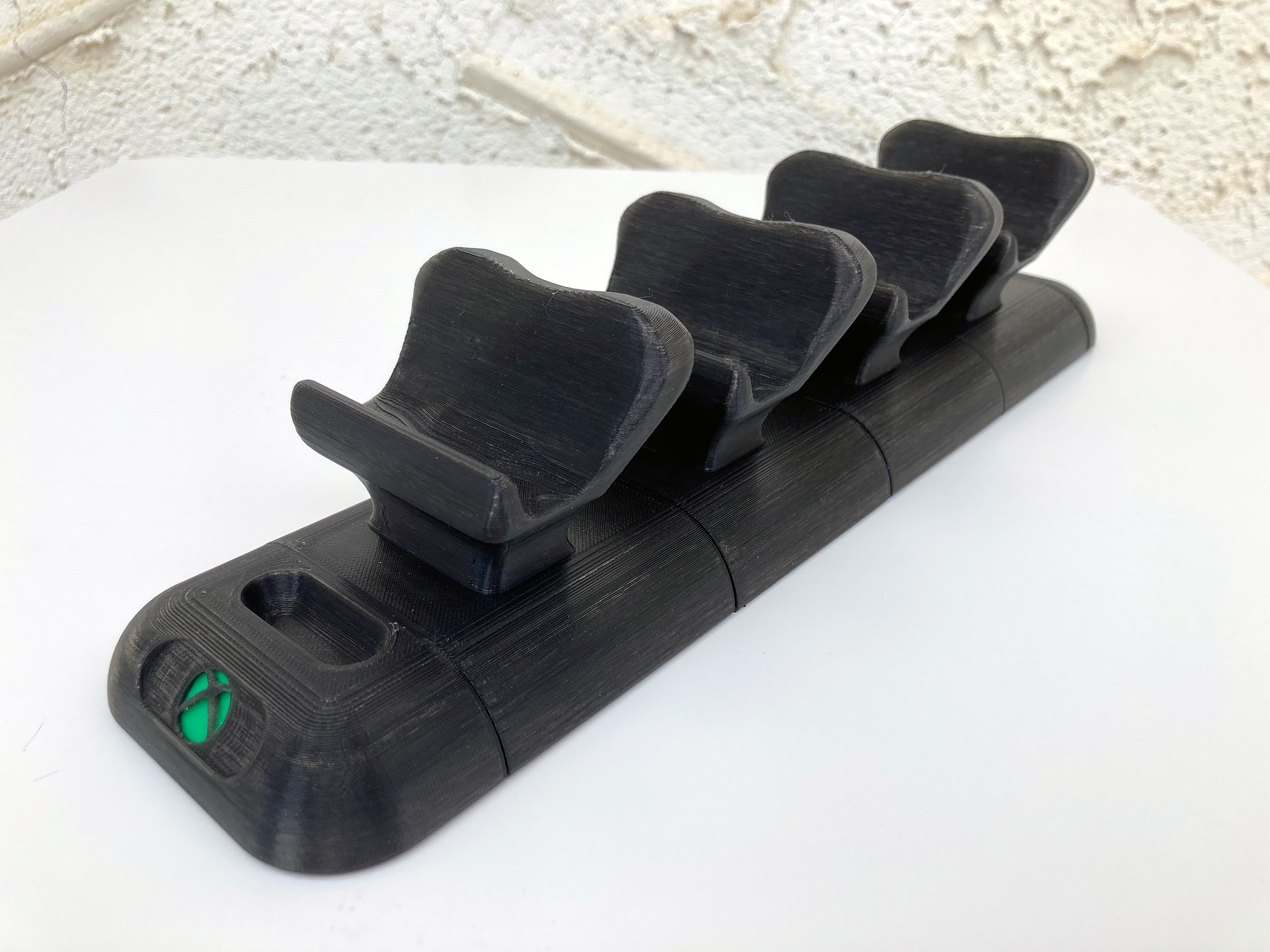

The Controller Couch is a modular controller stand for XBox Series X controllers. It securely displays 1 to 4 (or more!) XSX gamepads. It features a finger well to easily move the stand, as well as a user-selectable accent color behind the XBox logo.

Parts Required

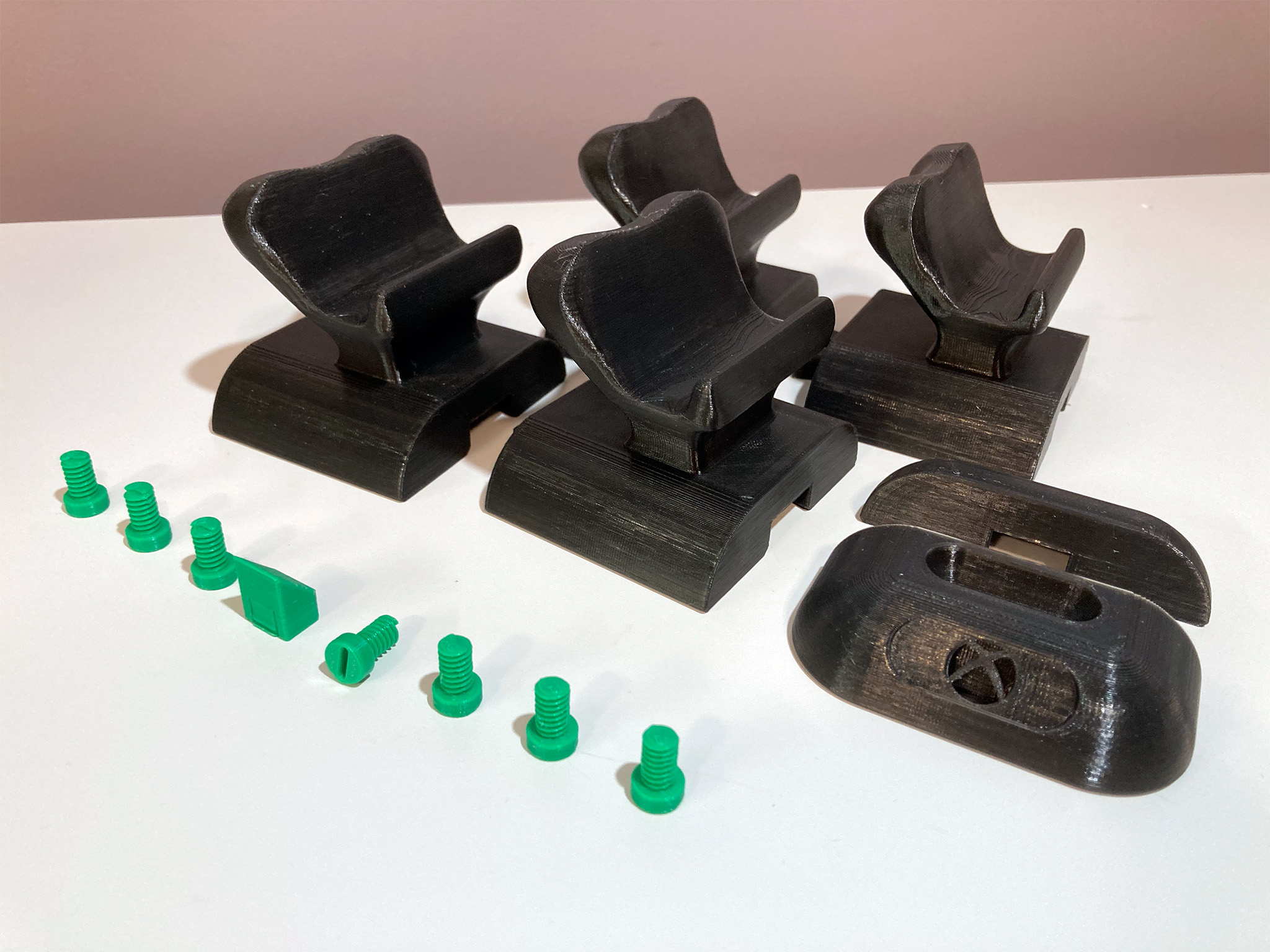

Everything you need to assemble the stand is included in the STL files. You need only decide how many mid-sections to print based on how many controllers you want to display.

Print Settings

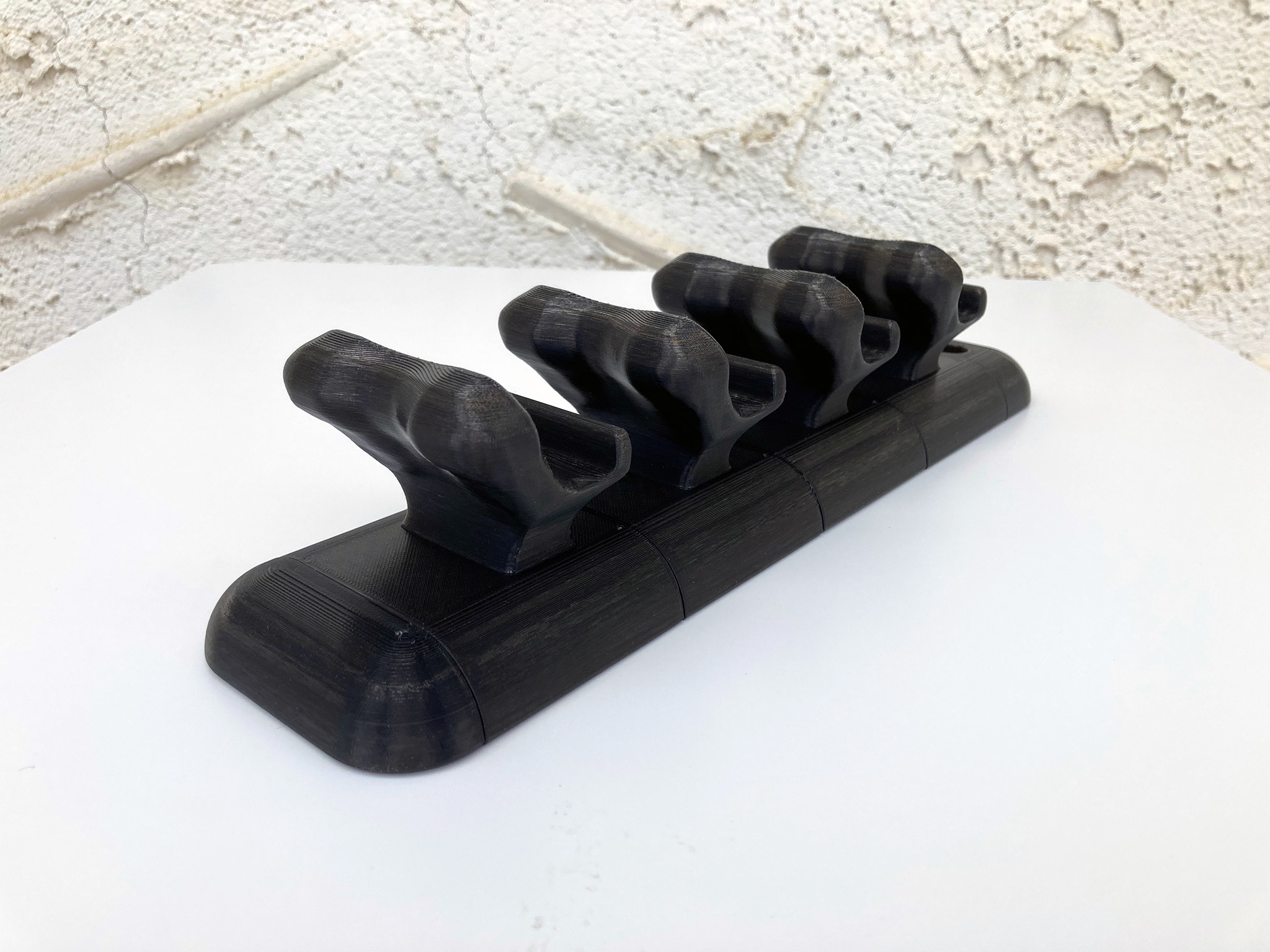

The assembly in the pictures was printed at the following settings:

• Printer: Prusa i3 MK3S+
• Print Settings
  • 0.4mm nozzle
  • 0.2mm layer height
  • 3 shells sides
  • 5 shells top and bottom
  • 15% infill
• Filament: eSun eStars Galaxy Black PLA + generic silk green PLA
• Supports: Yes
• Brim: none

Print Instructions

1. NOTE: All STL's are in imperial measurements (inches), not in millimeters.
2. I suggest printing the body components (front, back, midsection) separately from the screws + insert.
3. Print the screws at 100% infill.
4. Print the screws at 50% speed if you have issues with bed adhesion.

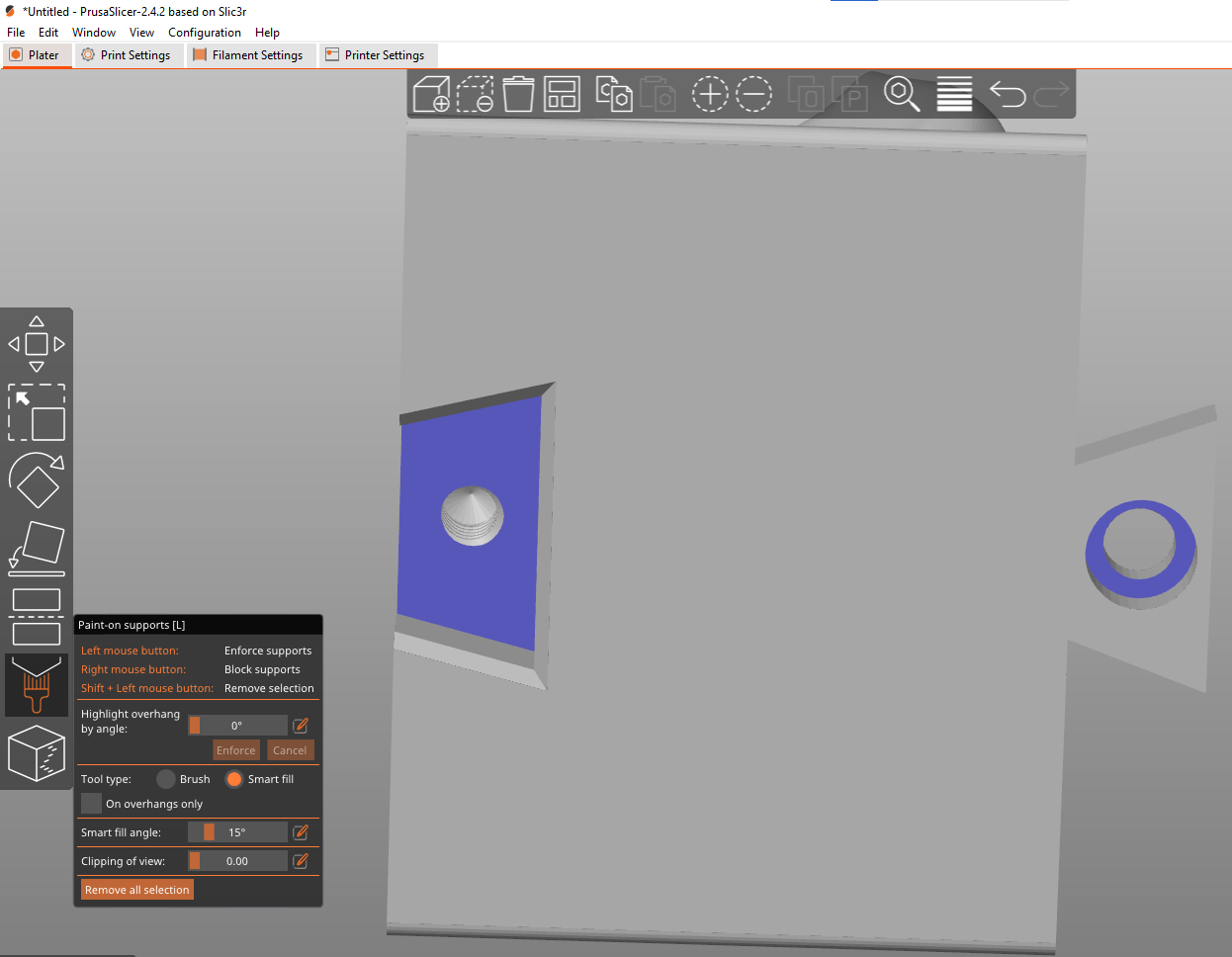

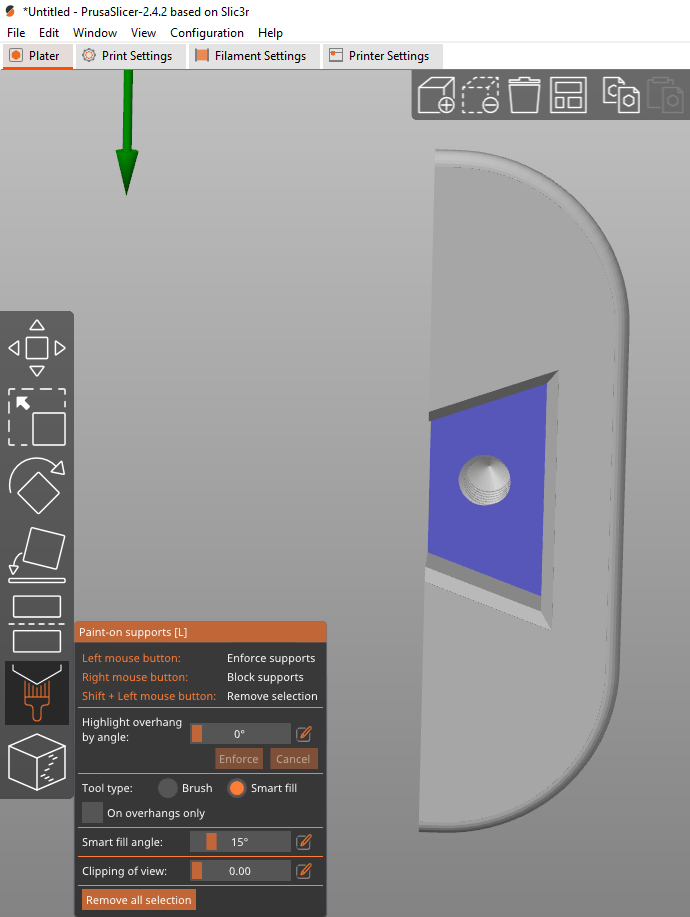

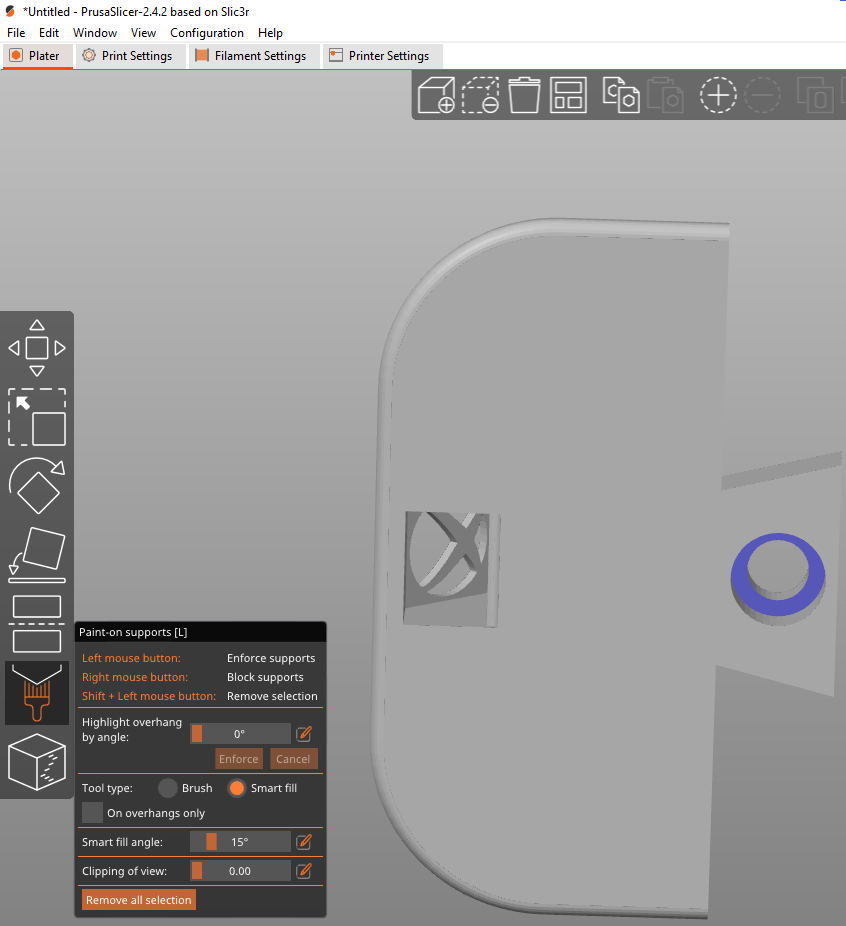

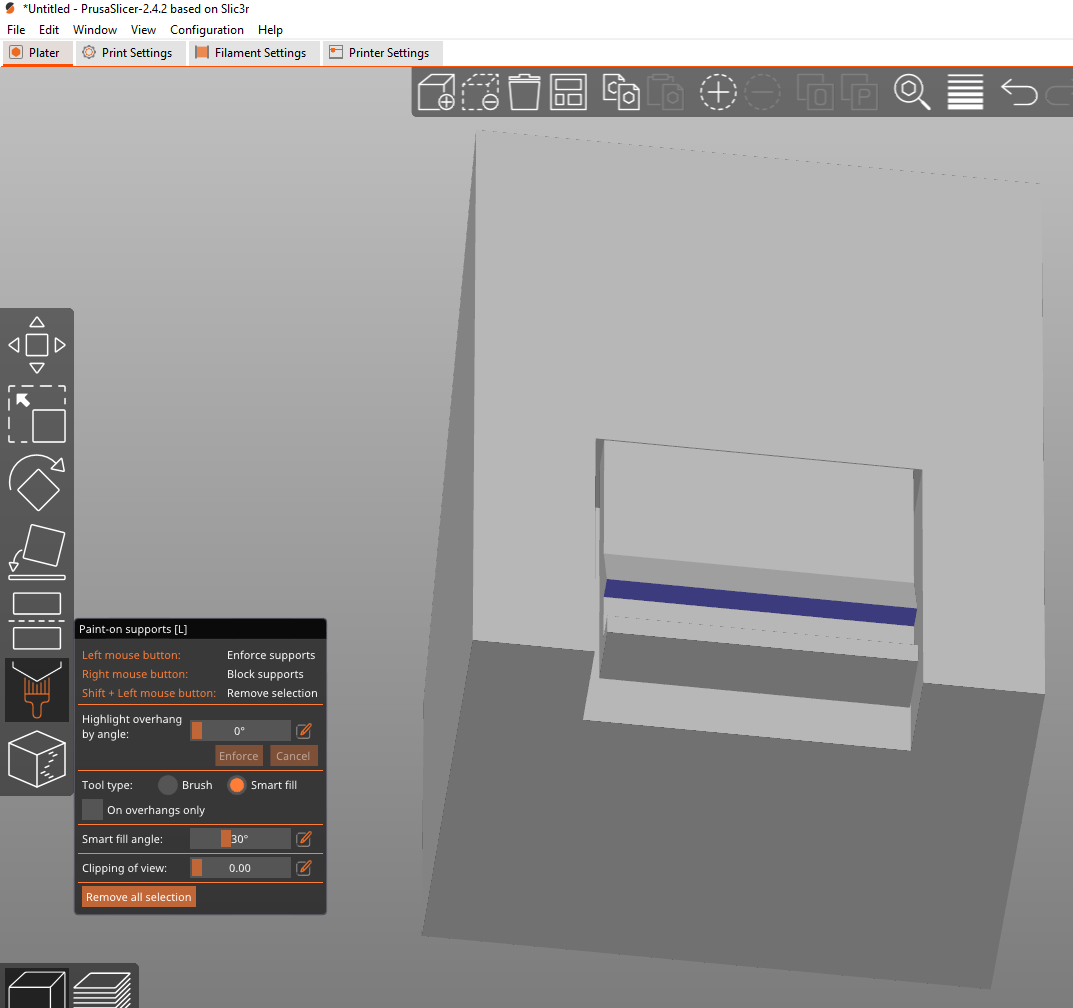

5. All parts except the screws need supports. I have included screenshots of where to paint the supports using your slicer software.

Assembly Instructions

1. Remove the supports from all pieces and clean up support surfaces so they're nice and smooth.
2. Snap the pieces into a chain using the dovetail joints.
3. Gently and firmly use a screwdriver to slowly tighten the screws. They should tighten until slightly sunk below the surface. Do not overtighten.
4. Slide the colored insert up into the cavity beneath the XBox logo.

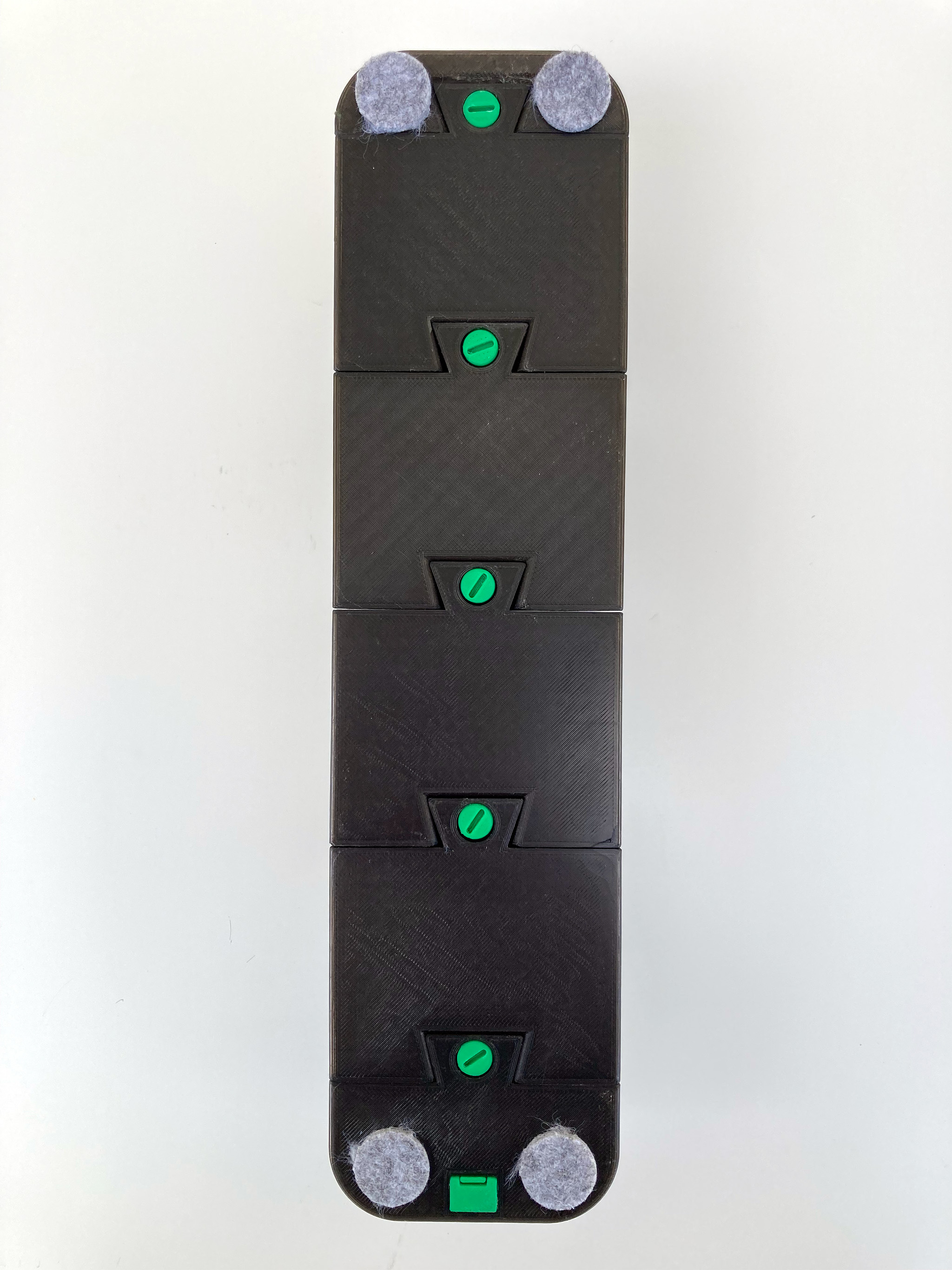

5. Place an adhesive felt pad in each corner of the stand.
6. Enjoy your sweet controller display stand!
