Descrição

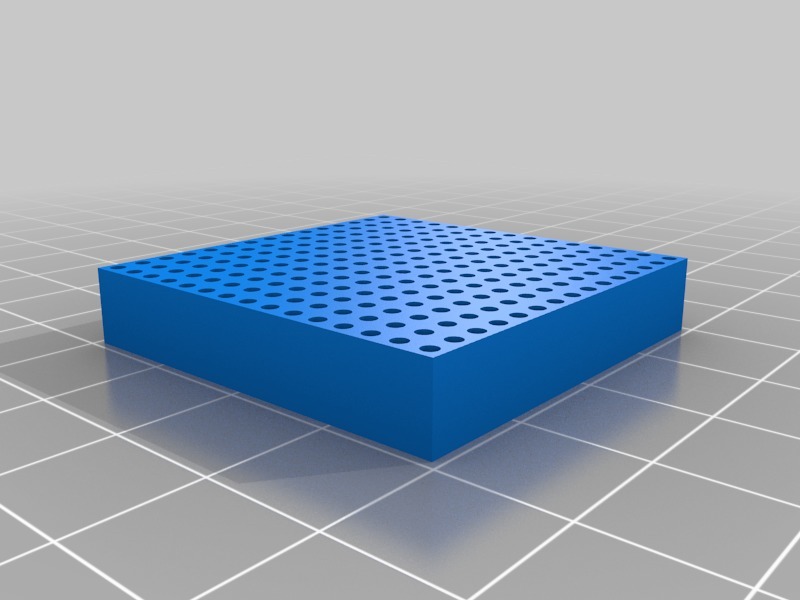

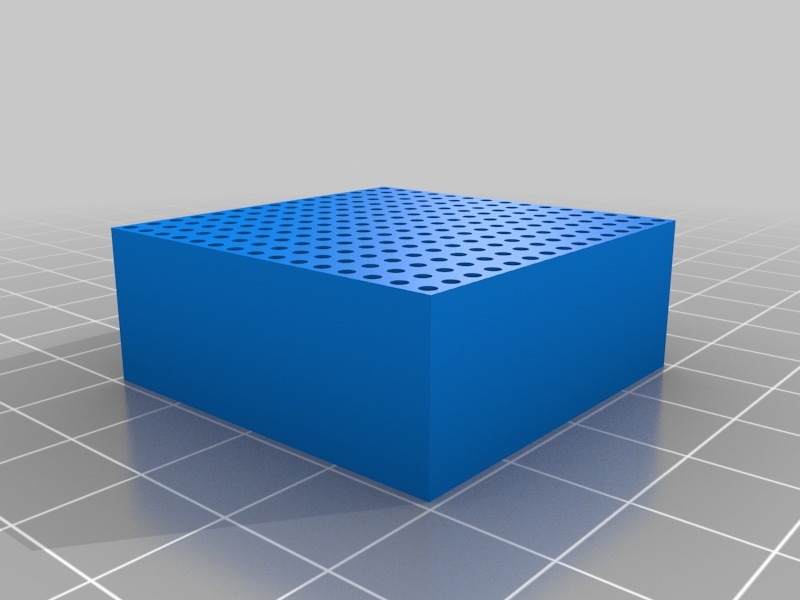

This is a soldering jig for helping align things like header pins on circuitboards that follow the 0.1 inch breadboard convention. The jig has 15 x 15 holes.
Both designs are the same except one has clip holders if you use something with alligator clips in your soldering station to hold and position parts.
Category: Electronics
161
Curtidas
732
Downloads
15
Impressões
Categoria
Electronics
Tags
jig
breadboard
thingiverse
Licença
Creative Commons — Attribution
Arquivos (3)
Breadboard_Jig_7mm.stl
6.3 MB
Breadboard_Jig_with_Clips.stl
6.3 MB
Breadboard_Jig.stl
6.3 MB
