Modelo 3D Socket Clip por wuguigui no Printables

Descrição

This is a height-adjustable socket clip, I designed it for fixing a socket in my kitchen.

In the beginning, I want to design something to fix the socket hanging under the cupboard. Then I think could it be something flexible for sockets of different sizes, not only for sockets but other kinds of stuff.

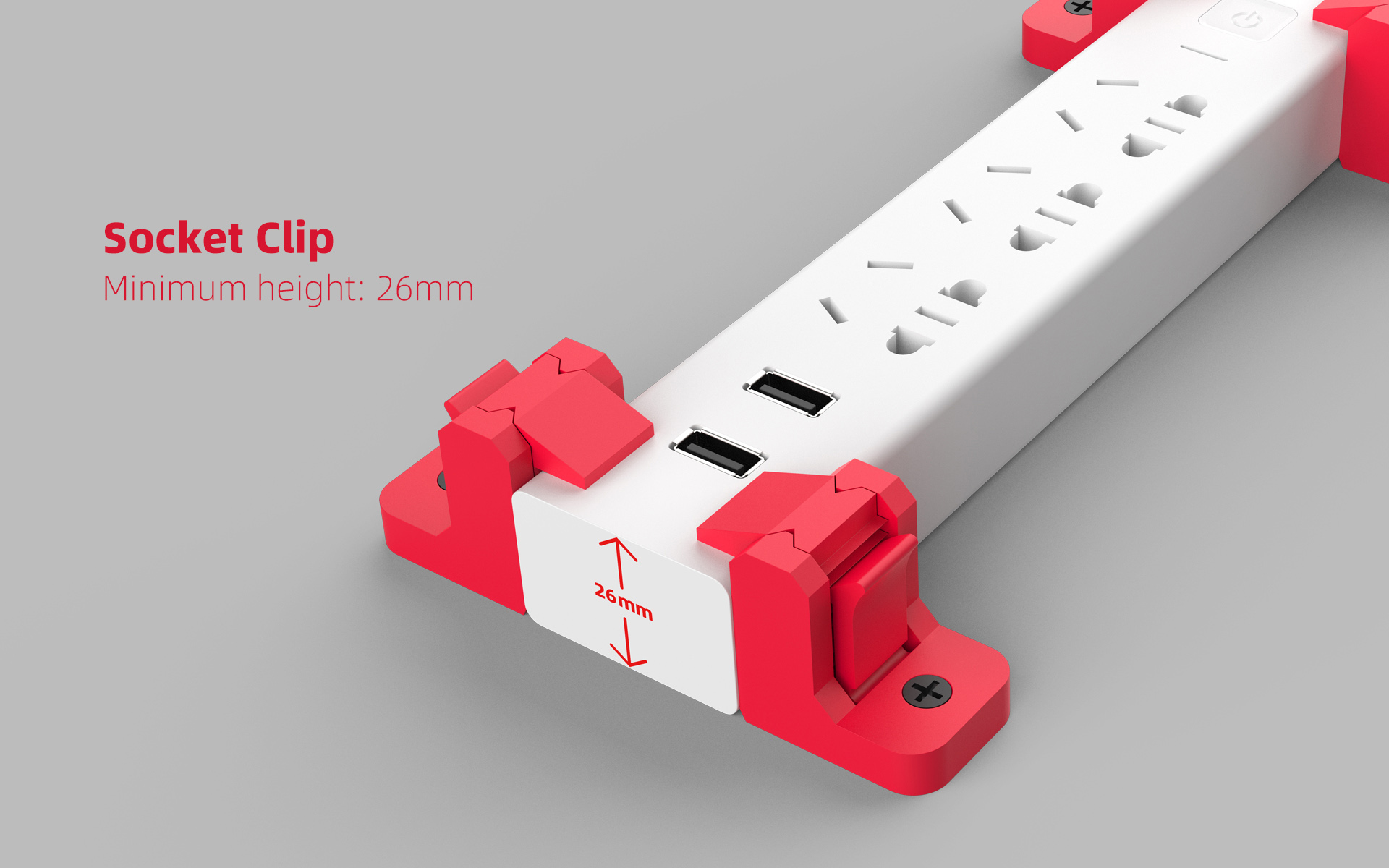

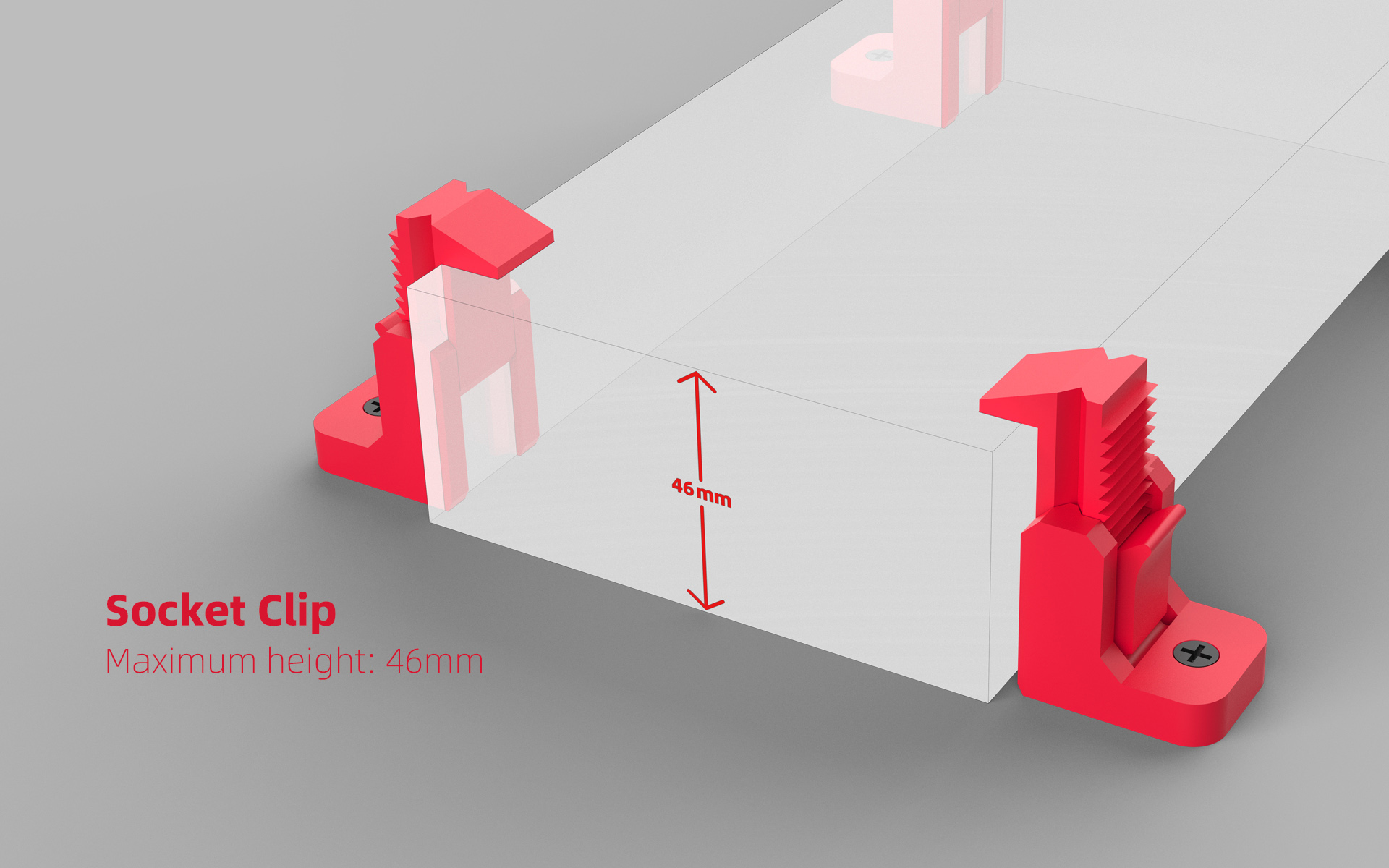

Now I have this. It's firm and easy to set up and fits from 26mm to 46mm height sockets. If you want to remove the socket, it has a release lever that can easily work.

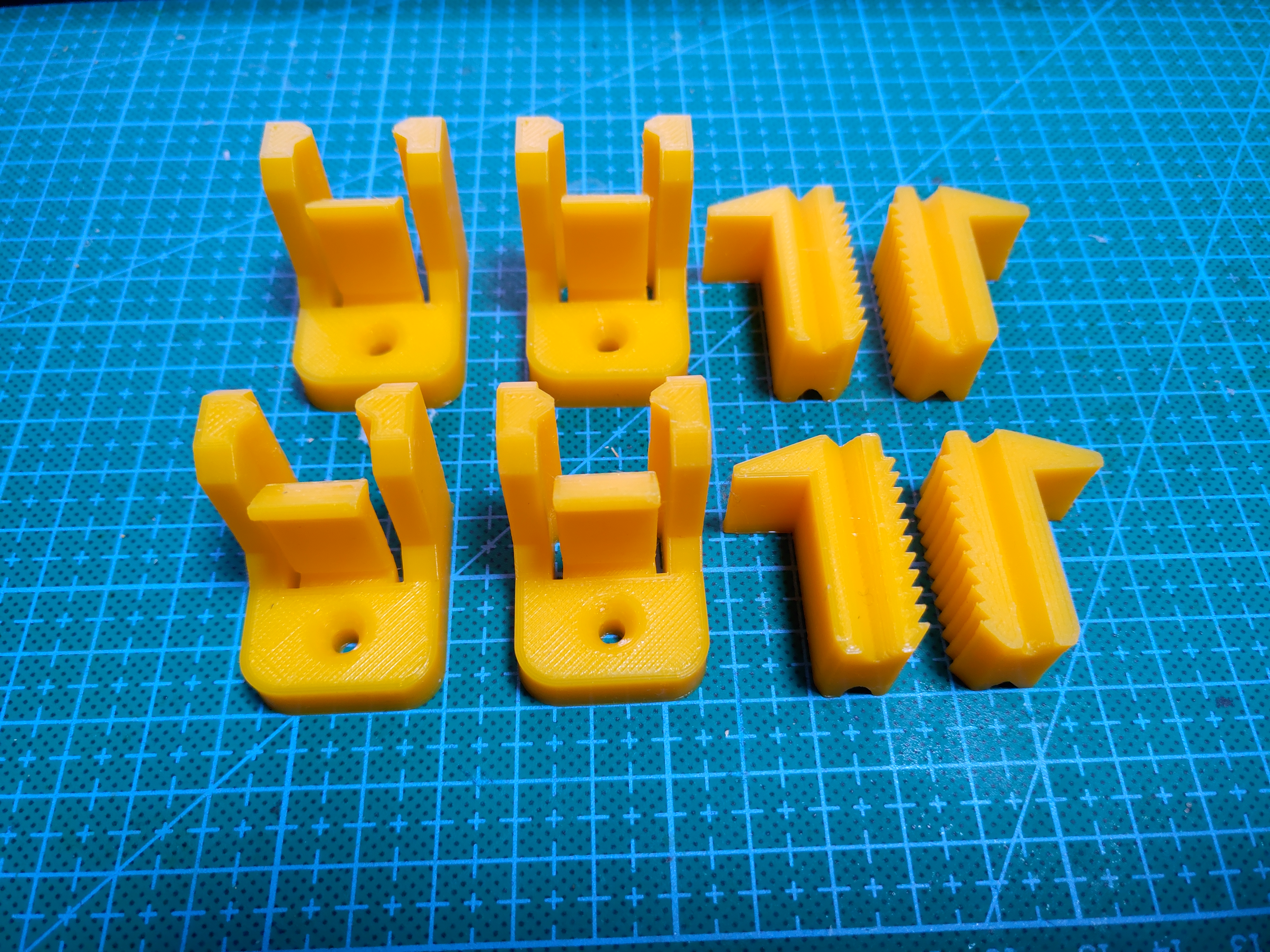

There are 2 different bases for flat head and button head screws. Only a little support is needed when printing the base, the clip is totally support-free. 0.1 layer height and 80% infill and "Grid" infill pattern are recommended for the reason of strength.

If you find it loose, scale "Socket_Clip-Clip.stl" a little larger in slicer software.
ESUN PLA+, Polymaker PLAplus, or PLAmax are recommended for the filaments.

All the introductions are in the images, enjoy!

Printables

Socket Clip

Publicado em 5 de mar de 2023

470
Curtidas
969
Downloads
15
Impressões
Categoria Tools
Tags
clip socket sockets outlet electricaloutlet
Licença Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (3)
Socket Clip-Base-Flat Head.stl 455.3 KB
Socket Clip-Base-Button Head.stl 479.8 KB
Socket Clip-Clip.stl 95.5 KB
